Toyota Dyna/toyoace XZU382 TRANSFER LEVER & SHIFT ROD

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU382-TQMMS3 (1999)
3611 - TRANSFER LEVER & SHIFT ROD

XZU382-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

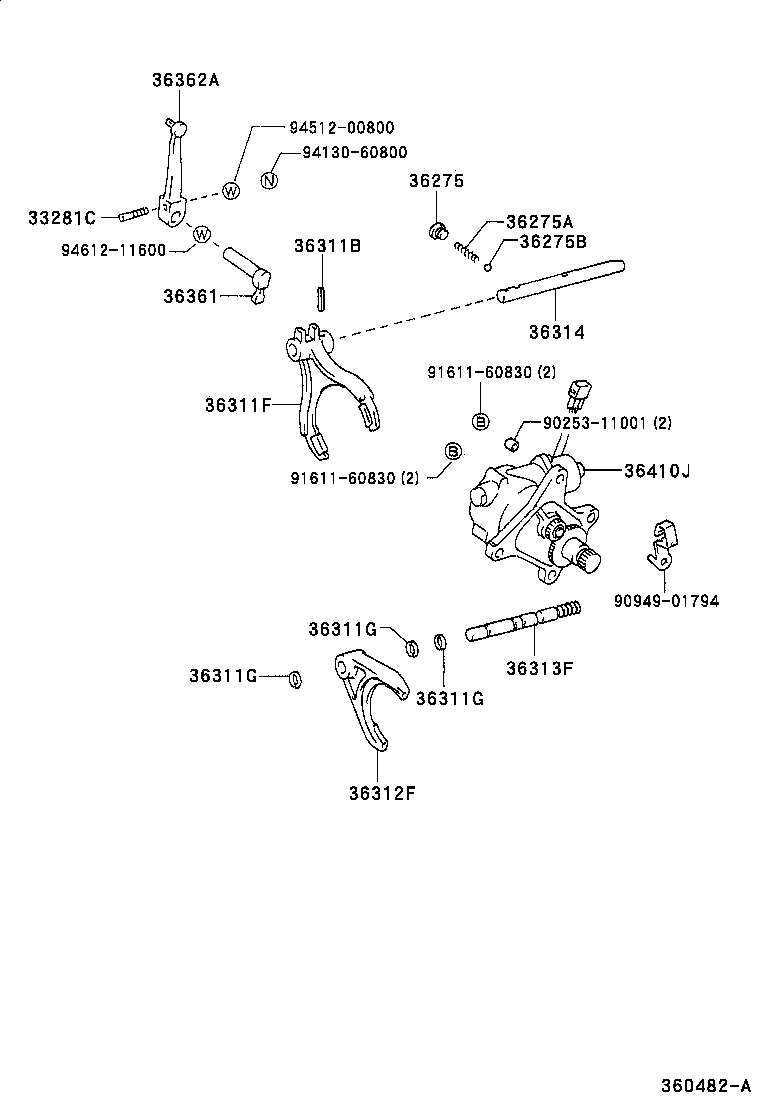

ILLUST NO. 2 OF 2(9907- )XZU362,371,372,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
33281C - PIN, LEVER LOCK
33281-16020	XZU362,371,372,382	07/1999 - 12/2999	1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12008	XZU362,371,372,382	07/1999 - 12/2999	1
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-14134	XZU362,371,372,382 長さ=27.1	07/1999 - 12/2999	1
36275B - BALL, SHIFT DETENT
90360-10003	XZU362,371,372,382 外径=9.52,ｽﾁｰﾙ	07/1999 - 12/2999	1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05016	XZU362,371,372,382 長さ=25.5	07/1999 - 12/2999	1
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-36010	XZU362,371,372,382	07/1999 - 12/2999	1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004	XZU362,371,372,382	07/1999 - 12/2999	3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004	XZU362,371,372,382	07/1999 - 12/2999	3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004	XZU362,371,372,382	07/1999 - 12/2999	3
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36312-60050	XZU362,371,372,382	07/1999 - 12/2999	1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-36010	XZU362,371,372,382	07/1999 - 12/2999	1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-36010	XZU362,371,372,382	07/1999 - 12/2999	1
36361 - LEVER, TRANSFER SHIFT, INNER
36361-36010	XZU362,371,372,382	07/1999 - 12/2999	1
36362A - LEVER, TRANSFER SHIFT, OUTER
36362-60030	XZU362,371,372,382	07/1999 - 12/2999	1
36410J - ACTUATOR ASSY, TRANSFER SHIFT
36410-36014	XZU362,371,372,382	07/1999 - 12/2999	1
Common parts
90253-11001
90949-01794
91611-60830
94130-60800
94512-00800
94612-11600

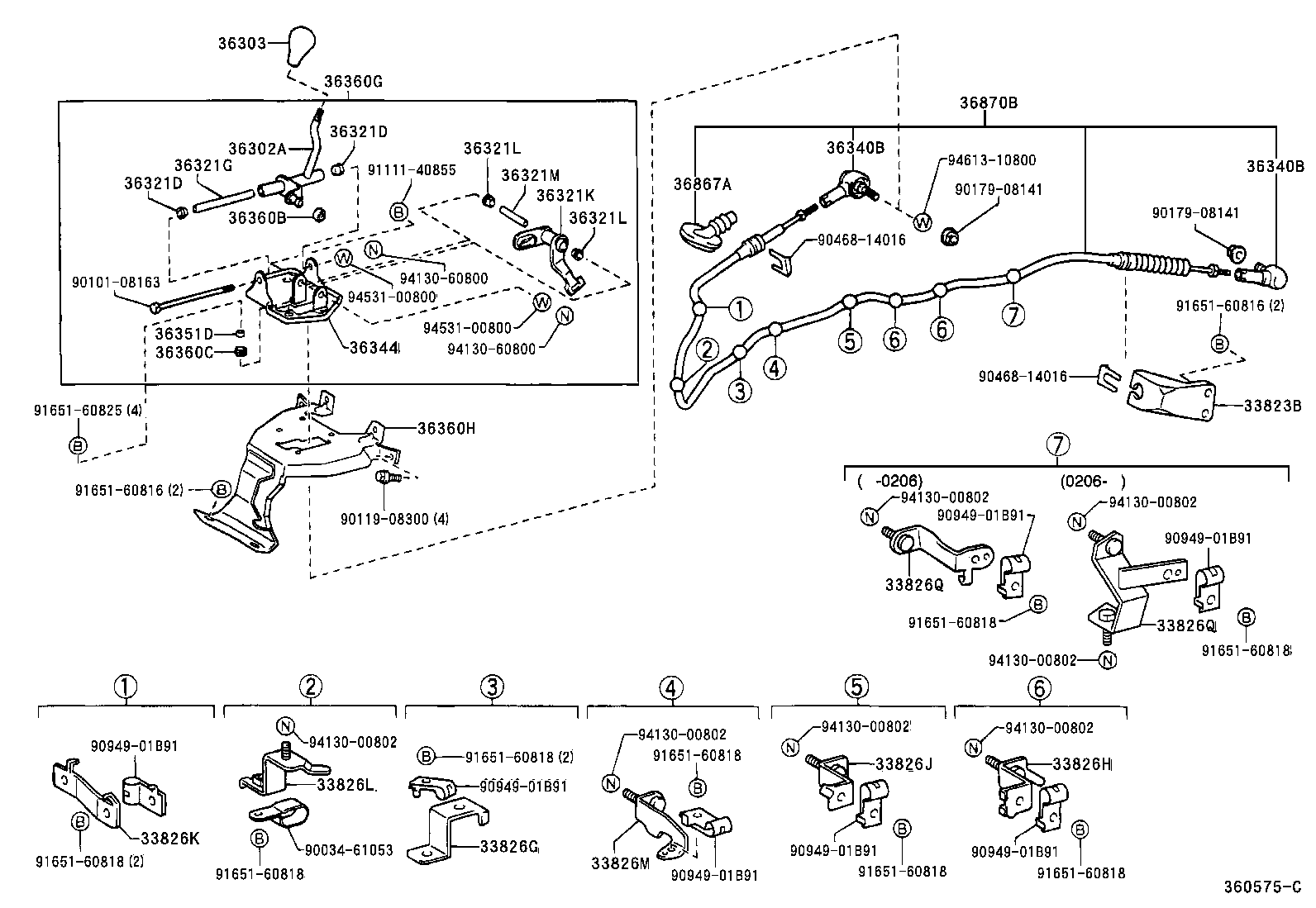

ILLUST NO. 1 OF 2(9907- )XZU362,371,372,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
33823B - BRACKET, TRANSFER CONTROL CABLE
33823-37430	XZU362,371,372,382	07/1999 - 12/2999	1
33826G - BRACKET, TRANSFER CONTROL CABLE, NO.1
33826-37260	XZU362,371,372,382	07/1999 - 12/2999	1
33826H - BRACKET, TRANSFER CONTROL CABLE, NO.2
33826-37440	XZU362,371,372,382	07/1999 - 12/2999	2
33826J - BRACKET, TRANSFER CONTROL CABLE NO.3
33826-37450	XZU362,371,372,382	07/1999 - 12/2999	1
33826K - BRACKET, TRANSFER CONTROL CABLE NO.4
33826-37660	XZU362,371,372,382..1NO	07/1999 - 12/2999	1
33826-37650	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	07/1999 - 12/2999	1
33826K - BRACKET, TRANSFER CONTROL CABLE NO.4
33826-37660	XZU362,371,372,382..1NO	07/1999 - 12/2999	1
33826-37650	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	07/1999 - 12/2999	1
33826L - BRACKET, TRANSFER CONTROL CABLE NO.5
33826-37640	XZU362,371,372,382	07/1999 - 12/2999	1
33826M - BRACKET, TRANSFER CONTROL CABLE NO.6
33826-37700	XZU362,371,372,382	07/1999 - 12/2999	1
33826Q - BRACKET, TRANSMISSION CONTROL CABLE NO.8
33826-37860	XZU362,371,372,382	06/2002 - 12/2999	1
33826-37710	XZU362,37#,382	07/1999 - 06/2002	1
33826Q - BRACKET, TRANSMISSION CONTROL CABLE NO.8
33826-37860	XZU362,371,372,382	06/2002 - 12/2999	1
33826-37710	XZU362,37#,382	07/1999 - 06/2002	1
36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1
36302-37030	XZU362,371,372,382	07/1999 - 12/2999	1
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-37020B0	XZU362,37#,382 DK.CHARCOAL,TRIM1#	07/1999 - 06/2004	1
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006	XZU362,371,372,382	07/1999 - 12/2999	2
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006	XZU362,371,372,382	07/1999 - 12/2999	2
36321G - COLLER (FOR TRANSFER SHIFT LEVER)
90440-11007	XZU362,371,372,382	07/1999 - 12/2999	1
36321K - BELL CRANK, TRANSFER SHIFT LEVER
36321-37010	XZU362,371,372,382	07/1999 - 12/2999	1
36321L - BUSH (FOR TRANSFER SHIFT LEVER BELL CRANK)
90386-13007	XZU362,371,372,382	07/1999 - 12/2999	2
36321L - BUSH (FOR TRANSFER SHIFT LEVER BELL CRANK)
90386-13007	XZU362,371,372,382	07/1999 - 12/2999	2
36321M - COLLAR (FOR TRANSFER SHIFT LEVER BELL CRANK)
90387-08161	XZU362,371,372,382	07/1999 - 12/2999	1
36340B - END ASSY (FOR HIGH & LOW SHIFT ROD)
33740-26010	XZU362,371,372,382	07/1999 - 12/2999	2
36340B - END ASSY (FOR HIGH & LOW SHIFT ROD)
33740-26010	XZU362,371,372,382	07/1999 - 12/2999	2
36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER
36344-37010	XZU362,371,372,382	07/1999 - 12/2999	1
36351D - GROMMET (FOR HIGH & LOW SHIFT ROD)
90480-13012	XZU362,371,372,382	07/1999 - 12/2999	4
36360B - SEAT, TRANSFER SHIFT LEVER BALL
37352-37010	XZU362,371,372,382	07/1999 - 12/2999	1
36360C - COLLAR (FOR TRANSFER SHIFT LEVER RETAINER)
90387-09011	XZU362,371,372,382	07/1999 - 12/2999	4
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-37030	XZU362,371,372,382	07/1999 - 12/2999	1
36360H - BRACKET(FOR TRANSFER SHIFT LEVER)
59027-37040	XZU362,371,372,382	07/1999 - 12/2999	1
36867A - SEAL, PACKING
36867-37010	XZU362,371,372,382	07/1999 - 12/2999	1
36870B - CABLE ASSY, TRANSFER CONTROL
36870-37080	XZU362,372,382..1NO	07/1999 - 12/2999	1
36870-37070	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	07/1999 - 12/2999	1
Common parts
90034-61053
90034-61055
90101-08163
90119-08300
90179-08038
90468-14016
90949-01B91
91111-40855
91611-61020
91641-80616
91651-60816
91651-60818
91651-60825
94130-00802
94130-60800
94531-00800
94613-10800

ILLUST NO. 2 OF 2(9908-0406)XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90253-11001
90949-01794
91611-60830
94130-60800
94512-00800
94612-11600

ILLUST NO. 1 OF 2(9908-0406)XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90034-61053
90101-08163
90119-08300
90179-08141
90468-14016
90949-01B91
91111-40855
91651-60816
91651-60818
91651-60825
94130-00802
94130-60800
94531-00800
94613-10800
