Toyota Dyna/toyoace XZU382 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU382-TQMMS3 (1999)
3312 - SHIFT LEVER & RETAINER

XZU382-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0406)MTM ; (0406- )5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-37040	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	07/1999 - 06/2004	1
33055-37050	XZU362..1NO;XZU306..T5..DSLL;XZU301,306..5F..(CNG,DSL,LPG);XZU301,341..T4..MTM..DSLL..IV3;XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,341,342,346,347,35#,37#,382..5F ｶﾄｳｼｷｼﾌﾄﾚﾊﾞ-	05/1999 - 06/2004	1
33055-37060	XZU362..1NO;XZU306..T5..DSLL;XZU301,306..5F..(CNG,DSL,LPG);XZU301,341..T4..MTM..DSLL..IV3;XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,341,342,346,347,35#,37#,382..5F ｺﾃｲｼｷｼﾌﾄﾚﾊﾞ-	05/1999 - 06/2004	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-37040B0	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382..5F DK.CHARCOAL,TRIM1#	05/1999 - 06/2002	1
33504-36051B1	RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;RZU300,XZU301,302,306,342..5F..(DSL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,341,346,347,35#,362,37#,382..5F DK.CHARCOAL,TRIM1#	06/2002 - 06/2004	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-37030	XZU362..1NO;BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..MTM	05/1999 - 05/2000	1
33506-37021	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	05/2000 - 06/2004	1
33506-37020	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	07/1999 - 05/2000	1
33506-37031	XZU362..1NO;XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,37#,382..MTM	05/2000 - 06/2004	1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
90386-12056	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33577-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
33534 - BELLCRANK, SELECTING
33534-37060	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33539 - CUSHION, SHIFT LEVER ANTI-RATTLE
33539-12010	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12040	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33586-37010	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	2
33602D - COLLAR (FOR SELECT LEVER)
90387-08063	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03034	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-37020	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
33769A - SPRING, CROSS SHAFT END
33769-37020	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
Common parts
33529-37020
33529-37030
90119-08190
90179-08054
90387-08159
90389-11006
91111-50840
91611-B0614
94512-00800
94613-10601
94613-10800
96151-01700
Linked diagrams
5855

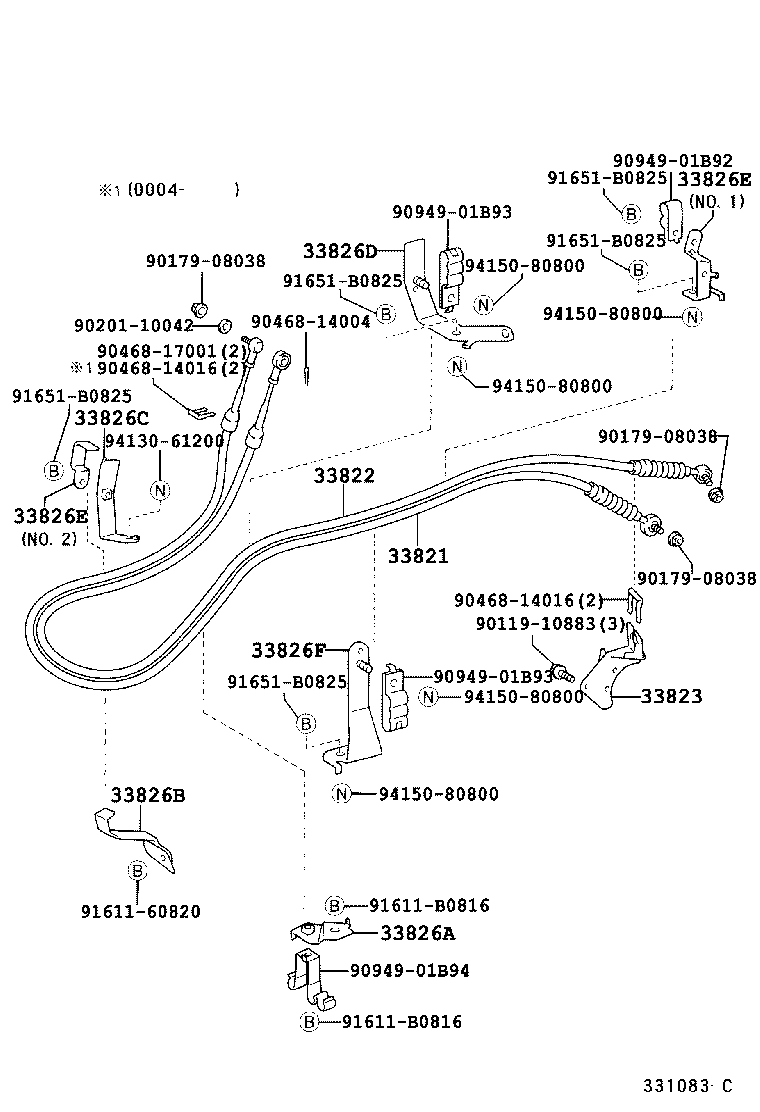

ILLUST NO. 2 OF 2(9907-0406)XZU362,37#,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
33820J - CLIP(FOR TRANSMISSION CONTROL CABLE)
90468-17001	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM TYPE A:ｲﾗｽﾄ参照	05/1999 - 05/2000	2
90468-14016	XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU302,306,321,340..(DM3,DM8,T3,T4,T5)..MTM..DSL;BU30#,346,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(175T,20T,295T,30T)..(DSL,DSLL) TYPE B:ｲﾗｽﾄ参照	05/2000 - 06/2004	2
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-3V152	XZU362,372,382..1NO	09/2001 - 11/2003	1
33820-37860	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),PNC 33820J=TYPE A	07/1999 - 05/2000	1
33820-3V150	XZU362,372,382..1NO PNC 33820J=TYPE A	07/1999 - 05/2000	1
33820-37861	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),PNC 33820J=TYPE B	05/2000 - 09/2001	1
33820-3V151	XZU362,372,382..1NO PNC 33820J=TYPE B	05/2000 - 09/2001	1
33820-37862	XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	09/2001 - 11/2003	1
33820-37863	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	11/2003 - 06/2004	1
33820-3V153	XZU362,372,382..1NO	11/2003 - 06/2004	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-3V160	XZU362,372,382..1NO PNC 33820J=TYPE A	07/1999 - 05/2000	1
33820-37870	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),PNC 33820J=TYPE A	07/1999 - 05/2000	1
33820-3V161	XZU362,372,382..1NO PNC 33820J=TYPE B	05/2000 - 04/2002	1
33820-37871	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),PNC 33820J=TYPE B	05/2000 - 04/2002	1
33820-37872	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	04/2002 - 06/2004	1
33820-3V162	XZU362,372,382..1NO	04/2002 - 06/2004	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37400	XZU362,37#,382	07/1999 - 06/2004	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37180	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,32#,337,341,342,346,347,351,352,362,37#,382	05/1999 - 06/2004	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382	05/1999 - 06/2004	1
33826-37730	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),NO.2	07/1999 - 06/2004	1
33826-37720	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),NO.1	07/1999 - 06/2004	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382	05/1999 - 06/2004	1
33826-37730	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),NO.2	07/1999 - 06/2004	1
33826-37720	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),NO.1	07/1999 - 06/2004	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382	05/1999 - 06/2004	1
33826-37730	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),NO.2	07/1999 - 06/2004	1
33826-37720	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ),NO.1	07/1999 - 06/2004	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37300	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
33826-37370	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37300	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
33826-37370	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33826-37380	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
33826-37390	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33826-37380	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
33826-37390	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33826-37310	XZU362..4NO;XZU382..T4..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 03/2002	2
33826-37310	XZU362,37#,382..1NO	07/1999 - 06/2004	1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33826-37490	XZU362..4NO;XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 06/2004	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37780	XZU362..4NO;XZU382..T4..IV3	08/1999 - 06/2004	1
Common parts
90119-10883
90179-08038
90201-10042
90468-14004
90468-14016
90949-01B92
90949-01B93
90949-01B94
91611-B0816
91611-G0820
91651-60816
91651-B0825
94130-61200
94150-80800
Linked diagrams
4601

ILLUST NO. 2 OF 2(9905-0406)XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10883
90179-08038
90201-10042
90468-14004
90468-14016
90468-17001
90949-01B92
90949-01B93
90949-01B94
91611-60820
91611-B0816
91651-B0825
94130-61200
94150-80800

ILLUST NO. 1 OF 2(9905-0406)MTM

Click highlighted areas on diagram

ｶﾄｳｼｷ

Part #	Description	Period	Qty	Price
Common parts
33529-37020
33529-37030
90119-08190
90179-08054
90387-08159
90389-11006
91111-50840
91611-B0614
94512-00800
94613-10601
96151-01700
Linked diagrams
5855

XZU382-TQMMS3 (1999)

ILLUST NO. 1 OF 2(9905-0406)MTM ; (0406- )5F

ILLUST NO. 2 OF 2(9907-0406)XZU362,37#,382

ILLUST NO. 2 OF 2(9905-0406)XZU382

ILLUST NO. 1 OF 2(9905-0406)MTM

Part Price Details
