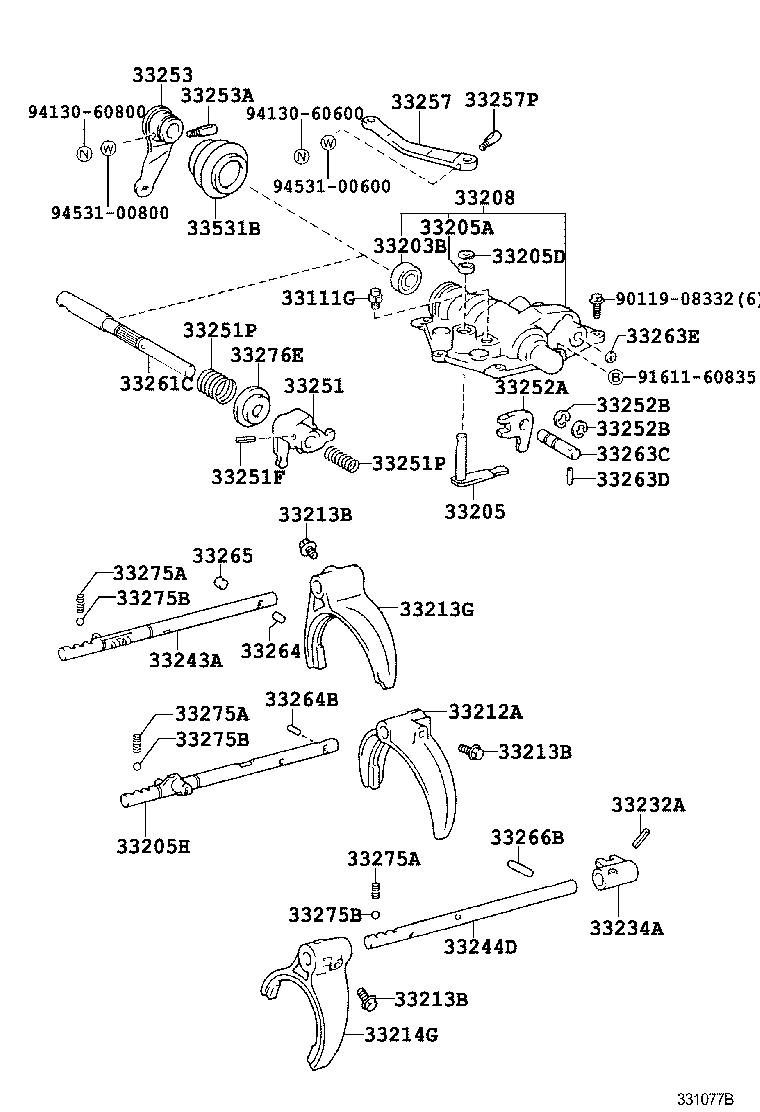

XZU382-TQMMS3 (1999)
Toyota Dyna/Toyoace
(9905-0406)XZU302..5F..DSL ; (9905-0406)BU30#,346,RZU30#,340,XZU307,337,362,37#,382
M153,M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90930-03090 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90311-22009 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33262-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90311-13001 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) 外径=28 |
1 | ||
| 90201-13029 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) 外径=28 |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-37030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33205-37030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36051 |
XZU362,37#,382 |
1 | ||
| 33207-36051 |
XZU362,37#,382 |
1 | ||
| 33207-36041 |
XZU362,37#,382 |
1 | ||
| 33207-36041 |
XZU362,37#,382 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-36031 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33212-36031 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 90105-07001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 90105-07001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 90105-07001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33213-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33214-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33234-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33243-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33244-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33251-36090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90254-05016 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33252-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 90523-12001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 90523-12001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37060 |
XZU362,37#,382 |
1 | ||
| 33253-37060 |
XZU362,37#,382 |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33282-36030 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33257-37060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33282-35010 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-36070 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33261-36070 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33263-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90250-04060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90331-14004 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=13.4,外径=9.53 |
1 | ||
| 90250-10011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=13.4,外径=9.53 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=13 |
1 | ||
| 90361-05001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=13 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10015 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=7.5,外径=9.67 |
1 | ||
| 90250-10015 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=7.5,外径=9.67 |
1 | ||
| 33266B - PIN, SHIFT INTER LOCK, NO.3 | ||||
| 90250-10014 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90250-10014 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=28.8 |
3 | ||
| 90501-16145 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=28.8 |
3 | ||
| 90501-16145 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=28.8 |
3 | ||
| 90501-16145 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 長さ=28.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 90360-10003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 90360-10003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 90360-10003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33276-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33531-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
(0206-0406)XZU301..SCB..5F..20T,30T..DSL,DSLL..1NO ; (0406- )XZU31#,321,35#,368,
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90930-03090 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90311-22009 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90311-13001 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) 外径=28 |
1 | ||
| 90201-13029 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) 外径=28 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36051 |
XZU362,37#,382 |
1 | ||
| 33207-36051 |
XZU362,37#,382 |
1 | ||
| 33207-36041 |
XZU362,37#,382 |
1 | ||
| 33207-36041 |
XZU362,37#,382 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36051 |
XZU362,37#,382 |
1 | ||
| 33207-36051 |
XZU362,37#,382 |
1 | ||
| 33207-36041 |
XZU362,37#,382 |
1 | ||
| 33207-36041 |
XZU362,37#,382 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-36031 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33212-36031 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33213-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33214-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 90254-05016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33234-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33243-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33251-36090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-16090 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 左側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 90501-18121 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 右側 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33252-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37060 |
XZU362,37#,382 |
1 | ||
| 33253-37060 |
XZU362,37#,382 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33257-37060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33282-35010 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33276-36011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| Common parts | ||||
| SU002-00248 | ||||
| SU002-00251 | ||||
| SU002-00258 | ||||
| SU002-00259 | ||||
| SU002-00260 | ||||
| SU002-00270 | ||||
| SU002-00273 | ||||
| SU002-00277 | ||||
| SU002-00279 | ||||
| SU002-00317 | ||||
| SU002-00358 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 8401 | ||||
(9905-0406)XZU382
M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
