XZU382-TKMQS5 (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0206-0406)XZU302,307,351,352..03S,DM2,T2,T4..5F..20T..DSL ; (0210-0406)XZU301,306,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||

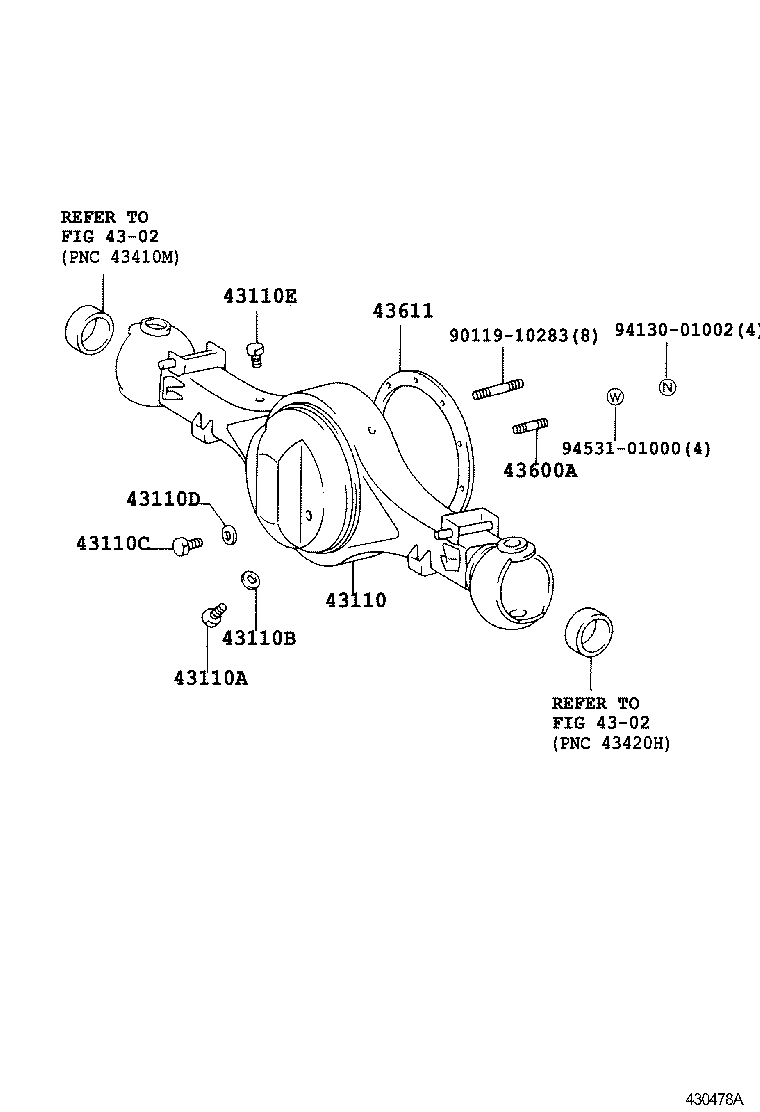

ILLUST NO. 2 OF 2(9908- )XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-37040 |
XZU382 |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18057 |
XZU382 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
XZU382 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18006 |
XZU382 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
XZU382 |
1 | ||
| 43110E - PLUG, BREATHER (FOR FRONT AXLE HOUSING) | ||||
| 90930-03031 |
XZU382 |
1 | ||
| 43600A - BOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING | ||||
| 90116-10211 |
XZU382 ﾈｼﾞ部長さ=17&12.5,長さ41.5 |
4 | ||
| 43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
XZU382 |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 1 OF 2(9908- )XZU382 ; (0206- )XZU411..T2..5F ;(0206- )XZU402..T2..5F..CBU ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-37010 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-48024 |
XZU382;XZU412..SCB..T5 |
1 | ||
| 90311-48019 |
XZU382;XZU412..SCB..T5..5F |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-37190 |
XZU382..30T *FGR=35:6=5.833 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41114C - PIN, RING, FRONT DIFFERENTIAL BEARING CAP BOLT | ||||
| 90253-21001 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-80148 |
XZU382..30T *FGR=35:6=5.833 |
1 | ||
| 41201-80261 |
XZU382..30T *FGR=35:6=5.833 |
1 | ||
| 41201U - SHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35020 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.82 |
1 | ||
| 90564-35023 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.88 |
1 | ||
| 90564-35019 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.80 |
1 | ||
| 90564-35027 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.20 |
1 | ||
| 90564-35029 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.40 |
1 | ||
| 90564-35026 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.10 |
1 | ||
| 90564-35028 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.30 |
1 | ||
| 90564-35033 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.80 |
1 | ||
| 90564-35022 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.86 |
1 | ||
| 90564-35021 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.84 |
1 | ||
| 90564-35034 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.90 |
1 | ||
| 90564-35024 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.90 |
1 | ||
| 90564-35035 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=3.00 |
1 | ||
| 90564-35032 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.70 |
1 | ||
| 90564-35030 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.50 |
1 | ||
| 90564-35038 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.85 |
1 | ||
| 90564-35039 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.87 |
1 | ||
| 90564-35025 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.00 |
1 | ||
| 90564-35031 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.60 |
1 | ||
| 90564-35037 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.83 |
1 | ||
| 90564-35036 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.81 |
1 | ||
| 90564-35040 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.89 |
1 | ||
| 41201V - SHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-40006 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.075 |
1 | ||
| 90564-40009 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.15 |
1 | ||
| 90564-40007 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.10 |
1 | ||
| 90564-40013 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.25 |
1 | ||
| 90564-40011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.20 |
1 | ||
| 90564-40014 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.275 |
1 | ||
| 90564-40008 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.125 |
1 | ||
| 90564-40016 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.325 |
1 | ||
| 90564-40012 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.225 |
1 | ||
| 90564-40018 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.375 |
1 | ||
| 90564-40017 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.35 |
1 | ||
| 90564-40020 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.425 |
1 | ||
| 90564-40019 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.40 |
1 | ||
| 90564-40004 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.05 |
1 | ||
| 90564-40023 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.50 |
1 | ||
| 90564-40010 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.175 |
1 | ||
| 90564-40024 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.525 |
1 | ||
| 90564-40022 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.475 |
1 | ||
| 90564-40015 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.30 |
1 | ||
| 90564-40021 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.45 |
1 | ||
| 90564-40025 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.55 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-37010 |
XZU382;XZU412..SCB..T5..5F |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-22003 |
XZU382;XZU412..SCB..T5..5F |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35108 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40100 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-23002 |
XZU382;XZU412..SCB..T5..5F 厚さ=4.5 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-37010 |
XZU382;XZU412..SCB..T5..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-14315 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
12 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36020 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
6 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36040 |
XZU382;XZU412..SCB..T5..5F |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-37020 |
XZU382;XZU412..SCB..T5..5F |
1 | ||
| 41302H - BOLT(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12087 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-36030 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-52004 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-52004 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-36020 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-36020 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55013 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55013 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55013 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-55013 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
4 | ||
| 41361C - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 41317-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 41361C - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 41317-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.60 |
2 | ||
| 41361-60480 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.55 |
2 | ||
| 41361-60031 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.90 |
2 | ||
| 41361-60520 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.85 |
2 | ||
| 41361-60041 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.05 |
2 | ||
| 41361-60490 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.65 |
2 | ||
| 41361-60500 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.70 |
2 | ||
| 41361-60021 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.75 |
2 | ||
| 41361-60530 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.95 |
2 | ||
| 41361-60510 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.80 |
2 | ||
| 41361-60540 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.00 |
2 | ||
| 41361-60550 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.10 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.60 |
2 | ||
| 41361-60480 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.55 |
2 | ||
| 41361-60031 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.90 |
2 | ||
| 41361-60520 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.85 |
2 | ||
| 41361-60041 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.05 |
2 | ||
| 41361-60490 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.65 |
2 | ||
| 41361-60500 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.70 |
2 | ||
| 41361-60021 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.75 |
2 | ||
| 41361-60530 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.95 |
2 | ||
| 41361-60510 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=1.80 |
2 | ||
| 41361-60540 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.00 |
2 | ||
| 41361-60550 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F 厚さ=2.10 |
2 | ||
| 41371A - SPIDER, FRONT DIFFERENTIAL | ||||
| 41371-36011 |
XZU382;XZU402..T2..5F..CBU;XZU412..SCB..(T2,T5)..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
