XZU382-TKMQS3 (1999)
Toyota Dyna/Toyoace

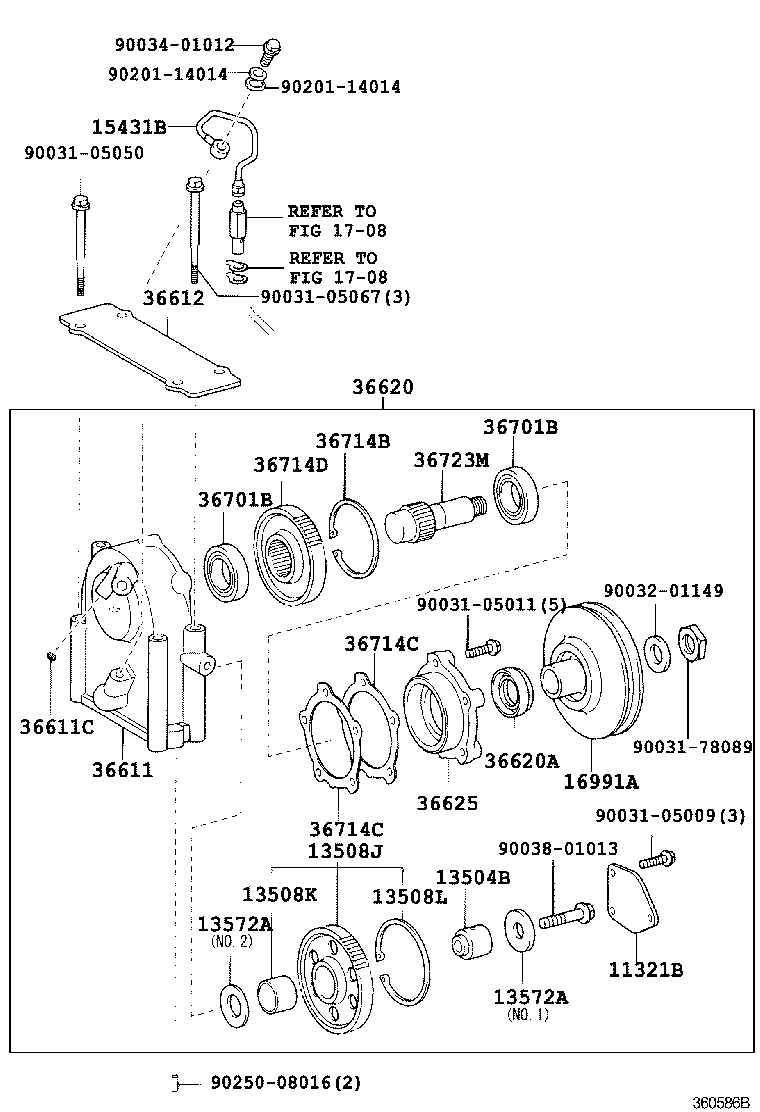

ILLUST NO. 3 OF 3(9907-0406)XZU362,372,382..SCB..T3,T4..IV3
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11321B - COVER, TIMING GEAR | ||||
| 11321-89101 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 11321-89101 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 13504B - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-89101 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 13504-89101 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 13508J - GEAR SUB-ASSY, IDLE | ||||
| 13508-89102 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 13508-89102 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 13508K - BUSH, IDLE GEAR | ||||
| 90033-84010 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 13508L - RING, IDLE GEAR | ||||
| 90035-21028 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 13572A - PLATE, IDLE GEAR THRUST | ||||
| 13572-89104 |
S05C..XZU362,372,382..(T3,T4)..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 NO.2 |
1 | ||
| 13572-89103 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 NO.1 |
1 | ||
| 13572-89103 |
S05C..XZU362,372,382..(T3,T4)..IV3 NO.1 |
1 | ||
| 13572A - PLATE, IDLE GEAR THRUST | ||||
| 13572-89104 |
S05C..XZU362,372,382..(T3,T4)..IV3 NO.2 |
1 | ||
| 13572-89104 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 NO.2 |
1 | ||
| 13572-89103 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 NO.1 |
1 | ||
| 13572-89103 |
S05C..XZU362,372,382..(T3,T4)..IV3 NO.1 |
1 | ||
| 15431B - PIPE, OIL FEED | ||||
| 15431-78020 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 15431-78010 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 16991A - PULLEY, EQUIPMENT DRIVE | ||||
| 16991-78010 |
S05C..XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 16991-78010 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-37180 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36611-37150 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36611C - PLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE) | ||||
| 90033-45009 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 90033-45009 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36612 - CASE, POWER TAKE-OFF REAR | ||||
| 36611-37120 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36620 - POWER TAKE-OFF ASSY, CENTER | ||||
| 36620-37110 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36620-37090 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36620A - SEAL, TYPE T OIL (FOR CENTER POWER TAKE-OFF) | ||||
| 90033-11036 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 90033-11036 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36625 - COVER, POWER TAKE-OFF BEARING | ||||
| 36625-37030 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36625-37030 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90033-63033 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
2 | ||
| 90033-63033 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) | ||||
| 90033-63033 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
2 | ||
| 90033-63033 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36714B - RING (FOR POWER TAKE-OFF OUTPUT GEAR) | ||||
| 90035-21029 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36714C - SPACER (FOR POWER TAKE-OFF OUTPUT GEAR) | ||||
| 90035-64025 |
XZU362,372,382..SCB..(T3,T4)..IV3 厚さ=0.1 |
1 | ||
| 90035-64026 |
XZU362,372,382..(T3,T4)..IV3 厚さ=0.05 |
1 | ||
| 90035-64025 |
XZU362,372,382..(T3,T4)..IV3 厚さ=0.1 |
1 | ||
| 90035-64026 |
XZU362,372,382..SCB..(T3,T4)..IV3 厚さ=0.05 |
1 | ||
| 36714C - SPACER (FOR POWER TAKE-OFF OUTPUT GEAR) | ||||
| 90035-64025 |
XZU362,372,382..SCB..(T3,T4)..IV3 厚さ=0.1 |
1 | ||
| 90035-64026 |
XZU362,372,382..(T3,T4)..IV3 厚さ=0.05 |
1 | ||
| 90035-64025 |
XZU362,372,382..(T3,T4)..IV3 厚さ=0.1 |
1 | ||
| 90035-64026 |
XZU362,372,382..SCB..(T3,T4)..IV3 厚さ=0.05 |
1 | ||
| 36714D - GEAR, POWER TAKE-OFF OUTPUT, NO.2 | ||||
| 36714-37140 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| 36723M - SHAFT, POWER TAKE-OFF OUTPUT, NO.2 | ||||
| 36723-37080 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 36723-37080 |
XZU362,372,382..(T3,T4)..IV3 |
1 | ||
| Common parts | ||||
| 90031-05009 | ||||
| 90031-05011 | ||||
| 90031-05050 | ||||
| 90031-05067 | ||||
| 90031-78089 | ||||
| 90032-01149 | ||||
| 90034-01012 | ||||
| 90038-01013 | ||||
| 90201-14014 | ||||
| 90250-08016 | ||||
| Linked diagrams | ||||
| 1708 | ||||

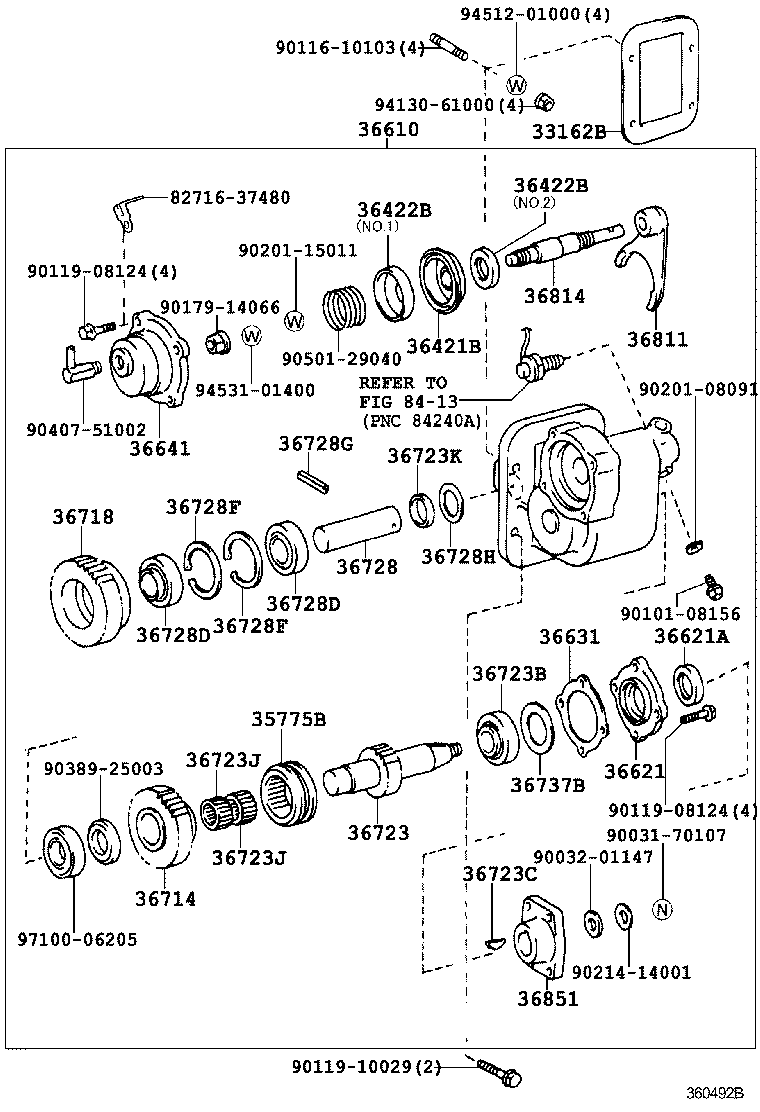

ILLUST NO. 1 OF 3(0206-0406)BZU340,XZU300,307,322,330,337,341,342,346,347,362,372,382..T2,T3,T4,T5..
ﾊﾞｷﾕ-ﾑｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||

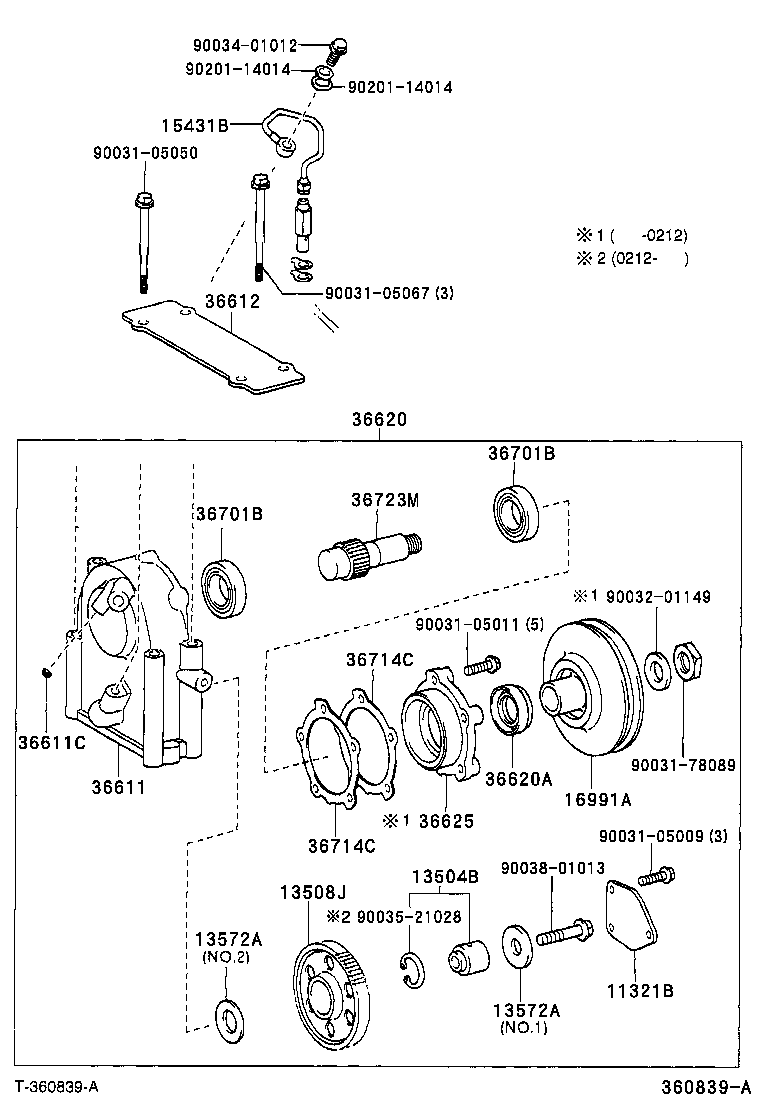

| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10337 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 91612-61045 | ||||
| 92112-61045 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 1 OF 3(9905-0406)XZU300,306,307,322,33#,341,342,346,347,362,372,382..T2,T3,T4,T5..5F..DSL
ﾊﾞｷﾕ-ﾑｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 33162-37030 |
RZU300..EFI;RZU300..30T..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU301,340,XZU307,337,362,372,382..(DCB,SCB)..5F |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-93100 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 35775-37010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36421-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36422-93101 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36610-37140 |
XZU302..(T4,T5)..5F..20T..DSL;XZU307,337,362,372,382..(T2,T3,T4,T5)..5F |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621-93200 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 90311-25110 |
XZU302..5F..ST;XZU301..295T..1NO;XZU302..(295T,30T)..1NO;XZU301..T4..5F..DSL..(CBU,IV3)..1NO;BU301,XZU330,341..(DM6,T1,T3,T5)..5F..(175T,20T,30T);BU306,346,XZU300,306,307,331,337,346,347,362,372,382..(DCB,SCB)..5F..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-93101 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-37030 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36632-93101 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU301..(T4,T5)..5F..30T..(CBU,IV3)..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36641-93100 |
BU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36714-93108 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36718-93112 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723-93107 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 97100-06205 |
XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;XZU301..CNG,LPG;BU30#,346,RZU300,340..DCB,SCB;XZU301..(T4,T5)..5F..30T..4NO;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 90280-07011 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90364-28020 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728-93107 |
XZU341..LPG;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 90366-22001 |
XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 90521-56108 |
BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 90254-04002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;RZU300..30T..LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU300,XZU302,341,342..(T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI);RZU301,340,XZU300,306,307,33#,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,30T)..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36811-93104 |
XZU301..295T;XZU301..CNG,LPG;XZU301..(T4,T5)..5F..30T..4NO;BU30#,346,RZU300,340,XZU340..DCB,SCB;XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,337,362,372,382..(T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36814-93104 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,337,362,372,382..(DM6,T1,T2,T3,T4,T5)..5F |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| 36851-37010 |
XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10337 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 91612-61045 | ||||
| 92112-61045 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990
ﾊﾞｷﾕ-ﾑｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78040 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27679-78040 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27679-78040 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27679-78040 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27679-78041 |
S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T) |
1 | ||
| 27679-78041 |
S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T) |
1 | ||
| 27679-78041 |
S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T) |
1 | ||
| 27679-78041 |
S05D..XZU301..295T;S05D..XZU306..5F..DSL;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#,1BZFPE,4B..BU30#,346,BZU300,XZU331,337,340,341,342,346,347,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3);J05C,S05C,15BLPG,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,330,341,342..(T2,T3,T4,T5)..MTM..(20T,295T,30T) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78032 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78032 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78032 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78032 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78030 |
J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27690-78030 |
J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27690-78030 |
J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27690-78030 |
J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| 27690-78080 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78080 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78080 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78080 |
S05D..XZU301..295T;J05C,4B..BU30#,346,XZU340..DCB,SCB;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05#..XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78031 |
S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78031 |
S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78031 |
S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 27690-78031 |
S05D..XZU301..295T;S05D..XZU306..T5..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D..XZU301..(T4,T5)..5F..30T..(CBU,IV3);J05C,S05D,4B..BU30#,XZU306,340..(DCB,SCB)..MTM..DSL;J05C,S05#,4B..BU346,XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44754-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44754-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44754-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44763-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44763-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44763-37150 |
XZU362,372,382..T3,T4 |
1 | ||
| 44763F - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-37270 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 44763-37270 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 44763-37270 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 44763-37270 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 95446-09140 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09140 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09140 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09140 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09200 |
XZU382..SCB |
1 | ||
| 95446-09200 |
XZU382..SCB |
1 | ||
| 95446-09200 |
XZU382..SCB |
1 | ||
| 95446-09200 |
XZU382..SCB |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37300 |
XZU362,372,382..T3,T4 |
1 | ||
| 44771-37300 |
XZU362,372,382..T3,T4 |
1 | ||
| 44771-37300 |
XZU362,372,382..T3,T4 |
1 | ||
| 44771-37300 |
XZU362,372,382..T3,T4 |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 95446-09250 |
XZU362,372,382..T3,T4 |
1 | ||
| 95446-09250 |
XZU362,372,382..T3,T4 |
1 | ||
| 95446-09250 |
XZU362,372,382..T3,T4 |
1 | ||
| 95446-09250 |
XZU362,372,382..T3,T4 |
1 | ||
| 44779J - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 95446-09180 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09180 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09180 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| 95446-09180 |
XZU362,372,382..SCB..(T3,T4) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 1 OF 3(9908-0406)XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90119-10029 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| 97100-06205 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 2 OF 3(9908-0406)XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 3 OF 3(9909-0406)XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05009 | ||||
| 90031-05011 | ||||
| 90031-05050 | ||||
| 90031-05067 | ||||
| 90031-78089 | ||||
| 90032-01149 | ||||
| 90034-01012 | ||||
| 90035-21028 | ||||
| 90038-01013 | ||||
| 90201-14014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
