XZU382-PKMMS (1999)
Toyota Dyna/Toyoace
Production
Aug 1999
-
Jun 2004
Engine
S05C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

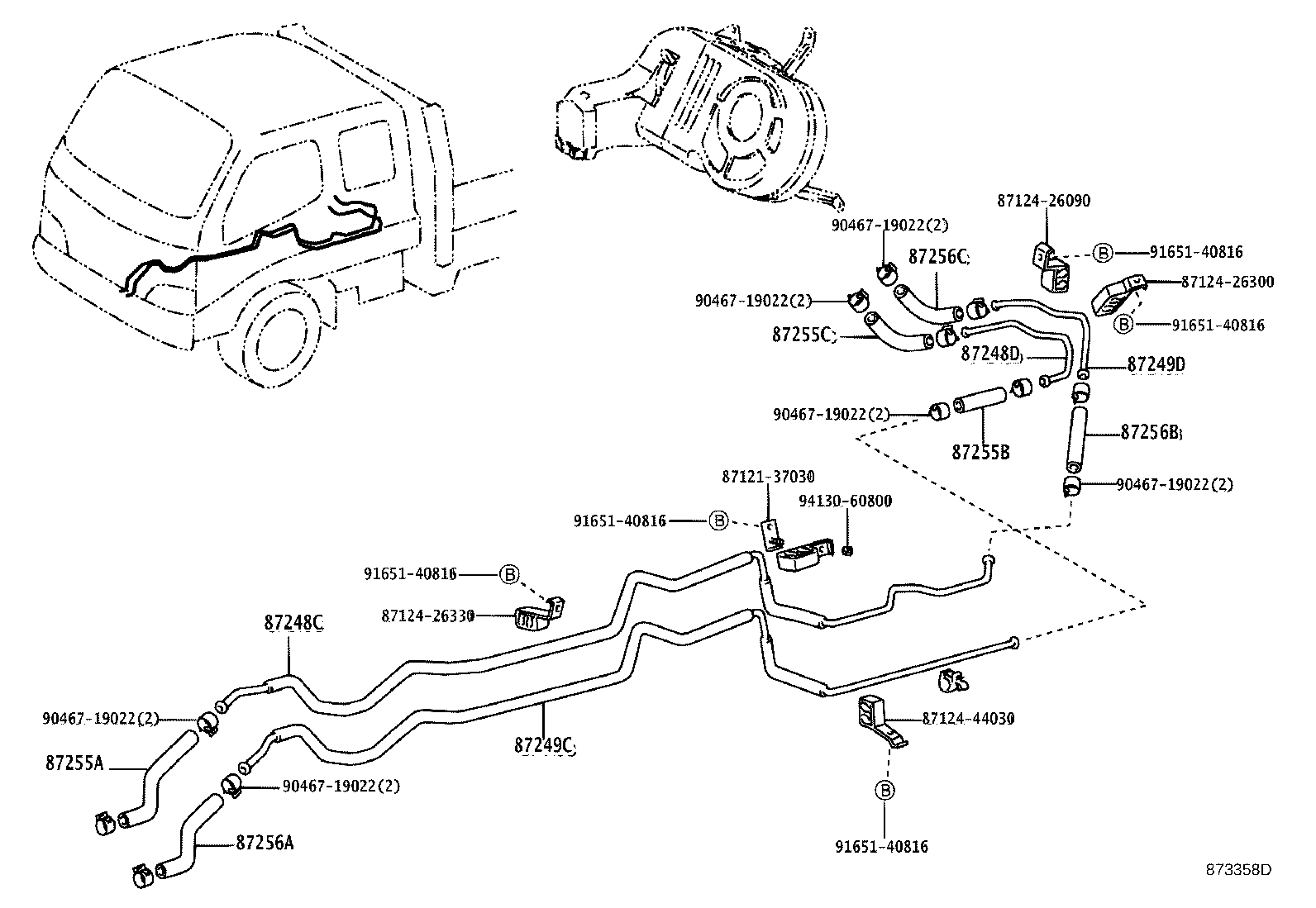

ILLUST NO. 2 OF 2(9908-0406)XZU372,382..T3..20T
Click highlighted areas on diagram
ｱﾘ(ﾘﾔ ﾋｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-37400 |
XZU372,382..T3..20T |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-37390 |
XZU372,382..T3..20T |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-37010 |
XZU37#,382..DCB |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-37380 |
XZU372,382..T3..20T |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-37490 |
XZU37#,382..DCB |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20200 |
XZU372,382..T3..20T *H,L=200 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20200 |
XZU372,382..T3..20T *H,L=150 |
1 | ||
| 87245-92600 |
XZU372,382..T3..20T |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-37680 |
XZU37#,382..DCB |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20150 |
XZU372,382..T3..20T *H,L=150 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-92600 |
XZU372,382..T3..20T |
1 | ||
| Common parts | ||||
| 87121-37030 | ||||
| 87124-26090 | ||||
| 87124-26300 | ||||
| 87124-26330 | ||||
| 87124-44030 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||

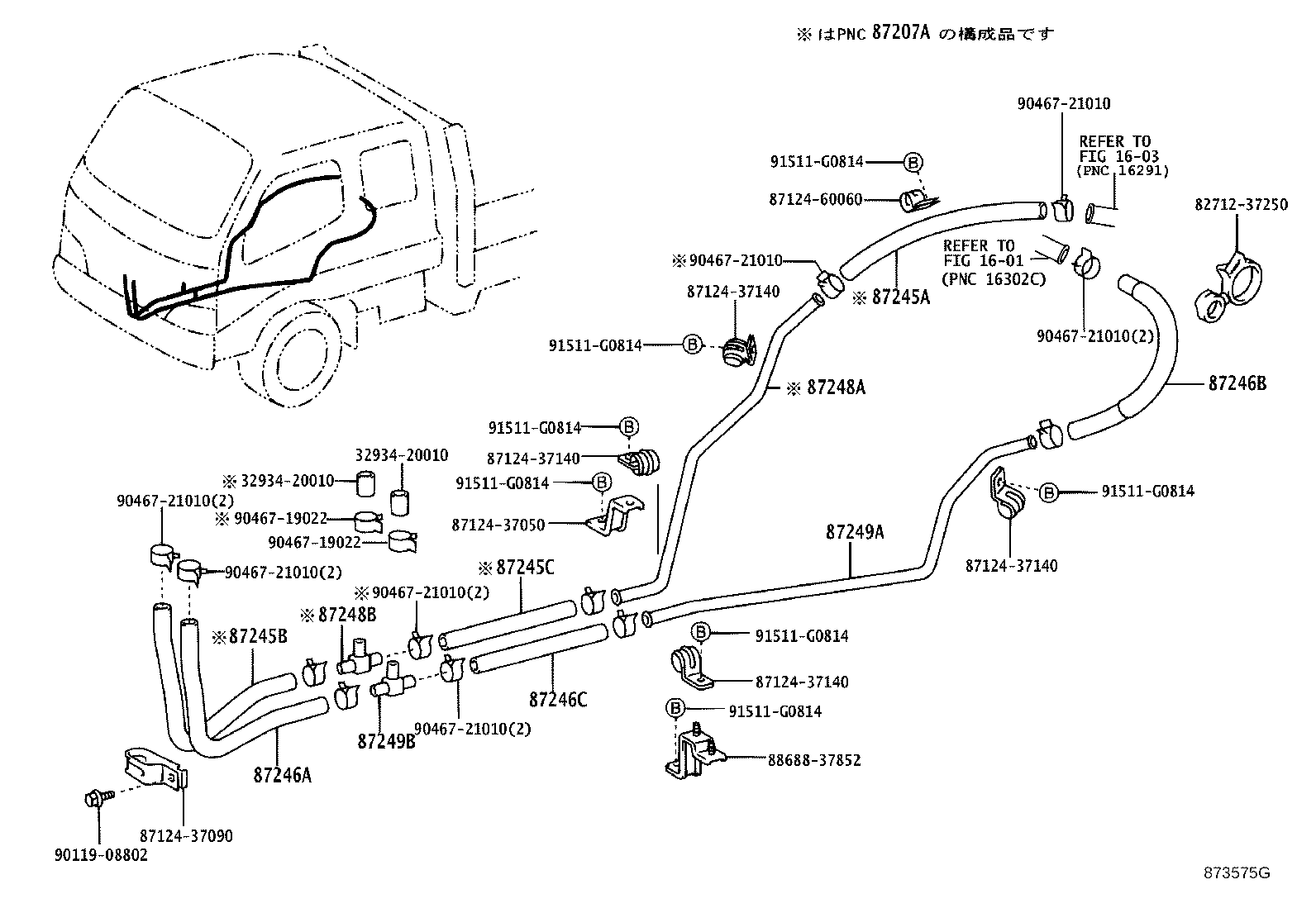

ILLUST NO. 1 OF 2(9908-0406)XZU37#,382..DCB
Click highlighted areas on diagram
ｱﾘ(ﾘﾔ ﾋｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87207A - PIPE & HOSE SUB-ASSY, WATER A | ||||
| 87207-37760 |
XZU37#,382..DCB |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-3V020 |
XZU37#,382..DCB |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-3V020 |
XZU37#,382..DCB ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-3V030 |
XZU37#,382..DCB |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87246-37180 |
XZU37#,382..DCB ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87246-37290 |
XZU37#,382..DCB ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-60460 |
XZU37#,382..DCB |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-60460 |
XZU37#,382..DCB |
1 | ||
| Common parts | ||||
| 32934-20010 | ||||
| 82712-37250 | ||||
| 87124-37050 | ||||
| 87124-37090 | ||||
| 87124-37140 | ||||
| 87124-60060 | ||||
| 88688-37852 | ||||
| 90119-08802 | ||||
| 90467-19022 | ||||
| 90467-21010 | ||||
| 91511-G0814 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1603 | ||||

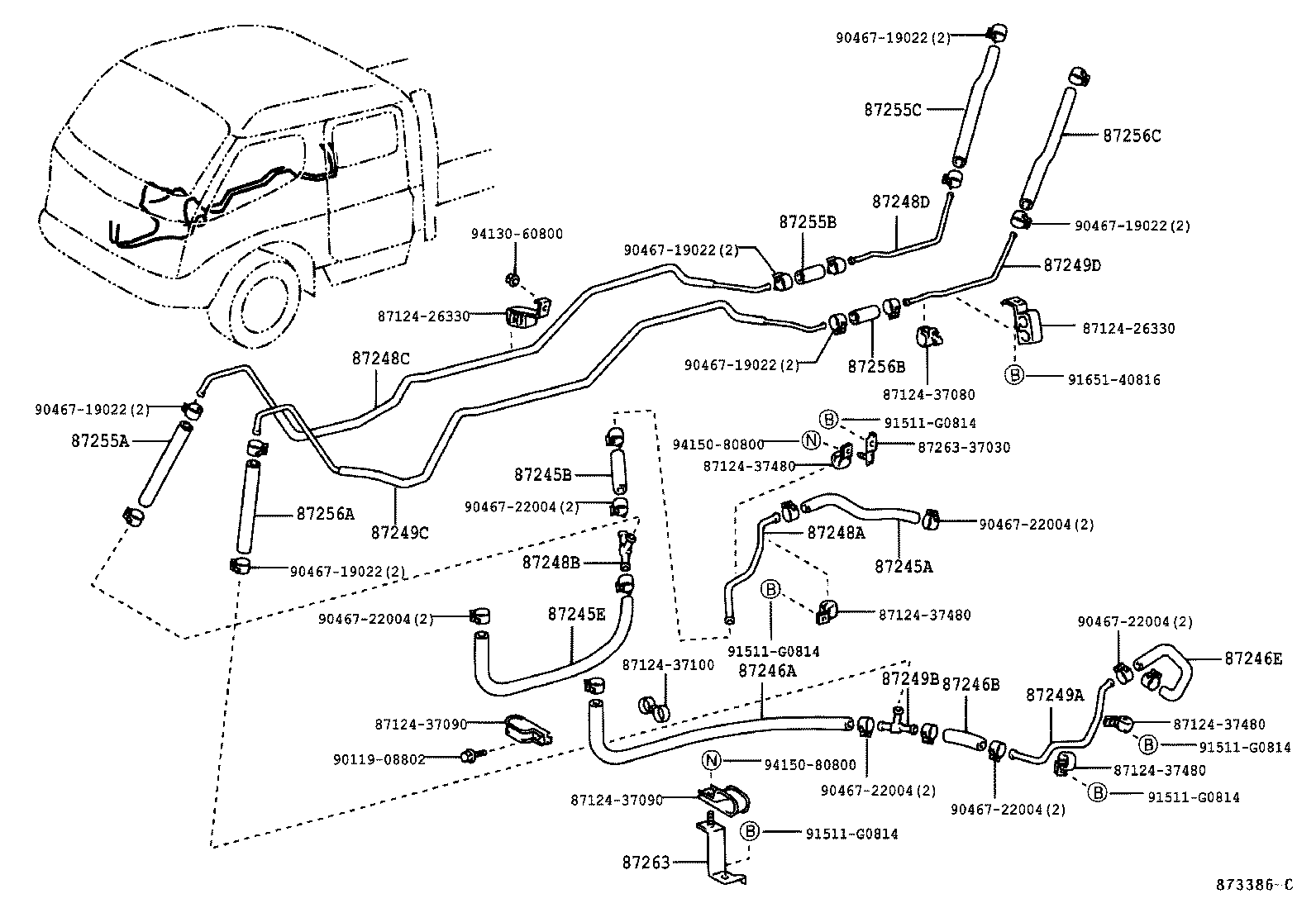

(9908-0406)DCB
Click highlighted areas on diagram
ｱﾘ(ﾘﾔ ﾋ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-26330 | ||||
| 87124-37080 | ||||
| 87124-37090 | ||||
| 87124-37100 | ||||
| 87124-37480 | ||||
| 87263-37030 | ||||
| 90119-08802 | ||||
| 90467-19022 | ||||
| 90467-22004 | ||||
| 91511-G0814 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||
| 94150-80800 | ||||
(9908-0406)XZU382
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-37250 | ||||
| 87124-37050 | ||||
| 87124-37051 | ||||
| 87124-37090 | ||||
| 87124-37472 | ||||
| 87124-37480 | ||||
| 87124-60060 | ||||
| 90119-08802 | ||||
| 90467-22004 | ||||
| 91511-60812 | ||||
| 91511-G0814 | ||||
