XZU378-TKMQD (2006)
Toyota Dyna/Toyoace

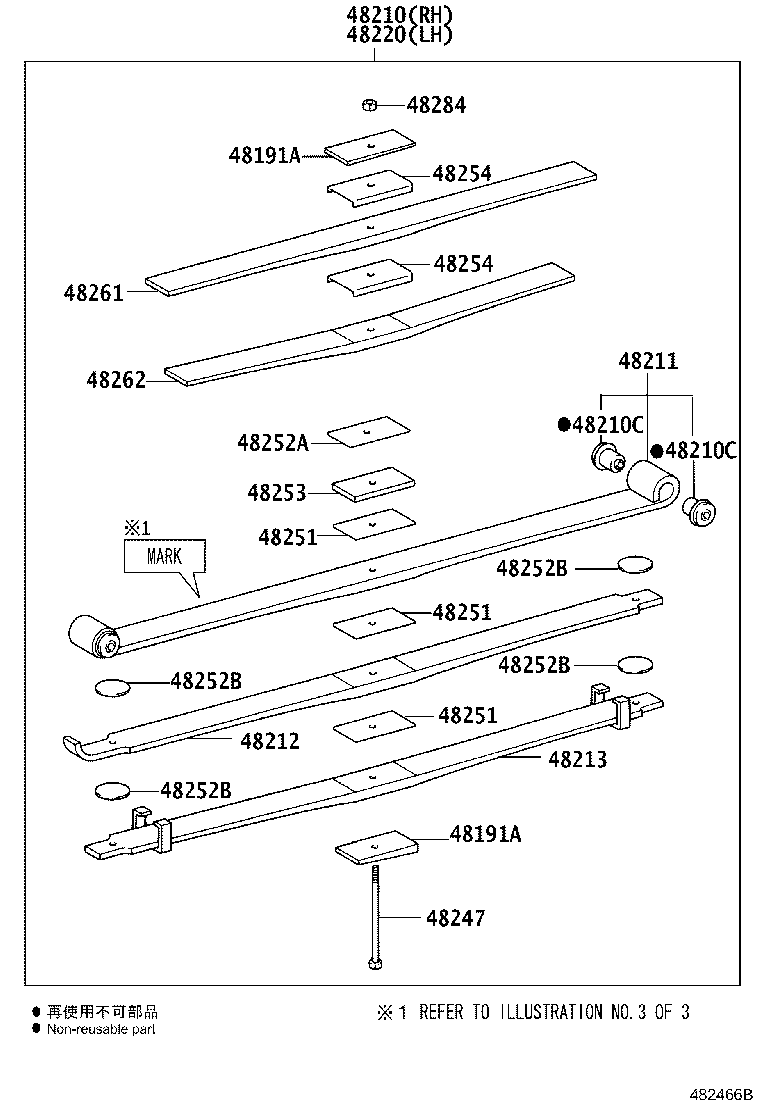

ILLUST NO. 2 OF 3(0610- )XZU378,388..30T
MAIN 3+HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37110 |
XZU378,388 |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37110 |
XZU378,388 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37A90 |
XZU378,388..SCB..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90,厚さ=131.5 |
1 | ||
| 48210-37A40 |
XZU378,388..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40,厚さ=132.5 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37570 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90 |
2 | ||
| 48201-37710 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37570 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90 |
2 | ||
| 48212-37710 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37570 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90 |
2 | ||
| 48204-37710 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37A90 |
XZU378,388..SCB..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90,厚さ=131.5 |
1 | ||
| 48210-37A40 |
XZU378,388..30T ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40,厚さ=132.5 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37A40 |
XZU378,388..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
6 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48263-37600 |
XZU378,388..30T |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XZU304..IV7;XZU378,388..30T |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU334,344..30T;BZU300,340,TRU300,XZU304,378,388..T3..30T |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37710 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40 |
2 | ||
| 48261-37830 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37710 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A40 |
2 | ||
| 48262-37830 |
XZU378,388..SCB..30T ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = 48210-37A90 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU304..IV7;XZU378,388..30T;XZU334,344..35T,40T;XZU304,334,344..5F..30T..DCRTJ..(CBU,IV3)..1NO |
2 | ||
ILLUST NO. 1 OF 3(0610- )BZU300,XZU304..T3 ; (0610- )XZU334,378,388..20T,30T ; (0610- )BZU3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
2 | ||
| 48042-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU548..DCRUE;BZU300,TRU300,XZU304,354..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 48473-37180 |
XZU548..DCRUE;BZU300,TRU300,XZU304,354..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
XZU378,388..30T 長さ=300 |
4 | ||
| 90117-16018 |
XZU378,388..30T 長さ=300 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
XZU378,388..30T 長さ=300 |
4 | ||
| 90117-16018 |
XZU378,388..30T 長さ=300 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
XZU548..DCRUE;BZU300,TRU300,XZU304,354..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 48473-37180 |
XZU548..DCRUE;BZU300,TRU300,XZU304,354..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37090 |
XZU378,388;BZU340,TRU340,XZU34#,548..(T3,T4)..20T |
2 | ||
| 48344-37090 |
XZU378,388;BZU340,TRU340,XZU34#,548..(T3,T4)..20T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
2 | ||
| 48422-37010 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48435-36050 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48435-36050 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU548..DCRUE;BZU300,TRU300,XZU304,354..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
2 | ||
| 48481-37081 |
XZU548..DCRUE;BZU300,TRU300,XZU304,354..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80673 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 90385-19011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 90948-03011 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80673 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 91651-B0820 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||
ILLUST NO. 3 OF 3(0610- )
| Part # | Description | Qty | Price |
|---|
