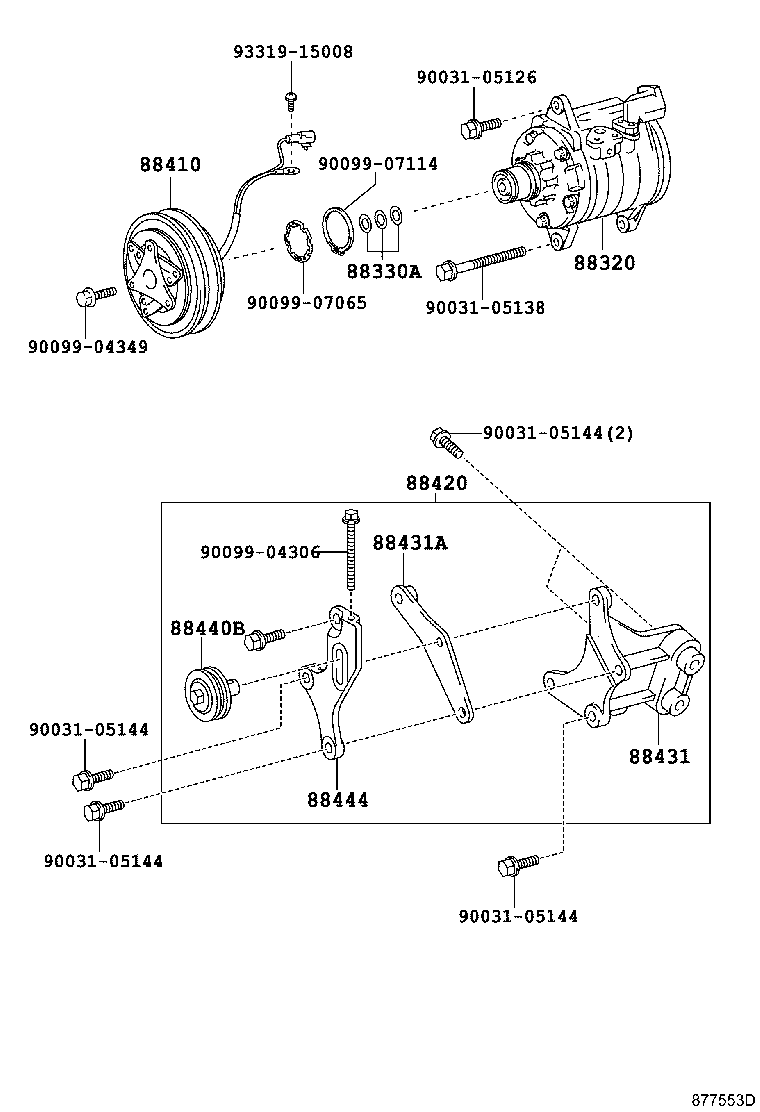

Toyota Dyna/toyoace XZU378 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-37070	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
88320-37120	XZU368,378,388	06/2004 - 10/2006	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-37140	XZU368,378,388	06/2004 - 10/2006	1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-37240	XZU368,378,388	06/2004 - 10/2006	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37140	XZU368,378,388	06/2004 - 10/2006	1
88431A - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-37150	XZU368,378,388	06/2004 - 10/2006	1
88440B - PULLEY ASSY, IDLE
S8836-01380	XZU368,378,388	06/2004 - 10/2006	1
88444 - BRACKET, IDLE PULLEY
88444-37160	XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
Common parts
90031-05126
90031-05138
90031-05144
90099-04306
90099-04349
90099-07065
90099-07114
93319-15008

XZU378-PKMMW3 (2004)
