XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

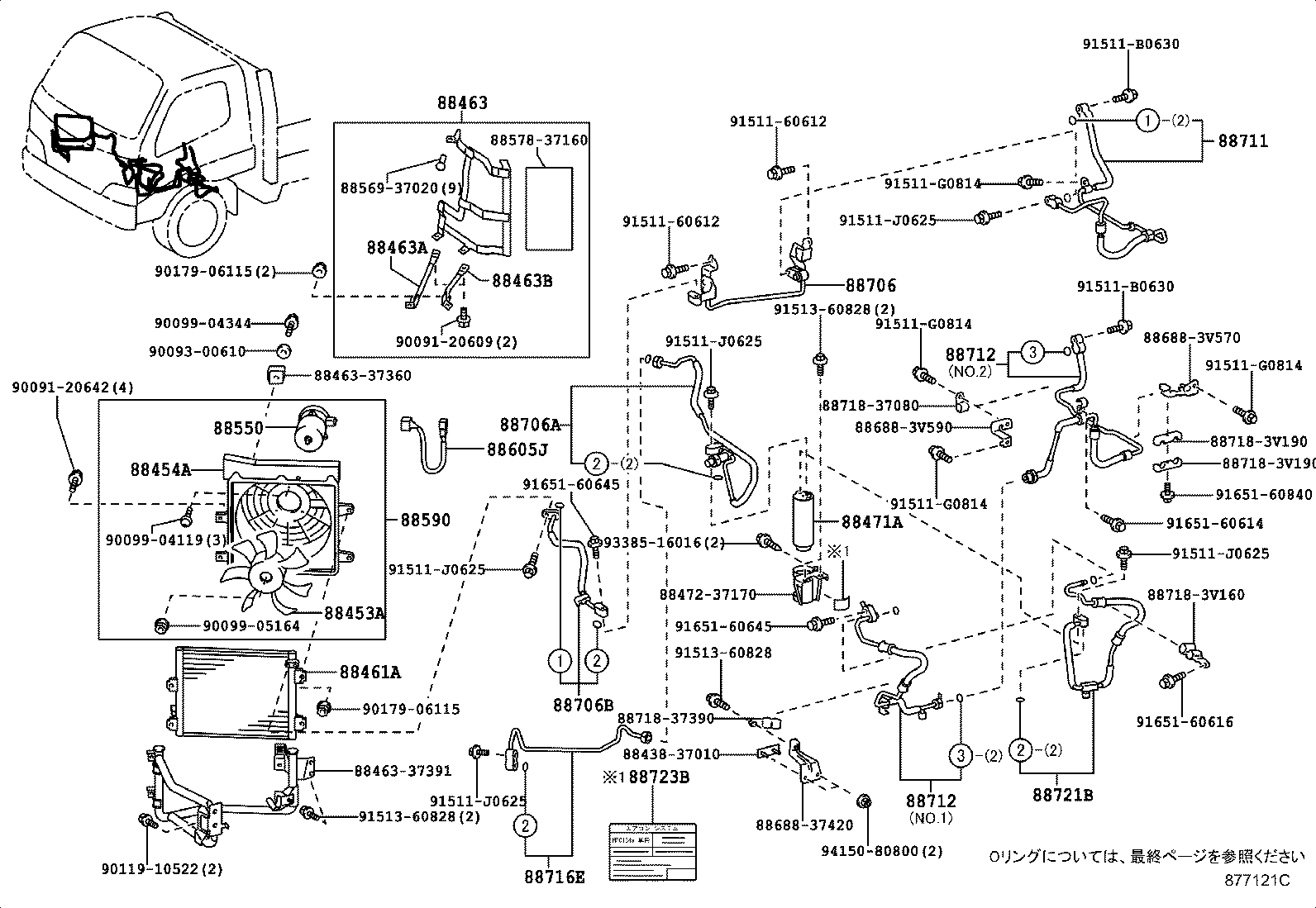

ILLUST NO. 1 OF 2(0406- )XZU378,388..DCB

Click highlighted areas on diagram

diagram 8843837010 88453A 88454A 88461A 88463 8846337360 8846337391 88463A 88463B 88471A 8847237170 88550 8856937020 8857837160 88590 88605J 8868837420 886883V570 886883V590 88706 88706A 88706B 88711 88712 88712 88716E 8871837080 8871837390 887183V160 887183V190 887183V190 88721B 88723B 9009120609 9009120642 9009300610 9009904119 9009904344 9009905164 9011910522 9017906115 9017906115 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511G0814 91511G0814 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9165160614 9165160616 9165160645 9165160645 9165160840 9338516016 9415080800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37010

XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382

 1
88453-37030

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88454A - SHROUD, FAN
88454-37031

XZU37#,382..DCB

 1
88454-37090

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88461A - CORE, COOLER CONDENSER
88461-37080

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37410

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88471A - TANK, RECEIVER
88471-34010

XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN

 1
88471-34010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU362,37#,382..1NO

 1
88550-37120

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37180

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-37270

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-37200

XZU368,378,388

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-37161

XZU368,378,388..CBU,IV3;XZU304,306,308,346..(DCB,VAN)..DSL;XZU304,305,314,334,344,354..SCB..(DCRL,DSLL)

 1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-37220

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37890

XZU368,378,388

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V490

XZU368,378,388

NO.2

 1
88712-3V520

XZU378,388..DCB

NO.1

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V490

XZU368,378,388

NO.2

 1
88712-3V520

XZU378,388..DCB

NO.1

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V651

XZU368,378,388;XZU306,308,346..DCB,VAN

 1
88721B - HOSE, LIQUID, B
88721-37840

XZU378,388..DCB

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
88733-22040

XZU368,378,388;XZU301,304,306,308,311,321,33#,341,346,348,351..SCB..DSL

 1
Common parts
88438-37010
88463-37360
88463-37391
88472-37170
88569-37020
88578-37160
88688-37420
88688-3V570
88688-3V590
88718-37080
88718-37390
88718-3V160
88718-3V190
90091-20609
90091-20642
90093-00610
90099-04119
90099-04344
90099-05164
90119-10522
90179-06115
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
93385-16016
94150-80800

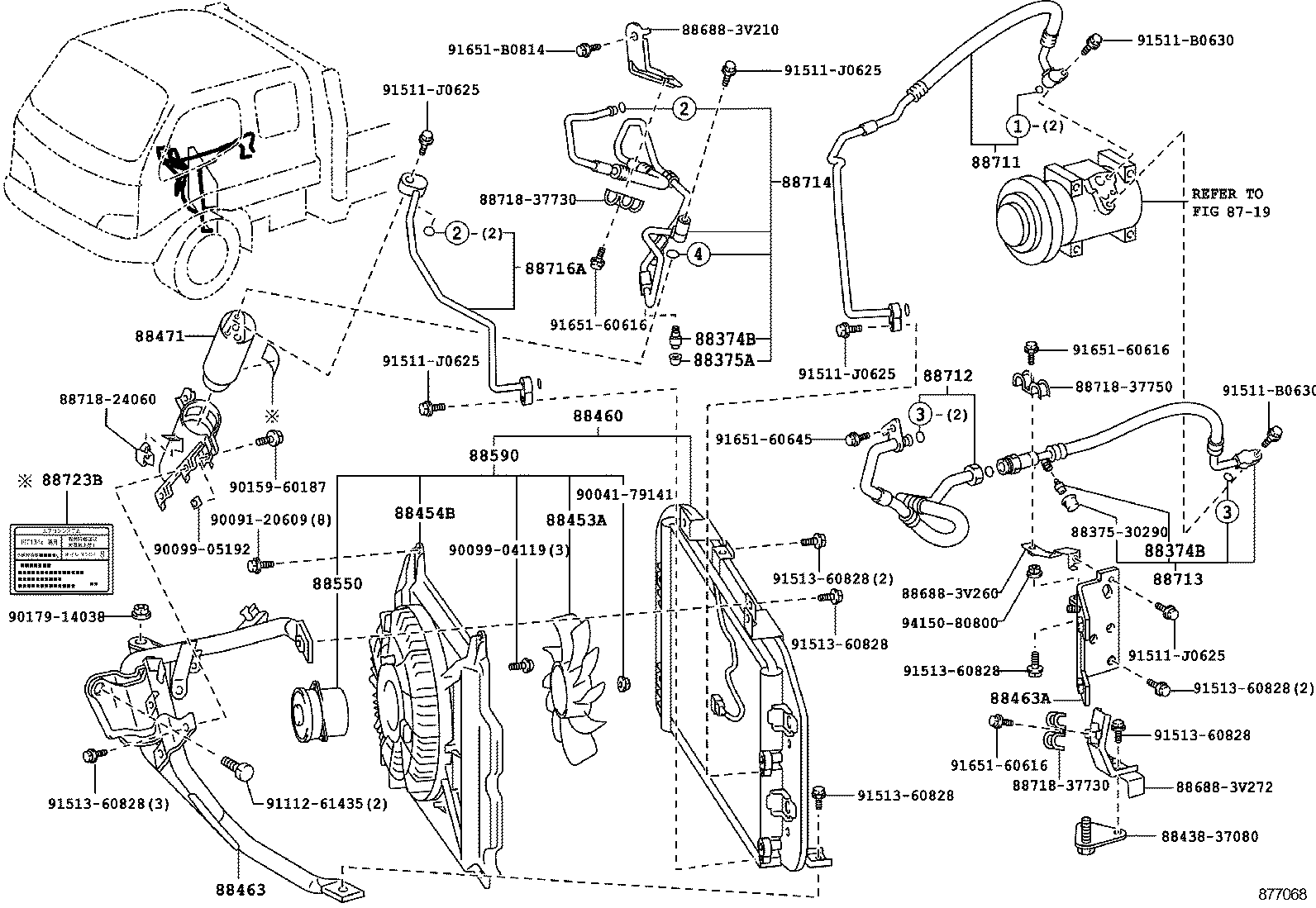

ILLUST NO. 1 OF 3(0406-0610)DCB

Click highlighted areas on diagram

diagram 8719 88374B 88374B 88375A 8843837080 88453A 88454B 88460 88463 88463A 88471 88550 88590 886883V210 886883V260 886883V272 88711 88712 88713 88714 88716A 8871824060 8871837730 8871837730 8871837750 88723B 9004179141 9009120609 9009904119 9009905192 9015960187 9017914038 9111261435 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9165160616 9165160616 9165160616 9165160645 91651B0814 9415080800
Part # Description Qty Price
Common parts
88438-37080
88688-3V210
88688-3V260
88688-3V272
88718-24060
88718-37730
88718-37750
90041-79141
90091-20609
90099-04119
90099-05192
90159-60187
90179-14038
91112-61435
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-B0814
94150-80800
Linked diagrams
8719

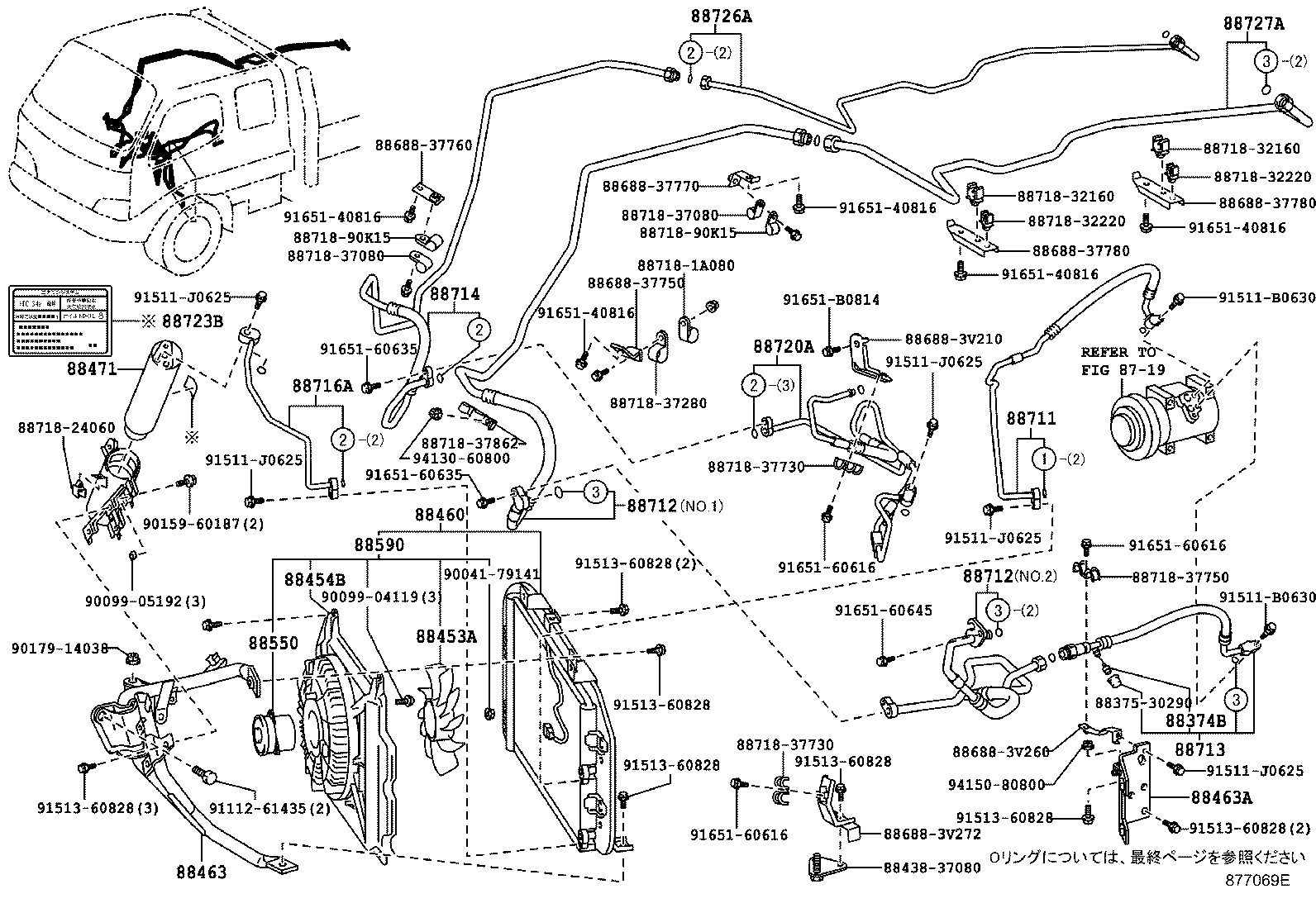

ILLUST NO. 1 OF 3(0406-0610)DCB

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ｸｰﾗ)

diagram 8719 88374B 8837530290 8843837080 88453A 88454B 88460 88463 88463A 88471 88550 88590 8868837750 8868837760 8868837770 8868837780 8868837780 886883V210 886883V260 886883V272 88711 88712 88712 88713 88714 88716A 887181A080 8871824060 8871832160 8871832160 8871832220 8871832220 8871837080 8871837080 8871837280 8871837730 8871837730 8871837750 8871837862 8871890K15 8871890K15 88720A 88723B 88726A 88727A 9004179141 9009904119 9009905192 9015960187 9017914038 9111261435 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9165140816 9165140816 9165140816 9165140816 9165140816 9165160616 9165160616 9165160616 9165160635 9165160635 9165160645 91651B0814 9413060800 9415080800
Part # Description Qty Price
Common parts
88375-30290
88438-37080
88688-37750
88688-37760
88688-37770
88688-37780
88688-3V210
88688-3V260
88688-3V272
88718-1A080
88718-24060
88718-32160
88718-32220
88718-37080
88718-37280
88718-37730
88718-37750
88718-37862
88718-90K15
90041-79141
90099-04119
90099-05192
90159-60187
90179-14038
91112-61435
91511-B0630
91511-J0625
91513-60828
91651-40816
91651-60616
91651-60635
91651-60645
91651-B0814
94130-60800
94150-80800
Linked diagrams
8719
