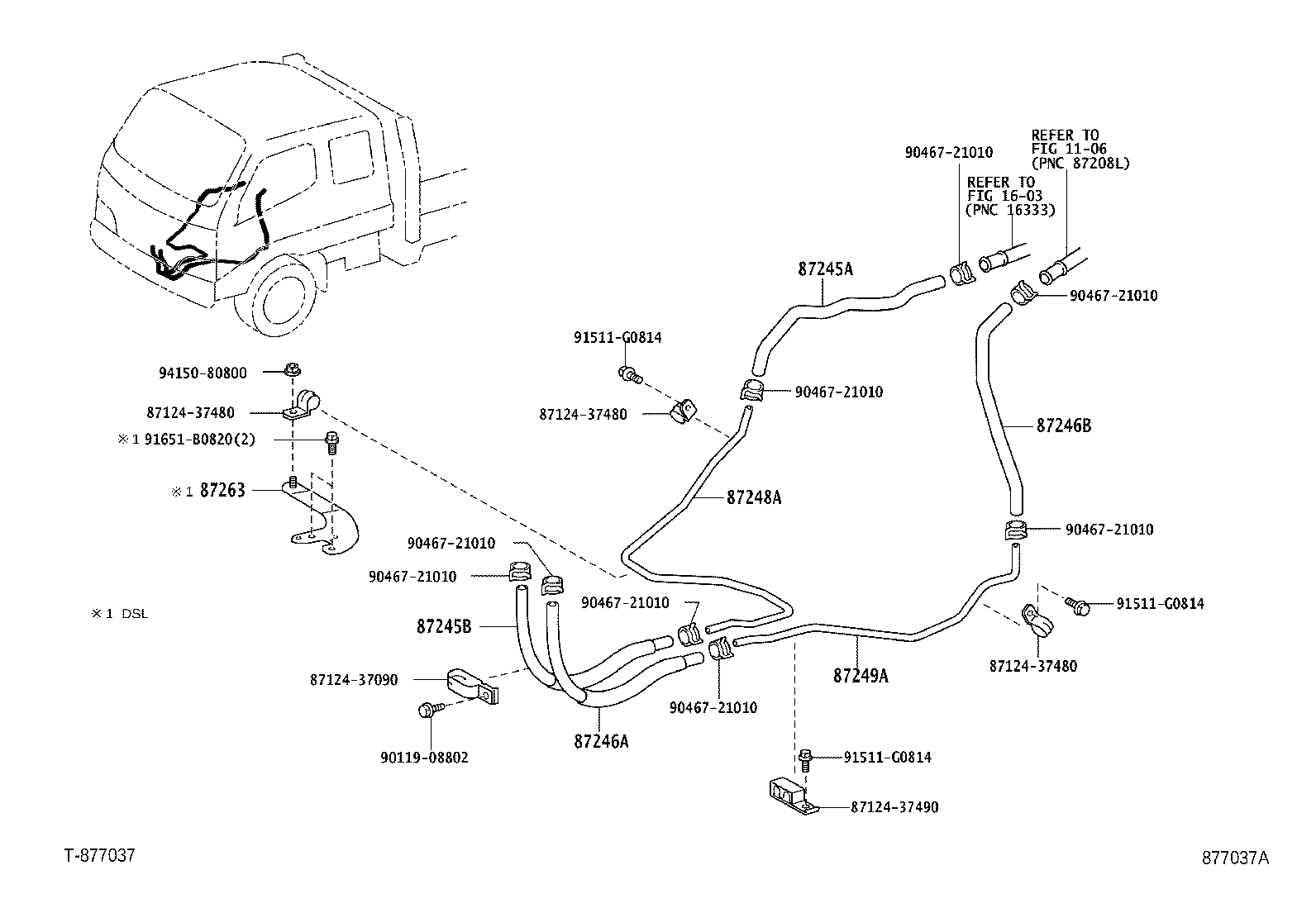

Toyota Dyna/toyoace XZU378 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3V490	XZU368,378,388	06/2004 - 10/2006	1
87245B - HOSE, HEATER WATER, INLET B
87245-37B20	XZU378,388..DCB 長さ=440	06/2004 - 10/2006	1
87245-37B30	XZU378,388..DCB	06/2004 - 10/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37570	XZU378,388..DCB ｱﾘ(ﾘﾔﾋｰﾀ)	06/2004 - 10/2006	1
87245-37B20	XZU378,388..DCB 長さ=440	06/2004 - 10/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37490	XZU368,378,388	06/2004 - 10/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-37790	XZU378,388..DCB ｱﾘ(ﾘﾔﾋ-ﾀ)	06/2004 - 10/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37780	XZU378,388..DCB ｱﾘ(ﾘﾔﾋ-ﾀ)	06/2004 - 10/2006	1
Common parts
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91511-G0814
91651-B0820
94150-80800
Linked diagrams
1106
1603

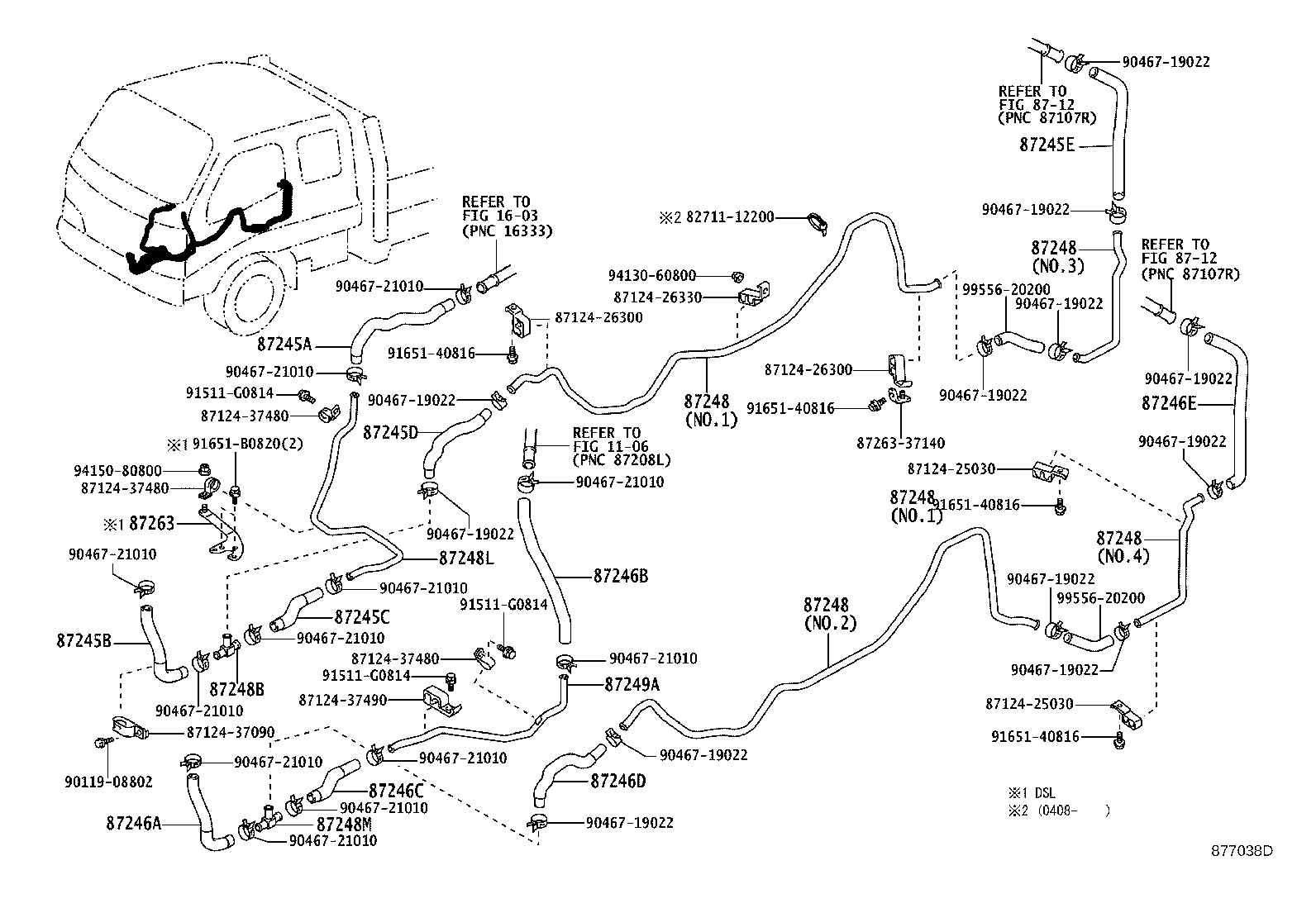

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3V490	XZU368,378,388	06/2004 - 10/2006	1
87245B - HOSE, HEATER WATER, INLET B
87245-37B20	XZU378,388..DCB 長さ=440	06/2004 - 10/2006	1
87245-37B30	XZU378,388..DCB	06/2004 - 10/2006	1
87245C - HOSE, HEATER WATER ,INLET C
87245-37C30	XZU378,388..DCB	06/2004 - 10/2006	1
87245D - HOSE, HEATER WATER, INLET D
87245-37B70	XZU378,388..DCB	06/2004 - 10/2006	1
87245E - HOSE, HEATER WATER, INLET E
87245-37690	XZU378,388..DCB	06/2004 - 10/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37570	XZU378,388..DCB ｱﾘ(ﾘﾔﾋｰﾀ)	06/2004 - 10/2006	1
87245-37B20	XZU378,388..DCB 長さ=440	06/2004 - 10/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37490	XZU368,378,388	06/2004 - 10/2006	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-37C30	XZU378,388..DCB ｱﾘ(ﾘﾔﾋ-ﾀ)	06/2004 - 10/2006	1
87246D - HOSE, HEATER WATER, OUTLET D
87246-37610	XZU378,388..DCB	06/2004 - 10/2006	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-37B80	XZU378,388..DCB	06/2004 - 10/2006	1
87248 - PIPE SUB-ASSY, WATER
87248-37720	XZU378,388..DCB NO.1	06/2004 - 10/2006	1
87248-37760	XZU378,388..T3..20T NO.3	06/2004 - 10/2006	1
87248-37730	XZU378,388..DCB NO.2	06/2004 - 10/2006	1
87248-37770	XZU378,388..T3..20T NO.4	06/2004 - 10/2006	1
87248 - PIPE SUB-ASSY, WATER
87248-37720	XZU378,388..DCB NO.1	06/2004 - 10/2006	1
87248-37760	XZU378,388..T3..20T NO.3	06/2004 - 10/2006	1
87248-37730	XZU378,388..DCB NO.2	06/2004 - 10/2006	1
87248-37770	XZU378,388..T3..20T NO.4	06/2004 - 10/2006	1
87248 - PIPE SUB-ASSY, WATER
87248-37720	XZU378,388..DCB NO.1	06/2004 - 10/2006	1
87248-37760	XZU378,388..T3..20T NO.3	06/2004 - 10/2006	1
87248-37730	XZU378,388..DCB NO.2	06/2004 - 10/2006	1
87248-37770	XZU378,388..T3..20T NO.4	06/2004 - 10/2006	1
87248 - PIPE SUB-ASSY, WATER
87248-37720	XZU378,388..DCB NO.1	06/2004 - 10/2006	1
87248-37760	XZU378,388..T3..20T NO.3	06/2004 - 10/2006	1
87248-37730	XZU378,388..DCB NO.2	06/2004 - 10/2006	1
87248-37770	XZU378,388..T3..20T NO.4	06/2004 - 10/2006	1
87248B - PIPE, HEATER WATER INLET, B
87248-60460	XZU378,388..DCB	06/2004 - 10/2006	1
87248L - PIPE, HEATER WATER, L
87248-37790	XZU378,388..DCB	06/2004 - 10/2006	1
87248M - PIPE, HEATER WATER, M
87248-60460	XZU378,388..DCB	06/2004 - 10/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37780	XZU378,388..DCB ｱﾘ(ﾘﾔﾋ-ﾀ)	06/2004 - 10/2006	1
Common parts
82711-12200
87124-25030
87124-26300
87124-26330
87124-37090
87124-37480
87124-37490
87263-37140
90119-08802
90467-19022
90467-21010
91511-G0814
91651-40816
91651-B0820
94130-60800
94150-80800
99556-20200
Linked diagrams
1106
1603
8712

XZU378-PKMMW3 (2004)

(0406- )XZU378,388..DCB

(0406- )XZU378,388..T3..20T

(0406-0610)DCB

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
82712-37250
87124-25030
87124-26330
87124-37080
87124-37090
87124-37480
87124-37490
87124-37500
87263-37030
90119-08802
90464-00558
90467-19022
90467-21010
91511-G0814
91651-40816
91651-60816
94130-60800
94150-80800
99556-20200
