XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 5 OF10(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37170 |
BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 82683-37340 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90986-01005 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84340-25030 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-04008 |
XZU368,378,388 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650R - BUZZER ASSY, ES START | ||||
| 86650-37130 |
XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90387-09027 | ||||
| 91551-80820 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 6 OF10(0406- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37110 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 84270-37060 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37120 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.67W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37060 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.87W |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-37020 |
XZU368,378,388 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84810G - SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2 | ||||
| 84810-37070 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) 左側 |
1 | ||
| 84810-37080 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) 右側 |
1 | ||
| 84810G - SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2 | ||||
| 84810-37070 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) 左側 |
1 | ||
| 84810-37080 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) 右側 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84873-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513-12020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||

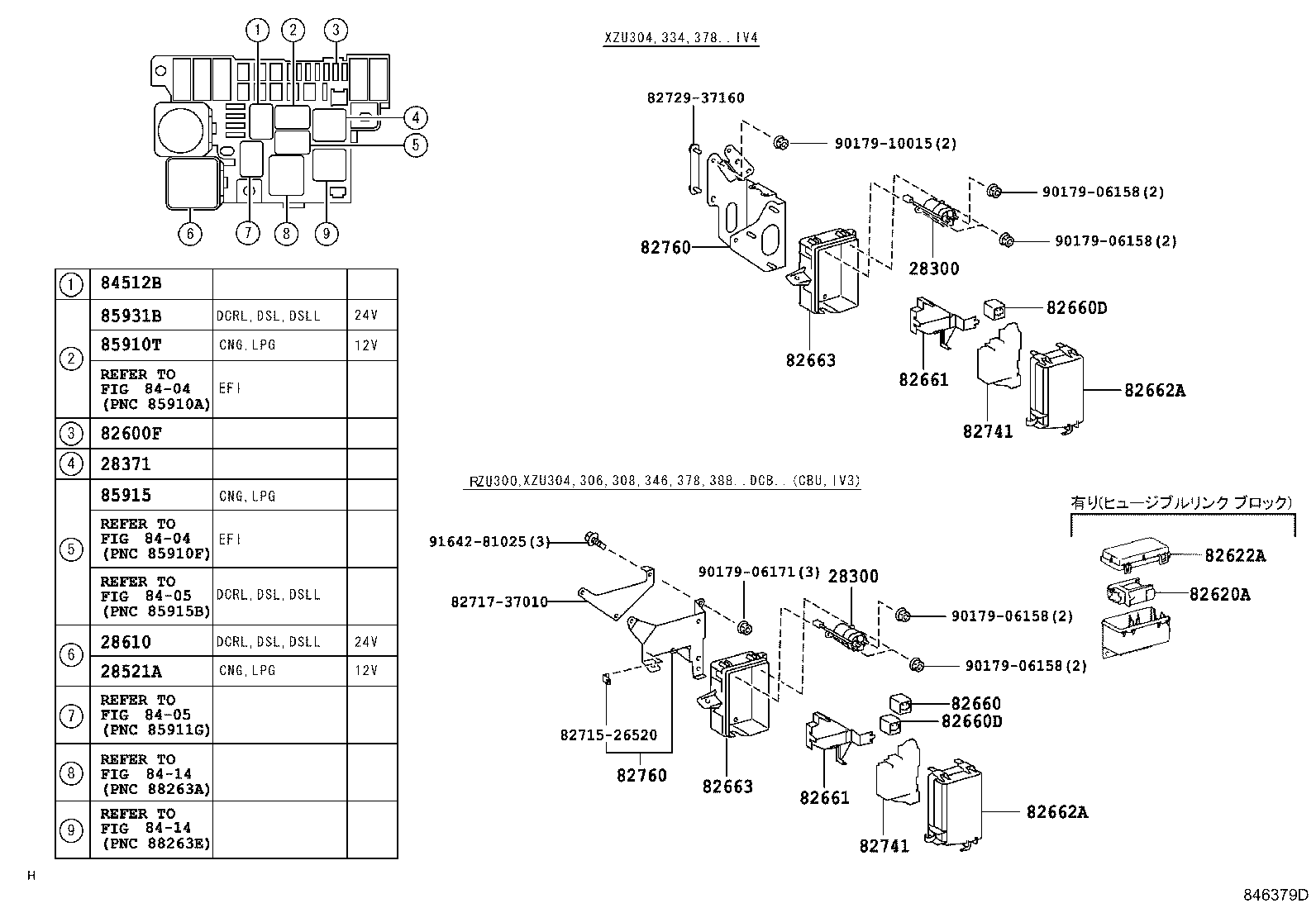

ILLUST NO. 4 OF10(0406- )DCB
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37021 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37021 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Common parts | ||||
| 82715-26520 | ||||
| 82717-37010 | ||||
| 82729-37160 | ||||
| 90179-06158 | ||||
| 90179-06171 | ||||
| 90179-10015 | ||||
| 91642-81025 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||

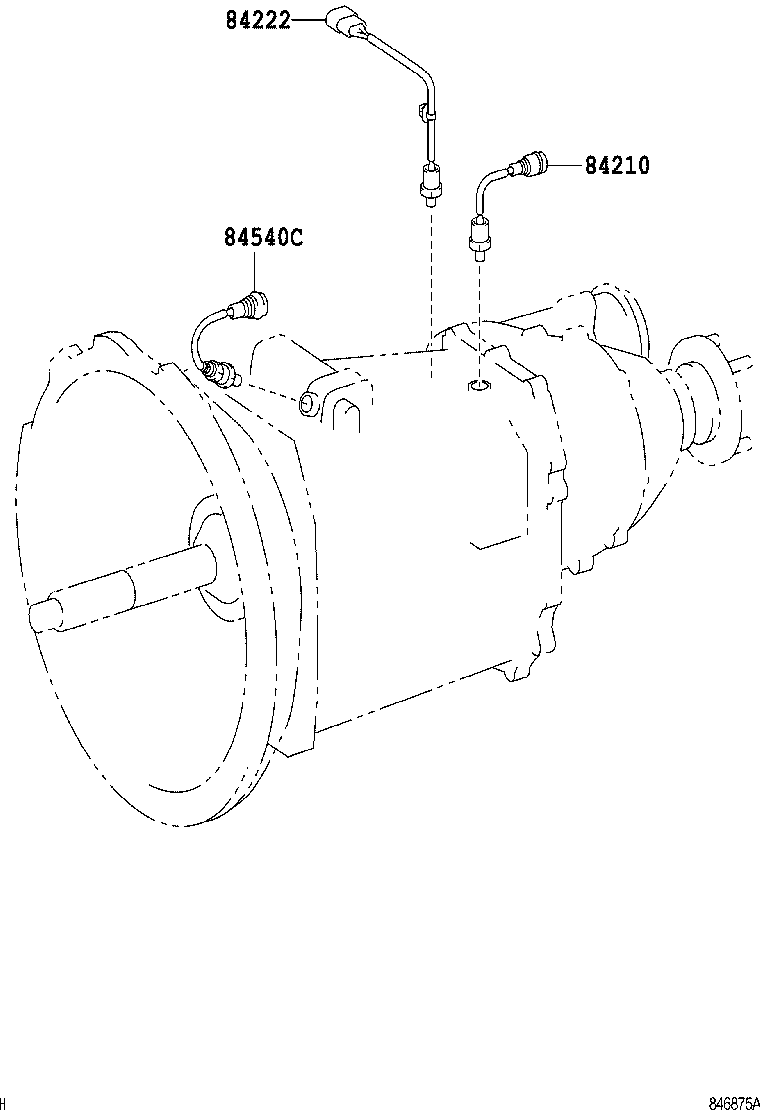

ILLUST NO. 2 OF10(0406- )XZU31#,321,35#,368,378,388..5F..20T,30T
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35# |
1 | ||
| SU002-00321 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| SU002-00524 |
XZU368,378,388 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37020 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) |
1 | ||
| SU002-00255 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
