Toyota Dyna/toyoace XZU378 WIRING & CLAMP

XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 6(0406- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-37A50	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	06/2004 - 05/2005	1
82141-37730	XZU301..(T3,T4)..6FC;XZU301..6FC..20T..IV6;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 05/2005	1
82141-37A00	BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	06/2004 - 05/2005	1
82141-37B90	XZU301..(T3,T4)..6FC;XZU301..6FC..20T..IV6;XZU301,368..(DM6,T3,T4,T5)..5F..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,378,388..(DCB,SCB)..(CBU,IV3,IV7)	05/2005 - 12/2999	1
82141-37B80	XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV7) ｱﾘ(ES ｽﾀ-ﾄ)	05/2005 - 12/2999	1
82141-37C30	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	05/2005 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-37440	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
82219A - WIRE, SENSOR
82219-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82219-37010	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1

ILLUST NO. 3 OF 6(0406- )

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-37K80	XZU378,388..T3..20T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37K80	06/2004 - 05/2005	1
82131-37U30	XZU378,388..T3..20T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37U30	05/2005 - 11/2005	1
82131-37U31	XZU378,388..T3..20T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-37U31	12/2005 - 10/2006	1
82210C - FUSIBLE LINK
90982-08203	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒	05/1999 - 06/2004	1
90982-08202	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄	05/1999 - 06/2004	1
90982-08282	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤	05/1999 - 06/2004	1
90982-08246	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青	05/1999 - 06/2004	1
90982-08286	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶	05/1999 - 06/2004	1
90982-08280	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃	05/1999 - 06/2004	1
Common parts
90119-06915
91626-40620
Linked diagrams
8401

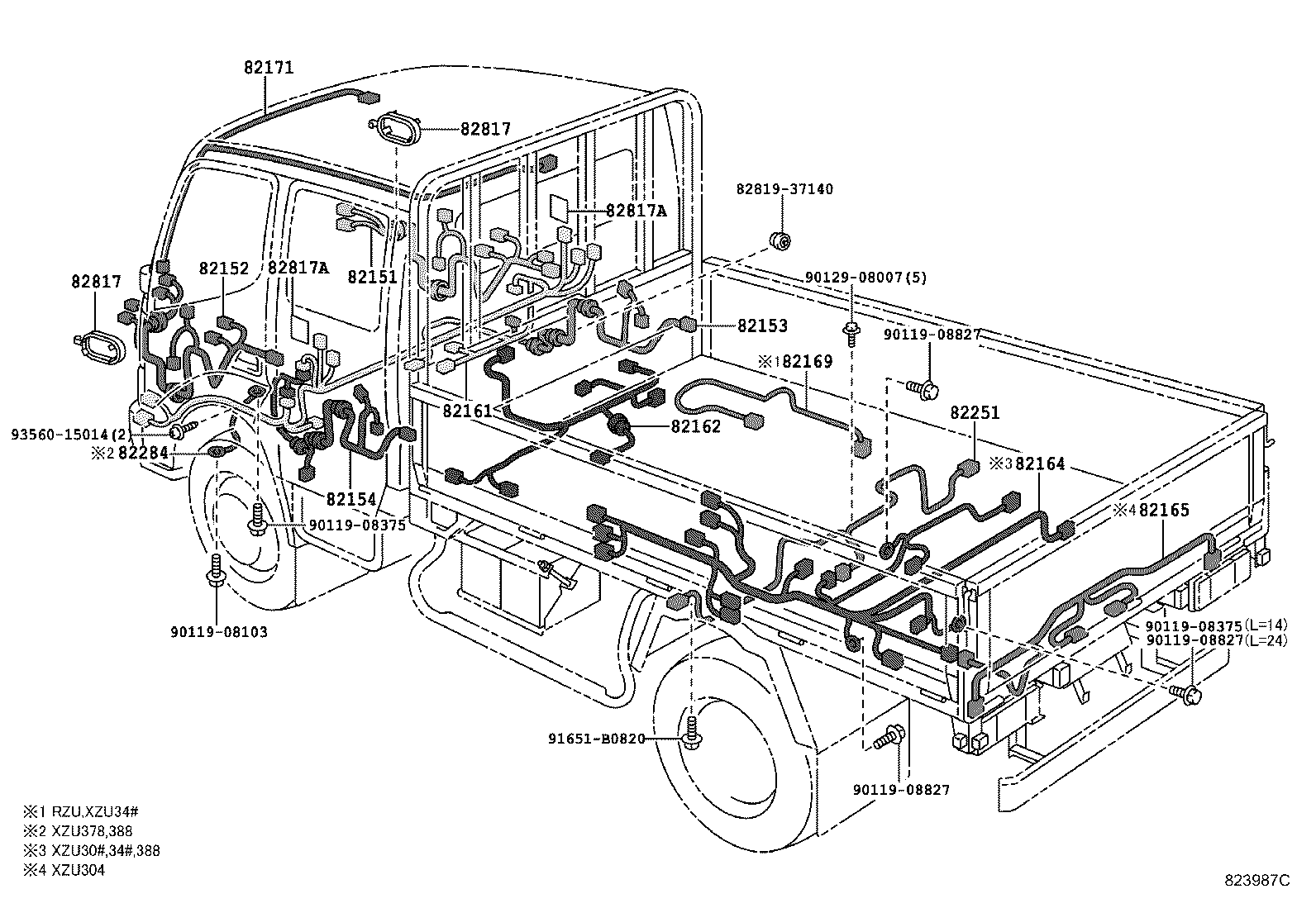

ILLUST NO. 4 OF 6(0406- )DCB..CBU,IV3

Click highlighted areas on diagram

ﾎﾞﾃﾞｰ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-37150	RZU300..SCB;BU30#,346,RZU340,XZU30#,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CBU,IV3,IV4) ﾅｼ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	05/1999 - 06/2002	1
82151-37120	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..175T,20T,295T,30T	05/1999 - 06/2002	1
82151-37320	RZU300..SCB..(T2,T3,T4);BZU300,340,RZU301,340,XZU30#,33#,34#,368,378,388..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,30T)..(CBU,IV3,IV4)	06/2004 - 12/2999	1
82151-37221	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;BZU300,340,RZU300..DM6,T2,T3,T4;RZU301,340,XZU304,305,306,308,31#,321,33#,34#,35#,368,378,388..(175T,20T,30T)..(CBU,IV3,IV4,IV7) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/2004 - 12/2999	1
82151-37380	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,31#,35#,368..(DM2,DM5,T1,T3,T4,T5)..(CBU,IV3,IV7);BZU300,340,RZU30#,340,XZU306,308,321,33#,34#,378,388..(03S,06S,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾜｲﾔﾚｽﾄﾞｱｷｰ)	06/2004 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-37110	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2002	1
82152-37160	RZU300,XZU302..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI,LPG);XZU301..(DM6,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV4);BU30#,346,RZU340,XZU300,306,307,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	05/1999 - 06/2002	1
82152-37350	RZU300..SCB..(T2,T3,T4);BZU300,340,RZU301,340,XZU30#,33#,34#,368,378,388..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,30T)..(CBU,IV3,IV4)	06/2004 - 12/2999	1
82152-37430	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	06/2004 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-37010	XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ & ﾘﾔ)	06/2004 - 10/2006	1
82153-37100	XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄﾉﾐ)	06/2004 - 10/2006	1
82154 - WIRE, REAR DOOR, NO.2
82153-37010	XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄ & ﾘﾔ)	06/2004 - 10/2006	1
82153-37100	XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ---ﾌﾛﾝﾄﾉﾐ)	06/2004 - 10/2006	1
82161 - WIRE, FLOOR
82161-37300	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82161-37280	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	1
82161-37290	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-37060	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) ｱﾘ(ﾘﾔﾋ-ﾀ)	06/2004 - 12/2999	1
82164 - WIRE, FRAME
82164-37C10	XZU334..30T..DCRL;XZU331,378..CBU,IV3	06/2004 - 10/2006	1
82165 - WIRE, FRAME, NO.2
82165-37130	XZU301..ST..CBU;XZU306..SCB..T4;XZU306..DCB..IV3;XZU306..(T2,T5)..IV3;BZU300..T4..30T..CBU;XZU306..(T2,T5)..5F..CBU;XZU301,308..SCB..(T2,T4)..5F..CBU;XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;BZU300,340,RZU30#,340,XZU301,304,305,308,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(IV3,IV4)	06/2004 - 05/2005	1
82165-37240	BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388..(DM6,T1,T2,T3,T4,T5)..(IV3,IV4)	05/2005 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-37311	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	1
82251 - WIRE, SPEED SENSOR
82251-37090	XZU378,388	06/2004 - 10/2006	1
82284 - WIRE, EARTH
82284-37140	XZU378,388..DCB	06/2004 - 10/2006	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12400	RZU300,XZU304,306,308,334,346,378,388..DCB,VAN	06/2004 - 12/2999	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12400	RZU300,XZU304,306,308,334,346,378,388..DCB,VAN	06/2004 - 12/2999	2
Common parts
82819-37140
90119-08103
90119-08375
90119-08827
90129-08007
91651-B0820
93560-15014

ILLUST NO. 1 OF 6(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82048 - WIRING SUB-ASSY, FRONT DRIVE INDICATOR LAMP SWITCH
82048-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
82050 - WIRE ASSY, ENGINE
82050-37010	XZU368..DM5..IV3;XZU301..(T3,T4,T5)..CBU;XZU301,31#,321,35#..IV3,IV6;XZU304,305,306,308,33#,34#,368,378,388..DM6,T1,T2,T3,T4,T5	06/2004 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-37Y90	XZU378..20T..DCRL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37Y90	06/2004 - 07/2005	1
82111-37Y91	XZU378..20T..DCRL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37Y91	08/2005 - 03/2006	1
82111-37Y92	XZU378..20T..DCRL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37Y92	04/2006 - 06/2006	1
82111-37Y93	XZU378..20T..DCRL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37Y93	07/2006 - 10/2006	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37050	XZU378,388..DCB	06/2004 - 05/2005	1
82114-37080	XZU378,388..DCB	05/2005 - 10/2006	1
82122 - WIRE, ENGINE, NO.2
82121-37B41	XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 10/2006	1
82123 - WIRE, ENGINE, NO.3
82121-37B61	XZU304..DSL,DSLL;XZU304..(T3,T4,T5)..DCRL;XZU308,314,334,338,344,348,354,368,378,388	06/2004 - 10/2006	1
82127 - WIRE, DIFFERENTIAL
82127-37011	XZU368,378,388	07/2006 - 10/2006	1
82127-37010	XZU368,378,388	06/2004 - 06/2006	1
82210C - FUSIBLE LINK
90982-08203	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒	05/1999 - 06/2004	1
90982-08202	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄	05/1999 - 06/2004	1
90982-08282	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤	05/1999 - 06/2004	1
90982-08246	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青	05/1999 - 06/2004	1
90982-08286	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶	05/1999 - 06/2004	1
90982-08280	BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃	05/1999 - 06/2004	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-37040	XZU368,378,388 4WD	06/2004 - 06/2006	1
82221-37041	XZU368,378,388	07/2006 - 10/2006	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90031-05123
90031-09081
90031-75001
90034-30042
90119-08375
90179-08233
91651-40816
Linked diagrams
8201
8401

ILLUST NO. 1 OF 6(0406-0610)DCRL,DSL,DSLL ; (0406-0705)DCR

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty	Price
Common parts
90031-09081
90031-75001
90119-08375
90179-06158
91551-80814
Linked diagrams
8201
8401

ILLUST NO. 2 OF 6(0406-0610)DCRL,DSL,DSLL ; (0406-0705)CNG,DCR,LPG

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty	Price
Common parts
90119-06915
91626-40620
Linked diagrams
8401

ILLUST NO. 3 OF 6(0406-0610)DCRL,DSL,DSLL ; (0406-0705)CNG,DCR,LPG

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF 6(0406-0610)SCB..DCRL,DSL,DSLL ; (0406-0705)CNG,DCR,LPG

Click highlighted areas on diagram

ﾎﾞﾃﾞｰ

Part #	Description	Period	Qty	Price
Common parts
82712-37082
90119-08375
90119-08827
90129-08007
90463-12011
90950-01796
93560-15014
94150-80800

ILLUST NO. 4 OF 6(0406-0610)DCB

Click highlighted areas on diagram

ﾎﾞﾃﾞｰ

Part #	Description	Period	Qty	Price
Common parts
82712-37082
82819-37140
90119-08375
90119-08827
90129-08007
91551-80814
93560-15014
