XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

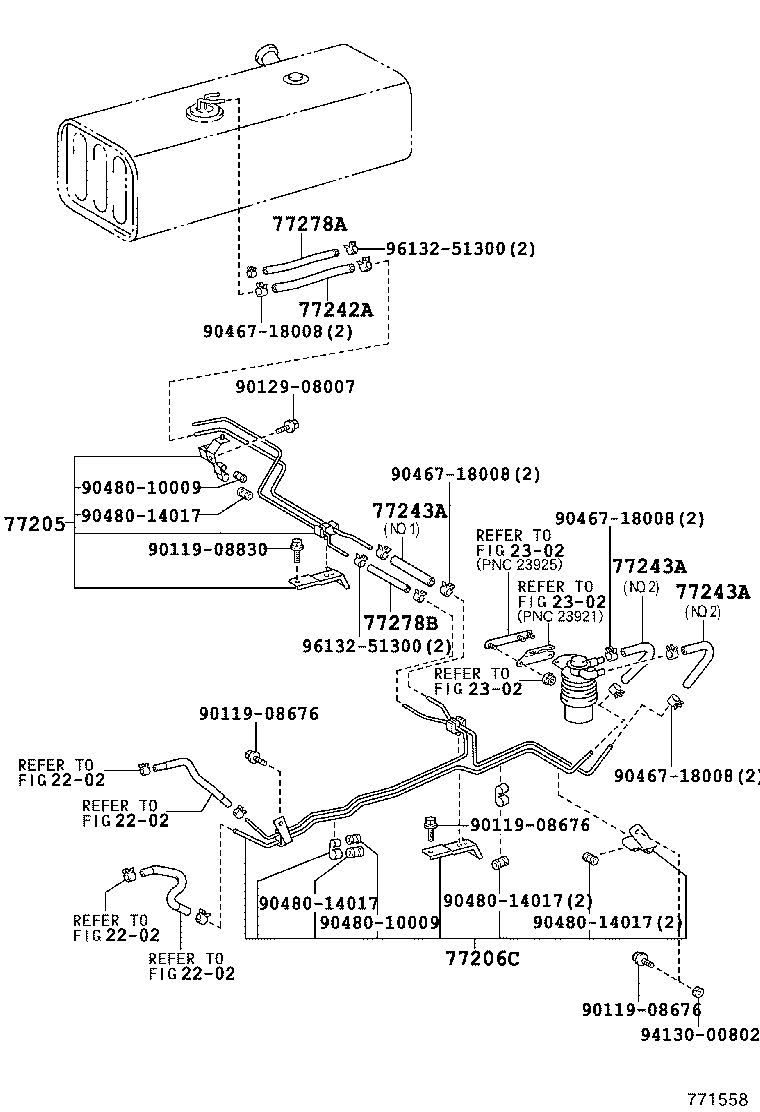

ILLUST NO. 2 OF 2(0406- )XZU378..T3..20T

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2302 2302 2302 77205 77206C 77242A 77243A 77243A 77243A 77278A 77278B 9011908676 9011908676 9011908676 9011908830 9012908007 9046718008 9046718008 9046718008 9046718008 9048010009 9048010009 9048014017 9048014017 9048014017 9048014017 9413000802 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37830

XZU378..T3..20T

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37A60

XZU378,388..T3..20T

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12024

XZU378..CBU,IV3;XZU304,306,308,334..DCB

*H,L=240,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU321,378..CBU,IV3;XZU304,306,308..(DCB,VAN)..4NO

*H,L=260,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
Common parts
90119-08676
90119-08830
90129-08007
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2202 2202 2202 2202 2202 2202 2302 2302 2302 2302 2302 2302 2302 2302 77205 77205 77206C 77206C 77242A 77242A 77242A 77243A 77243A 77243A 77243A 77278A 77278A 77278B 77278B 77284 77285 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9011908830 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9048010009 9048010009 9048014017 9048014017 9048014017 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37830

XZU378..T3..20T

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37830

XZU378..T3..20T

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37A60

XZU378,388..T3..20T

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37A60

XZU378,388..T3..20T

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12024

XZU378..CBU,IV3;XZU304,306,308,334..DCB

*H,L=240,内径=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12024

XZU378..CBU,IV3;XZU304,306,308,334..DCB

*H,L=240,内径=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12024

XZU378..CBU,IV3;XZU304,306,308,334..DCB

*H,L=240,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12024

XZU34#;XZU304,306,308,378,388..DCB..(CBU,IV3)

*H,L=240,内径=12,NO.2:ｲﾗｽﾄ参照

 2
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU321,378..CBU,IV3;XZU304,306,308..(DCB,VAN)..4NO

*H,L=260,内径=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU321,378..CBU,IV3;XZU304,306,308..(DCB,VAN)..4NO

*H,L=260,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 77017B 77018 77022A 77022A 77100A 77100B 77100U 77135A 77135A 77197 77244C 77275B 77601A 77611A 77616C 77633 77644 77701U 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 91611B0616 9162640616 9164281025 9164281040 9164281040 9164281040 91645C1032 91645C1032 91645C1032 93319A4010 9413000802 9413000802 9613251100 9613251300
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37030

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 1
77017-37030

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37130

XZU304,306,308,378..DCB..(CBU,IV3)

 1
77018-37130

XZU304,306,308,378..DCB..(CBU,IV3)

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

*H,L=160,内径=7.6

 2
95333-08020

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

*H,L=160,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

*H,L=160,内径=7.6

 2
95333-08020

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

*H,L=160,内径=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90105-12116

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90105-12116

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90105-12116

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90430-12245

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90430-12245

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90430-12245

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
77100U - TANK SUB-ASSY, FUEL
77001-37450

XZU304,306,308,378..DCB..(CBU,IV3)

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77001-37450

XZU304,306,308,378..DCB..(CBU,IV3)

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77001-37451

XZU304,306,308,378..DCB..(CBU,IV3)

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77001-37451

XZU304,306,308,378..DCB..(CBU,IV3)

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
90977-02001

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26060

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77601-26060

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 4
77653-25010

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 4
77633 - STAY, FUEL TANK
77501-25091

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77501-25091

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77644 - BOLT, FUEL TANK
77644-37101

XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)

 1
77644-37101

XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

XZU304,306,308,378..DCB..(CBU,IV3)

*H,L=240

 1
95333-06030

XZU304,306,308,378..DCB..(CBU,IV3)

*H,L=240

 1
Common parts
90179-10015
91611-B0616
91626-40616
91642-81025
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

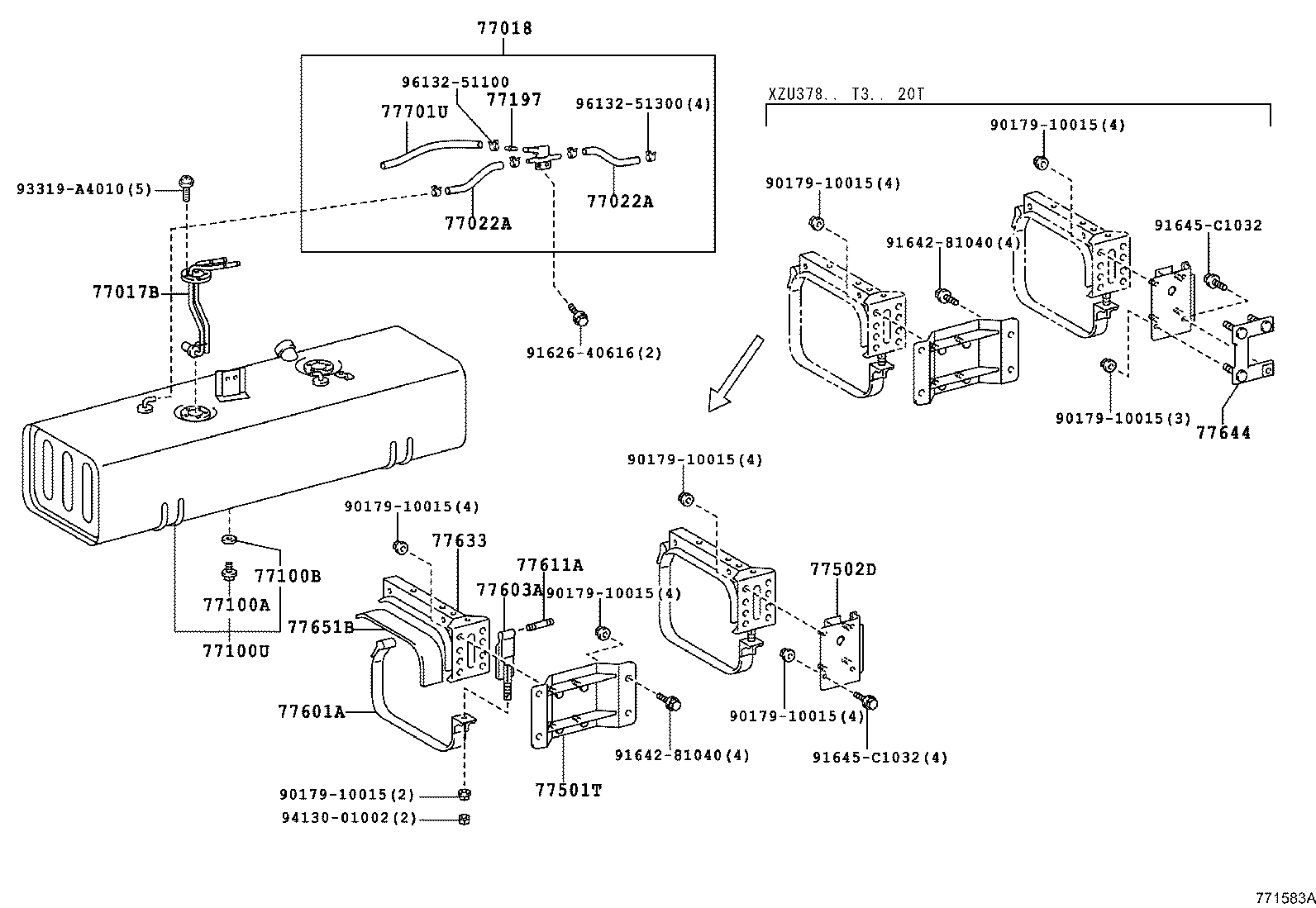

ILLUST NO. 1 OF 2(0406- )XZU304,306,308,378..DCB..CBU,IV3

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 77017B 77018 77022A 77022A 77100A 77100B 77100U 77197 77501T 77502D 77601A 77603A 77611A 77633 77644 77651B 77701U 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9162640616 9164281040 9164281040 91645C1032 91645C1032 93319A4010 9413001002 9613251100 9613251300
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37030

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37130

XZU304,306,308,378..DCB..(CBU,IV3)

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

*H,L=160,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

*H,L=160,内径=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90105-12116

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
90430-12245

RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI

 1
77100U - TANK SUB-ASSY, FUEL
77001-37450

XZU304,306,308,378..DCB..(CBU,IV3)

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77001-37451

XZU304,306,308,378..DCB..(CBU,IV3)

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37220

XZU304,306,308,378..DCB..(CBU,IV3)

 1
77502D - BRACKET SUB-ASSY, FUEL TANK, REAR
77502-37100

XZU304,306,308,378..DCB..(CBU,IV3)

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26060

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-37010

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 4
77633 - STAY, FUEL TANK
77501-25091

XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77644 - BOLT, FUEL TANK
77644-37101

XZU301..IV6;XZU336..IV3;XZU306..SCB..5F;XZU336..5F..CBU;XZU308..SCB..T4..IV3;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU301,304,306..SCB..(DM6,T4)..ATM..IV3;XZU304,305,331,334,354,378..(DM6,T1,T3,T4,T5)..5F..(20T,30T,40T)..(CBU,IV3,IV6)

 1
77651B - CUSHION, FUEL TANK
77651-26040

RZU300,XZU304,306,308,378..(DCB,VAN)..(CBU,IV3)

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

XZU304,306,308,378..DCB..(CBU,IV3)

*H,L=240

 1
Common parts
90179-10015
91626-40616
91642-81040
91645-C1032
93319-A4010
94130-01002
96132-51100
96132-51300

ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 77017B 77018 77022C 77022C 77100A 77100B 77100U 77135A 77135A 77197 77244C 77275B 77601A 77611A 77616C 77633 77701U 9017908249 9017910015 9017910015 9017910015 91611B0616 9162640616 9164180825 9164281030 9164281040 91645C1032 93319A4010 9413000802 9413000802 9613251100 9613251300
Part # Description Qty Price
Common parts
90179-08249
90179-10015
91611-B0616
91626-40616
91641-80825
91642-81030
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

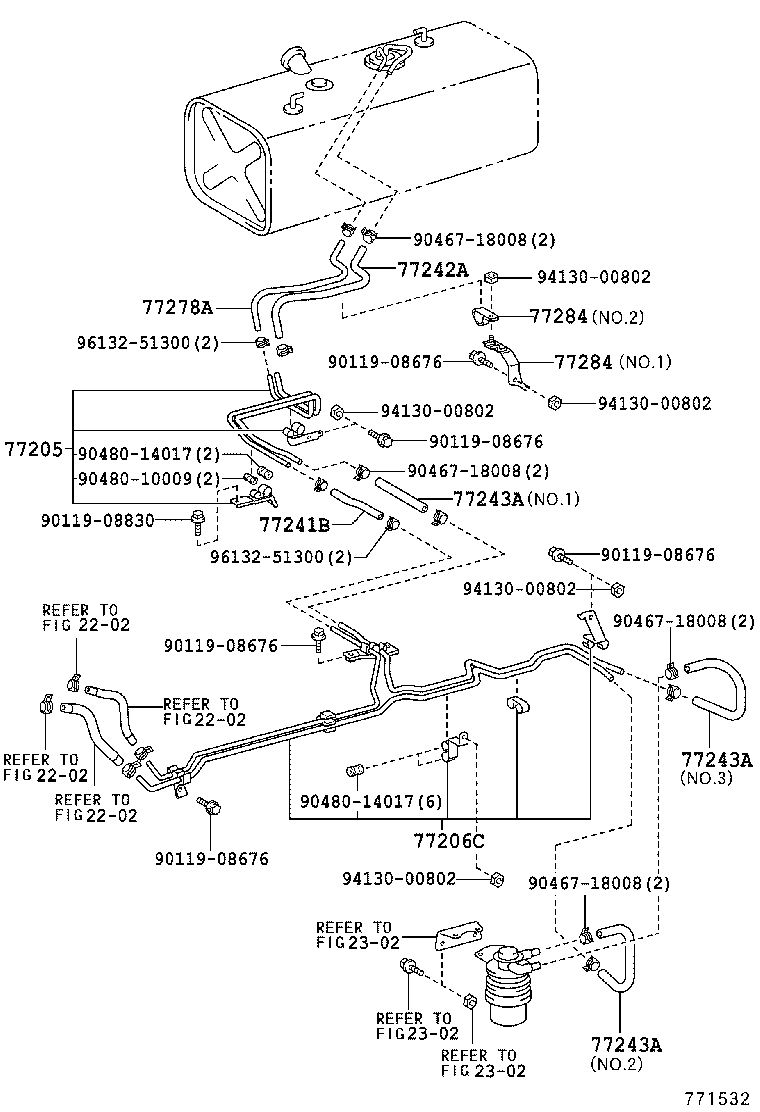

ILLUST NO. 2 OF 2(0406- )DCB

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2302 2302 2302 77205 77206C 77241B 77242A 77243A 77243A 77243A 77278A 77284 77284 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9046718008 9046718008 9046718008 9046718008 9048010009 9048014017 9048014017 9413000802 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300
Part # Description Qty Price
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302
