Toyota Dyna/toyoace XZU378 SEAT & SEAT TRACK

XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

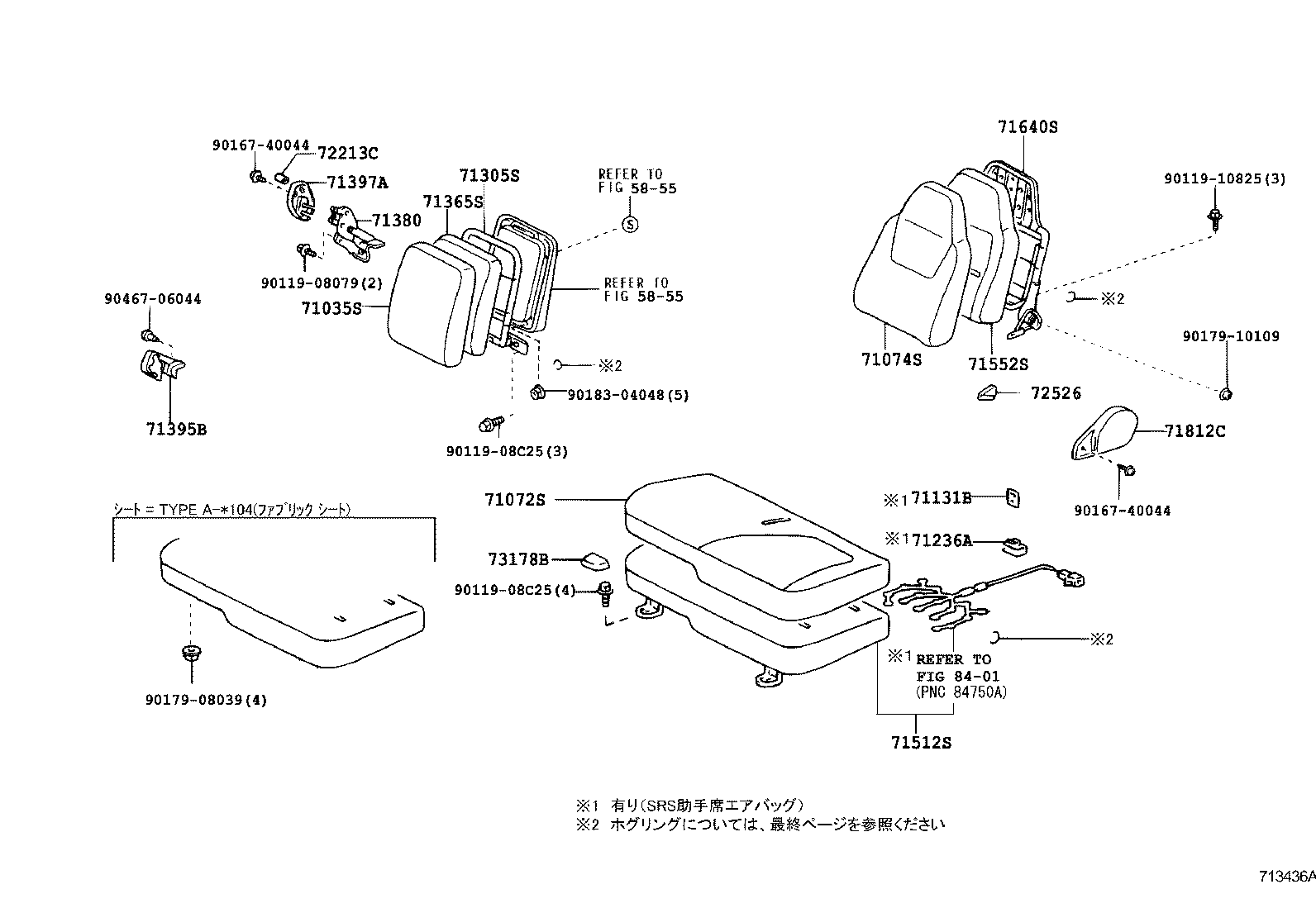

ILLUST NO. 2 OF 3(0406- )RZU300,XZU306..SCB..T2,T3,T4,T5..CBU,IV3 ; (0406- )BZU300,340,RZU301,

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ

Part #	Description	Period	Qty
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG	06/2004 - 12/2999	1
71131-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG	06/2004 - 12/2999	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG	06/2004 - 12/2999	1
71236-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG	06/2004 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71502-37140	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71052-37020	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
71052-37020	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71552-37080	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37080	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	06/2004 - 12/2999	1
71014-37080	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	06/2004 - 12/2999	1
Common parts
90119-08C25
93560-15030
96160-00800

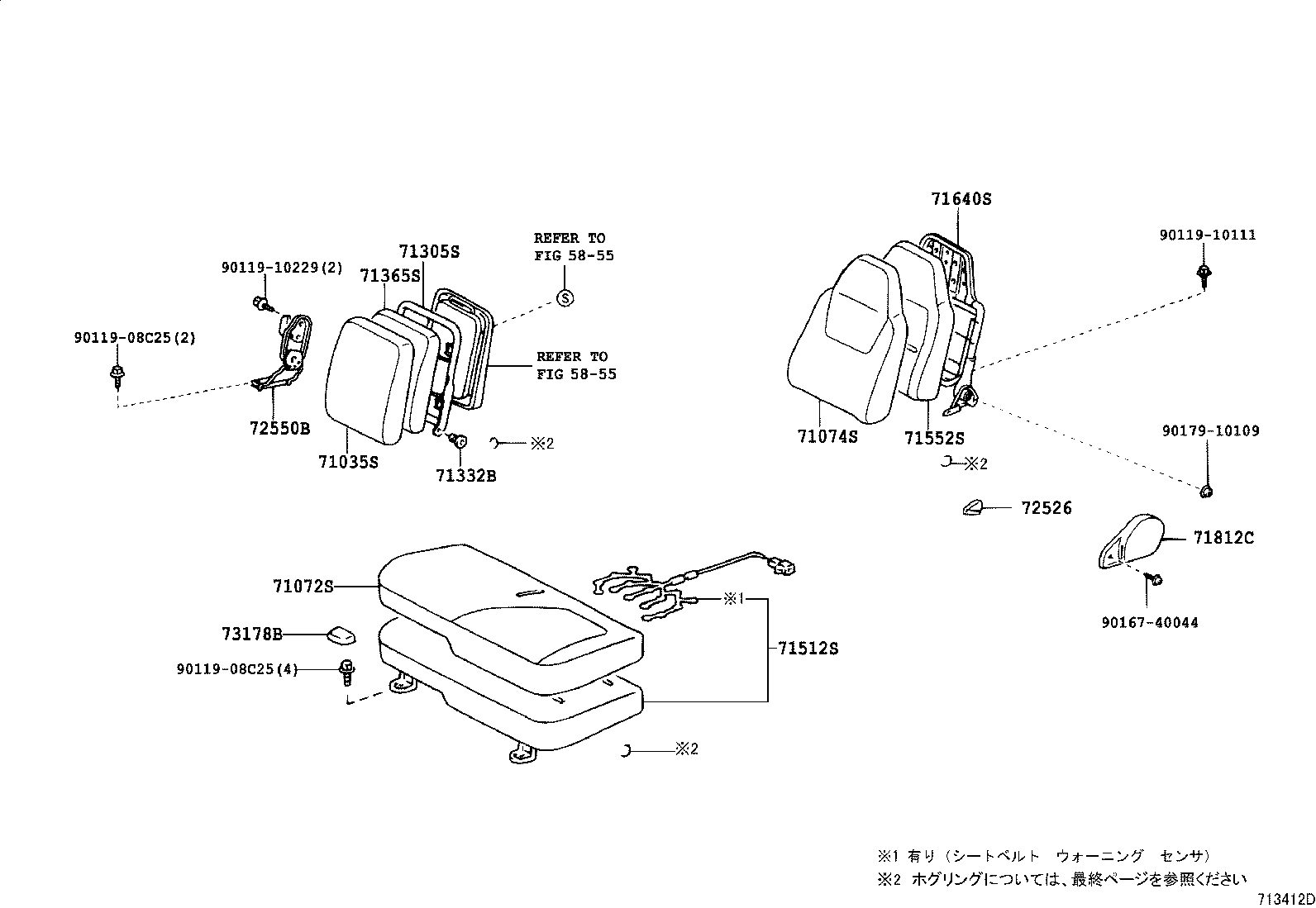

ILLUST NO. 2 OF 3(0406- )DCB

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ 2ﾆﾝｶﾞｹ & ｱﾘ(ｼｰﾄﾊﾞｯｸｺﾝｿｰﾙ)

Part #	Description	Period	Qty
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG	06/2004 - 12/2999	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG	06/2004 - 12/2999	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37060	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71365S - PAD, CENTER SEAT BACK
71365-37050	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-37010	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-37140	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71052-37020	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37080	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(ｼﾞﾖｼﾕｾｷﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	06/2004 - 12/2999	1
73178B - CAP, SEAT BELT ANCHOR COVER
73178-95J00	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 10/1999	2
Common parts
90119-08079
90119-08C25
90119-10825
90167-40044
90179-08039
90179-10109
90183-04048
90467-06044
Linked diagrams
5855
8401

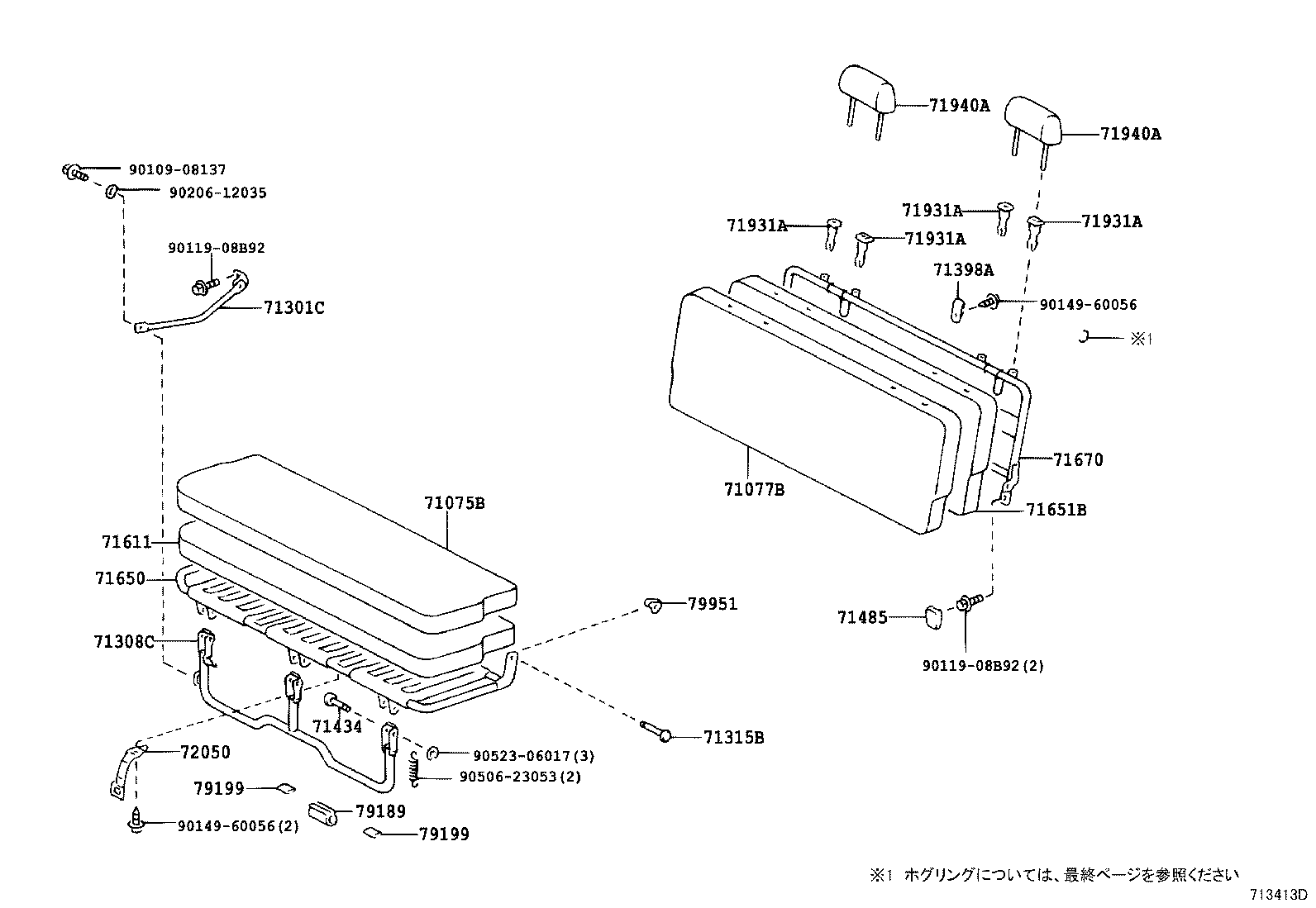

ILLUST NO. 3 OF 3(0406- )DCB..CBU,IV3

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

Part #	Description	Period	Qty

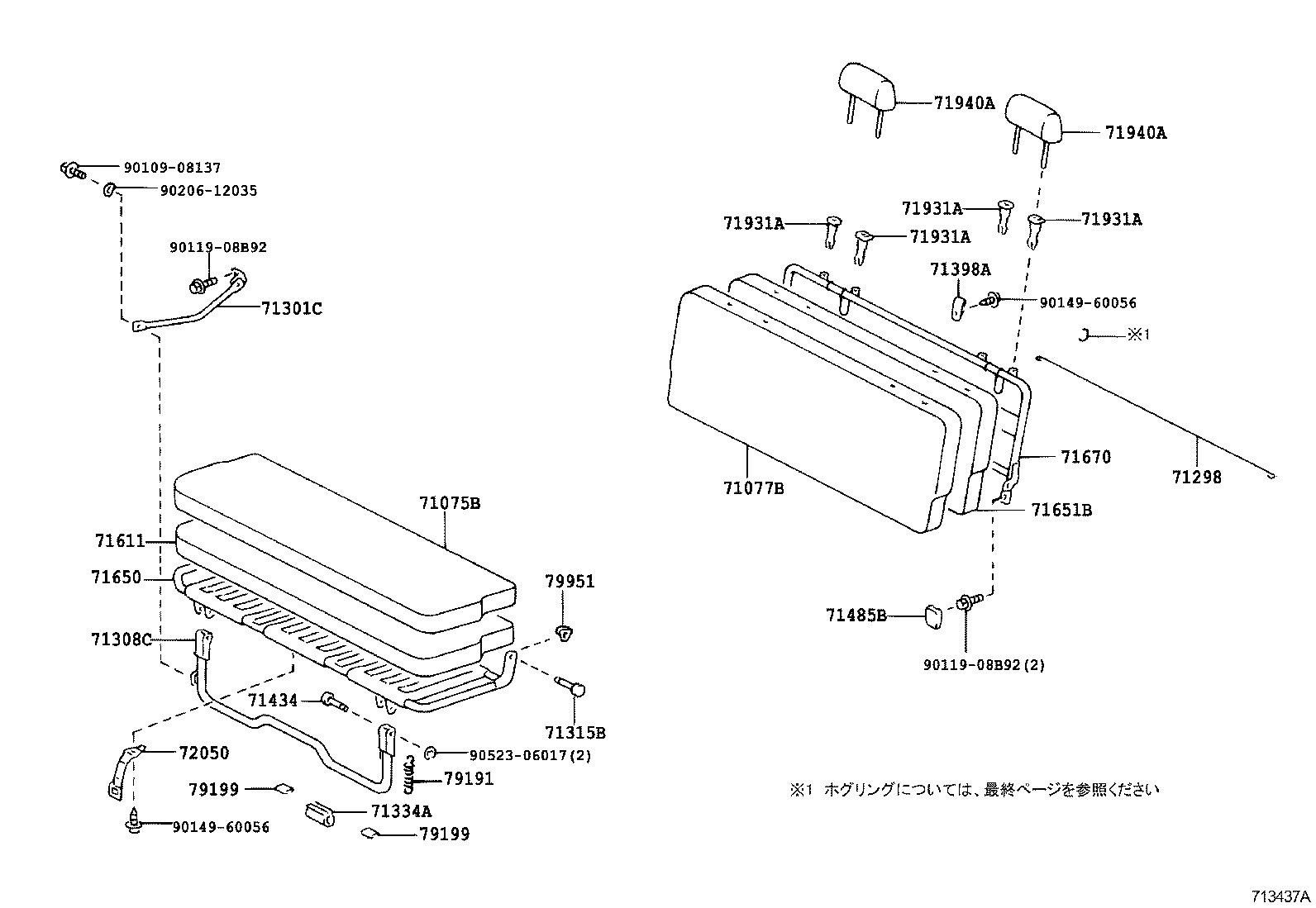

71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37170B1	BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB **,ｼ-ﾄ = TYPE B-104,MEDIUM CHARCOAL,TRIM1#	05/1999 - 06/2002	1
71298 - WIRE, REAR SEAT BACK, LOWER
71298-37010	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71301C - LINK SUB-ASSY, REAR SEAT CUSHION
71301-37010	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	1
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-37030	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	1
71315B - PIN, REAR SEAT HINGE
90109-10175	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
71334A - STOPPER, REAR SEAT LEG
79189-95J00	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
71434 - PIN, REAR SEAT CUSHION LEG, REAR
79939-26040	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
71611 - PAD, REAR SEAT CUSHION
71611-37030	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37020	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37020	RZU300,XZU304,306,308,334,346,378,388..DCB ｱﾘ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ)	06/2004 - 12/2999	1
71670-37030	RZU300,XZU304,306,308,334,346,378,388..DCB	06/2004 - 12/2999	1
79191 - SPRING, NO.1 SEAT CUSHION, NO.1
90506-23053	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
79951 - COVER, NO.1 SEAT CUSHION
79951-37010	RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3)	06/2004 - 12/2999	2
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90523-06017

(0406- )DCB

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

Part #	Description	Period	Qty	Price
Common parts
90119-08C25
90119-10111
90119-10229
90167-40044
90179-10109
Linked diagrams
5855

(0406- )DCB

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

Part #	Description	Period	Qty	Price
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90506-23053
90523-06017
