XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace

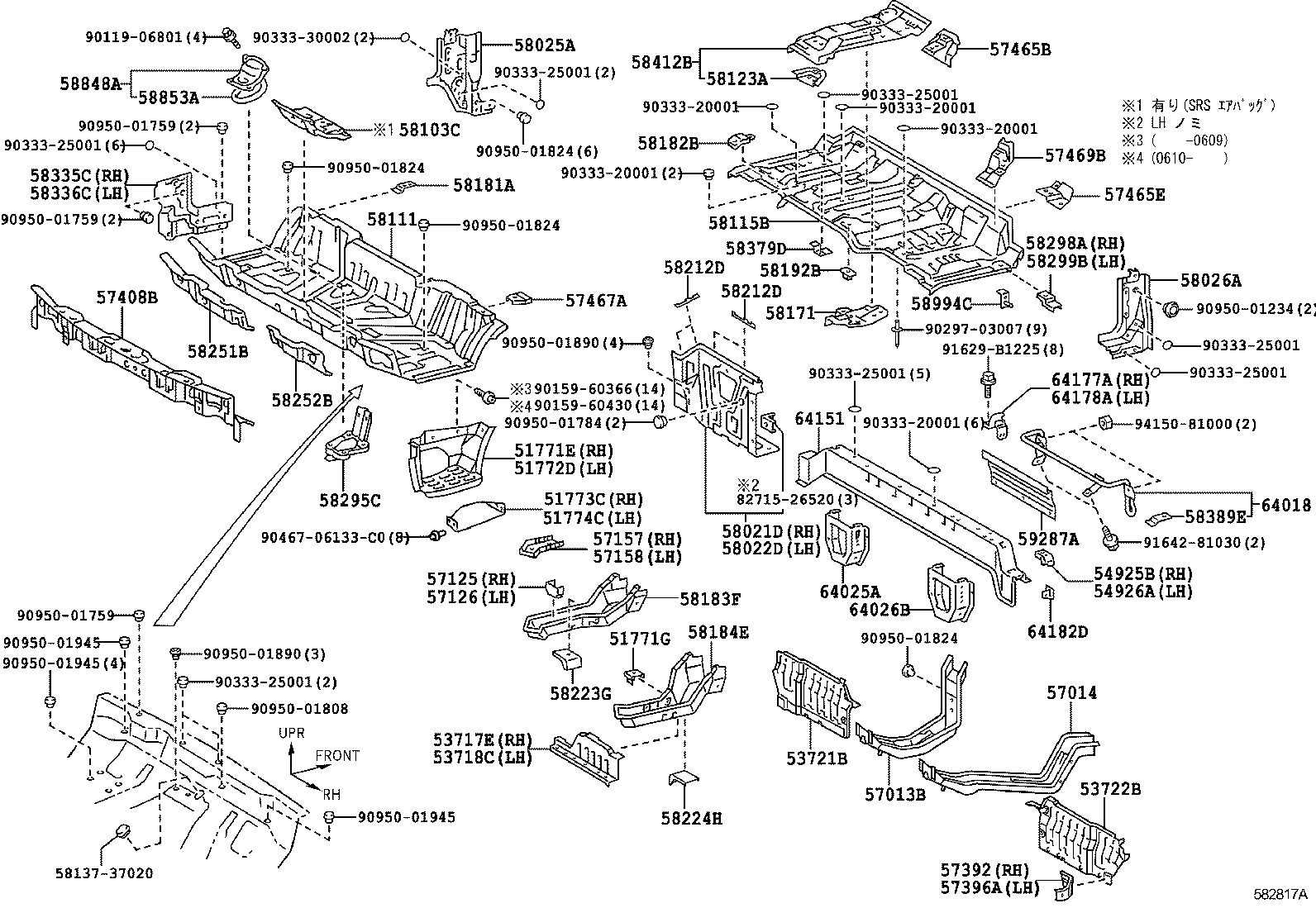

ILLUST NO. 1 OF 3(0406- )DCB,VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37190 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37080 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
XZU304..DSL,DSLL;XZU304..(T3,T4,T5)..DCRL;BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
XZU304..DSL,DSLL;XZU304..(T3,T4,T5)..DCRL;BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG 塗装不要 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37031 |
XZU378,388;XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368..SCB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37031 |
XZU378,388;XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368..SCB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37150 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37120 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37052 |
XZU368,378,388;XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53702-37031 |
XZU378,388..DCB |
1 | ||
| 53722-37031 |
XZU378,388..DCB |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37031 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37240 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37070 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 57014-37070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57125-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 57125-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57126-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 57126-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 57157-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57158-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 57158-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37081 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57392 - PLATE, FRONT STEP, NO.2 RH | ||||
| 57392-37020 |
XZU378,388;XZU304..20T..DSL;RZU300,XZU304..DCB..5F..1NO;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368..SCB |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37260 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57408-37350 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37050 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 58021D - PANEL SUB-ASSY, HEADER, RH | ||||
| 58021-37141 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 58022D - PANEL SUB-ASSY, HEADER, LH | ||||
| 58022-37161 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 58222-37090 |
XZU304,334,378,388..DCB..1NO TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58022D - PANEL SUB-ASSY, HEADER, LH | ||||
| 58022-37161 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 58222-37090 |
XZU304,334,378,388..DCB..1NO TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-37030 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-37030 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-37030 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58103-37031 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37420 |
BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37410 |
BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 58111-37422 |
XZU378,388..DCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37412 |
XZU378,388..DCB |
1 | ||
| 58111-37413 |
XZU378,388..DCB |
1 | ||
| 58111-37414 |
XZU378,388..DCB |
1 | ||
| 58111-37423 |
XZU378,388..DCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58111-37424 |
XZU378,388..DCB ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 58125B - SEAL, FRONT FLOOR TO FRAME | ||||
| 58125-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,307,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB |
1 | ||
| 58181-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37071 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37093 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 58184-37090 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58194E - RETAINER, ENGINE COVER HINGE | ||||
| 58194-37010 |
XZU347..DCB..T3..4FC;BU306,XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,06S,DM5,T3) |
1 | ||
| 58194-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-37120 |
XZU347..DCB..T3..4FC;BU306,XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,06S,DM5,T3) |
1 | ||
| 58201-37120 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37100 |
XZU347..DCB..T3..4FC;BU306,XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,06S,DM5,T3) |
1 | ||
| 58202-37100 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37030 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58251-37031 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58251-37032 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37030 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58252-37031 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382 |
1 | ||
| 58295-37060 |
XZU378,388..DCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35# |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37020 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37020 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58335-37040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37030 |
BU306,XZU301,307,331,37#,382..(DCB,VAN)..(03S,06S,T3) |
1 | ||
| 58336-37031 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58379D - BRACKET, HEATER HOSE CLAMP | ||||
| 58379-37010 |
XZU378,388..DCB ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
1 | ||
| 58379-37030 |
XZU378,388..DCB ﾍｯﾀﾞﾊﾟﾈﾙ用 |
1 | ||
| 58379D - BRACKET, HEATER HOSE CLAMP | ||||
| 58379-37010 |
XZU378,388..DCB ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
1 | ||
| 58379-37030 |
XZU378,388..DCB ﾍｯﾀﾞﾊﾟﾈﾙ用 |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37120 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58407-37150 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-37240 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 59208-37190 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB ｱﾘ(ｼﾞﾖｼﾕｾｷ=ﾘｸﾗｲﾆﾝｸﾞﾀｲﾌﾟ) |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09028 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
2 | ||
| 90541-09028 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
2 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90541-09046 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
4 | ||
| 90541-09046 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
4 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-37030 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58424-37030 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58426A - PROTECTOR, ENGINE SERVICE HOLE | ||||
| 58426-37020 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58426-37011 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-37020 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN 長さ=240 |
1 | ||
| 58426-95405 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN 長さ=90 |
1 | ||
| 58426-95405 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-37020 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN 長さ=240 |
1 | ||
| 58426-95405 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN 長さ=90 |
1 | ||
| 58426-95405 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37030 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58444-37030 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58474-37010 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-37030 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 58475-37030 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58840-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 58853-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 58994C - BRACKET, REAR HEATER MOUNTING | ||||
| 58994-37010 |
XZU378,388..DCB |
1 | ||
| 59287A - BASE, TRANSMISSION COVER, CENTER | ||||
| 59287-37030 |
XZU347..DCB..T3..4FC;BU306,XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,06S,DM5,T3) |
1 | ||
| 59287-37030 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 61593B - RETAINER, SEAT BACK SET, NO.2 RH | ||||
| 61593-37010 |
XZU347..DCB..T3..4FC;BU306,XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,06S,DM5,T3) |
1 | ||
| 61593-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 61594C - RETAINER, SEAT BACK SET, NO.2 LH | ||||
| 61594-37010 |
XZU347..DCB..T3..4FC;BU306,XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,06S,DM5,T3) |
1 | ||
| 61594-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37150 |
XZU378,388..DCB |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-37100 |
XZU37#,382..DCB;XZU301,331..4FC..DSLL..IV4 |
1 | ||
| 64025-37100 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37130 |
XZU37#,382..DCB;XZU301,331..4FC..DSLL..IV4 |
1 | ||
| 64026-37130 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-37250 |
BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ |
1 | ||
| 64151-37300 |
XZU307..DCB,VAN;BU30#,RZU300,XZU301,31#,331,347,37#,382..DCB ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ & ｱﾘ(*80) |
1 | ||
| 64151-37301 |
RZU300,XZU304,306,308,334,346,378,388..DCB ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ & ｱﾘ(*80) |
1 | ||
| 64151-37251 |
RZU300,XZU304,306,308,334,346,378,388..DCB ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ |
1 | ||
| 64179A - PATCH, REAR MOUNTING BRACKET | ||||
| 64179-37030 |
XZU347..DCB..T3..4FC;XZU301,307,311,331,37#,382..(DCB,VAN)..(03S,DM5,T3) |
2 | ||
| 64179-37030 |
RZU300,XZU304,306,308,334,346,378,388..DCB |
2 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
2 | ||
| Common parts | ||||
| 82715-26520 | ||||
| 90119-06801 | ||||
| 90119-08349 | ||||
| 90119-08483 | ||||
| 90159-60260 | ||||
| 90159-60430 | ||||
| 90178-08005 | ||||
| 90179-06347 | ||||
| 90467-06133C0 | ||||
| 90467-09087 | ||||
| 90467-0908722 | ||||
| 90950-01065 | ||||
| 90950-01234 | ||||
| 90950-01824 | ||||
| 90950-01890 | ||||
| 91642-81030 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 94185-60600 | ||||

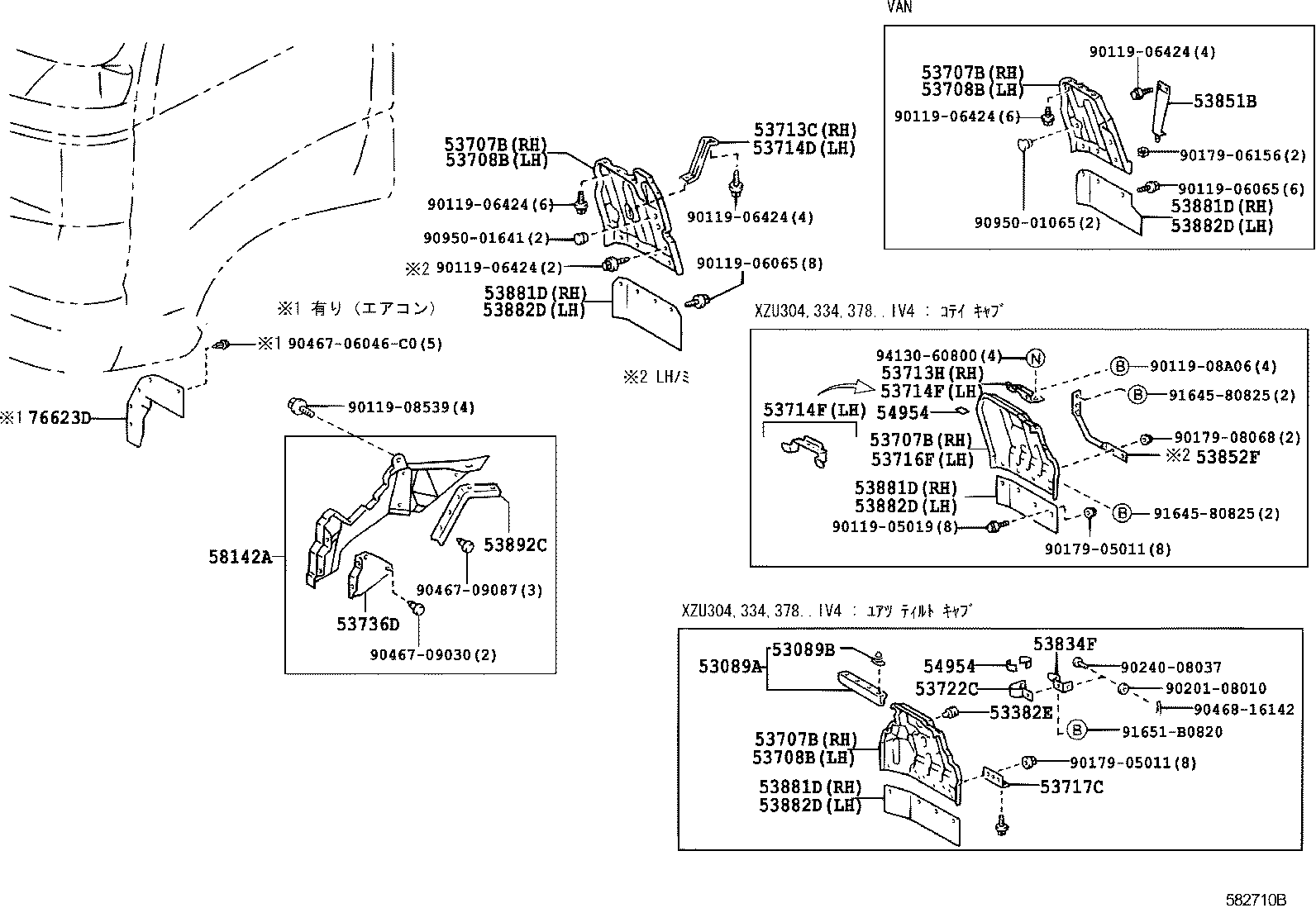

ILLUST NO. 2 OF 3(0406- )DCB,VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37210 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37210 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37210 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37210 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37230 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37230 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37230 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53747-25010 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53714D - EXTENSION, FRONT FENDER APRON, LH | ||||
| 53747-25010 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 53736D - SEAL, FENDER APRON | ||||
| 53736-37030 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-37060 |
XZU378,388..DCB |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 53708-37170 |
XZU378,388..DCB |
1 | ||
| 76623D - MUDGUARD, FRONT FENDER, FRONT RH | ||||
| 76623-37090 |
XZU378,388..DCB |
1 | ||
| Common parts | ||||
| 90119-05019 | ||||
| 90119-06065 | ||||
| 90119-06424 | ||||
| 90119-08539 | ||||
| 90119-08A06 | ||||
| 90179-05011 | ||||
| 90179-06156 | ||||
| 90179-08068 | ||||
| 90201-08010 | ||||
| 90240-08037 | ||||
| 90467-06046C0 | ||||
| 90467-09030 | ||||
| 90467-09087 | ||||
| 90468-16142 | ||||
| 90950-01065 | ||||
| 90950-01641 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-60800 | ||||
ILLUST NO. 1 OF 2(0406- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58137-37020 | ||||
| 82715-26520 | ||||
| 90119-06801 | ||||
| 90159-60366 | ||||
| 90159-60430 | ||||
| 90297-03007 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90467-06133C0 | ||||
| 90950-01234 | ||||
| 90950-01759 | ||||
| 90950-01784 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01890 | ||||
| 90950-01945 | ||||
| 91629-B1225 | ||||
| 91642-81030 | ||||
| 94150-81000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
