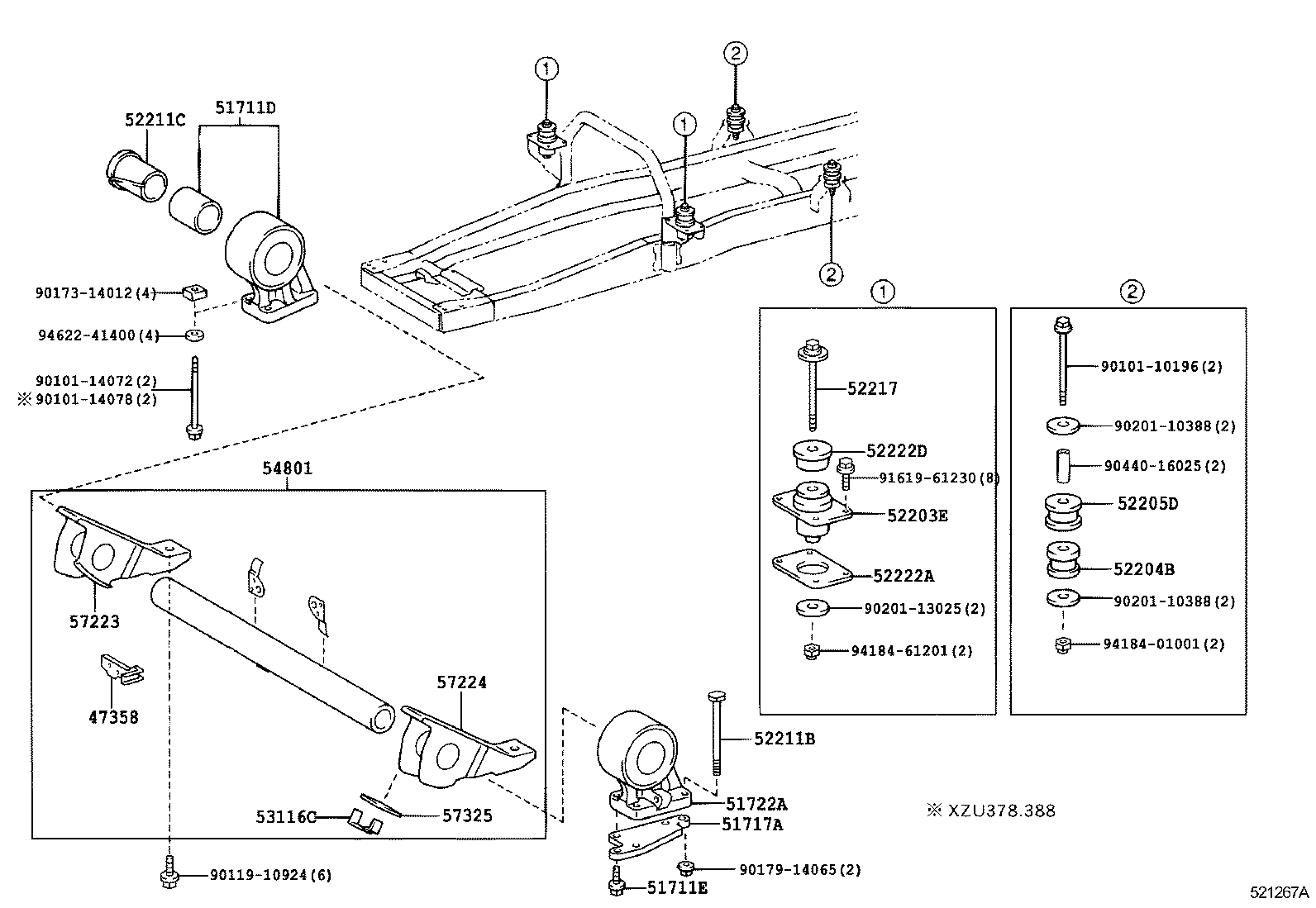

XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace
(0406- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 47358-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37110 |
XZU378,388..DCB |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14041 |
XZU378,388..DCB |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 51717-37120 |
XZU378,388..DCB |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37110 |
XZU378,388..DCB |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
2 | ||
| 52203-37050 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
2 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-36011 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52203-36040 |
RZU300,XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14012 |
XZU378,388..DCB |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 52211-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 52217 - BOLT, BODY MOUNTING | ||||
| 52217-37030 |
RZU300,XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
RZU300,XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
2 | ||
| 52222D - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-36030 |
RZU300,XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 53116-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37040 |
BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN |
1 | ||
| 54801-37042 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57223-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZU331..4FC;XZU301..295T;XZU331..5F..IV4;XZU301..IV6..4NO;XZU306,321..4FC..DSL;XZU301..DSL..(IV4,IV7);XZU301..4FC..(CBU,IV6);XZU301,311..CNG,DSLL,LPG;XZU301,351..(DM2,DM3)..IV3;XZU311,321..(DM5,DM8)..20T;XZU311,341..(295T,30T)..1NO;XZU301,321..(DM7,T4)..5F..DSL..1NO;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;RZU300,XZU306,346,351..20T..(DSLL,LPG);BU30#,346,XZU300,302,307,312,320,322,330,337,340,342,347,350,352,362,37#,382 |
2 | ||
| 57325-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| Common parts | ||||
| 90101-10196 | ||||
| 90101-14072 | ||||
| 90101-14078 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-10388 | ||||
| 90201-13025 | ||||
| 90440-16025 | ||||
| 91619-61230 | ||||
| 94184-01001 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||

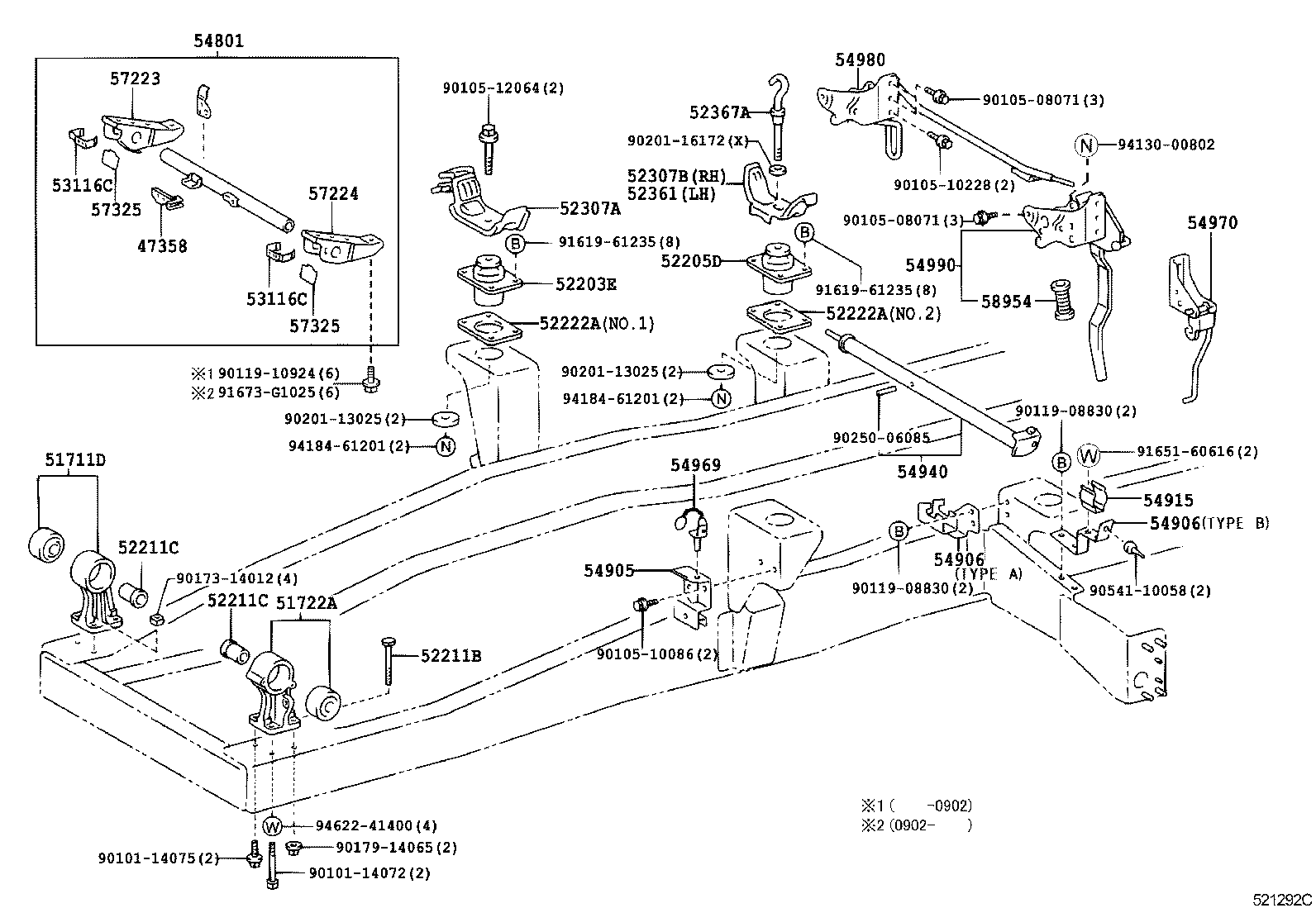

ILLUST NO. 1 OF 2(0406- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14072 | ||||
| 90101-14075 | ||||
| 90105-08071 | ||||
| 90105-10086 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-08830 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90250-06085 | ||||
| 90541-10058 | ||||
| 91619-61235 | ||||
| 91651-60616 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||
