Toyota Dyna/toyoace XZU378 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU378-PKMMW3 (2004)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0406- )BZU300,340,XZU334..5F..CNG,DSLL ; (0406- )RZU301,XZU301,304,331,334,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37210	XZU378,388..DCB	06/2004 - 10/2006	1
51473-37210	XZU378,388..DCB	06/2004 - 10/2006	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37091	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
51474-37091	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
Common parts
90467-09189
91651-B0814
91651-B0825

ILLUST NO. 2 OF 2(0406- )

Click highlighted areas on diagram

ﾌﾂｸ

Part #	Description	Period	Qty
51961C - HOOK, FRONT
51961-37050	XZU378,388..DCB TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
51962 - HOOK, NO.2
51961-36040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51962 - HOOK, NO.2
51961-36040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51961-36040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
51963-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
51964-37040	XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

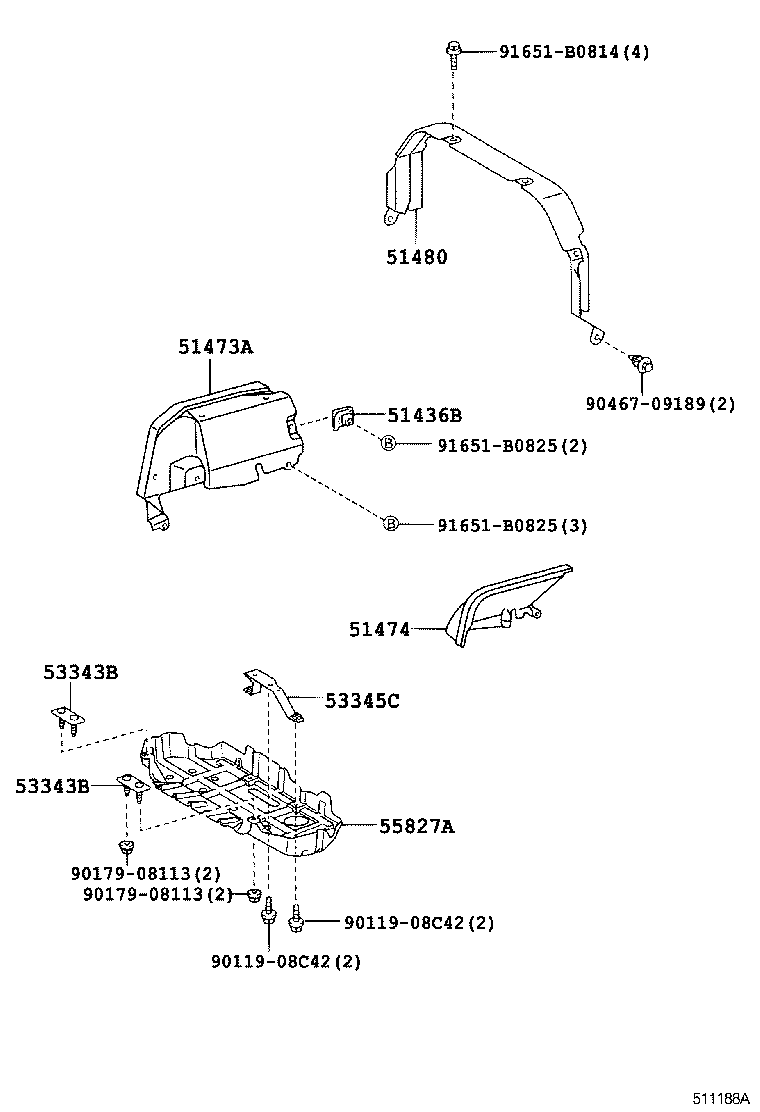

ILLUST NO. 1 OF 2(0406- )XZU368,378,388..DCRL

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37210	XZU378,388..DCB	06/2004 - 10/2006	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37091	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
53343B - BRACKET, AIR DEFLECTOR, NO.1
53343-37020	XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)	06/2004 - 12/2999	2
53343B - BRACKET, AIR DEFLECTOR, NO.1
53343-37020	XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)	06/2004 - 12/2999	2
53345C - BRACKET, AIR DEFLECTOR, NO.2
53345-37030	XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)	06/2004 - 12/2999	1
55827A - DUCT, VENTILATOR AIR GUIDE
55827-37050	XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)	06/2004 - 02/2006	1
55827-37051	XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)	03/2006 - 12/2999	1
Common parts
90119-08C42
90179-08113
90467-09189
91651-B0814
91651-B0825

XZU378-PKMMW3 (2004)

ILLUST NO. 1 OF 2(0406- )BZU300,340,XZU334..5F..CNG,DSLL ; (0406- )RZU301,XZU301,304,331,334,3

ILLUST NO. 2 OF 2(0406- )

ILLUST NO. 1 OF 2(0406- )XZU368,378,388..DCRL
