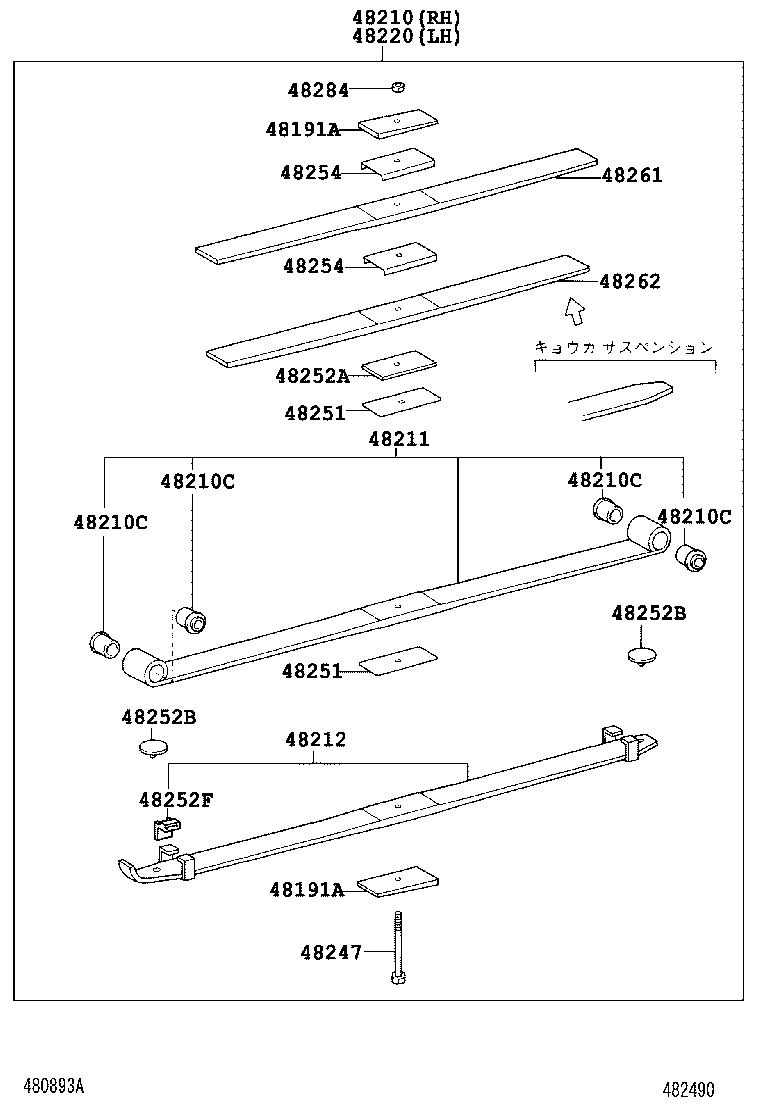

Toyota Dyna/toyoace XZU378 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030	XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T	05/1999 - 06/2004	4
48192-37110	XZU378,388	06/2004 - 10/2006	4
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37030	XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T	05/1999 - 06/2004	4
48192-37110	XZU378,388	06/2004 - 10/2006	4
48210 - SPRING ASSY, REAR RH
48210-37A30	XZU378,388..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=R-37A30:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	1
48210-37A80	XZU378,388..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ,MARK=R-37A80:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026	XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T	05/1999 - 06/2004	8
90389-16026	BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T	06/2004 - 12/2999	8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026	XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T	05/1999 - 06/2004	8
90389-16026	BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T	06/2004 - 12/2999	8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026	XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T	05/1999 - 06/2004	8
90389-16026	BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T	06/2004 - 12/2999	8
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026	XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T	05/1999 - 06/2004	8
90389-16026	BZU300,RZU300,XZU301,304,334..T3..30T;BZU340,RZU340,XZU331,34#,378,388..20T,30T	06/2004 - 12/2999	8
48211 - LEAF, REAR SPRING, NO.1
48201-37A30	XZU378,388..20T MARK=R-37A30:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48201-37A80	XZU378,388..20T ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ,MARK=R-37A80:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48212 - LEAF, REAR SPRING, NO.2
48202-37A80	XZU378,388..20T ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ,MARK=R-37A80:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48202-37A30	XZU378,388..20T MARK=R-37A30:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48220 - SPRING ASSY, REAR LH
48210-37A80	XZU378,388..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ,MARK=R-37A80:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	1
48210-37A30	XZU378,388..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=R-37A30:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	1
48247 - BOLT, REAR SPRING, CENTER
48247-26360	BZU340,RZU340,XZU34#,378,388..(T3,T4)..20T	06/2004 - 12/2999	2
48251 - SPACER, REAR SPRING LEAF
48251-36530	XZU368;BZU340,RZU340,XZU34#,378,388..20T;BZU300,XZU30#,321..03S,06S,DM6,DM7	06/2004 - 12/2999	4
48251 - SPACER, REAR SPRING LEAF
48251-36530	XZU368;BZU340,RZU340,XZU34#,378,388..20T;BZU300,XZU30#,321..03S,06S,DM6,DM7	06/2004 - 12/2999	4
48252A - SPACER, REAR SPRING, NO.2
48251-3B720	BZU340,RZU340,XZU34#,378,388..(T3,T4)..20T	06/2004 - 12/2999	2
48252B - SILENCER, REAR SPRING, NO.1
48252-37670	XZU304..30T..4NO;XZU304..T5..20T..DCRL;XZU341,344,346,378,388..20T;XZU304..20T..DSLL..IV3..4NO;BZU300,RZU300,XZU301..T4..30T;XZU304..T4..20T..(DCRL,DSLL)..CBU;RZU300,XZU301,306,308,338..(03S,06S,DM3,T2,T5)..WT;BZU340,RZU340,XZU31#,336,348,35#,368..DM2,DM5,T2,T4	03/2006 - 12/2999	4
48252-3B800	XZU341,344,378,388..20T;XZU31#,346,35#,368..CBU,IV3;BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,348..(03S,06S,DM3,T2,T4,T5)..WT	06/2004 - 03/2006	4
48252B - SILENCER, REAR SPRING, NO.1
48252-37670	XZU304..30T..4NO;XZU304..T5..20T..DCRL;XZU341,344,346,378,388..20T;XZU304..20T..DSLL..IV3..4NO;BZU300,RZU300,XZU301..T4..30T;XZU304..T4..20T..(DCRL,DSLL)..CBU;RZU300,XZU301,306,308,338..(03S,06S,DM3,T2,T5)..WT;BZU340,RZU340,XZU31#,336,348,35#,368..DM2,DM5,T2,T4	03/2006 - 12/2999	4
48252-3B800	XZU341,344,378,388..20T;XZU31#,346,35#,368..CBU,IV3;BZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,348..(03S,06S,DM3,T2,T4,T5)..WT	06/2004 - 03/2006	4
48254 - SPACER, REAR SPRING LEAF
48254-37380	BZU340,RZU340,XZU34#,378,388..20T	06/2004 - 12/2999	4
48254 - SPACER, REAR SPRING LEAF
48254-37380	BZU340,RZU340,XZU34#,378,388..20T	06/2004 - 12/2999	4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-37A30	XZU378,388..20T MARK=R-37A30:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48213-37A80	XZU378,388..20T ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ,MARK=R-37A80:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-37A30	XZU378,388..20T MARK=R-37A30:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48214-37A80	XZU378,388..20T ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ,MARK=R-37A80:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=108:ILLUST NO.3 OF 3 ｻﾝｼｮｳ	06/2004 - 10/2006	2
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130	XZU301,304..ST;BZU340,RZU340,XZU321,34#,378,388..20T	06/2004 - 12/2999	2

XZU378-PKMMW3 (2004)

ILLUST NO. 2 OF 3(0406- )BZU340,RZU340,XZU34#,378,388..20T

ILLUST NO. 2 OF 2(0406-0610)XZU413,414,421,424..20T..IV3 ; (0406-0610)XZU401,411,423..T4..20T..IV3 ;

ILLUST NO. 2 OF 2(0406-0610)XZU40#,411,413,414,42#,433..T4..30T,35T ; (0406-0705)BZU410..30T ; (0610

ILLUST NO. 2 OF 2(0406-0505)XZU414..40T..IV3 ; (0406-0610)XZU414..40T..CBU ; (0406-0610)XZU413,423,4
