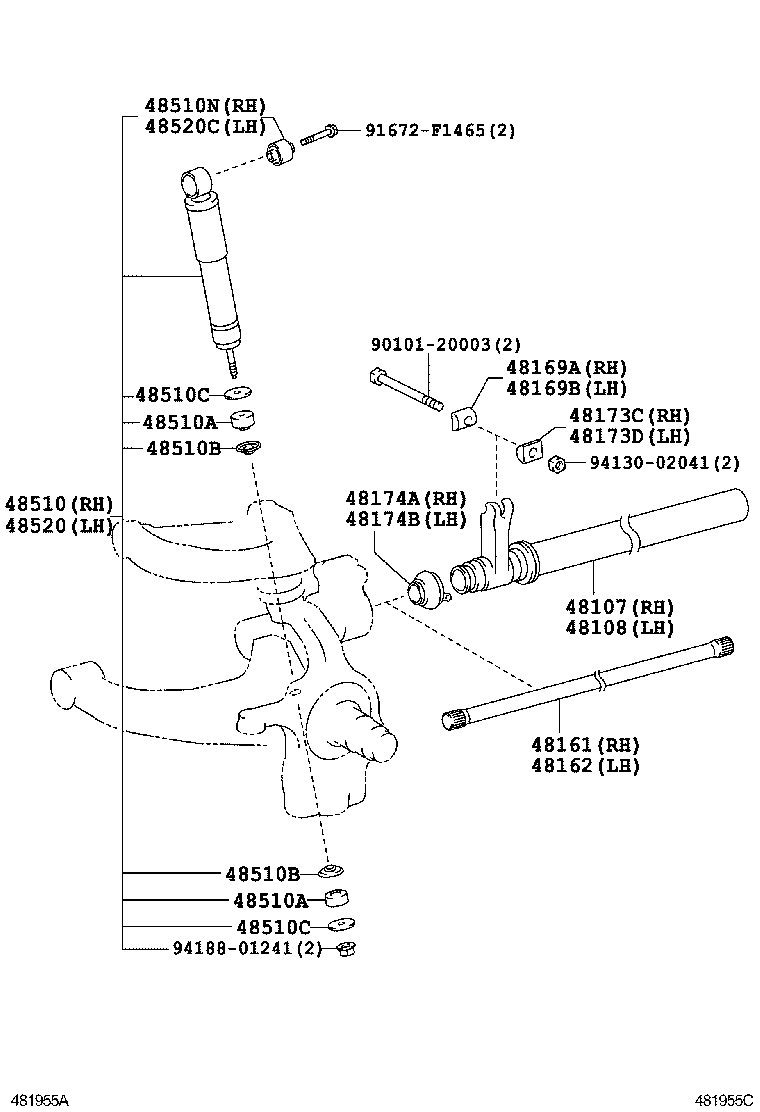

Toyota Dyna/toyoace XZU378 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-37040	XZU368,378,388	06/2004 - 10/2006	1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-37040	XZU368,378,388	06/2004 - 10/2006	1
48161 - SPRING, TORSION BAR, RH
48161-37100	XZU368,378,388..20T	06/2004 - 10/2006	1
48162 - SPRING, TORSION BAR, LH
48162-37100	XZU368,378,388..20T	06/2004 - 10/2006	1
48169A - SWIVEL, ANCHOR ARM, RH
48169-37020	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
48169B - SWIVEL, ANCHOR ARM, LH
48169-37020	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-37020	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-37020	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
48174A - COVER, TORSION BAR DUST, RH
48174-36010	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
48174B - COVER, TORSION BAR DUST, LH
48174-36010	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80349	XZU368,378,388 ﾏｰｸ 48510−37060	06/2004 - 10/2006	1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01059	XZU368,378,388	06/2004 - 10/2006	4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01059	XZU368,378,388	06/2004 - 10/2006	4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02077	XZU368,378,388	06/2004 - 10/2006	4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02077	XZU368,378,388	06/2004 - 10/2006	4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90560-12076	XZU368,378,388	06/2004 - 10/2006	4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90560-12076	XZU368,378,388	06/2004 - 10/2006	4
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90389-14055	XZU368,378,388	06/2004 - 10/2006	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80349	XZU368,378,388 ﾏｰｸ 48510−37060	06/2004 - 10/2006	1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90389-14055	XZU368,378,388	06/2004 - 10/2006	1
Common parts
90101-20003
91672-F1465
94130-02041
94188-01241

XZU378-PKMMW3 (2004)

(0406- )XZU368,378,388

ILLUST NO. 2 OF 2(0406-0610)XZU401,411,413,414,42#..T4,T5..20T ;(0406-0705)BZU410..20T ; (0610-

ILLUST NO. 2 OF 2(0406-0610)XZU401,411,413,414,42#..T4,T5..20T ;(0406-0705)20T..LPG ; (0610- )XZ

ILLUST NO. 2 OF 2(0406-0610)XZU401,411,413,414,42#..T4,T5..20T ;(0406-0705)20T..LPG ; (0610- )XZ
