XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace

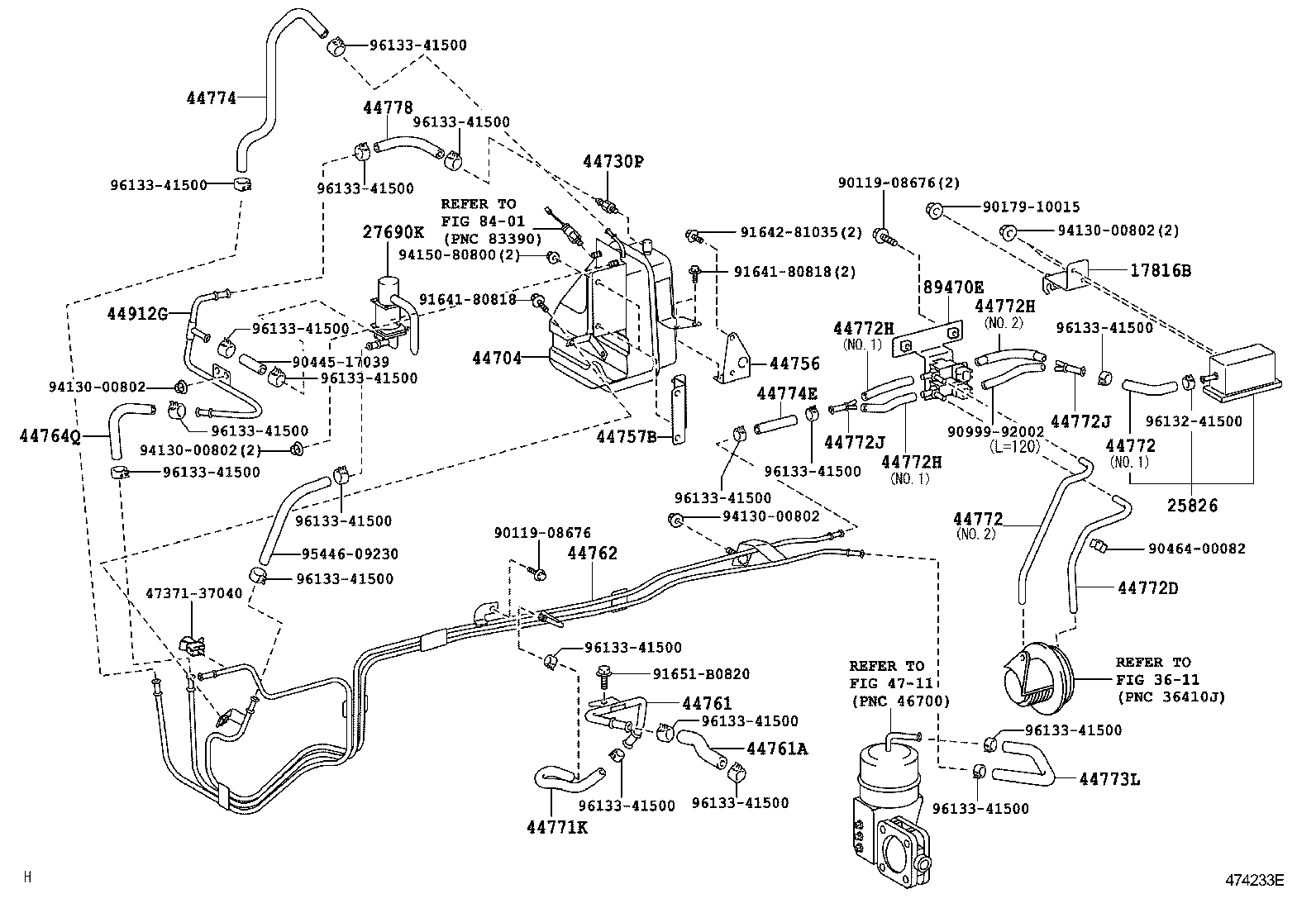

ILLUST NO. 2 OF 2(0406- )XZU378,388..T3..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17816B - BRACKET, AIR FILTER, NO.1 | ||||
| 17816-78010 |
N04C..XZU368,378,388 |
1 | ||
| 25826 - FILTER, NO.1 | ||||
| 25826-78011 |
N04C..XZU368,378,388 |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37180 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37160 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37160 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37180 |
XZU378,388..T3..20T |
1 | ||
| 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) | ||||
| 95446-09160 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37650 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37020 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 44772-37120 |
XZU368,378,388 NO.2 |
1 | ||
| 44772-37080 |
XZU368,378,388 NO.1 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37020 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 44772-37120 |
XZU368,378,388 NO.2 |
1 | ||
| 44772-37080 |
XZU368,378,388 NO.1 |
1 | ||
| 44772D - HOSE, CHECK VALVE TO ACTUATOR | ||||
| 44772-37130 |
XZU368,378,388 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZU368,378,388 NO.1 |
2 | ||
| 44772-37160 |
XZU368,378,388 NO.2 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZU368,378,388 NO.1 |
2 | ||
| 44772-37160 |
XZU368,378,388 NO.2 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZU368,378,388 NO.1 |
2 | ||
| 44772-37160 |
XZU368,378,388 NO.2 |
1 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZU368,378,388 |
2 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZU368,378,388 |
2 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37610 |
XZU378..CBU,IV3 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37230 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37730 |
XZU368,378,388 |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37A30 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 89470E - VALVE ASSY, VACUUM SWITCHING W/BRACKET, NO.1 | ||||
| 89470-37091 |
XZU368,378,388 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-10015 | ||||
| 90445-17039 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91641-80818 | ||||
| 91642-81035 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 94150-80800 | ||||
| 95446-09230 | ||||
| 96132-41500 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3611 | ||||
| 4711 | ||||
| 8401 | ||||

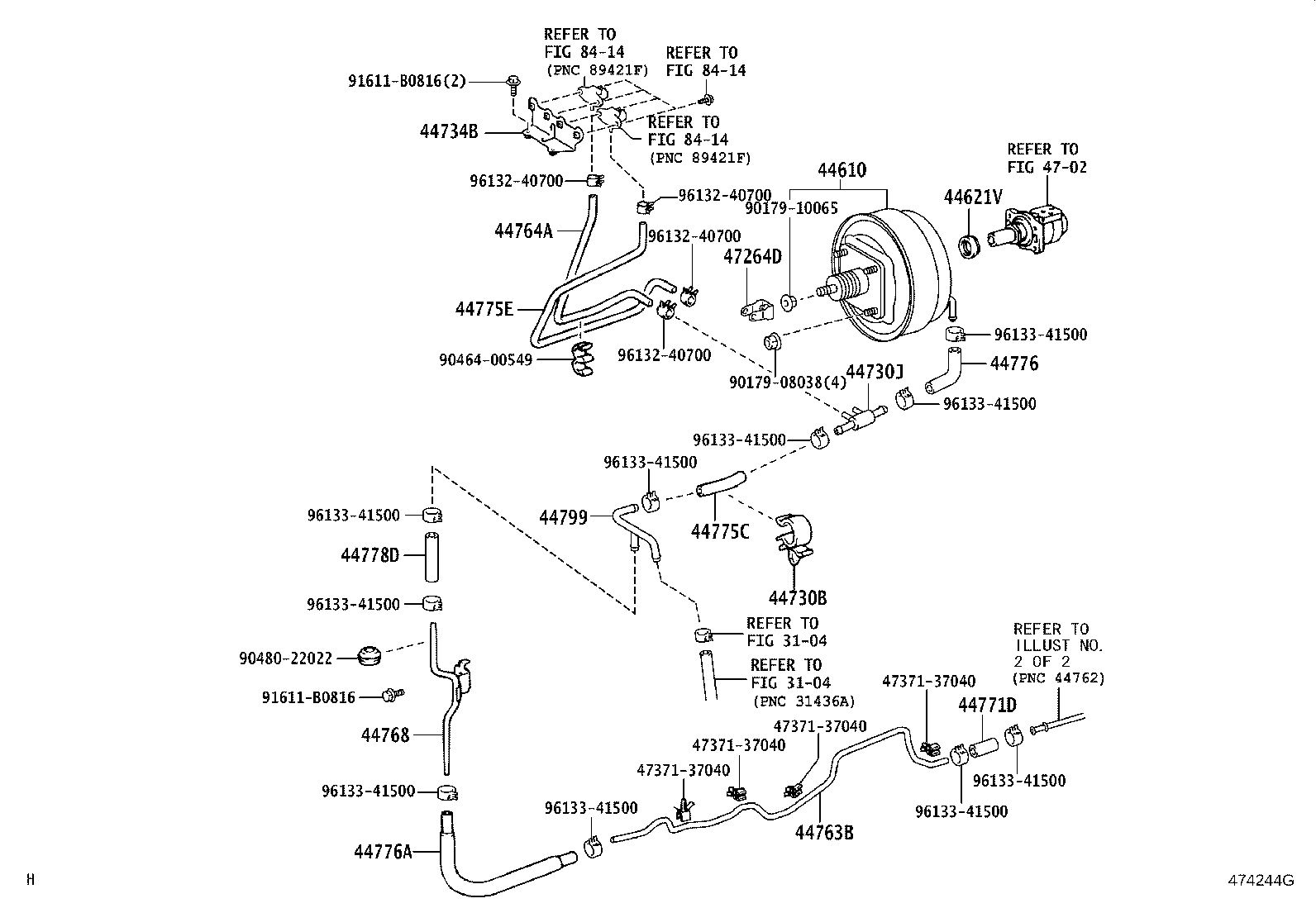

ILLUST NO. 1 OF 2(0406- )XZU368,378,388
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
BZU300,340,RZU30#,340,XZU30#,321,334,336,338,34#,35#,368,378,388..175T,20T ｱﾘ(ABS) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 44621-36070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44597-37021 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90414-10043 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44762-37290 |
XZU368,378,388 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB |
1 | ||
| 44768-37110 |
XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB 長さ=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 44799-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 47264-50010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0406- )XZU304..T4..20T..IV3 ; (0406- )XZU341..T4..30T..IV3 ; (0406- )XZU3
ﾀﾞﾝﾌﾟ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37180 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37271 |
XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37180 |
XZU378,388..T3..20T |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37650 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37650 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37650 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37610 |
XZU378..CBU,IV3 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37230 |
XZU304,306,308,346,378,388..DCB..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90034-68028 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 91641-80818 | ||||
| 91642-K1020 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
