XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace

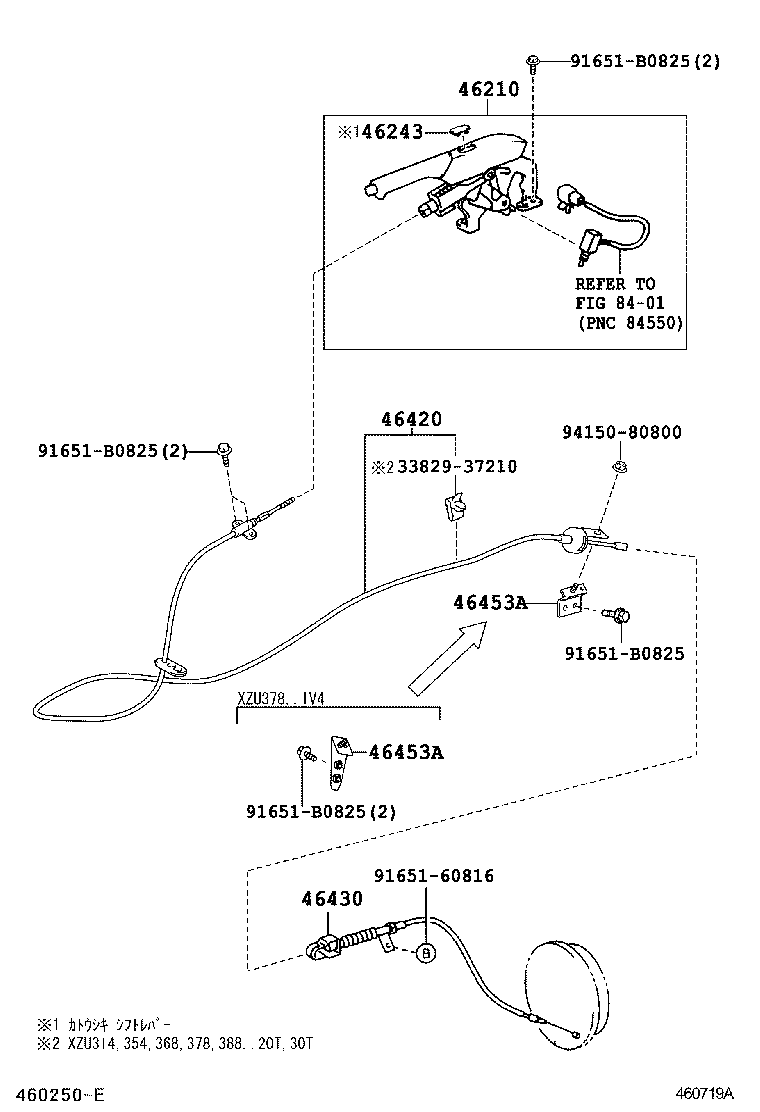

ILLUST NO. 1 OF 2(0406- )XZU31#,321,35#,368,378,388..5F..20T,30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
XZU362..1NO;BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37510 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37740 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37220 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37220 |
XZU368,378,388..CBU,IV3 |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

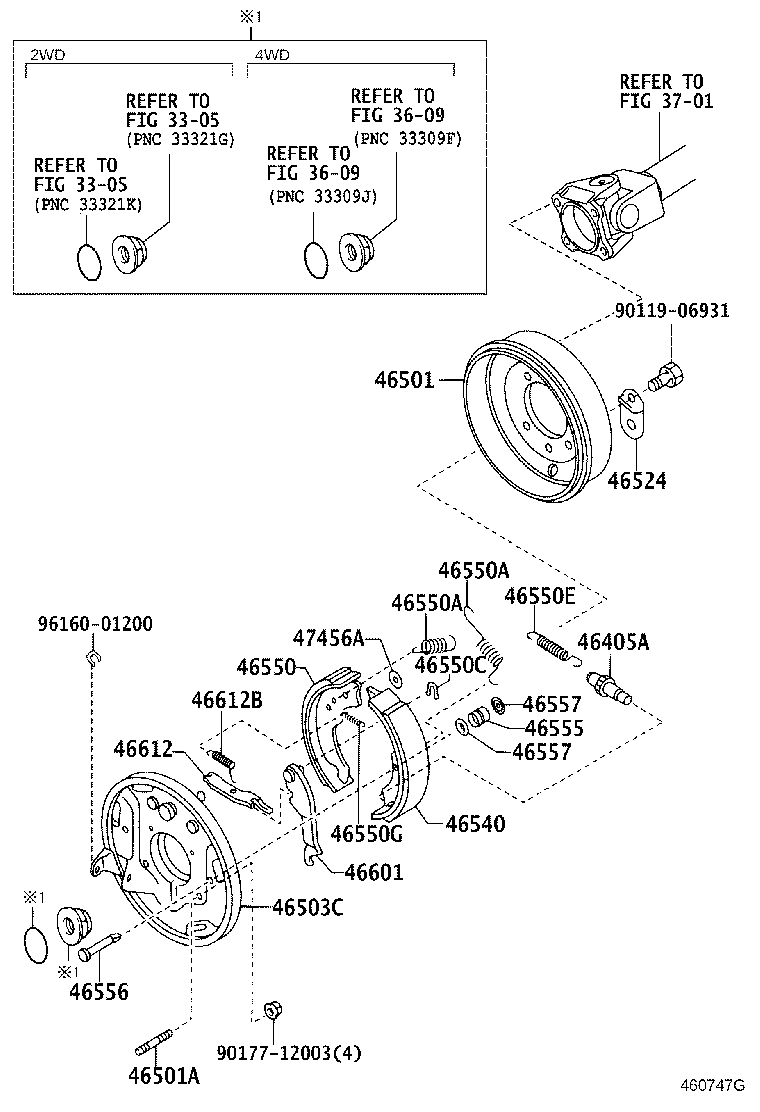

ILLUST NO. 2 OF 2(0406- )XZU31#,321,35#,368,378,388..5F..20T,30T
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
XZU346..DSLL;XZU301..295T;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..30T..LPG;XZU306..5F..DSLL..CBU;XZU302,31#,341..MTM..(295T,30T);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,XZU300,320,330,331,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..MTM..(20T,30T) |
1 | ||
| 46511-37080 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00302 |
XZU368,378,388 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-37030 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-25020 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
1 | ||
| SU002-00286 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-25020 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
1 | ||
| SU002-00286 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
2 | ||
| SU002-00287 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
2 | ||
| SU002-00287 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90213-06013 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
1 | ||
| SU002-00288 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00291 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
2 | ||
| SU002-00290 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
2 | ||
| SU002-00297 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU301..CNG;XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);RZU300,XZU302,31#,340..295T,30T,35T,40T;XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
4 | ||
| SU002-00303 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU301..CNG;XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);RZU300,XZU302,31#,340..295T,30T,35T,40T;XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
4 | ||
| SU002-00303 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36010 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) PNC 46550C =TYPE A:ｲﾗｽﾄｻﾝｼｮｳ |
1 | ||
| SU002-00293 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
1 | ||
| SU002-00294 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZU331..DSL;XZU301..295T;XZU321..5F..1NO;XZU301..5F..IV4;XZU306..DSLL..CBU;XZU331,346..5F..DSLL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,31#..295T,30T;XZU301,321,322..4FC..30T..DSL;XZU341..(295T,30T)..(DSL,DSLL);XZU301..(DM3,T4,T5)..5F..30T..(DSL,DSLL);BZU300,340,RZU301,XZU300,320,330,340,351,352,362,37#,382..(DM5,DM7,T3,T4)..(20T,30T) |
1 | ||
| SU002-00295 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| Common parts | ||||
| 90119-06931 | ||||
| 90177-12003 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 3305 | ||||
| 3609 | ||||
| 3701 | ||||
ILLUST NO. 2 OF 2(0406- )BZU410,XZU401,411,414,421,424..5F,6FC..30T,35T..CNG,DCRL,DSL,LPG ; (0610
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||
ILLUST NO. 2 OF 2(0406- )XZU388,404,414,415,424..MTM..DCR,DCRL,DSLL ; (0610- )XZU404,414,424,4
MYY5A,MYY6P,MYY6S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06931 | ||||
| 90177-12003 | ||||
| 96160-01200 | ||||
