Toyota Dyna/toyoace XZU378 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU378-PKMMW3 (2004)
3602 - POWER TAKE-OFF CASE & GEAR

XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

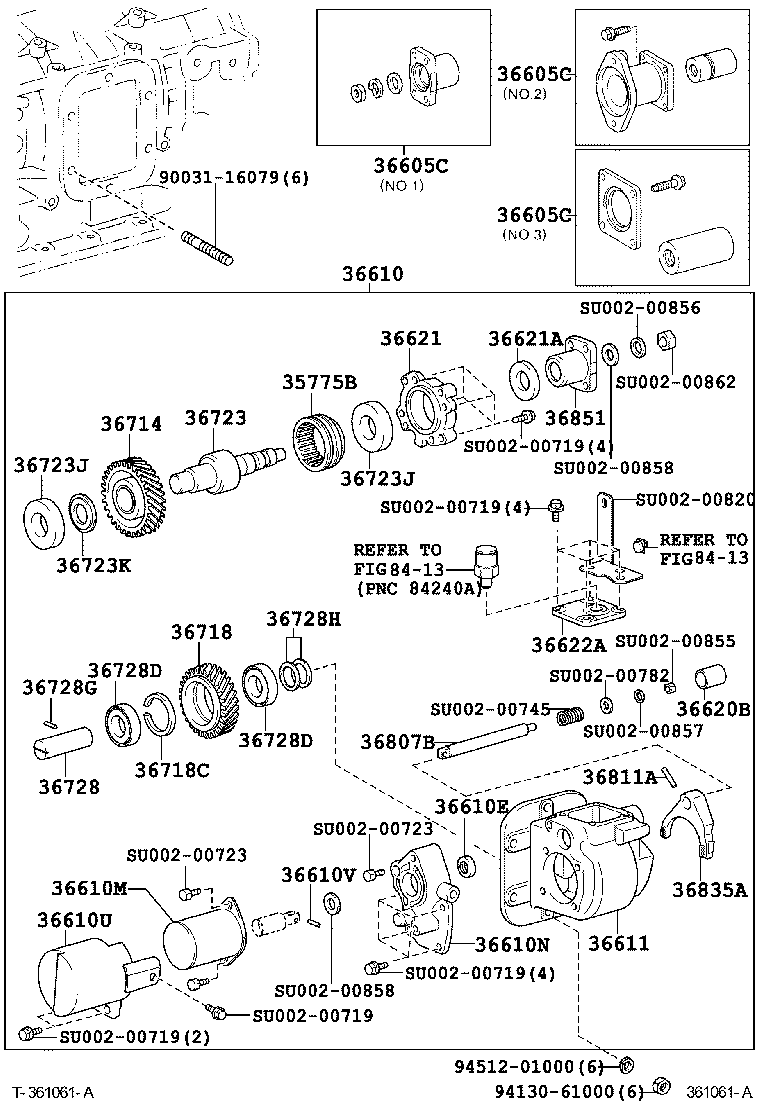

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
35775B - SLEEVE, OUTPUT SHAFT
SU002-00751	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37251	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
SU002-00788	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
SU002-00752	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
SU002-00754	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00757	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
SU002-00831	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728 - SHAFT, POWER TAKE-OFF IDLER
SU002-00850	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00725	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00841	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.70	06/2004 - 10/2006	2
SU002-00838	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.50	06/2004 - 10/2006	2
SU002-00842	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.80	06/2004 - 10/2006	2
SU002-00840	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.65	06/2004 - 10/2006	2
SU002-00839	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.60	06/2004 - 10/2006	2
SU002-00843	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.85	06/2004 - 10/2006	2
36851 - RETAINER, POWER TAKE-OFF JOINT
SU002-00798	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ15KG

Part #	Description	Period	Qty
35775B - SLEEVE, OUTPUT SHAFT
SU002-00751	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36610 - POWER TAKE-OFF ASSY
36610-37251	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
SU002-00788	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
SU002-00752	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
SU002-00754	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00757	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
SU002-00831	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00834	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
SU002-00850	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00725	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00841	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.70	06/2004 - 10/2006	2
SU002-00838	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.50	06/2004 - 10/2006	2
SU002-00842	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.80	06/2004 - 10/2006	2
SU002-00840	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.65	06/2004 - 10/2006	2
SU002-00839	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.60	06/2004 - 10/2006	2
SU002-00843	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.85	06/2004 - 10/2006	2
36851 - RETAINER, POWER TAKE-OFF JOINT
SU002-00798	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
Common parts
82716-37480
90031-70107
90032-01147
90101-08156
90116-10103
90119-08124
90179-14066
90201-08091
90201-15011
90214-14001
90389-25003
90407-51002
90501-29040
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

(0406- )XZU354..DCRL..IV3 ; (0406- )XZU368,378,388..T3,T4..CBU,IV3

Click highlighted areas on diagram

ﾃﾞﾝｷｼｷ20KG

Part #	Description	Period	Qty
35775B - SLEEVE, OUTPUT SHAFT
SU002-00751	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37251	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
SU002-00727	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36610M - SOLENOID ASSY, POWER TAKE-OFF
SU002-00789	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36610N - ADAPTER, POWER TAKE-OFF SOLENOID
SU002-00781	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36610U - COVER, POWER TAKE-OFF DUST
SU002-00766	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36610V - PIN ASSY, SPRING (FOR POWER TAKE-OFF SOLENOID)
SU002-00736	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36611 - CASE, POWER TAKE-OFF
SU002-00753	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36620B - PLUG(FOR POWER TAKE-OFF)
SU002-00821	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
SU002-00788	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
SU002-00752	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36622A - COVER, POWER TAKE-OFF
SU002-00784	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
SU002-00754	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
SU002-00757	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
SU002-00747	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
SU002-00831	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00740	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
SU002-00834	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
SU002-00850	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00743	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00725	XZU31#,321,35#,368,378,388..5F..(CBU,IV3)	06/2004 - 10/2006	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
SU002-00841	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.70	06/2004 - 10/2006	2
SU002-00838	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.50	06/2004 - 10/2006	2
SU002-00842	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.80	06/2004 - 10/2006	2
SU002-00840	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.65	06/2004 - 10/2006	2
SU002-00839	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.60	06/2004 - 10/2006	2
SU002-00843	XZU368,378,388..(T3,T4)..(CBU,IV3) 厚さ=1.85	06/2004 - 10/2006	2
36807B - ROD SUB-ASSY, POWER TAKE-OFF SHIFT
SU002-00780	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36811A - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT FORK)
SU002-00851	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36835A - ARM, POWER TAKE-OFF SHIFT
SU002-00828	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
36851 - RETAINER, POWER TAKE-OFF JOINT
SU002-00798	XZU368,378,388..(T3,T4)..(CBU,IV3)	06/2004 - 10/2006	1
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00723
SU002-00745
SU002-00782
SU002-00820
SU002-00855
SU002-00856
SU002-00857
SU002-00858
SU002-00862
Linked diagrams
8413

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG

Part #	Description	Period	Qty	Price
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863

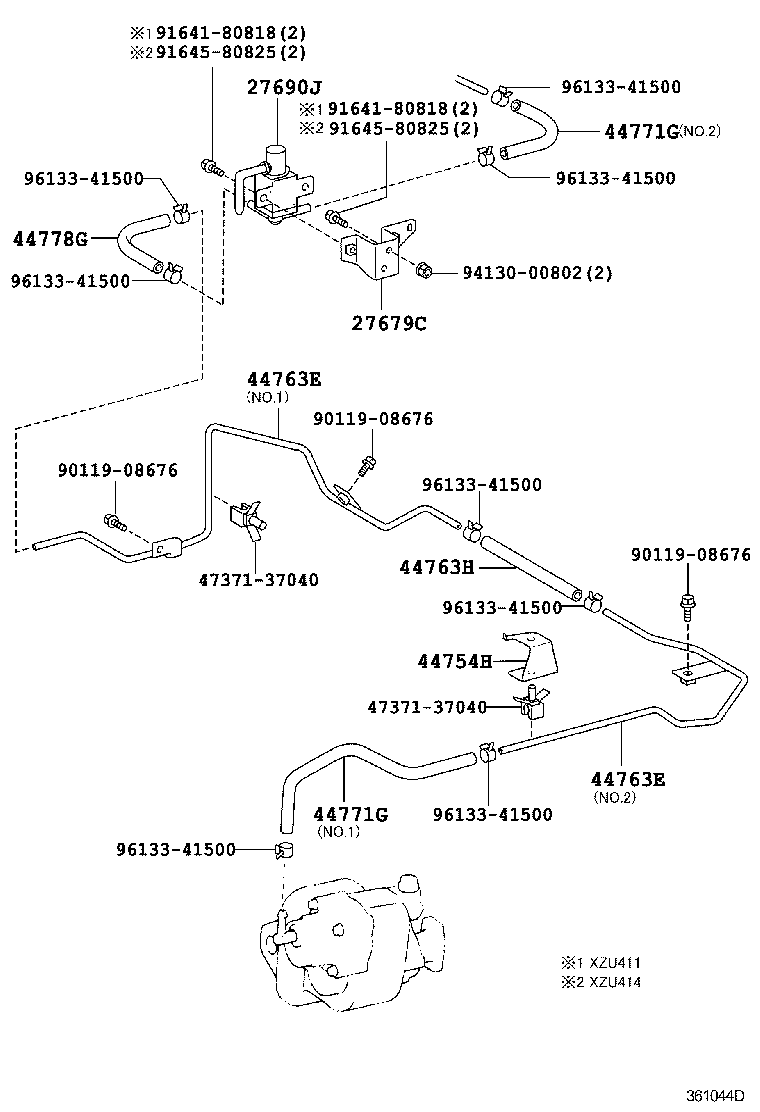

ILLUST NO. 2 OF 2(0406-0610)DCB ; (0610- )DCB..5F

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 25KG

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
91641-80818
91645-80825
94130-00802
96133-41500

XZU378-PKMMW3 (2004)

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

(0406- )XZU354..DCRL..IV3 ; (0406- )XZU368,378,388..T3,T4..CBU,IV3

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

ILLUST NO. 2 OF 2(0406-0610)DCB ; (0610- )DCB..5F

Part Price Details
