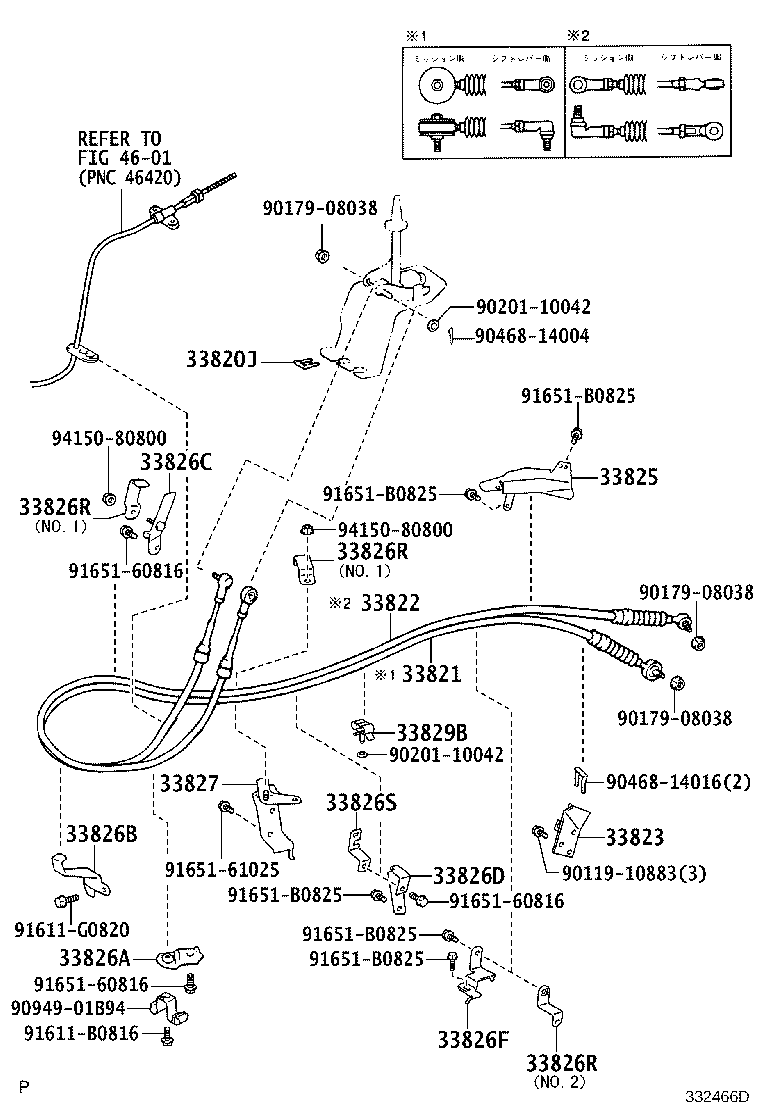

Toyota Dyna/toyoace XZU378 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33820J - CLIP(FOR TRANSMISSION CONTROL CABLE)
90468-17001	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM TYPE A:ｲﾗｽﾄ参照	05/1999 - 05/2000	2
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-3V510	XZU368,378,388..CBU,IV3	06/2004 - 03/2006	1
33820-3V511	XZU368,378,388..CBU,IV3	04/2006 - 10/2006	1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-37180	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37710	XZU368,378,388	06/2004 - 10/2006	1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040	XZU368,378,388	06/2004 - 10/2006	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37180	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,32#,337,341,342,346,347,351,352,362,37#,382	05/1999 - 06/2004	1
33826-37180	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382	05/1999 - 06/2004	1
33826-37210	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37560	XZU306,308,336,338,346,348,368,378,388	06/2004 - 10/2006	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37110	XZU304,305,308,31#,321,334,338,344,348,35#,368,378,388	06/2004 - 12/2999	1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37150	XZU368;XZU304,305,308,334,338,344,348,354,378,388..03S,06S,DM6,T1,T2,T3,T4,T5	06/2004 - 12/2999	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZU308,338,348,368,378,388 NO.1	06/2004 - 10/2006	2
33828-37020	XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2	06/2004 - 10/2006	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZU308,338,348,368,378,388 NO.1	06/2004 - 10/2006	2
33828-37020	XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2	06/2004 - 10/2006	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZU308,338,348,368,378,388 NO.1	06/2004 - 10/2006	2
33828-37020	XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2	06/2004 - 10/2006	1
33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9
33828-37030	XZU304,305,308,31#,321,334,338,344,348,35#,368,378,388	06/2004 - 12/2999	1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37240	XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388	06/2004 - 04/2006	1
33827-37241	XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388	05/2006 - 10/2006	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210	XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
Common parts
90119-10883
90179-08038
90201-10042
90468-14004
90468-14016
90949-01B94
91611-B0816
91611-G0820
91651-60816
91651-61025
91651-B0825
94150-80800
Linked diagrams
4601

Part #	Description	Period	Qty	Price
Common parts
33529-37020
90119-08190
90179-08054
90387-08159
90389-11006
91111-50840
91611-B0614
94613-10601
96151-01700
Linked diagrams
5855

XZU378-PKMMW3 (2004)

ILLUST NO. 2 OF 2(0406- )XZU368,378,388

ILLUST NO. 1 OF 2(0406-0610)MTM

ILLUST NO. 1 OF 2(0406- )MTM..CNG,DCR,DCRL,DSL,DSLL,LPG
