XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace
(0406- )XZU301..5F..CBU,IV6 ; (0406- )XZU301..DM6,T3,T4,T5..5F..IV3 ; (0406-

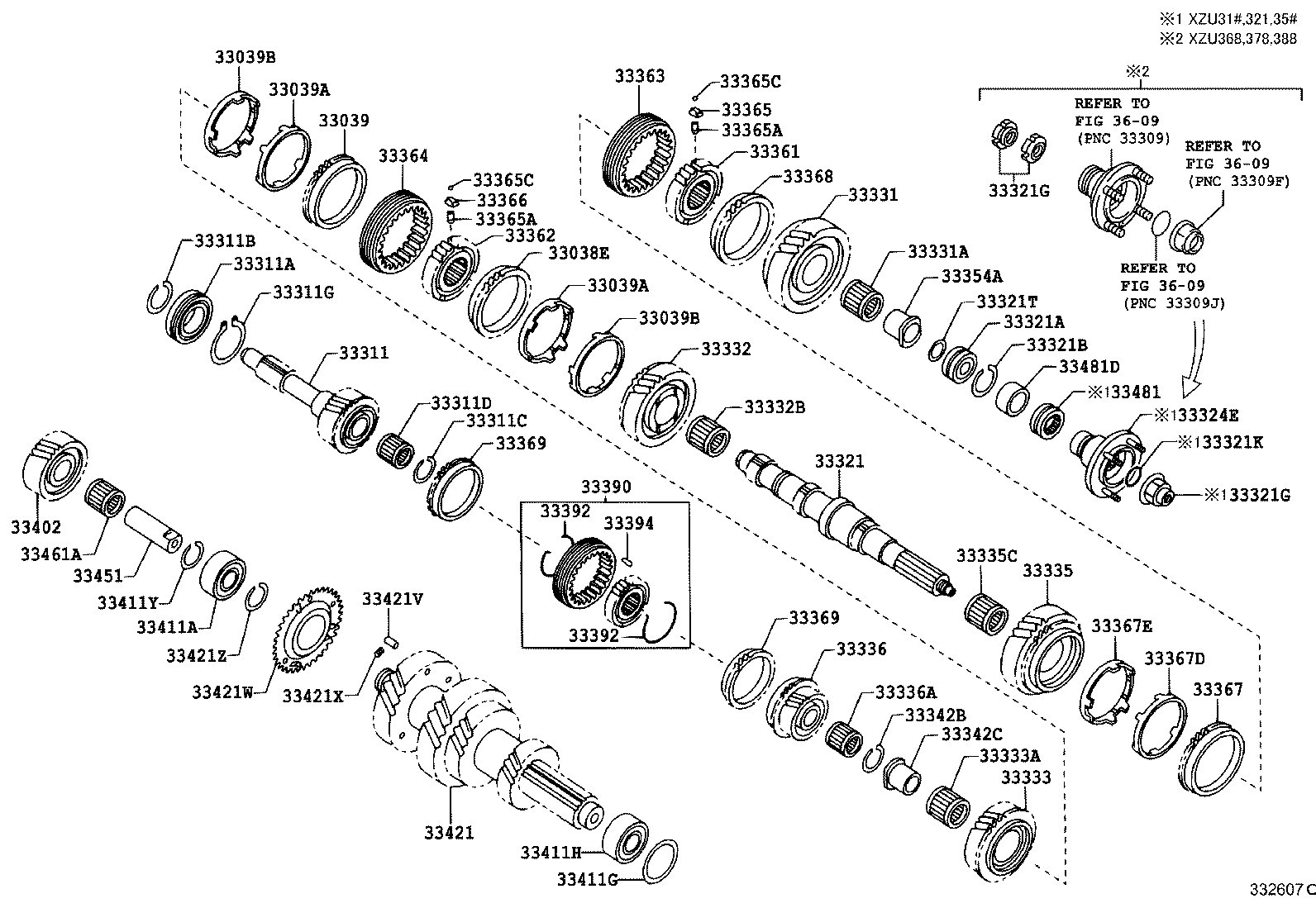

M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| SU002-00184 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33038-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00184 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-37090 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00320 |
XZU314,354,368,378,388..20T,30T |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00179 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42004 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.60−2.65,MARK 4 |
1 | ||
| 90520-42006 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.70−2.75,MARK 6 |
1 | ||
| 90520-42005 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.65−2.70,MARK 5 |
1 | ||
| 90520-42002 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.50−2.55,MARK 2 |
1 | ||
| 90520-42003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.55−2.60,MARK 3 |
1 | ||
| 90520-42007 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.75−2.80,MARK 7 |
1 | ||
| SU002-00198 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 96151-04500 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| SU002-00180 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| SU002-00222 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90361-09002 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
2 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
2 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| SU002-00200 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90520-96001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| SU002-00457 |
XZU368,378,388 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| SU002-00221 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90363-40034 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.36−2.46 |
1 | ||
| SU002-00219 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| SU002-00456 |
XZU368,378,388 |
1 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
2 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
2 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-37030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00186 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-54004 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36100 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00185 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-36100 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00183 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-47007 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-37050 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00515 |
XZU368,378,388 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58005 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-37020 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00235 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37012 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00238 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33338C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-34011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 90520-34016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=3.10−3.15,ﾏｰｸ F |
1 | ||
| 90520-34012 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 90520-34010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-34015 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| SU002-00182 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| 33342-36021 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00227 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| SU002-00227 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33354-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00231 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36040 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00231 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-43004 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.00,ﾏｰｸ=4 |
1 | ||
| 90520-43003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=1.95,ﾏｰｸ=3 |
1 | ||
| 90520-43002 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=1.90,ﾏｰｸ=2 |
1 | ||
| 90520-43006 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.10,ﾏｰｸ=6 |
1 | ||
| 90520-43007 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.15,ﾏｰｸ=7 |
1 | ||
| 90520-43005 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.05,ﾏｰｸ=5 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00194 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| SU002-00194 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33364-36080 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| SU002-00181 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36040 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
3 | ||
| SU002-00181 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00184 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00237 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33369-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00237 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33369-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| SU002-00521 |
XZU368,378,388 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| SU002-00521 |
XZU368,378,388 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36060 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-28056 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-28054 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28058 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 90520-28059 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 90520-28057 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-28055 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-36020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| SU002-00204 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-36100 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00196 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-37006 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00228 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| SU002-00228 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90363-30049 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26033 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.10−2.15 |
1 | ||
| 90520-26030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=1.95−2.00 |
1 | ||
| 90520-26035 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.20−2.25 |
1 | ||
| 90520-26032 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.05−2.10 |
1 | ||
| 90520-26031 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.00−2.05 |
1 | ||
| 90520-26034 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.15−2.20 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37050 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00193 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00195 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| SU002-00203 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90364-28018 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33464 - WASHER, REVERSE IDLER THRUST, NO.2 | ||||
| 33464-60010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| SU002-00458 |
XZU368,378,388 |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
(0406- )XZU31#,321,35#,368,378,388..5F..20T,30T
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| SU002-00184 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33038-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00184 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00225 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00225 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00226 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00226 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-37090 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00320 |
XZU314,354,368,378,388..20T,30T |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00179 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42004 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.60−2.65,MARK 4 |
1 | ||
| 90520-42006 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.70−2.75,MARK 6 |
1 | ||
| 90520-42005 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.65−2.70,MARK 5 |
1 | ||
| 90520-42002 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.50−2.55,MARK 2 |
1 | ||
| 90520-42003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.55−2.60,MARK 3 |
1 | ||
| 90520-42007 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.75−2.80,MARK 7 |
1 | ||
| SU002-00198 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 96151-04500 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| SU002-00180 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| SU002-00222 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90361-09002 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| SU002-00200 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90520-96001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| SU002-00457 |
XZU368,378,388 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| SU002-00221 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90363-40034 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.36−2.46 |
1 | ||
| SU002-00219 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| SU002-00456 |
XZU368,378,388 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| SU002-00456 |
XZU368,378,388 |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| SU002-00201 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-37030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00186 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-54004 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36100 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00185 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54003 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-36100 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00183 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-47007 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-37050 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00515 |
XZU368,378,388 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58005 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00223 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-37020 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00235 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37012 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00238 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-34011 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 90520-34016 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=3.10−3.15,ﾏｰｸ F |
1 | ||
| 90520-34012 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 90520-34010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-34015 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| SU002-00182 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| 33342-36021 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00227 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| SU002-00227 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33354-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00231 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36040 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00231 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00194 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| SU002-00194 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33364-36080 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36030 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| SU002-00181 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00232 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
6 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00232 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
6 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
6 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
6 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36040 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,XZU307,337,362,37#,382..5F |
3 | ||
| SU002-00181 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00184 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33367D - RING, OUTSIDE LOW & REVERSE | ||||
| SU002-00225 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33367E - RING, INSIDE LOW & REVERSE | ||||
| SU002-00226 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| SU002-00362 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00237 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33369-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00237 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33369-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| 33390 - SLEEVE & HUB ASSY, TOP-O/D | ||||
| SU002-00707 |
XZU368,378,388 |
1 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| SU002-00521 |
XZU368,378,388 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
2 | ||
| SU002-00521 |
XZU368,378,388 |
2 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-36020 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
3 | ||
| SU002-00204 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-36100 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00196 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-37006 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00228 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33411G - SHIM(FOR COUNTER GEAR SHAFT BEARING SETTING) | ||||
| SU002-00206 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.47 |
1 | ||
| SU002-00207 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.53 |
1 | ||
| SU002-00205 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.41 |
1 | ||
| SU002-00209 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.65 |
1 | ||
| SU002-00213 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.89 |
1 | ||
| SU002-00212 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.83 |
1 | ||
| SU002-00210 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.71 |
1 | ||
| SU002-00211 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.77 |
1 | ||
| SU002-00455 |
XZU368,378,388 内径=62.7 厚さ=2.23 |
1 | ||
| SU002-00208 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=62.7 厚さ=2.59 |
1 | ||
| SU002-00420 |
XZU368,378,388 内径=62.7 厚さ=2.35 |
1 | ||
| SU002-00453 |
XZU368,378,388 内径=62.7 厚さ=2.11 |
1 | ||
| SU002-00454 |
XZU368,378,388 内径=62.7 厚さ=2.17 |
1 | ||
| SU002-00419 |
XZU368,378,388 内径=62.7 厚さ=2.29 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-30049 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00228 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33411Y - RING, SNAP, BAG, COUNTERSHAFT | ||||
| SU002-00191 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=30.7 厚さ=2.1 |
1 | ||
| SU002-00190 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=30.7 厚さ=1.9 |
1 | ||
| SU002-00192 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) 内径=30.7 厚さ=2.3 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37050 |
XZU307,337,362,37#,382..5F;XZU302..(T4,T5)..5F..20T..DSL |
1 | ||
| SU002-00193 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33421V - PIN, ANTI-LASH PLATE | ||||
| SU002-00229 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33421W - PLATE, ANTI-LASH | ||||
| SU002-00199 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33421X - SPRING, ANTI-LASH PLATE | ||||
| SU002-00081 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
3 | ||
| 33421Z - RING, SNAP, ANTI-LASH | ||||
| SU002-00230 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36050 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00195 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| SU002-00203 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 90364-28018 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| SU002-00458 |
XZU368,378,388 |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
