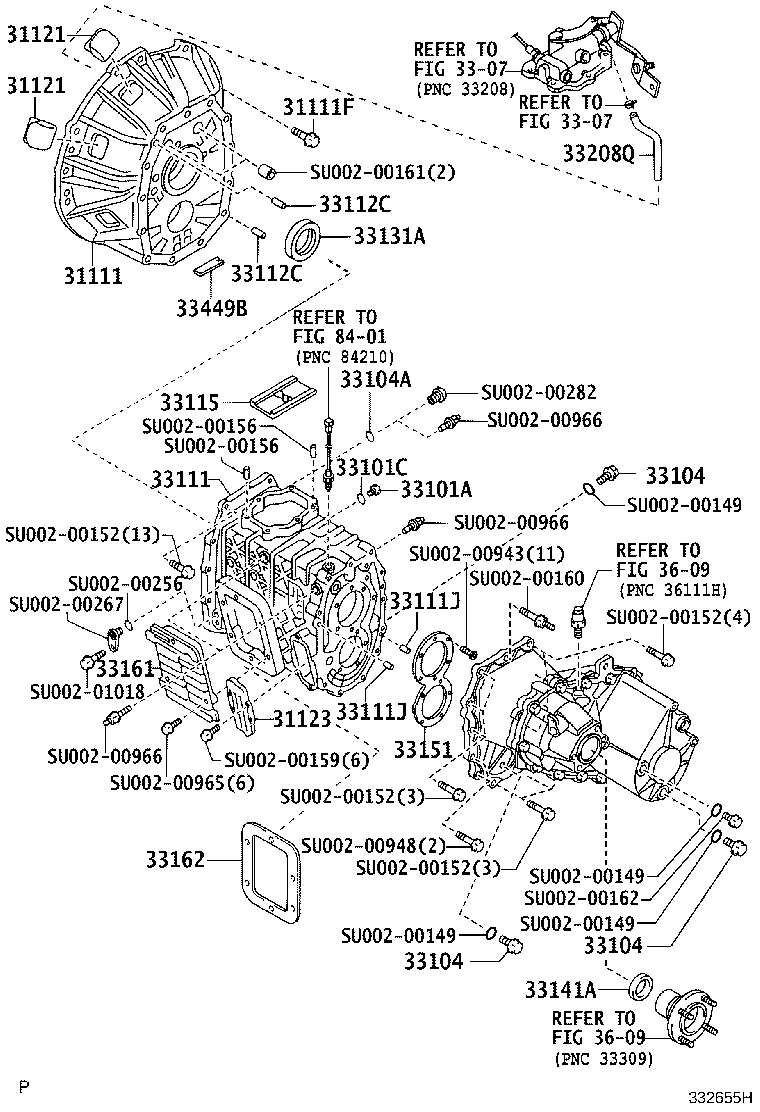

XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace
(0406- )XZU368,378,388
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| SU002-00526 |
XZU368,378,388 |
1 | ||
| 31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZU368,378,388 |
13 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| SU002-00158 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| SU002-00162 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| SU002-00149 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU368,378,388 |
3 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU368,378,388 |
3 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU368,378,388 |
3 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| SU002-00149 |
XZU368,378,388 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| SU002-00367 |
XZU368,378,388 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| SU002-00155 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| SU002-00155 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| SU002-00155 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| SU002-00155 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
2 | ||
| 33115 - PLATE, TRANSMISSION OIL FILTER | ||||
| SU002-00275 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
XZU301..5F..IV4;XZU321..5F..1NO;XZU301..30T..LPG;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,307,31#,320,337,351,352,362..(03S,DM2,DM5,DM6,DM7,T2,T4,T5)..5F;XZU300,302,321,330,331,341,342,346,347,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T) |
1 | ||
| SU002-00148 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| SU002-00154 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| SU002-00168 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| SU002-00150 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| SU002-00147 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33208Q - HOSE, BREATHER | ||||
| SU002-00265 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382..5F |
1 | ||
| SU002-00157 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) |
1 | ||
| Common parts | ||||
| SU002-00149 | ||||
| SU002-00152 | ||||
| SU002-00156 | ||||
| SU002-00159 | ||||
| SU002-00160 | ||||
| SU002-00161 | ||||
| SU002-00162 | ||||
| SU002-00256 | ||||
| SU002-00267 | ||||
| SU002-00282 | ||||
| SU002-00943 | ||||
| SU002-00948 | ||||
| SU002-00965 | ||||
| SU002-00966 | ||||
| SU002-01018 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 3609 | ||||
| 8401 | ||||
(0406-0610)XZU404,414,415,424..6F..DCRL,DSLL ; (0406-0705)DCR
MYY6P
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU002-00151 | ||||
| SU002-00152 | ||||
| SU002-00153 | ||||
| SU002-00155 | ||||
| SU002-00159 | ||||
| SU002-00160 | ||||
| SU002-00161 | ||||
| SU002-00256 | ||||
| SU002-00266 | ||||
| SU002-00267 | ||||
| SU002-00278 | ||||
| SU002-00366 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
