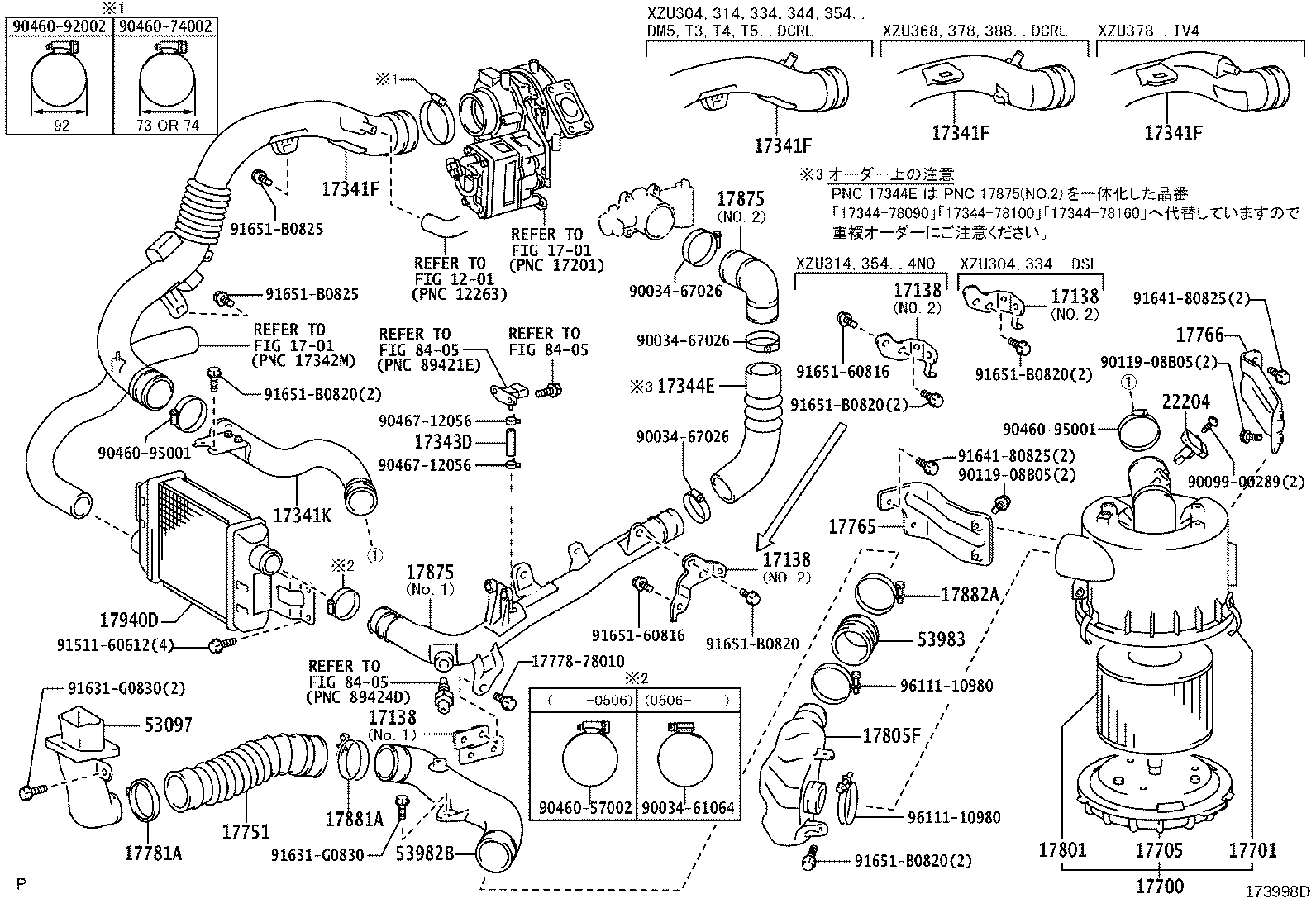

XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace
(0406- )N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78040 |
N04C..XZU308,338,348,368,378,388 NO.2 |
1 | ||
| 17138-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78040 |
N04C..XZU308,338,348,368,378,388 NO.2 |
1 | ||
| 17138-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78040 |
N04C..XZU308,338,348,368,378,388 NO.2 |
1 | ||
| 17138-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78040 |
N04C..XZU308,338,348,368,378,388 NO.2 |
1 | ||
| 17138-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78291 |
N04C..XZU368,378,388..DCRL |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78291 |
N04C..XZU368,378,388..DCRL |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78291 |
N04C..XZU368,378,388..DCRL |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78291 |
N04C..XZU368,378,388..DCRL |
1 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78011 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-78020 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-78030 |
N04C..XZU368,378,388..DCRL,DSLL |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78190 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-78150 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78040 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 53981-37080 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17766 - STAY, AIR CLEANER, NO.2 | ||||
| 17766-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17781A - CLAMP, HOSE | ||||
| 17781-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-78040 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-78021 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17103-78030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
1 | ||
| 17015-78010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17103-78030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
1 | ||
| 17015-78010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10980 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78040 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 53982B - INLET, AIR CLEANER PIPE, NO.2 | ||||
| 53982-37090 |
XZU378,388..DCB |
1 | ||
| 53983 - INLET, AIR CLEANER PIPE, NO.3 | ||||
| 53983-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Common parts | ||||
| 17778-78010 | ||||
| 90034-61064 | ||||
| 90034-67026 | ||||
| 90099-00289 | ||||
| 90119-08B05 | ||||
| 90460-57002 | ||||
| 90460-74002 | ||||
| 90460-92002 | ||||
| 90460-95001 | ||||
| 90467-12056 | ||||
| 91511-60612 | ||||
| 91631-G0830 | ||||
| 91641-80825 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 96111-10980 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 8405 | ||||
