XZU378-PKMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )N04C..XZU368,378..CBU,IV3

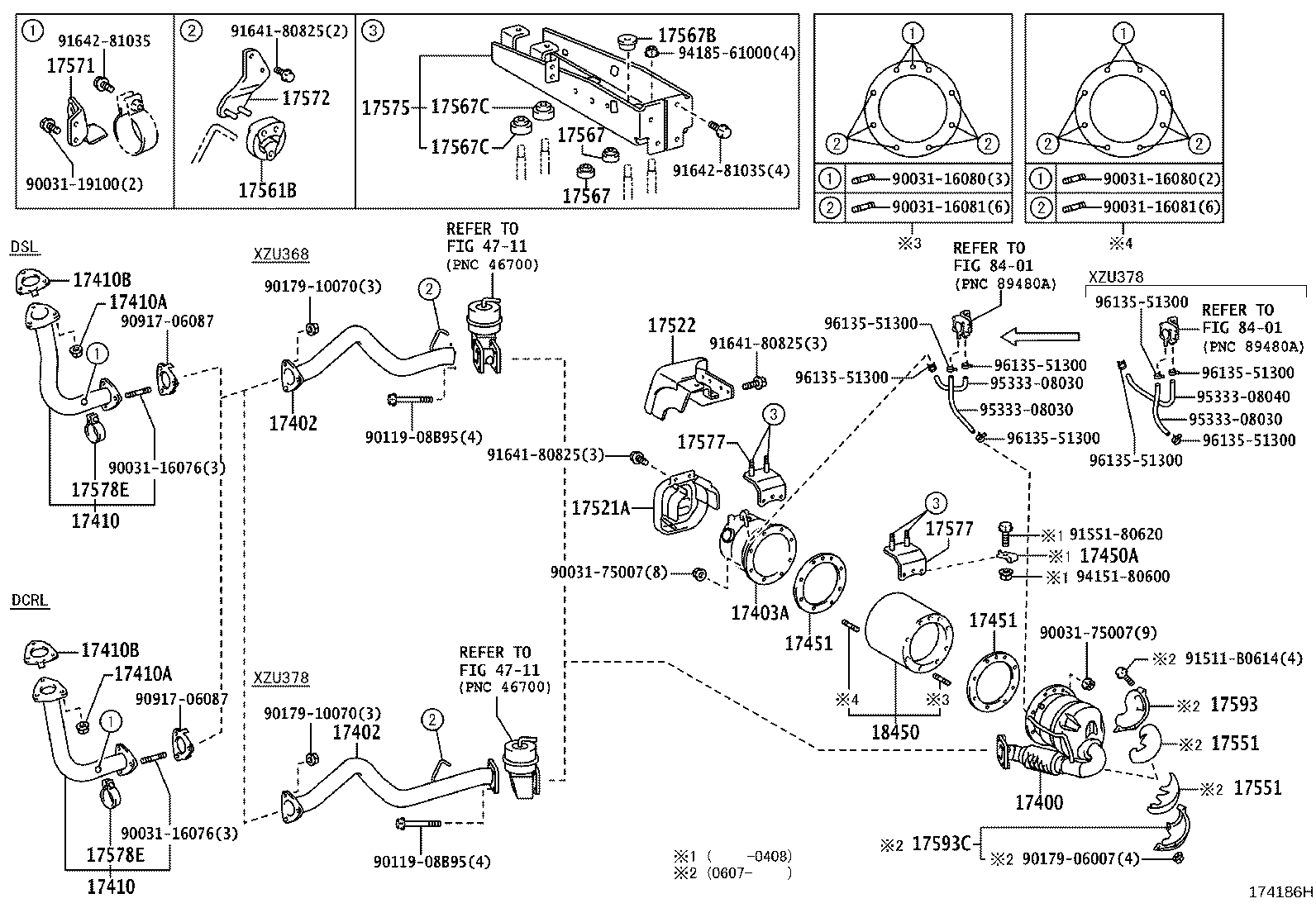

Click highlighted areas on diagram

diagram 17400 17402 17402 17403A 17410 17410 17410A 17410A 17410B 17410B 17450A 17451 17451 17521A 17522 17551 17551 17561B 17567 17567 17567B 17567C 17567C 17571 17572 17575 17577 17577 17578E 17578E 17593 17593C 18450 4711 4711 8401 8401 9003116076 9003116076 9003116080 9003116080 9003116081 9003116081 9003119100 9003175007 9003175007 9011908B95 9011908B95 9017906007 9017910070 9017910070 9091706087 9091706087 91511B0614 9155180620 9164180825 9164180825 9164180825 9164281035 9164281035 9415180600 9418561000 9533308030 9533308030 9533308030 9533308040 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17406-78130

N04C..XZU378..DCRL

 1
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-78020

N04C..XZU378..CBU,IV3

 1
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-78020

N04C..XZU378..CBU,IV3

 1
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-78620

N04C..XZU368,378..DCRL

 1
17403-78620

N04C..XZU368,378..DCRL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78240

N04C..XZU368,378,388..DCRL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78240

N04C..XZU368,378,388..DCRL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 3
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388

 1
17410B - GASKET, EXHAUST PIPE
90917-06087

N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388

 1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020

N04C..XZU368,378..CBU,IV3

 1
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZU368,378..CBU,IV3

 2
17451-78020

N04C..XZU368,378..CBU,IV3

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZU368,378..CBU,IV3

 2
17451-78020

N04C..XZU368,378..CBU,IV3

 2
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-78020

N04C..XZU368,378..CBU,IV3

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-78020

N04C..XZU368,378..CBU,IV3

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-78090

N04C..XZU378..CBU,IV3

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-78090

N04C..XZU378..CBU,IV3

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

S05D..XZU301..20T..IV6;N04C,S05D..XZU301,354..CBU,IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,368,378,388

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XZU304,334..IV4;N04C..XZU368,378..CBU,IV3

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XZU304,334..IV4;N04C..XZU368,378..CBU,IV3

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78030

N04C..XZU368,378..CBU,IV3

 4
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78040

N04C..XZU368,378..CBU,IV3

 2
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78040

N04C..XZU368,378..CBU,IV3

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78080

N04C..XZU368,378,388

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78250

N04C..XZU368,378..CBU,IV3

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78280

N04C..XZU368,378..CBU,IV3

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78090

N04C..XZU378..CBU,IV3

 2
17577-78090

N04C..XZU378..CBU,IV3

 2
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78090

N04C..XZU378..CBU,IV3

 2
17577-78090

N04C..XZU378..CBU,IV3

 2
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388

 1
17593 - PROTECTOR, EXHAUST PIPE, NO.1
17521-78070

N04C..XZU378..CBU,IV3

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17521-78081

N04C..XZU378..CBU,IV3

 1
18450 - CONVERTER ASSY, MONOLITHIC
18450-78020

N04C..XZU368,378..CBU,IV3

 1
18450-78020

N04C..XZU368,378..CBU,IV3

 1
Common parts
90031-16076
90031-16080
90031-16081
90031-19100
90031-75007
90119-08B95
90179-06007
90179-10070
90917-06087
91511-B0614
91551-80620
91641-80825
91642-81035
94151-80600
94185-61000
95333-08030
95333-08040
96135-51300
Linked diagrams
4711
8401
