XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace

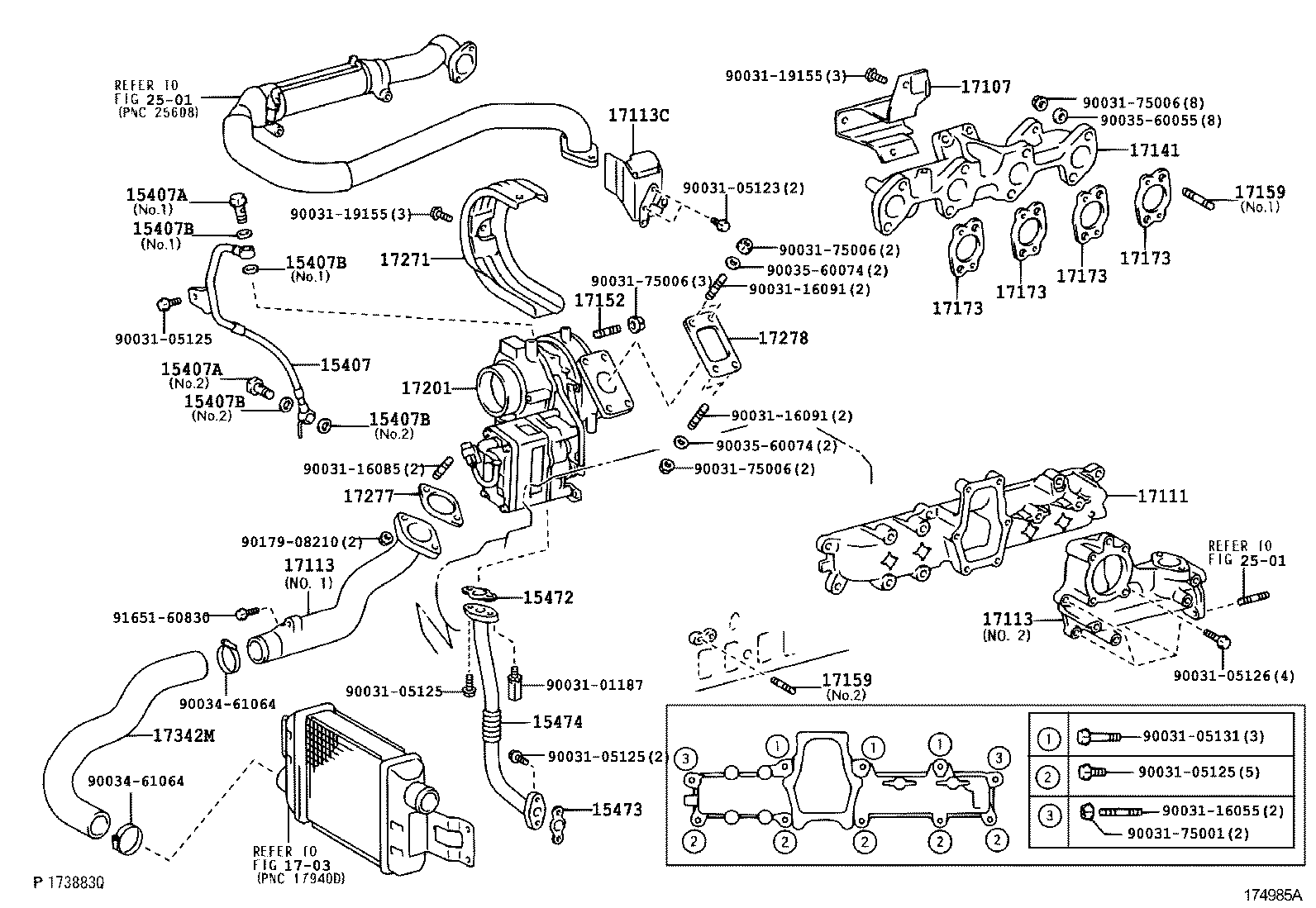

(0604- )N04C..XZU304,305..20T..DCRL..1NO ; (0604- )N04C..XZU304,314,334,344,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 29601-78100 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90034-01010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 90031-09073 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90034-01010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 90031-09073 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-78010 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 15472-78011 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78011 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL |
1 | ||
| 15471-78010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78120 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78061 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17107-78060 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78110 |
N04C..XZU368,378,388..DCRL NO.1 |
1 | ||
| 17113-78121 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78120 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78122 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78110 |
N04C..XZU368,378,388..DCRL NO.1 |
1 | ||
| 17113-78121 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78120 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78122 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113C - INSULATOR, INTAKE PIPE | ||||
| 17107-78080 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 17107-78080 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78081 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
3 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78042 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17201-78041 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78030 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-78020 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17277-78010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-78020 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17342M - HOSE, AIR, NO.2 | ||||
| 17342-78031 |
N04C..XZU368,378,388..DCRL,DSLL |
1 | ||
| Common parts | ||||
| 90031-01187 | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16091 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90034-61064 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| 90179-08210 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2501 | ||||

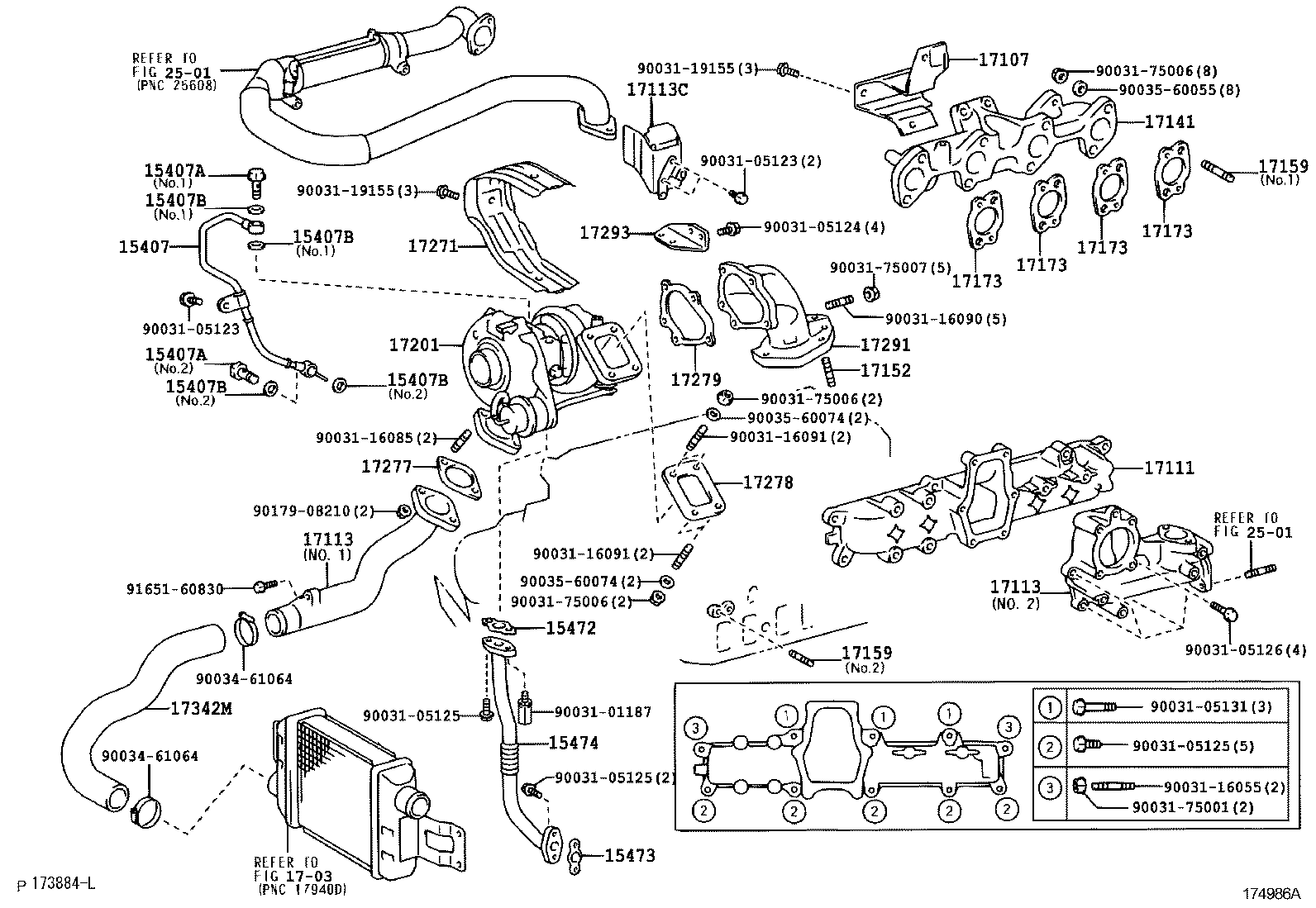

(0604-0610)N04C..XZU304,314,334,344,354,368,378,388..DM5,T3,T4,T5..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 29601-78100 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90034-01010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 90031-09073 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90034-01010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 90031-09073 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-12030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.1 |
2 | ||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-78010 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 15472-78011 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78011 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL |
1 | ||
| 15471-78010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78120 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78061 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17107-78060 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78110 |
N04C..XZU368,378,388..DCRL NO.1 |
1 | ||
| 17113-78121 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78120 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78122 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78110 |
N04C..XZU368,378,388..DCRL NO.1 |
1 | ||
| 17113-78121 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78120 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113-78122 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL NO.2 |
1 | ||
| 17113C - INSULATOR, INTAKE PIPE | ||||
| 17107-78080 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 17107-78080 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78081 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
3 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78042 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17201-78041 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78030 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-78020 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17277-78010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-78020 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17278-78030 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-78042 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17455-78140 |
N04C..XZU304,314,334,344,354,368,378,388..(DM5,T3,T4,T5)..DCRL |
1 | ||
| 17342M - HOSE, AIR, NO.2 | ||||
| 17342-78031 |
N04C..XZU368,378,388..DCRL,DSLL |
1 | ||
| Common parts | ||||
| 90031-01187 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16090 | ||||
| 90031-16091 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90031-75007 | ||||
| 90034-61064 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| 90179-08210 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2501 | ||||
