XZU378-PKMMW3 (2004)
Toyota Dyna/Toyoace

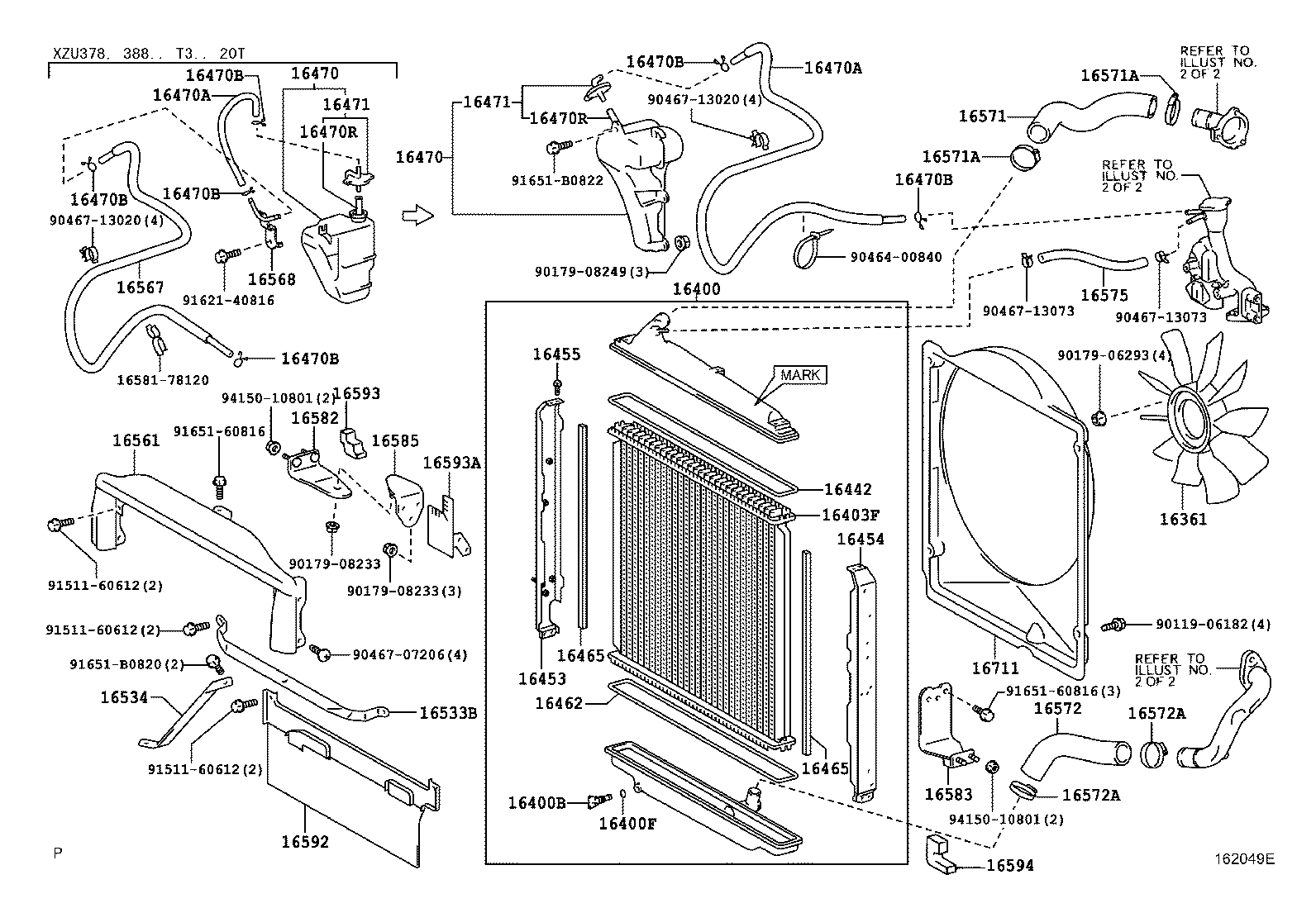

ILLUST NO. 1 OF 2(0406-0610)N04C..XZU304,314,334,344,354,368,378,388..DM5,T3,T4,T5..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78410 |
N04C..XZU368,378,388..DCRL ﾏｰｸ=7841 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6) |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6) |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78030 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78030 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78110 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) 長さ=320 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78110 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) 長さ=320 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
4 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
4 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
4 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
4 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
4 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
4 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78030 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78030 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78220 |
N04C..XZU378,388..T3..20T..DCRL |
1 | ||
| 16568 - PIPE, RADIATOR TO RESERVE TANK | ||||
| 16568-58010 |
N04C,S05D..XZU304,306,308,346,378,388..(DCB,VAN)..(CBU,IV3) |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78140 |
N04C..XZU368,378,388 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78190 |
N04C..XZU368,378,388..CBU,IV3 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78100 |
N04C..XZU368,378,388 |
1 | ||
| 16575-78102 |
N04C..XZU368,378,388 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
N04C..XZU304,334,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV7);N04C,S05D..XZU301,305,306,31#,321,331,336,341,344,346,35# |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-78090 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78110 |
N04C..XZU368,378,388 |
1 | ||
| Common parts | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91621-40816 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||
