XZU378-PKMMB3 (2006)
Toyota Dyna/Toyoace

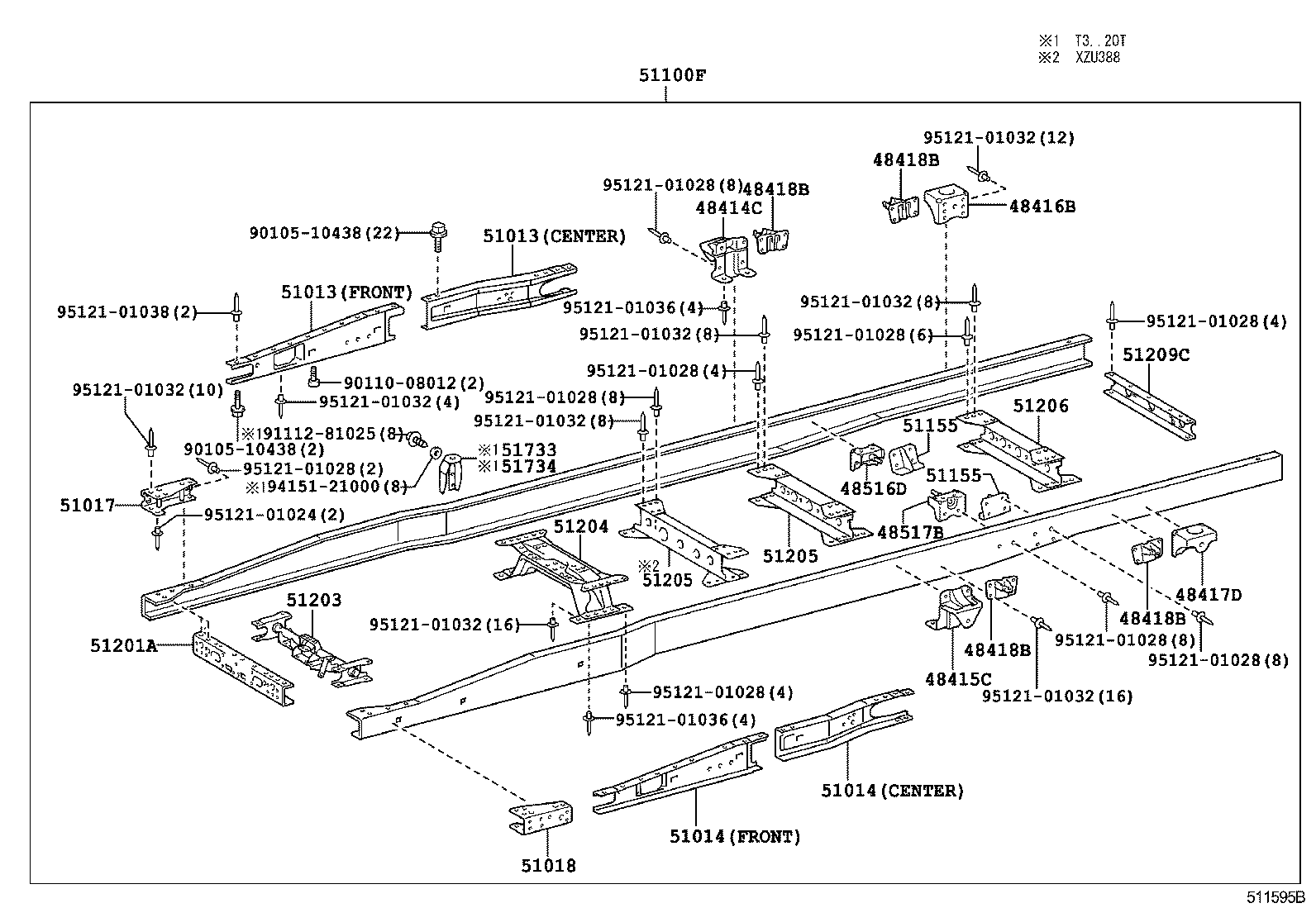

ILLUST NO. 2 OF 4(0610- )XZU378,388
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548 |
4 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37301 |
XZU368,378,388,568 ﾌﾛﾝﾄ |
1 | ||
| 51013-37310 |
XZU368,378,388,568..CBU,IV3 ｾﾝﾀ |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37301 |
XZU368,378,388,568 ﾌﾛﾝﾄ |
1 | ||
| 51013-37310 |
XZU368,378,388,568..CBU,IV3 ｾﾝﾀ |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37240 |
XZU368,378,388,568 ｾﾝﾀ |
1 | ||
| 51014-37200 |
XZU368,378,388,568 ﾌﾛﾝﾄ |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37240 |
XZU368,378,388,568 ｾﾝﾀ |
1 | ||
| 51014-37200 |
XZU368,378,388,568 ﾌﾛﾝﾄ |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37150 |
XZU368,378,388,568 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37021 |
XZU368,568;XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354,378,388..1NO |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37K02 |
XZU378..T3..20T |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-37130 |
XZU368,378,388,568 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37161 |
XZU368,378,388,568 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37250 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZU368,568..T4;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU334,354,378..(CBU,IV3,IV6)..1NO |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZU368,568..T4;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU334,354,378..(CBU,IV3,IV6)..1NO |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37030 |
XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
BZU340,TRU340,XZU33#,34#,378,388,538,548 |
1 | ||
| 51733 - BRACKET, CAB REAR MOUNTING, NO.2 RH | ||||
| 51733-37110 |
XZU378,388..T3..20T |
1 | ||
| 51734 - BRACKET, CAB REAR MOUNTING, NO.2 LH | ||||
| 51734-37060 |
XZU378,388..T3..20T |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90110-08012 | ||||
| 91112-81025 | ||||
| 94151-21000 | ||||
| 95121-01024 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
ILLUST NO. 3 OF 4(0610- )XZU368,378,388,568
ｻｽﾍﾟﾝｼｮﾝ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48311A - BRACKET, HOLLOW SPRING, RH | ||||
| 48332-37010 |
XZU368,378,388,568 NO.2 |
1 | ||
| 48331-37020 |
XZU368,378,388,568 NO.1 |
1 | ||
| 48311A - BRACKET, HOLLOW SPRING, RH | ||||
| 48332-37010 |
XZU368,378,388,568 NO.2 |
1 | ||
| 48331-37020 |
XZU368,378,388,568 NO.1 |
1 | ||
| 48312A - BRACKET, HOLLOW SPRING, LH | ||||
| 48331-37020 |
XZU368,378,388,568 NO.1 |
1 | ||
| 48332-37010 |
XZU368,378,388,568 NO.2 |
1 | ||
| 48312A - BRACKET, HOLLOW SPRING, LH | ||||
| 48331-37020 |
XZU368,378,388,568 NO.1 |
1 | ||
| 48332-37010 |
XZU368,378,388,568 NO.2 |
1 | ||
| 51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT | ||||
| 51032-37041 |
XZU368,378,388,568 |
1 | ||
| 51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-37121 |
XZU368,378,388,568 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37041 |
XZU368,378,388,568 |
1 | ||
| 51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 51217-37021 |
XZU368,378,388,568 |
1 | ||
| 51491A - BAR, UNDER GUARD, FRONT NO.1 | ||||
| 51491-37030 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 51492B - BAR, UNDER GUARD, FRONT NO.2 | ||||
| 51492-37020 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 51493A - BRACKET, UNDER GUARD, FRONT NO.1 | ||||
| 51493-37070 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37030 |
XZU368,378,388,568 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37031 |
XZU368,378,388,568 |
1 | ||
| 51502-37030 |
XZU368,378,388,568 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37070 |
XZU368,378,388,568 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37070 |
XZU368,378,388,568 |
1 | ||
| 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51523-37010 |
XZU368,378,388,568 |
2 | ||
| 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51523-37010 |
XZU368,378,388,568 |
2 | ||
| 51528B - BRACKET, LOWER ARM SUPPORT, REAR RH | ||||
| 51528-37010 |
XZU368,378,388,568 |
1 | ||
| 51529B - BRACKET, LOWER ARM SUPPORT, REAR LH | ||||
| 51529-37010 |
XZU368,378,388,568 |
1 | ||
| 51568A - SUPPORT, ANCHOR ARM, LOWER RH | ||||
| 51568-37580 |
XZU368,378,388,568 |
1 | ||
| 51569B - SUPPORT, ANCHOR ARM, LOWER LH | ||||
| 51569-37340 |
XZU368,378,388,568 |
1 | ||
| Common parts | ||||
| 90105-14065 | ||||
| 90119-10740 | ||||
| 90119-12369 | ||||
| 90119-12370 | ||||
| 90119-12377 | ||||
| 90119-14110 | ||||
| 90129-08007 | ||||
| 90178-14002 | ||||
| 90179-14061 | ||||
| 90182-10003 | ||||
| 91674-L1430 | ||||
| 91674-L1450 | ||||
| 94622-41400 | ||||
ILLUST NO. 1 OF 4(0610- )DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37K02 |
XZU378..T3..20T |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37191 |
XZU368,378,388,568 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37191 |
XZU368,378,388,568 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37491 |
XZU378,388..T3..20T |
1 | ||
| 51705-37492 |
XZU378,388..T3..20T |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90467-09101 | ||||
| 91642-81245 | ||||
ILLUST NO. 4 OF 4(0610- )
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU338..T2;XZU308,334..(T2,T3,T4)..(20T,30T)..(CBU,IV3);TRU300,XZU304,314,354,378,50#,554..(DM5,T2,T3,T4)..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90179-08233 | ||||
