XZU372-TQMMS3 (1999)
Toyota Dyna/Toyoace

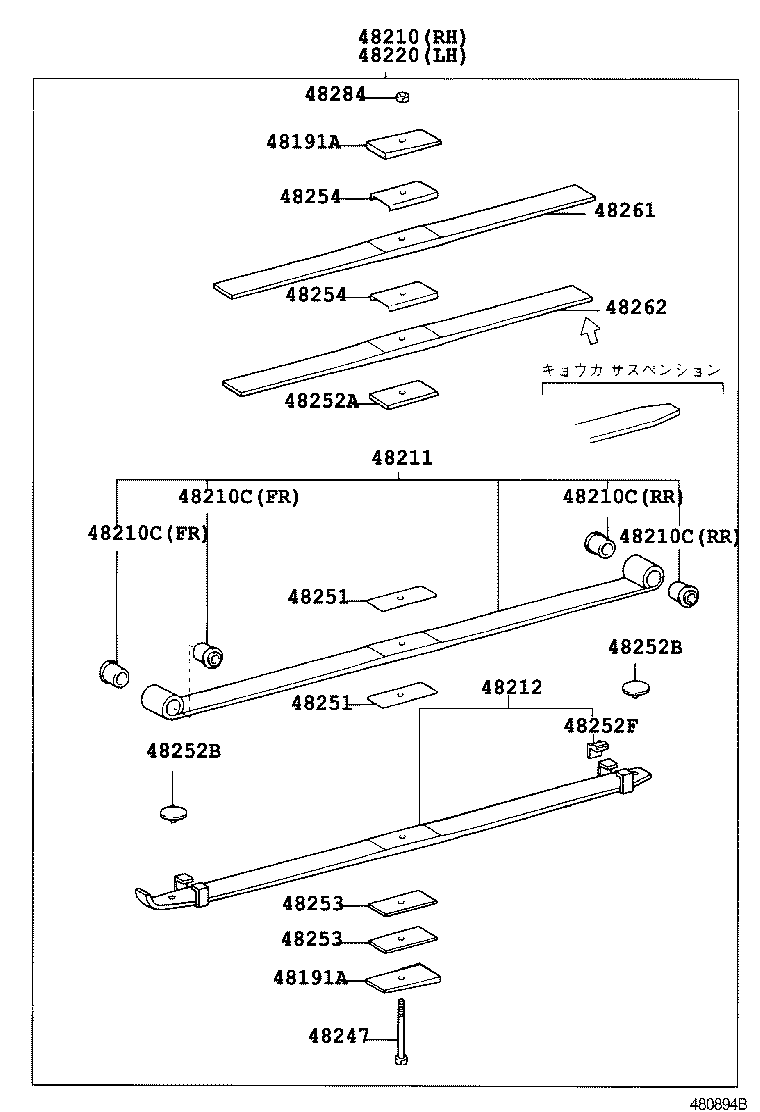

ILLUST NO. 2 OF 3(9907-0406)XZU372,382..20T
MAIN 2+HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XZU331..DSL;XZU331..5F..DSLL;XZU301..T3..4FC..DSL;RZU300,XZU300,302..T3;XZU301..T3..5F..DSL..IV3;XZU301..T3..5F..(CBU,IV4,IV6,IV7);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37470 |
XZU372,382..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37470:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37510 |
XZU372,382..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=R-37510:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU331..DSL;XZU301,331..5F..DSLL..IV4;BZU300,RZU300,XZU300,301,302..T3..(DSL,EFI,LPG);BU346,BZU340,RZU340,XZU330,340,341,342,346,347,37#,382..20T,295T,30T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37470 |
XZU372,382..20T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37470:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37510 |
XZU372,382..20T MARK=R-37510:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37510 |
XZU372,382..20T MARK=R-37510:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-37470 |
XZU372,382..20T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37470:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37510 |
XZU372,382..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,MARK=R-37510:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUSTNO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37470 |
XZU372,382..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37470:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36460 |
XZU372,382..20T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
BZU300,XZU32#..DM6,DM7,DM8;BU346,BZU340,RZU340,XZU341,342,346,347,362,372,382..(DM5,T2,T3,T4)..20T |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
BZU300,XZU32#..DM6,DM7,DM8;BU346,BZU340,RZU340,XZU341,342,346,347,362,372,382..(DM5,T2,T3,T4)..20T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-36530 |
XZU372,382..20T;XZU301..T4..IV6 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU346..DSLL;BU346,BZU300,XZU347..DM6,T2;BZU340,RZU340,XZU342,372,382..20T |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
XZU372,382..20T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
XZU372,382..20T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
BU346,BZU340,RZU340,XZU341,342,346,347,372,382..20T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
BU346,BZU340,RZU340,XZU341,342,346,347,372,382..20T |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37470 |
XZU372,382..20T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37470:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213-37510 |
XZU372,382..20T MARK=R-37510:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37470 |
XZU372,382..20T ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37470:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214-37510 |
XZU372,382..20T MARK=R-37510:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=120:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,XZU302..ST;BU346,BZU340,RZU340,XZU341,342,346,347,372,382..20T |
2 | ||

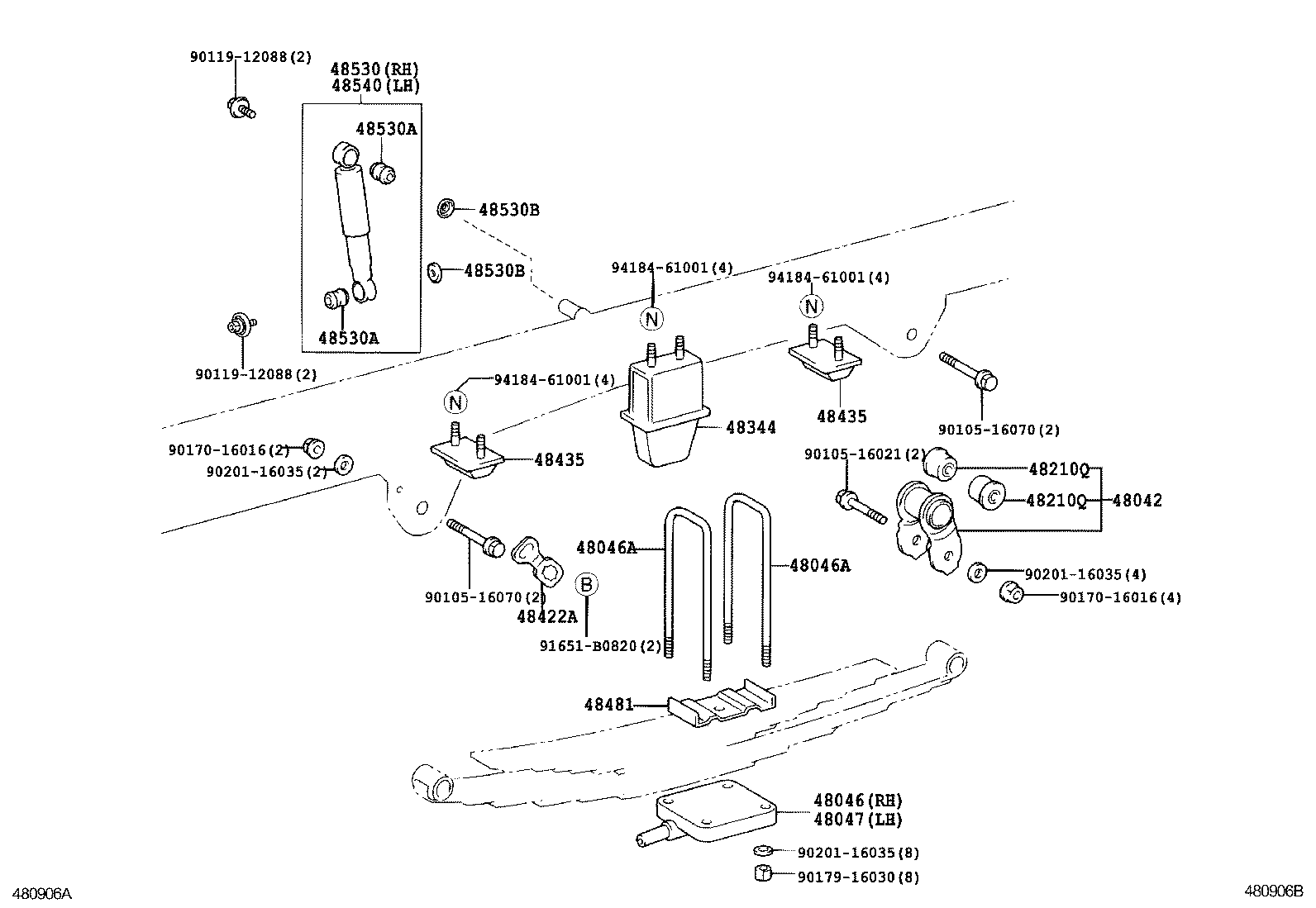

ILLUST NO. 1 OF 3(9905-0406)XZU341..LPG ; (9905-0406)XZU302..CNG,DSL ; (9905-0406)RZU300,XZU300,301,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16144 |
XZU372,382..20T 長さ=285 |
4 | ||
| 90117-16144 |
XZU372,382..20T 長さ=285 |
4 | ||
| 90117-16018 |
XZU372,382..20T 長さ=300 |
4 | ||
| 90117-16018 |
XZU372,382..20T 長さ=300 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16144 |
XZU372,382..20T 長さ=285 |
4 | ||
| 90117-16144 |
XZU372,382..20T 長さ=285 |
4 | ||
| 90117-16018 |
XZU372,382..20T 長さ=300 |
4 | ||
| 90117-16018 |
XZU372,382..20T 長さ=300 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37180 |
XZU372,382..20T |
2 | ||
| 48344-37180 |
XZU372,382..20T |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37180 |
XZU372,382..20T |
2 | ||
| 48344-37180 |
XZU372,382..20T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| Common parts | ||||
| 90101-20001 | ||||
| 90101-20002 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90179-20007 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94622-42000 | ||||
ILLUST NO. 1 OF 3(9907-0406)XZU37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16144 |
XZU372,382..20T 長さ=285 |
4 | ||
| 90117-16018 |
XZU372,382..20T 長さ=300 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16144 |
XZU372,382..20T 長さ=285 |
4 | ||
| 90117-16018 |
XZU372,382..20T 長さ=300 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
1 | ||
| 48473-37180 |
XZU350;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T)..(DSL,EFI,LPG) |
1 | ||
| 48473-37180 |
XZU350;BU346,BZU300,RZU300,XZU300,301,302,330,371..T3..(20T,295T,30T);BZU340,XZU331,340,341,342,346,347,372,382..(T3,T4)..(20T,295T,30T) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37180 |
XZU372,382..20T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,37#,382..20T,295T,30T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,350,37#,382 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
BZU300,RZU300,XZU300,301,302..T3;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,350,37#,382 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU331,34#,372,382..(T3,T4)..(CNG,DSL,LPG);BU346,RZU300,XZU300,301,302,330,350,371..T3..(DSL,EFI,LPG) |
2 | ||
| 48481-37080 |
BU346,RZU300,XZU300,301,302,330,350,371..T3;XZU331,34#,372,382..(T3,T4)..(20T,295T,30T,40T) |
2 | ||
| 48481-37081 |
BZU340,XZU331,340,341,342,346,347,372,382..T3,T4;BU346,BZU300,RZU300,XZU300,301,302,330,350,371..T3 |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
