XZU372-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0406)XZU362,37#,382

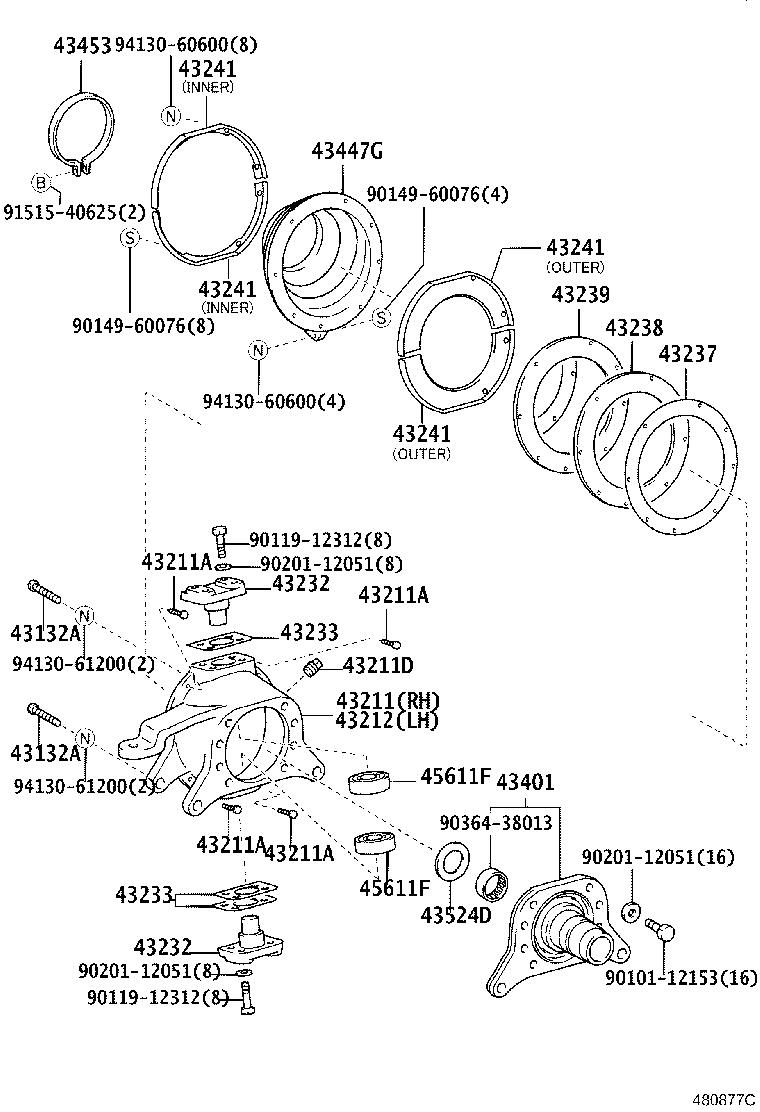

Click highlighted areas on diagram

diagram 43132A 43132A 43211 43211A 43211A 43211A 43211A 43211D 43212 43232 43232 43233 43233 43237 43238 43239 43241 43241 43241 43241 43401 43447G 43453 43524D 45611F 45611F 9010112153 9011912312 9011912312 9014960076 9014960076 9020112051 9020112051 9020112051 9036438013 9151540625 9413060600 9413060600 9413061200 9413061200
Part # Description Qty Price
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12022

XZU362,37#,382

 4
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12022

XZU362,37#,382

 4
43211 - KNUCKLE, STEERING, RH
43211-37060

XZU362,37#,382

 1
43211A - BOLT, STUD (FOR STEERING SET)
90116-06048

XZU362,37#,382

 8
43211A - BOLT, STUD (FOR STEERING SET)
90116-06048

XZU362,37#,382

 8
43211A - BOLT, STUD (FOR STEERING SET)
90116-06048

XZU362,37#,382

 8
43211A - BOLT, STUD (FOR STEERING SET)
90116-06048

XZU362,37#,382

 8
43211D - PLUG (FOR STEERING KNUCKLE)
90345-53020

XZU362,37#,382

 2
43212 - KNUCKLE, STEERING, LH
43212-37060

XZU362,37#,382

 1
43232 - CAP, STEERING KNUCKLE BEARING
43232-36010

XZU362,37#,382

 4
43232 - CAP, STEERING KNUCKLE BEARING
43232-36010

XZU362,37#,382

 4
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

XZU362,37#,382

厚さ=0.20

 1
43235-60010

XZU362,37#,382

厚さ=1.0

 1
43236-60010

XZU362,37#,382

厚さ=0.1

 1
43234-60011

XZU362,37#,382

厚さ=0.50

 1
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

XZU362,37#,382

厚さ=0.20

 1
43235-60010

XZU362,37#,382

厚さ=1.0

 1
43236-60010

XZU362,37#,382

厚さ=0.1

 1
43234-60011

XZU362,37#,382

厚さ=0.50

 1
43237 - RING, STEERING KNUCKLE OIL SEAL, INNER
43237-36010

XZU362,37#,382

 2
43238 - SEAL, STEERING KNUCKLE OIL, INNER
43238-36010

XZU362,37#,382

 2
43239 - SEAL, STEERING KNUCKLE OIL, OUTER
43239-36010

XZU362,37#,382

 2
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36020

XZU362,37#,382

外側

 4
43241-36040

XZU362,37#,382

内側

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36020

XZU362,37#,382

外側

 4
43241-36040

XZU362,37#,382

内側

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36020

XZU362,37#,382

外側

 4
43241-36040

XZU362,37#,382

内側

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36020

XZU362,37#,382

外側

 4
43241-36040

XZU362,37#,382

内側

 4
43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE
43401-37010

XZU362,37#,382

右側

 1
43401-37020

XZU362,37#,382

左側

 1
43447G - BOOT, STEERING KUCKLE
43447-37010

XZU362,37#,382

 2
43447-36030

XZU362,37#,382

 2
43453 - COVER, STEERING KUNCKLE
43453-36020

XZU362,37#,382

 2
43524D - SPACER, STEERING KNUCKLE SPINDLE
43524-36010

XZU362,37#,382

 2
45611F - BEARING(FOR STEERING KNUCKLE ARM)
90366-25006

XZU362,37#,382

 4
45611F - BEARING(FOR STEERING KNUCKLE ARM)
90366-25006

XZU362,37#,382

 4
Common parts
90101-12153
90119-12312
90149-60076
90201-12051
90364-38013
91515-40625
94130-60600
94130-61200

(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,330,331,340,3

Click highlighted areas on diagram

diagram 04431 4303 43111 43112 43132A 43211 43211D 43211D 43212 43231A 43231A 43231B 43231C 43231D 9017910121 9413061200 9645100600 9645601000
Part # Description Qty Price
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12022

XZU362,37#,382

 4
43211 - KNUCKLE, STEERING, RH
43211-37060

XZU362,37#,382

 1
43211D - PLUG (FOR STEERING KNUCKLE)
90345-53020

XZU362,37#,382

 2
43211D - PLUG (FOR STEERING KNUCKLE)
90345-53020

XZU362,37#,382

 2
43212 - KNUCKLE, STEERING, LH
43212-37060

XZU362,37#,382

 1
Common parts
90179-10121
94130-61200
96451-00600
96456-01000
Linked diagrams
4303
