XZU372-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0406)XZU362,37#,382

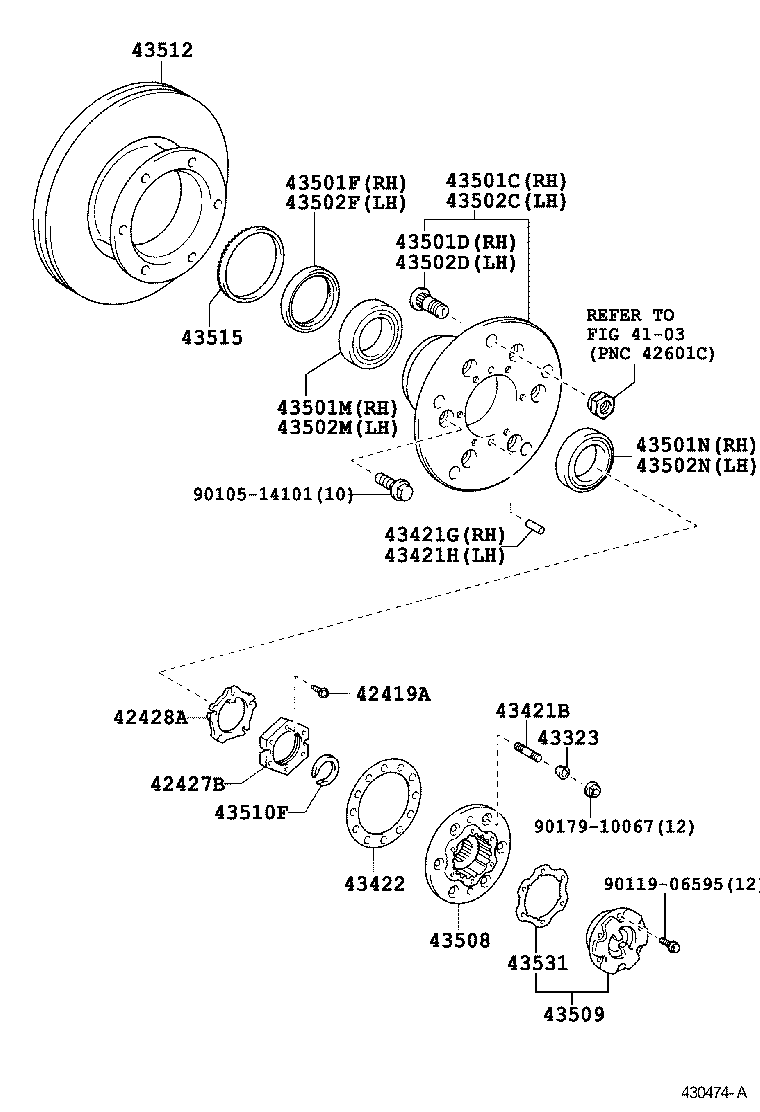

Click highlighted areas on diagram

diagram 4103 42419A 42427B 42428A 43323 43421B 43421G 43421H 43422 43501C 43501D 43501F 43501M 43501N 43502C 43502D 43502F 43502M 43502N 43508 43509 43510F 43512 43515 43531 9010514101 9011906595 9017910067
Part # Description Qty Price
42419A - SCREW, FRONT AXLE BEARING LOCK NUT
42419-36010

XZU362,37#,382

 2
42427B - NUT, FRONT AXLE BEARING LOCK
42427-36040

XZU362,37#,382

 2
42428A - PLATE, FRONT AXLE LOCK NUT
42428-36031

XZU362,37#,382

 2
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-36010

XZU362,37#,382

 12
43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
90116-10168

XZU362,37#,382

 12
43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
90250-10055

XZU362,37#,382

 2
43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
90250-10055

XZU362,37#,382

 2
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-36020

XZU362,37#,382

 2
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43501-37100

XZU362,37#,382

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 5
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-75008

XZU362,37#,382

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-60005

XZU362,37#,382

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90366-55042

XZU362,37#,382

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-37100

XZU362,37#,382

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072

BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T

 5
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-75008

XZU362,37#,382

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-60005

XZU362,37#,382

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90366-55042

XZU362,37#,382

 1
43508 - BODY SUB-ASSY, FREE WHEEL HUB
43508-37010

XZU362,37#,382

 2
43509 - COVER SUB-ASSY, FREE WHEEL HUB
43509-36011

XZU362,37#,382

 2
43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB)
90520-33009

XZU362,37#,382

厚さ=1.5

 2
43512 - DISC, FRONT
43512-37100

XZU362,37#,382

 2
43515 - ROTOR, SKID CONTROL, FRONT
43515-37020

XZU362,37#,382

 2
43531 - GASKET, FREE WHEEL HUB
43531-36010

XZU362,37#,382

 2
Common parts
90105-14101
90119-06595
90179-10067
Linked diagrams
4103

(9905-0406)BU410,420,430,XZU400,401,410,411,412,42#,430..295T,30T,35T,40T,40TOV ; (

Click highlighted areas on diagram

diagram 43226 43501A 43501C 43501D 43501F 43501L 43501M 43501N 43502C 43502D 43502F 43502L 43502M 43502N 43510H 43512B 43514B 43514C 43515 43520A 9003252017 9010514101 9017133001
Part # Description Qty Price
Common parts
90032-52017
90105-14101
90171-33001
