XZU372-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

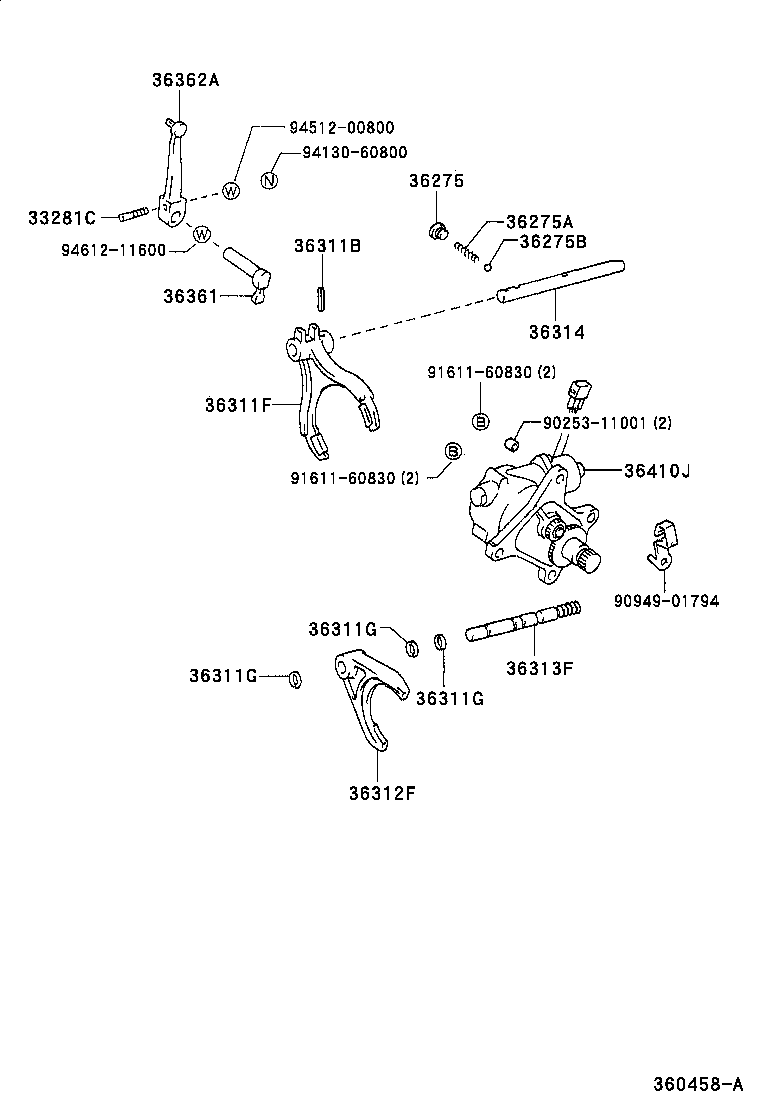

ILLUST NO. 2 OF 2(9907- )XZU362,371,372,382

Click highlighted areas on diagram

diagram 33281C 36275 36275A 36275B 36311B 36311F 36311G 36311G 36311G 36312F 36313F 36314 36361 36362A 36410J 9025311001 9094901794 9161160830 9161160830 9413060800 9451200800 9461211600
Part # Description Qty Price
33281C - PIN, LEVER LOCK
33281-16020

XZU362,371,372,382

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12008

XZU362,371,372,382

 1
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-14134

XZU362,371,372,382

長さ=27.1

 1
36275B - BALL, SHIFT DETENT
90360-10003

XZU362,371,372,382

外径=9.52,ｽﾁｰﾙ

 1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05016

XZU362,371,372,382

長さ=25.5

 1
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-36010

XZU362,371,372,382

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004

XZU362,371,372,382

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004

XZU362,371,372,382

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004

XZU362,371,372,382

 3
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36312-60050

XZU362,371,372,382

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-36010

XZU362,371,372,382

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-36010

XZU362,371,372,382

 1
36361 - LEVER, TRANSFER SHIFT, INNER
36361-36010

XZU362,371,372,382

 1
36362A - LEVER, TRANSFER SHIFT, OUTER
36362-60030

XZU362,371,372,382

 1
36410J - ACTUATOR ASSY, TRANSFER SHIFT
36410-36014

XZU362,371,372,382

 1
Common parts
90253-11001
90949-01794
91611-60830
94130-60800
94512-00800
94612-11600

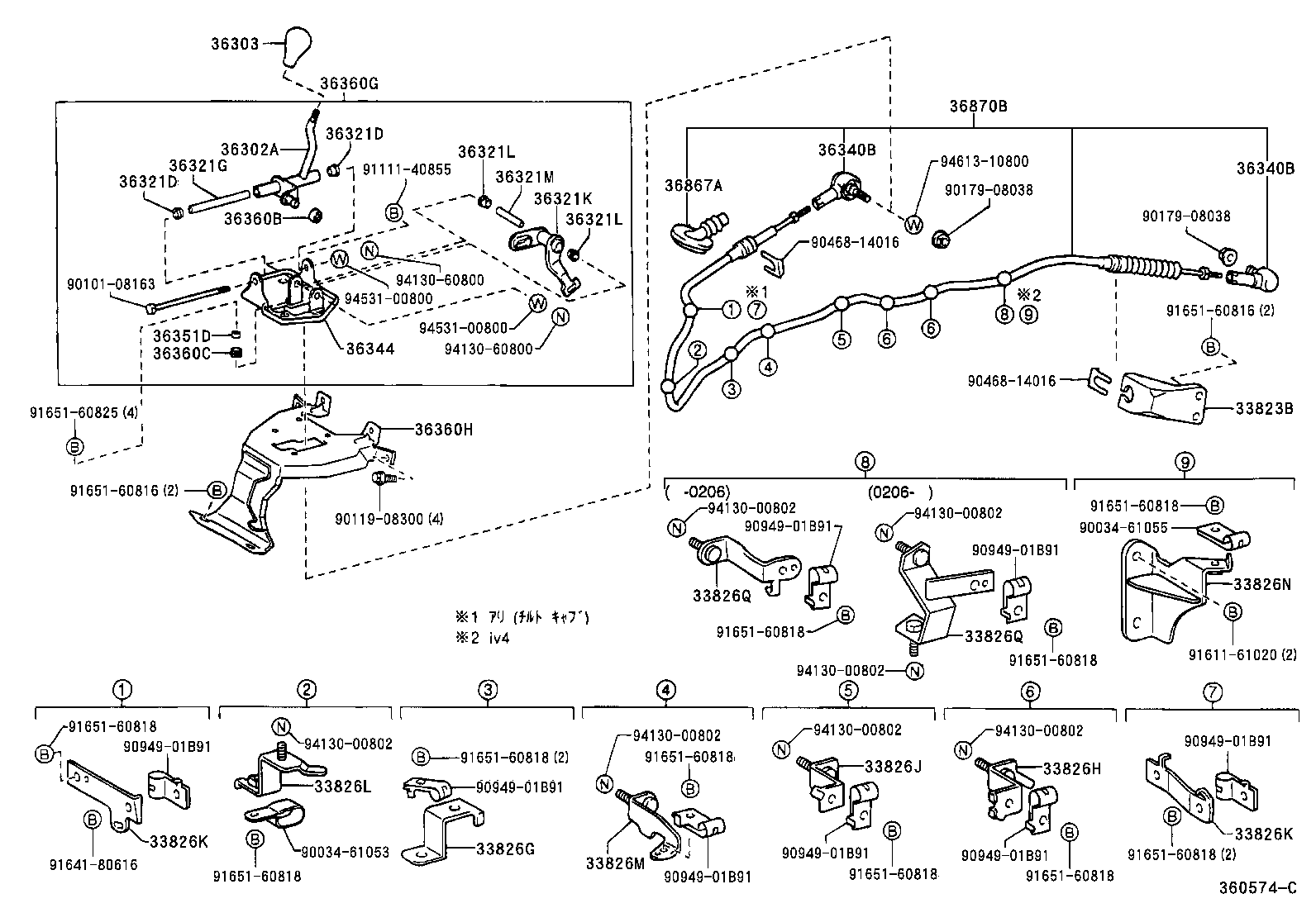

ILLUST NO. 1 OF 2(9907- )XZU362,371,372,382

Click highlighted areas on diagram

diagram 33823B 33826G 33826H 33826J 33826K 33826K 33826L 33826M 33826N 33826Q 33826Q 36302A 36303 36321D 36321D 36321G 36321K 36321L 36321L 36321M 36340B 36340B 36344 36351D 36360B 36360C 36360G 36360H 36867A 36870B 9003461053 9003461055 9010108163 9011908300 9017908038 9017908038 9046814016 9046814016 9094901B91 9094901B91 9094901B91 9094901B91 9094901B91 9094901B91 9094901B91 9094901B91 9111140855 9161161020 9164180616 9165160816 9165160816 9165160818 9165160818 9165160818 9165160818 9165160818 9165160818 9165160818 9165160818 9165160818 9165160818 9165160825 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413060800 9413060800 9453100800 9453100800 9461310800
Part # Description Qty Price
33823B - BRACKET, TRANSFER CONTROL CABLE
33823-37430

XZU362,371,372,382

 1
33826G - BRACKET, TRANSFER CONTROL CABLE, NO.1
33826-37260

XZU362,371,372,382

 1
33826H - BRACKET, TRANSFER CONTROL CABLE, NO.2
33826-37440

XZU362,371,372,382

 2
33826J - BRACKET, TRANSFER CONTROL CABLE NO.3
33826-37450

XZU362,371,372,382

 1
33826K - BRACKET, TRANSFER CONTROL CABLE NO.4
33826-37660

XZU362,371,372,382..1NO

 1
33826K - BRACKET, TRANSFER CONTROL CABLE NO.4
33826-37660

XZU362,371,372,382..1NO

 1
33826L - BRACKET, TRANSFER CONTROL CABLE NO.5
33826-37640

XZU362,371,372,382

 1
33826M - BRACKET, TRANSFER CONTROL CABLE NO.6
33826-37700

XZU362,371,372,382

 1
33826Q - BRACKET, TRANSMISSION CONTROL CABLE NO.8
33826-37860

XZU362,371,372,382

 1
33826-37710

XZU362,37#,382

 1
33826Q - BRACKET, TRANSMISSION CONTROL CABLE NO.8
33826-37860

XZU362,371,372,382

 1
33826-37710

XZU362,37#,382

 1
36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1
36302-37030

XZU362,371,372,382

 1
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-37020B0

XZU362,37#,382

DK.CHARCOAL,TRIM1#

 1
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

XZU362,371,372,382

 2
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

XZU362,371,372,382

 2
36321G - COLLER (FOR TRANSFER SHIFT LEVER)
90440-11007

XZU362,371,372,382

 1
36321K - BELL CRANK, TRANSFER SHIFT LEVER
36321-37010

XZU362,371,372,382

 1
36321L - BUSH (FOR TRANSFER SHIFT LEVER BELL CRANK)
90386-13007

XZU362,371,372,382

 2
36321L - BUSH (FOR TRANSFER SHIFT LEVER BELL CRANK)
90386-13007

XZU362,371,372,382

 2
36321M - COLLAR (FOR TRANSFER SHIFT LEVER BELL CRANK)
90387-08161

XZU362,371,372,382

 1
36340B - END ASSY (FOR HIGH & LOW SHIFT ROD)
33740-26010

XZU362,371,372,382

 2
36340B - END ASSY (FOR HIGH & LOW SHIFT ROD)
33740-26010

XZU362,371,372,382

 2
36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER
36344-37010

XZU362,371,372,382

 1
36351D - GROMMET (FOR HIGH & LOW SHIFT ROD)
90480-13012

XZU362,371,372,382

 4
36360B - SEAT, TRANSFER SHIFT LEVER BALL
37352-37010

XZU362,371,372,382

 1
36360C - COLLAR (FOR TRANSFER SHIFT LEVER RETAINER)
90387-09011

XZU362,371,372,382

 4
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-37030

XZU362,371,372,382

 1
36360H - BRACKET(FOR TRANSFER SHIFT LEVER)
59027-37040

XZU362,371,372,382

 1
36867A - SEAL, PACKING
36867-37010

XZU362,371,372,382

 1
36870B - CABLE ASSY, TRANSFER CONTROL
36870-37080

XZU362,372,382..1NO

 1
Common parts
90034-61053
90034-61055
90101-08163
90119-08300
90179-08038
90468-14016
90949-01B91
91111-40855
91611-61020
91641-80616
91651-60816
91651-60818
91651-60825
94130-00802
94130-60800
94531-00800
94613-10800
