XZU372-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU362,371,372,382

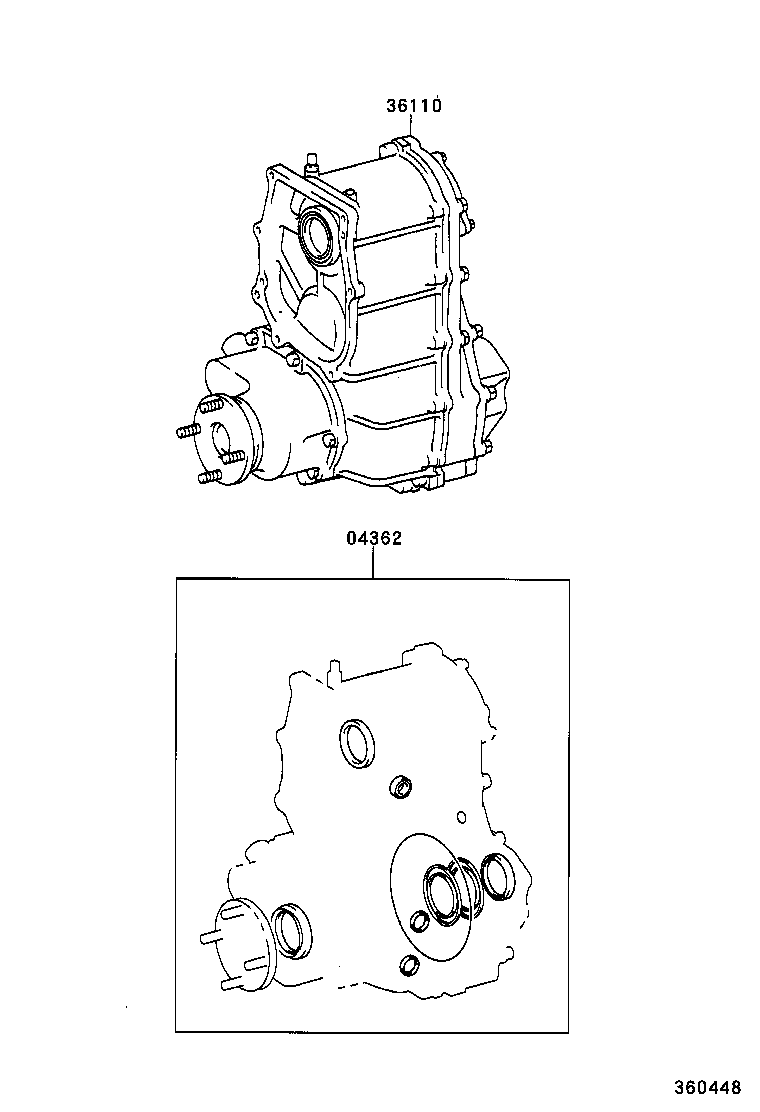

Click highlighted areas on diagram

diagram 04362 36110
Part # Description Qty Price
04362 - GASKET KIT, TRANSFER OVERHAUL
04362-37010

XZU362,371,372,382

 1
36110 - TRANSFER ASSY
36110-37010

XZU372,382..T4;XZU362..T4..IV3

ｽﾋﾟ-ﾄﾞﾒ-ﾀ ﾄﾞﾘﾌﾞﾝｷﾞﾔ N=22

 1
36110-37020

XZU362,37#,382

ｽﾋﾟ-ﾄﾞﾒ-ﾀ ﾄﾞﾘﾌﾞﾝｷﾞﾔ N=23 OR N=24

 1
36110-37020

XZU382..T3;XZU362,371,372

ｽﾋﾟ-ﾄﾞﾒ-ﾀ ﾄﾞﾘﾌﾞﾝｷﾞﾔ N=23 OR N=24

 1
