XZU372-TQMMS3 (1999)
Toyota Dyna/Toyoace

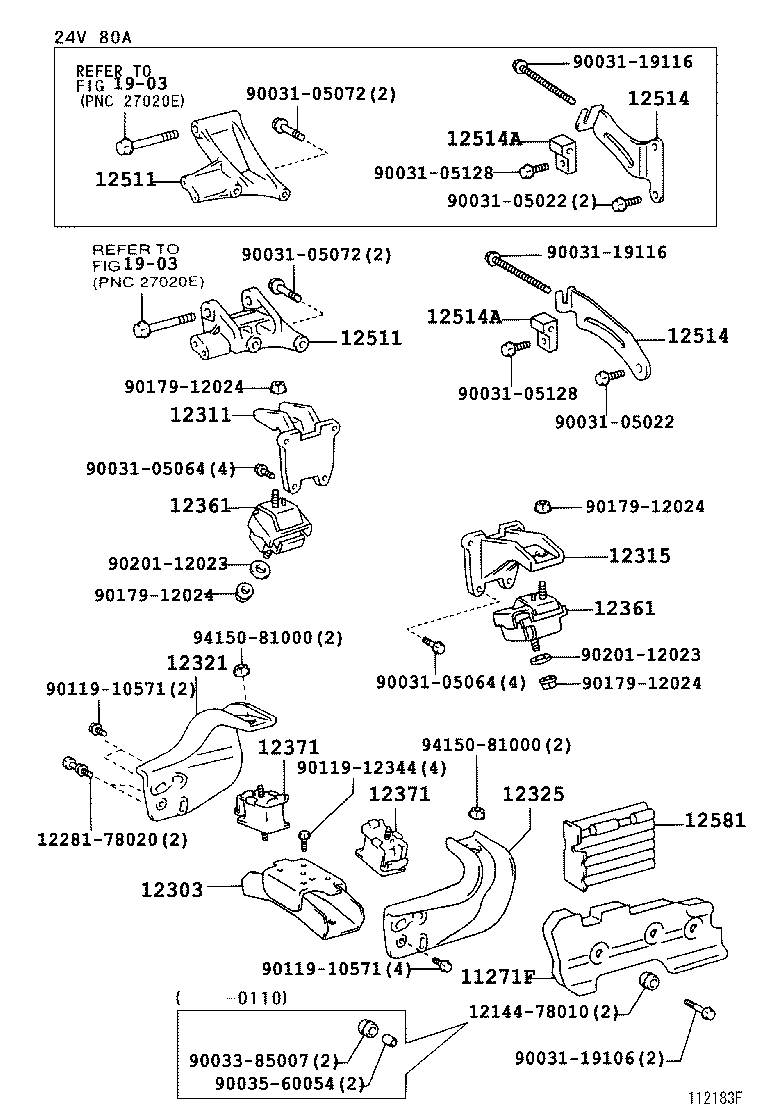

(9907-0206)S05C..XZU362,372,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271F - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
S05C..XZU302..(T4,T5)..5F..20T;S05#..XZU307,337,362,37#,382..5F |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78040 |
S05#..XZU306,307,337,346,347,362,37#,382 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12311-78041 |
S05#..XZU306,307,337,346,347,362,37#,382 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-78040 |
S05#..XZU362,37#,382 |
1 | ||
| 12311-78041 |
S05#..XZU362,37#,382 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78110 |
S05#..XZU37#,382 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78090 |
S05#..XZU37#,382 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78050 |
S05D..XZU346..DSLL;S05#..XZU362,37#,382;S05D..XZU306..DSLL..CBU;S05C..XZU307..T2..5F..IV3;S05D..XZU306..4FC..DSLL..IV3 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78050 |
S05D..XZU346..DSLL;S05#..XZU362,37#,382;S05D..XZU306..DSLL..CBU;S05C..XZU307..T2..5F..IV3;S05D..XZU306..4FC..DSLL..IV3 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78040 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78040 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78020 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78010 |
S05C..XZU362,372,382 |
1 | ||
| 12514-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78020 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78010 |
S05C..XZU362,372,382 |
1 | ||
| 12514-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12581 - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78020 |
S05D..XZU301..CBU,IV4,IV6;S05D..XZU301..T3..4FC..IV3;S05D..XZU301..30T..DSLL..IV3;S05D..XZU301..(20T,295T)..(IV3,IV7);S05D..XZU301..(DM3,T4,T5)..30T..IV3;S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| Common parts | ||||
| 12144-78010 | ||||
| 12281-78020 | ||||
| 90031-05022 | ||||
| 90031-05064 | ||||
| 90031-05072 | ||||
| 90031-05128 | ||||
| 90031-19106 | ||||
| 90031-19116 | ||||
| 90033-85007 | ||||
| 90035-60054 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||

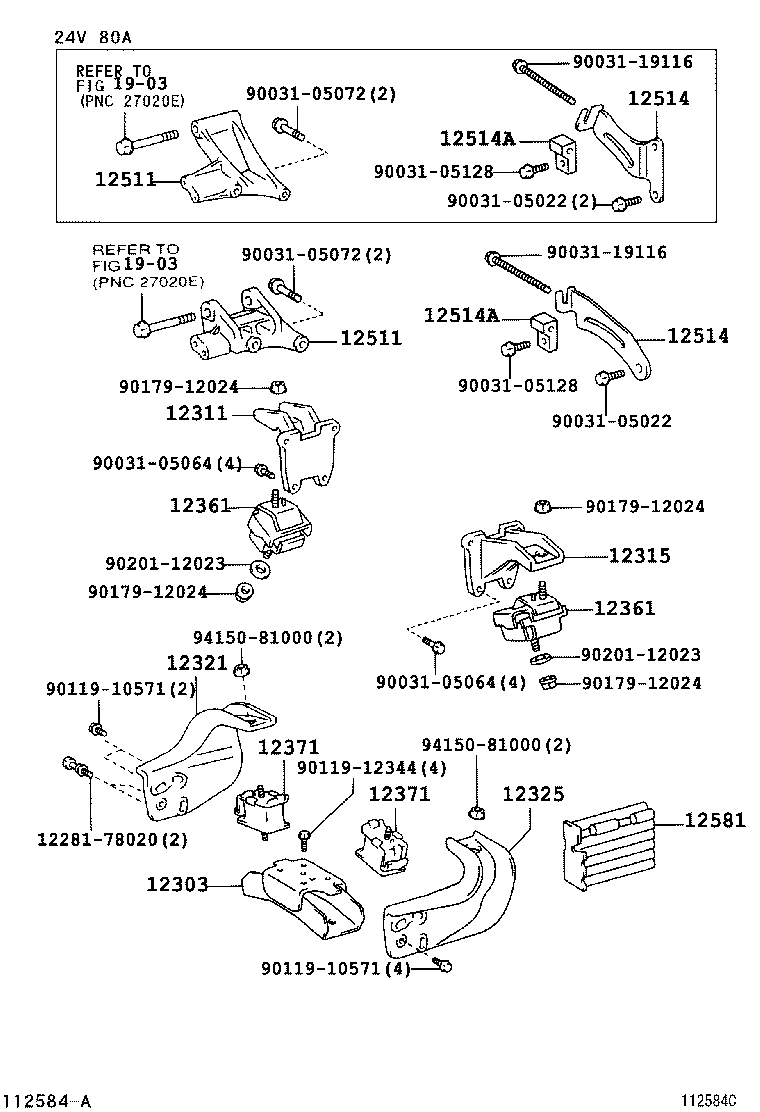

(0206-0304)S05C..XZU362,372,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
S05C..XZU302..(T4,T5)..5F..20T;S05#..XZU307,337,362,37#,382..5F |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78040 |
S05#..XZU306,307,337,346,347,362,37#,382 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12311-78041 |
S05#..XZU306,307,337,346,347,362,37#,382 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-78040 |
S05#..XZU362,37#,382 |
1 | ||
| 12311-78041 |
S05#..XZU362,37#,382 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78110 |
S05#..XZU37#,382 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78090 |
S05#..XZU37#,382 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78050 |
S05D..XZU346..DSLL;S05#..XZU362,37#,382;S05D..XZU306..DSLL..CBU;S05C..XZU307..T2..5F..IV3;S05D..XZU306..4FC..DSLL..IV3 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78050 |
S05D..XZU346..DSLL;S05#..XZU362,37#,382;S05D..XZU306..DSLL..CBU;S05C..XZU307..T2..5F..IV3;S05D..XZU306..4FC..DSLL..IV3 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78040 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78040 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78020 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78010 |
S05C..XZU362,372,382 |
1 | ||
| 12514-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78020 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78010 |
S05C..XZU362,372,382 |
1 | ||
| 12514-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12581 - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78020 |
S05D..XZU301..CBU,IV4,IV6;S05D..XZU301..T3..4FC..IV3;S05D..XZU301..30T..DSLL..IV3;S05D..XZU301..(20T,295T)..(IV3,IV7);S05D..XZU301..(DM3,T4,T5)..30T..IV3;S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| Common parts | ||||
| 12281-78020 | ||||
| 90031-05022 | ||||
| 90031-05064 | ||||
| 90031-05072 | ||||
| 90031-05128 | ||||
| 90031-19116 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||

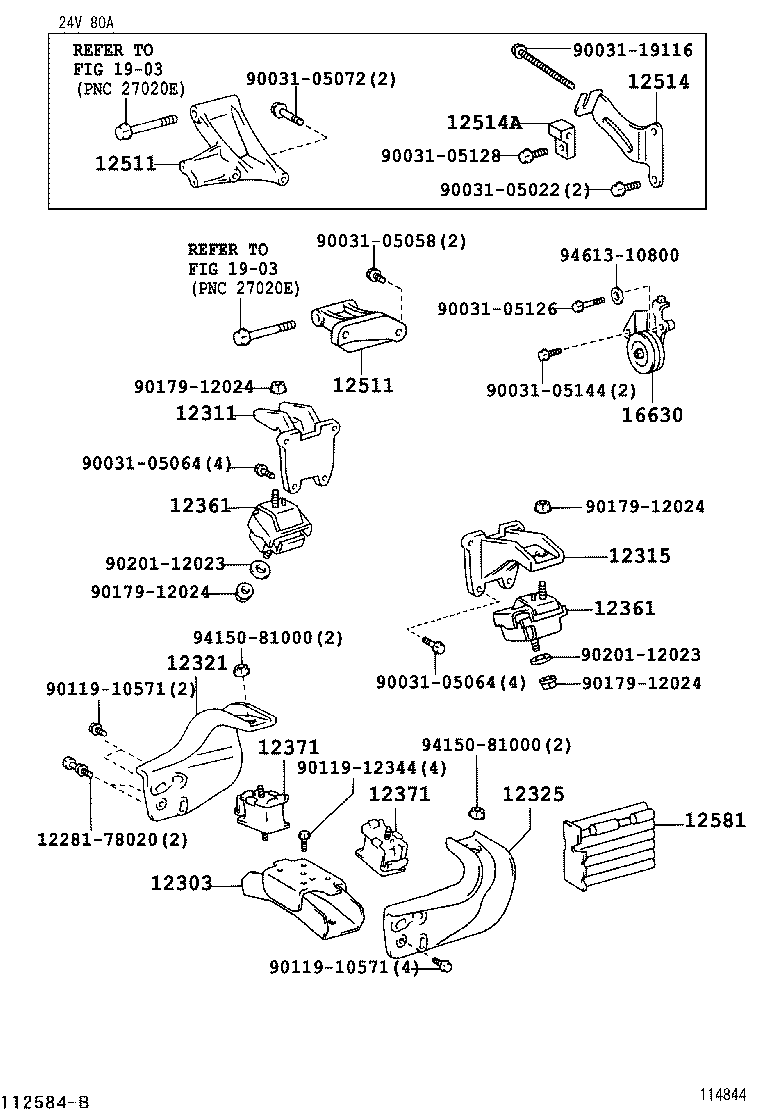

(0304-0406)S05C..XZU362,372,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
S05C..XZU302..(T4,T5)..5F..20T;S05#..XZU307,337,362,37#,382..5F |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78040 |
S05#..XZU306,307,337,346,347,362,37#,382 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12311-78041 |
S05#..XZU306,307,337,346,347,362,37#,382 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-78040 |
S05#..XZU362,37#,382 |
1 | ||
| 12311-78041 |
S05#..XZU362,37#,382 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78110 |
S05#..XZU37#,382 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78090 |
S05#..XZU37#,382 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78050 |
S05D..XZU346..DSLL;S05#..XZU362,37#,382;S05D..XZU306..DSLL..CBU;S05C..XZU307..T2..5F..IV3;S05D..XZU306..4FC..DSLL..IV3 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78050 |
S05D..XZU346..DSLL;S05#..XZU362,37#,382;S05D..XZU306..DSLL..CBU;S05C..XZU307..T2..5F..IV3;S05D..XZU306..4FC..DSLL..IV3 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78040 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78030 |
S05C..XZU362,372,382 |
1 | ||
| 12511-78040 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78020 |
S05C..XZU372,382..SCB..IV3;S05#..XZU362,371..(T3,T4)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78010 |
S05C..XZU362,372,382 |
1 | ||
| 12514-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12519-78010 |
S05#..XZU362,37#,382 |
1 | ||
| 12581 - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78020 |
S05D..XZU301..CBU,IV4,IV6;S05D..XZU301..T3..4FC..IV3;S05D..XZU301..30T..DSLL..IV3;S05D..XZU301..(20T,295T)..(IV3,IV7);S05D..XZU301..(DM3,T4,T5)..30T..IV3;S05#..XZU302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 12581-78020 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-78040 |
S05C..XZU362,372,382 |
1 | ||
| Common parts | ||||
| 12281-78020 | ||||
| 90031-05022 | ||||
| 90031-05058 | ||||
| 90031-05064 | ||||
| 90031-05072 | ||||
| 90031-05126 | ||||
| 90031-05128 | ||||
| 90031-05144 | ||||
| 90031-19116 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1903 | ||||
(0206-0406)S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12281-78020 | ||||
| 90031-05058 | ||||
| 90031-05064 | ||||
| 90031-05126 | ||||
| 90031-05144 | ||||
| 90031-05147 | ||||
| 90031-05154 | ||||
| 90031-19106 | ||||
| 90035-60051 | ||||
| 90119-10571 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
