XZU372-PKMMS (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 6(9905-0406)XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,3
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63189D - BRACKET, WIRING HARNESS CONNECTOR | ||||
| 63189-37010 |
XZU37#,382..DCB |
1 | ||
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XZU301..DSLL..4NO;XZU306..4FC..DSLL;XZU341,346..DSL,DSLL;XZU306..5F..DSLL..CBU;XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,342,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-37120 |
XZU372,382..T3..20T |
1 | ||
| 82111-37121 |
XZU372,382..T3..20T |
1 | ||
| 82111-37123 |
XZU372,382..T3..20T |
1 | ||
| 82115-3V070 |
XZU372,382..T3..20T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V070 |
1 | ||
| 82111-37M10 |
XZU372,382..T3..20T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37M10 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-37110 |
XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,37#,382..DCB..5F |
1 | ||
| 82112-37100 |
XZU37#,382..DCB ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3V480 |
XZU372,382..T3..20T |
1 | ||
| 82121-3V481 |
XZU372,382..T3..20T |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-37130 |
XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301,306..DSLL..IV3;XZU301..DM3..4FC..30T;XZU301,331,372,382..DCB;XZU301,302..T4..DSL..1NO;XZU311,321..(DM5,DM8)..20T;BU301,XZU311,320,321,371..1NO |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-37030 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82670-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82674B - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-37010 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 6(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82129-37580 |
XZU307,372,382..(03S,T3)..5F..20T |
1 | ||
| 82129-37590 |
XZU307,372,382..(03S,T3)..5F..20T ｱﾘ(ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82147-37290 |
XZU372,382..T3..20T |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60070 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU306,XZU307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-37080 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-37090 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-37120 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-21040 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU306,XZU307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-35040 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU306,XZU307,331,37#,382..(DCB,VAN)..(03S,06S,T3)..DSL |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91626-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

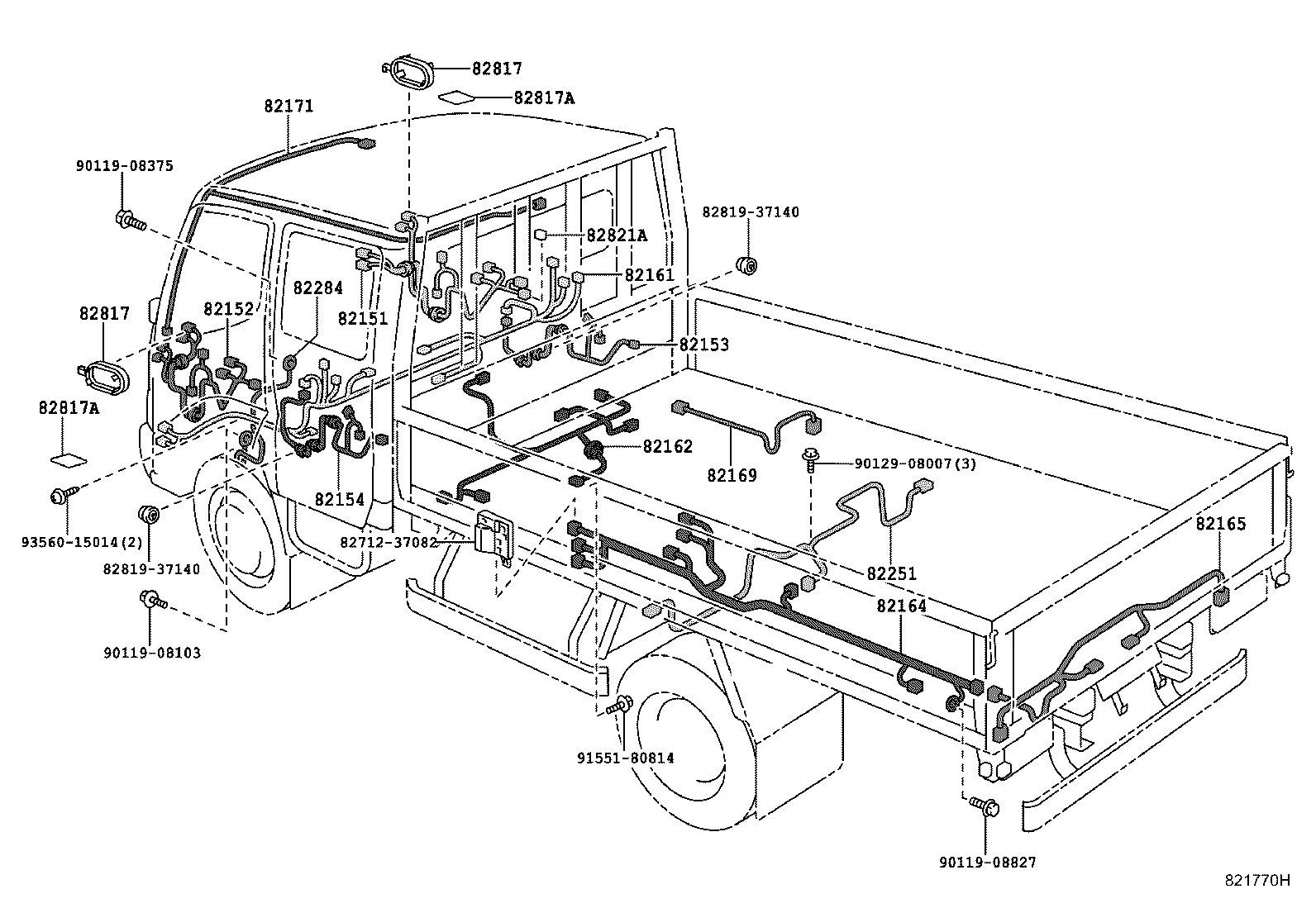

ILLUST NO. 4 OF 6(9905-0406)DCB
ﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37140 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37150 |
RZU300..SCB;BU30#,346,RZU340,XZU30#,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CBU,IV3,IV4) ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37250 |
XZU341..DSL,DSLL;RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU301,302,306,331,342..DSL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,330,337,340,346,347,351,352,362,37#,382..175T,20T,30T |
1 | ||
| 82151-37260 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,340,346,347,351,352,362,372,382..(175T,20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37120 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..175T,20T,295T,30T |
1 | ||
| 82151-37240 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;XZU301..(DM6,T3,T4,T5)..DSL..(CBU,IV3,IV4);RZU300,XZU302,342..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37270 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37280 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,RZU300,XZU301,302,306,342..(03S,06S,DM6,T1,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3);BU346,BZU300,340,RZU301,340,XZU300,307,322,33#,340,346,347,362,372,382..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 82152-37210 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37160 |
RZU300,XZU302..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI,LPG);XZU301..(DM6,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV4);BU30#,346,RZU340,XZU300,306,307,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37280 |
XZU341..DSL,DSLL;RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU301,302,306,331,342..DSL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,330,337,340,346,347,351,352,362,37#,382..175T,20T,30T |
1 | ||
| 82152-37270 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37300 |
XZU362..DM5,DM7;XZU362..T4..CBU;RZU300..30T..LPG;XZU341..T3..295T;XZU341..4FC..295T..DSL;XZU341..T4..6F..295T..IV3;BU301,XZU341..(175T,20T,30T)..DSL;BU306,346,RZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,351,352,37#,382..(20T,295T,30T)..(DSL,EFI) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82152-37290 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,340,346,347,351,352,362,372,382..(175T,20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37310 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-37050 |
XZU301,331,37#,382..DCB..DSL ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-37030 |
XZU301,331,37#,382..DCB..DSL ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 82153-37040 |
XZU301,331,37#,382..DCB..DSL ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) OR ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) |
1 | ||
| 82153-37020 |
XZU372,382..T3..20T ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82153-37080 |
XZU372,382..T3..20T |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-37030 |
XZU301,331,37#,382..DCB..DSL ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) OR ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) |
1 | ||
| 82153-37060 |
XZU372,382..T3..20T |
1 | ||
| 82153-37160 |
XZU372,382..T3..20T ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82153-37040 |
XZU372,382..T3..20T ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37120 |
XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,37#,382..DCB..5F |
1 | ||
| 82161-37130 |
XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,37#,382..DCB..5F ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82161-37140 |
XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,37#,382..DCB..5F ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37090 |
XZU37#,382..DCB |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37781 |
XZU372 |
1 | ||
| 82137-37410 |
XZU372 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37110 |
BZU340..CNG;BZU300,RZU300,XZU300,301,302..T3..CBU;BU346,BZU340,RZU340,XZU330,331,340,341,342,346,347,372,382..CBU |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-37060 |
XZU372..T3..20T |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37340 |
XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;XZU301,37#,382..DCB..5F |
1 | ||
| 82171-37620 |
XZU301,331,37#,382..DCB |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..(DCB,VAN)..(DSL,EFI) |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..(DCB,VAN)..(DSL,EFI) |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-37050 |
XZU372,382..T3..20T |
1 | ||
| Common parts | ||||
| 82712-37081 | ||||
| 82819-37140 | ||||
| 90119-08103 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90129-08007 | ||||
| 91651-B0825 | ||||
| 93560-15014 | ||||
ILLUST NO. 2 OF 6(9905-0406)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37460 |
BU30#,RZU300,XZU307,31#,347,372,382..DCB..5F |
1 | ||
| 82141-37681 |
XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306,312..SCB..5F..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,311,32#,33#,34#,35#,362,372,382..MTM..(CBU,IV3,IV6) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37690 |
XZU312..30T;BU30#,346,RZU300,340,XZU30#,311,32#,33#,34#,35#,362,372,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) ﾅｼ(*80) |
1 | ||
| 82141-37680 |
XZU312..30T;BU30#,346,RZU300,340,XZU30#,311,32#,33#,34#,35#,362,372,382..MTM..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37420 |
XZU347..DCB..5F..CBU;BU30#,XZU307,372,382..DCB..5F ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) |
1 | ||
| 82141-37710 |
BU30#,RZU300,XZU307,312,347,372,382..DCB..5F ｱﾘ(ES ｽﾀ-ﾄ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-37691 |
XZU301..4FC..IV6;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,312..SCB..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU300,340,XZU300,302,307,311,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3 ﾅｼ(*80) |
1 | ||
| 82141-37430 |
XZU302..LPG;XZU302..5F..ST;XZU342..CNG,LPG;XZU322..5F..20T;XZU302,322..4FC..4NO;XZU301..4FC..DSLL..IV3;XZU302..(295T,30T)..1NO;XZU301,321..SCB..4FC..30T;BU301,XZU320,330,35#..DM2,DM6,DM7,T1,T3,T5;XZU301,311,321..5F..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#,321..SCB..(DM3,DM5,DM6,DM7,DM8,T3)..(20T,295T)..DSL;BU306,346,XZU300,306,307,331,337,340,341,346,347,362,372,382..DSL..(CBU,IV3) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-37870 |
XZU312..30T;BU30#,346,BZU300;BZU340,RZU30#,340,XZU300,301,302,306,307,311,32#,33#,340,341,342,346,347,35#,362,372,382..MTM..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37890 |
BU30#,RZU300,XZU307,312,347,372,382..DCB..5F |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-37320 |
XZU362,372,382 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
ILLUST NO. 5 OF 6(0310- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37291 | ||||
| 82702-37310 | ||||
| 82702-37321 | ||||
| 82702-37360 | ||||
| 82702-37372 | ||||
| 82715-37C50 | ||||
| 82715-37C80 | ||||
| 82715-37C90 | ||||
| 82715-37D00 | ||||
| 82715-37D10 | ||||
| 82715-37D20 | ||||
| 82715-37D30 | ||||
| 82715-37D80 | ||||
| 82715-37E30 | ||||
| 82715-37E40 | ||||
| 82715-37F10 | ||||
| 82715-3V500 | ||||
| 82715-3V690 | ||||
| 87121-37011 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05141 | ||||
| 90179-06158 | ||||
| 91651-B0820 | ||||
ILLUST NO. 4 OF 6(9908-0406)DCB
ﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-37082 | ||||
| 82819-37140 | ||||
| 90119-08103 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90129-08007 | ||||
| 91551-80814 | ||||
| 93560-15014 | ||||
ILLUST NO. 3 OF 6(9905-0406)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price |
|---|
