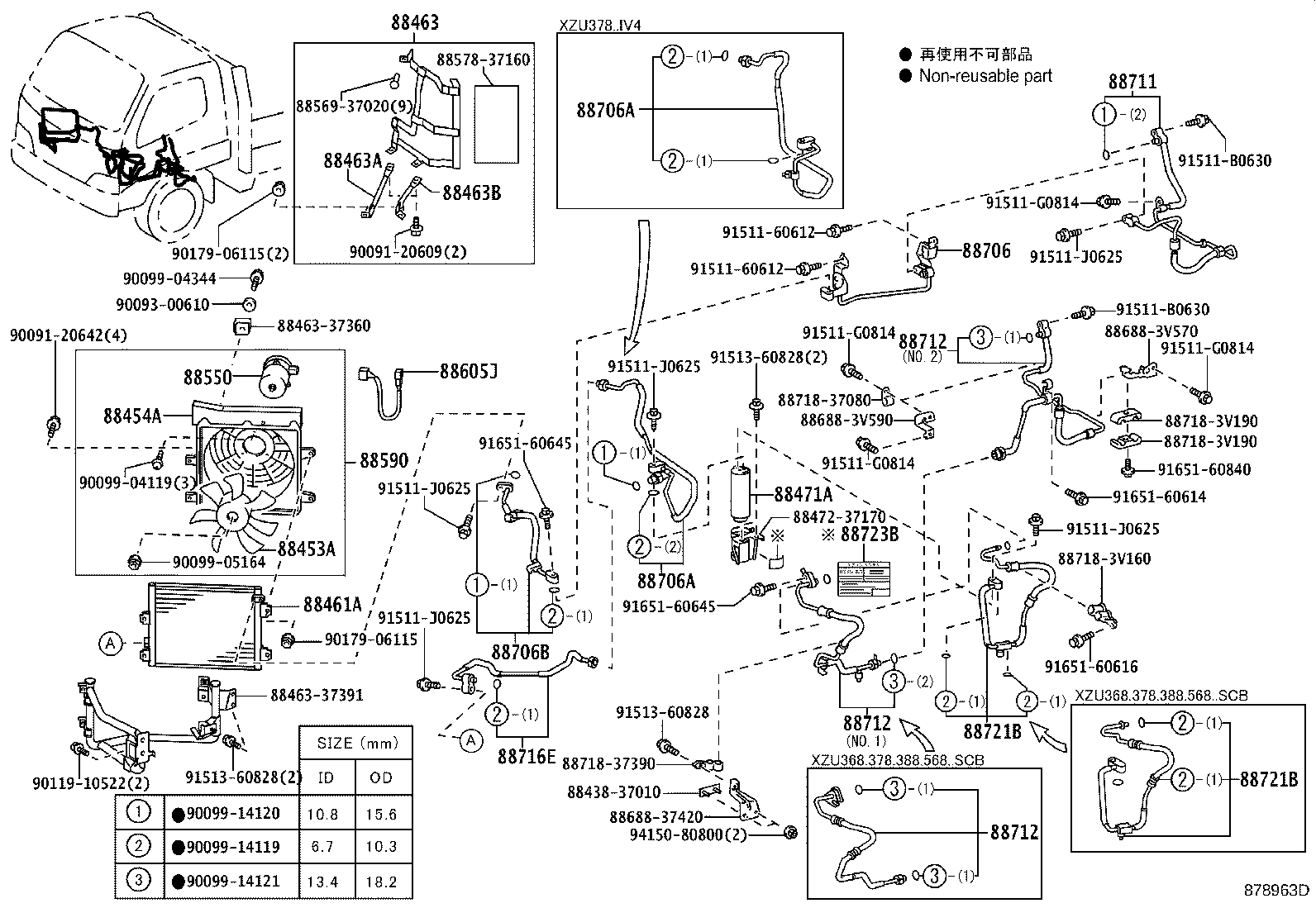

XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU368,378,388,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-37030 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37090 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-37080 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37410 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37400 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37420 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88471A - TANK, RECEIVER | ||||
| 88471-34010 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37120 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37180 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-37270 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-37200 |
XZU368,378,388,568;XZU308,348..DCRTK,DCRTM |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-37240 |
XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU368,378,388,568..CBU,IV3;TRU300,340,500,XZU30#,314,334,344,354..(DCRTH,DCRTK,DCRTM,EFI)..(CBU,IV3,IV6,IV7) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-37240 |
XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);XZU368,378,388,568..CBU,IV3;TRU300,340,500,XZU30#,314,334,344,354..(DCRTH,DCRTK,DCRTM,EFI)..(CBU,IV3,IV6,IV7) |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-37250 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37890 |
XZU368,378,388,568 |
1 | ||
| 88711-37891 |
XZU368,378,388,568 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
XZU368,378,388,568..SCB NO.1 |
1 | ||
| 88712-3V490 |
XZU368,378,388,568 NO.2 |
1 | ||
| 88712-3V491 |
XZU368,378,388,568 NO.2 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
XZU368,378,388,568..SCB NO.1 |
1 | ||
| 88712-3V490 |
XZU368,378,388,568 NO.2 |
1 | ||
| 88712-3V491 |
XZU368,378,388,568 NO.2 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
XZU368,378,388,568..SCB NO.1 |
1 | ||
| 88712-3V490 |
XZU368,378,388,568 NO.2 |
1 | ||
| 88712-3V491 |
XZU368,378,388,568 NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-3V651 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCRTH,DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE) |
1 | ||
| 88721B - HOSE, LIQUID, B | ||||
| 88721-3V030 |
XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU368,378,388,568..SCB;XZU308..DCB..(DCRTJ,DCRUE);TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI |
1 | ||
| 88721B - HOSE, LIQUID, B | ||||
| 88721-3V030 |
XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU368,378,388,568..SCB;XZU308..DCB..(DCRTJ,DCRUE);TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-22040 |
XZU368,378,388,568;XZU308,348..DCRTK,DCRTM |
1 | ||
| Common parts | ||||
| 88438-37010 | ||||
| 88463-37360 | ||||
| 88463-37391 | ||||
| 88472-37170 | ||||
| 88569-37020 | ||||
| 88578-37160 | ||||
| 88688-37420 | ||||
| 88688-3V570 | ||||
| 88688-3V590 | ||||
| 88718-37080 | ||||
| 88718-37390 | ||||
| 88718-3V160 | ||||
| 88718-3V190 | ||||
| 90091-20609 | ||||
| 90091-20642 | ||||
| 90093-00610 | ||||
| 90099-04119 | ||||
| 90099-04344 | ||||
| 90099-05164 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-10522 | ||||
| 90179-06115 | ||||
| 91511-60612 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-60840 | ||||
| 94150-80800 | ||||
