XZU368D-TWMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU368,378,388,568..SCB

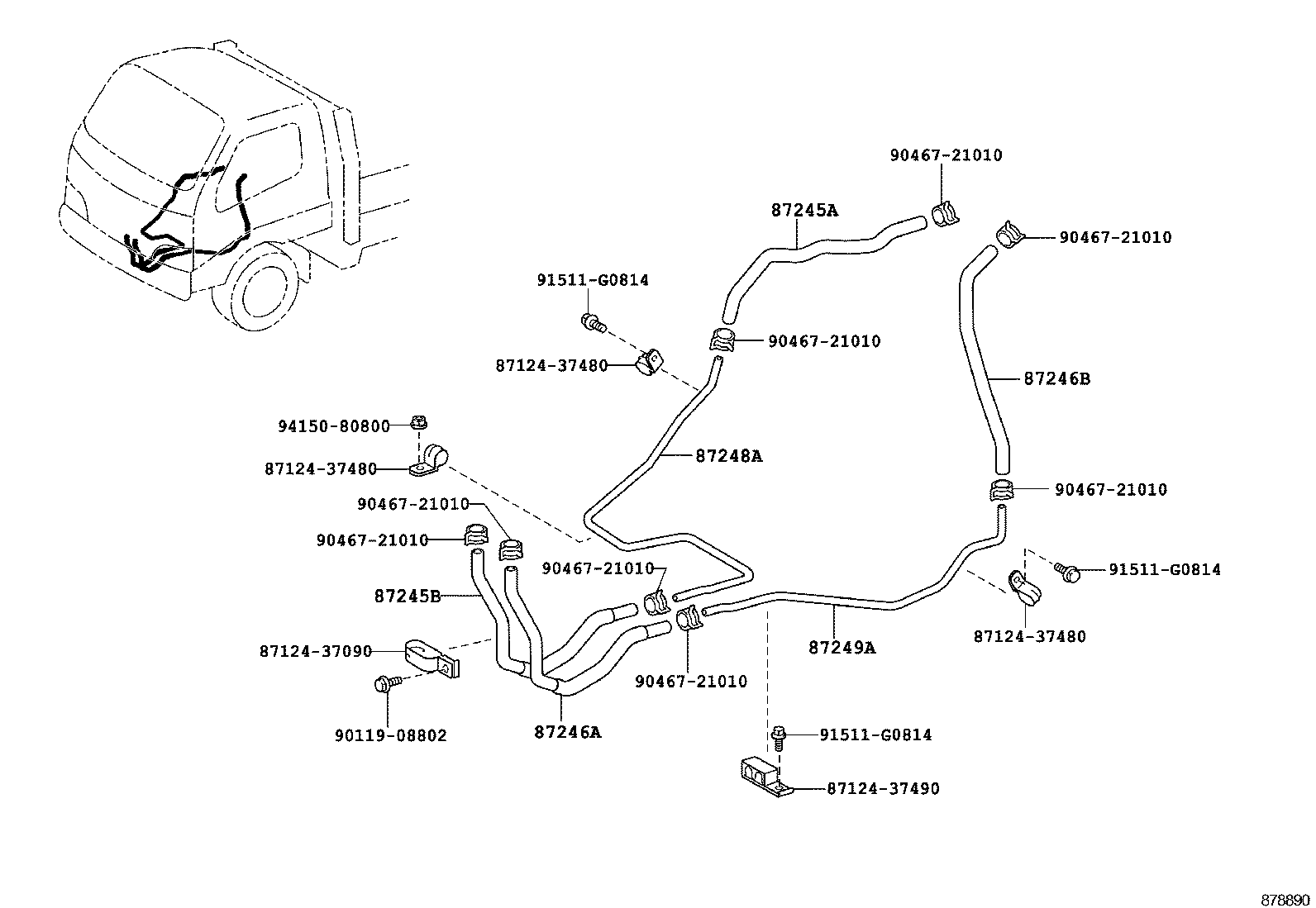

Click highlighted areas on diagram

diagram 8712437090 8712437480 8712437480 8712437480 8712437490 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 9415080800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-3V490

XZU368,378,388,568

 1
87245-3V491

XZU368,378,388,568

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37700

XZU368,378,388,568

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37610

XZU368,378,388,568..SCB

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37A10

XZU378,388..SCB;XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
Common parts
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91511-G0814
94150-80800
