XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(0610- )XZU30#,368,50#,568..SCB..DM3,DM5,T2,T3,T4,T5..CBU,IV3,IV7
ﾌｭｰｴﾙ ﾀﾝｸ(780X320X385)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37050 |
XZU368,568 |
1 | ||
| 77017-37050 |
XZU368,568 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77026-37010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37470 |
XZU378..30T..IV3;XZU334..T3..(DCRTJ,DCRUE)..IV3;XZU314,324,338,354,524,554..DM5,DM7,T2;XZU30#,368,50#,568..SCB..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77001-37470 |
XZU378..30T..IV3;XZU334..T3..(DCRTJ,DCRUE)..IV3;XZU314,324,338,354,524,554..DM5,DM7,T2;XZU30#,368,50#,568..SCB..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77154-25010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77169-14020 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77178-44010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| 77244-37010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77249-37190 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77380-26010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB *H,L=340 |
1 | ||
| 95333-06040 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB *H,L=340 |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(0610- )XZU378..30T..DCRTJ ; (0610- )XZU334..T3..DCRTJ,DCRUE..IV3 ; (0610-
ﾌｭｰｴﾙ ﾀﾝｸ(780X320X385)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37050 |
XZU368,568 |
1 | ||
| 77017-37050 |
XZU368,568 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77023-60010 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77026-37010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37470 |
XZU378..30T..IV3;XZU334..T3..(DCRTJ,DCRUE)..IV3;XZU314,324,338,354,524,554..DM5,DM7,T2;XZU30#,368,50#,568..SCB..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77001-37470 |
XZU378..30T..IV3;XZU334..T3..(DCRTJ,DCRUE)..IV3;XZU314,324,338,354,524,554..DM5,DM7,T2;XZU30#,368,50#,568..SCB..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77154-25010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77169-14020 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77169-14020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77178-44010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| 77244-37010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77249-37190 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77380-26010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB *H,L=340 |
1 | ||
| 95333-06040 |
XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB *H,L=340 |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0610- )VAN ; (0610- )XZU368,568
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37230 |
XZU368,568 |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77502-37110 |
XZU368,568 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-37040 |
XZU368,568 |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91112-81030 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
ILLUST NO. 2 OF 3(0610- )XZU504..5F ; (0610- )T5..DCRUD..IV3 ; (0610- )XZU334..5F..CBU ; (0
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37041 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77601-37040 |
XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| 77501-37250 |
XZU368,568 |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||

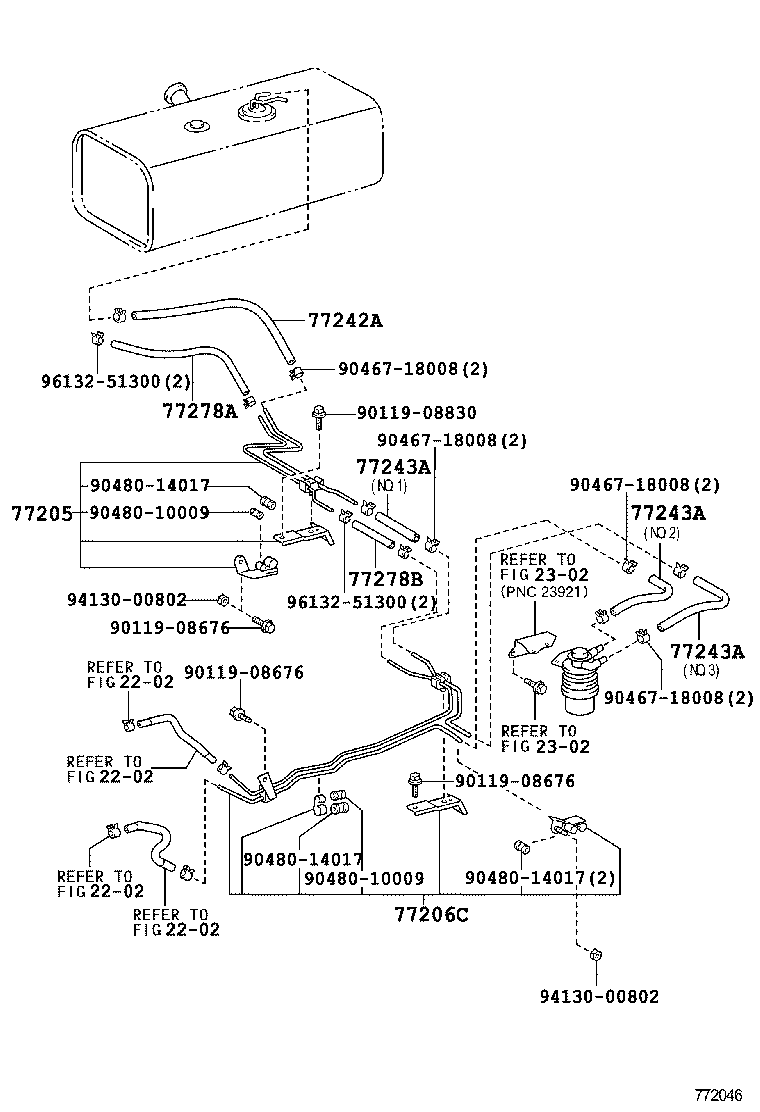

ILLUST NO. 3 OF 3(0610- )XZU368,568
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37801 |
XZU368,568 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37A50 |
XZU368,378,388,568..SCB |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12040 |
XZU368,568 *H,L=400,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12026 |
XZU368,378,388,568..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12026 |
XZU368,378,388,568..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1 |
1 | ||
| 95332-12020 |
XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7) *H,L=200,内径=12,NO.2 |
1 | ||
| 95332-12026 |
XZU368,378,388,568..SCB *H,L=260,内径=12,NO.3 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08040 |
XZU368,568 *H,L=380,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 *H,L=160,内径=7.6 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 2(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ﾌｭｰｴﾙ ﾀﾝｸ(100L)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10015 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610- )DCR
ﾌｭｰｴﾙ ﾀﾝｸ(100L)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10015 | ||||
| 91626-40616 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
