XZU368D-TWMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

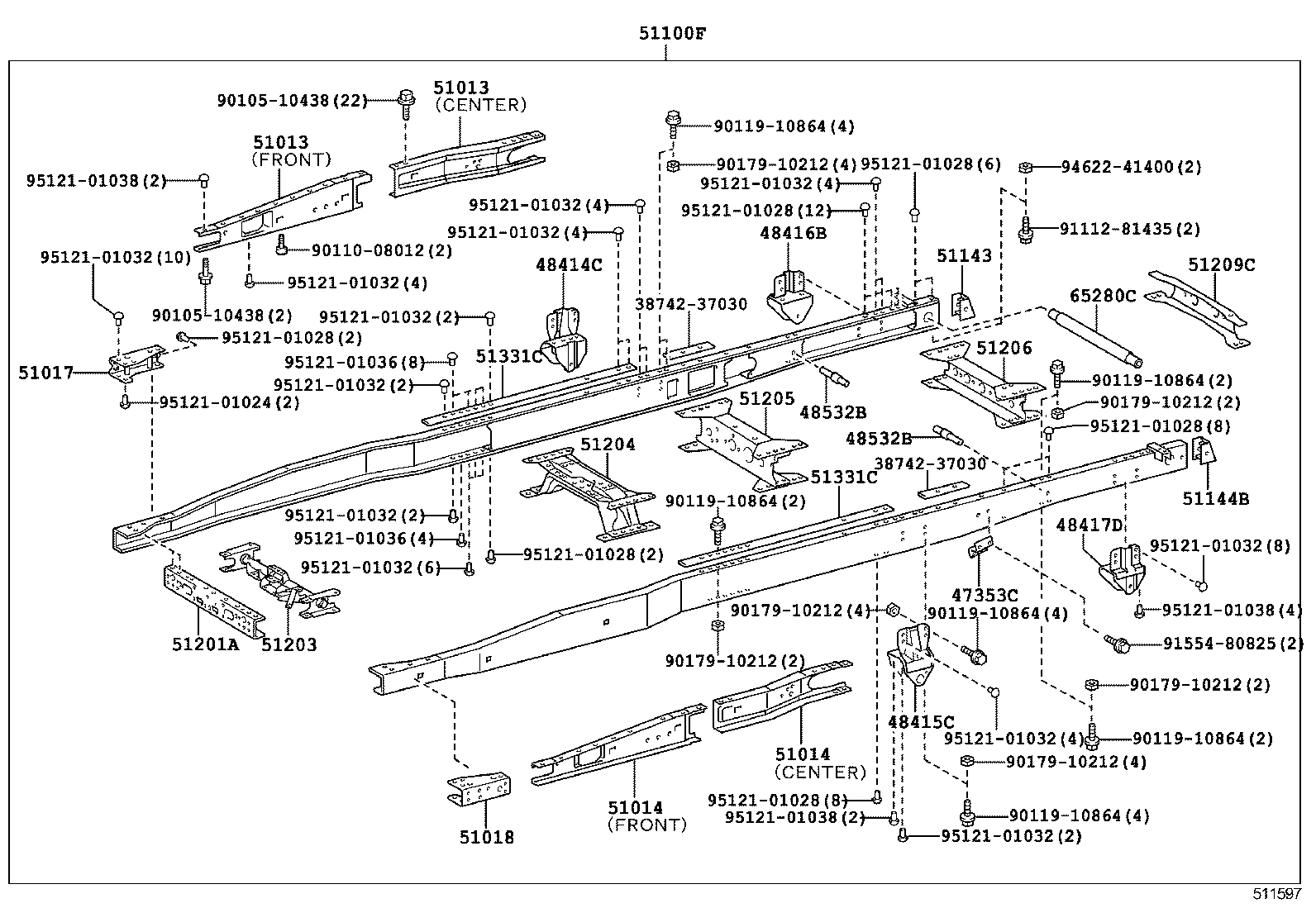

ILLUST NO. 2 OF 4(0610- )XZU368,568..DM5

Click highlighted areas on diagram

diagram 3874237030 3874237030 47353C 48414C 48415C 48416B 48417D 48532B 48532B 51013 51013 51014 51014 51017 51018 51100F 51143 51144B 51201A 51203 51204 51205 51206 51209C 51331C 51331C 65280C 9010510438 9010510438 9011008012 9011910864 9011910864 9011910864 9011910864 9011910864 9011910864 9017910212 9017910212 9017910212 9017910212 9017910212 9017910212 9111281435 9155480825 9462241400 9512101024 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101036 9512101036 9512101038 9512101038 9512101038
Part # Description Qty Price
47353C - BRACKET, FLEXIBLE HOSE, NO.3
47353-37270

XZU368,568..DM5

 1
48414C - BRACKET, SPRING, NO.3 RH
48414-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37050

BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU508..T5..(DCRTH,DCRTJ);XZU338,368,538,568..DM5,T4;XZU308..T4..(DCRTK,DCRTM,DCRUE);TRU300,XZU304,50#..SCB..(T4,T5)..5F..(DCRUD,DCRUE,EFI)

 1
48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT
48532-37010

XZU314,324,354,368,524,554,568..DM5,DM7

 2
48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT
48532-37010

XZU314,324,354,368,524,554,568..DM5,DM7

 2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37301

XZU368,378,388,568

ﾌﾛﾝﾄ

 1
51013-37310

XZU368,378,388,568..CBU,IV3

ｾﾝﾀ

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37301

XZU368,378,388,568

ﾌﾛﾝﾄ

 1
51013-37310

XZU368,378,388,568..CBU,IV3

ｾﾝﾀ

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37240

XZU368,378,388,568

ｾﾝﾀ

 1
51014-37200

XZU368,378,388,568

ﾌﾛﾝﾄ

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37240

XZU368,378,388,568

ｾﾝﾀ

 1
51014-37200

XZU368,378,388,568

ﾌﾛﾝﾄ

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37150

XZU368,378,388,568

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37021

XZU368,568;XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354,378,388..1NO

 1
51100F - FRAME SUB-ASSY
51001-37J82

XZU368,568..DM5

 1
51143 - REINFORCEMENT, SIDE RAIL, REAR RH
51143-37030

XZU314,354,368,554,568..DM5

 1
51144B - REINFORCEMENT, SIDE RAIL, REAR LH
51143-37030

XZU314,354,368,554,568..DM5

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37130

XZU368,378,388,568

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37161

XZU368,378,388,568

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37250

XZU368,378,388,568..CBU,IV3

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37150

XZU368,568..DM5

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37040

XZU368,568..DM5

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37150

XZU368,568..DM5

 1
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37150

XZU368,568..DM5

 2
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37150

XZU368,568..DM5

 2
65280C - SHAFT ASSY, VESSEL HINGE
65280-37070

XZU368,568..DM5

 1
Common parts
38742-37030
90105-10438
90110-08012
90119-10864
90179-10212
91112-81435
91554-80825
94622-41400
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038

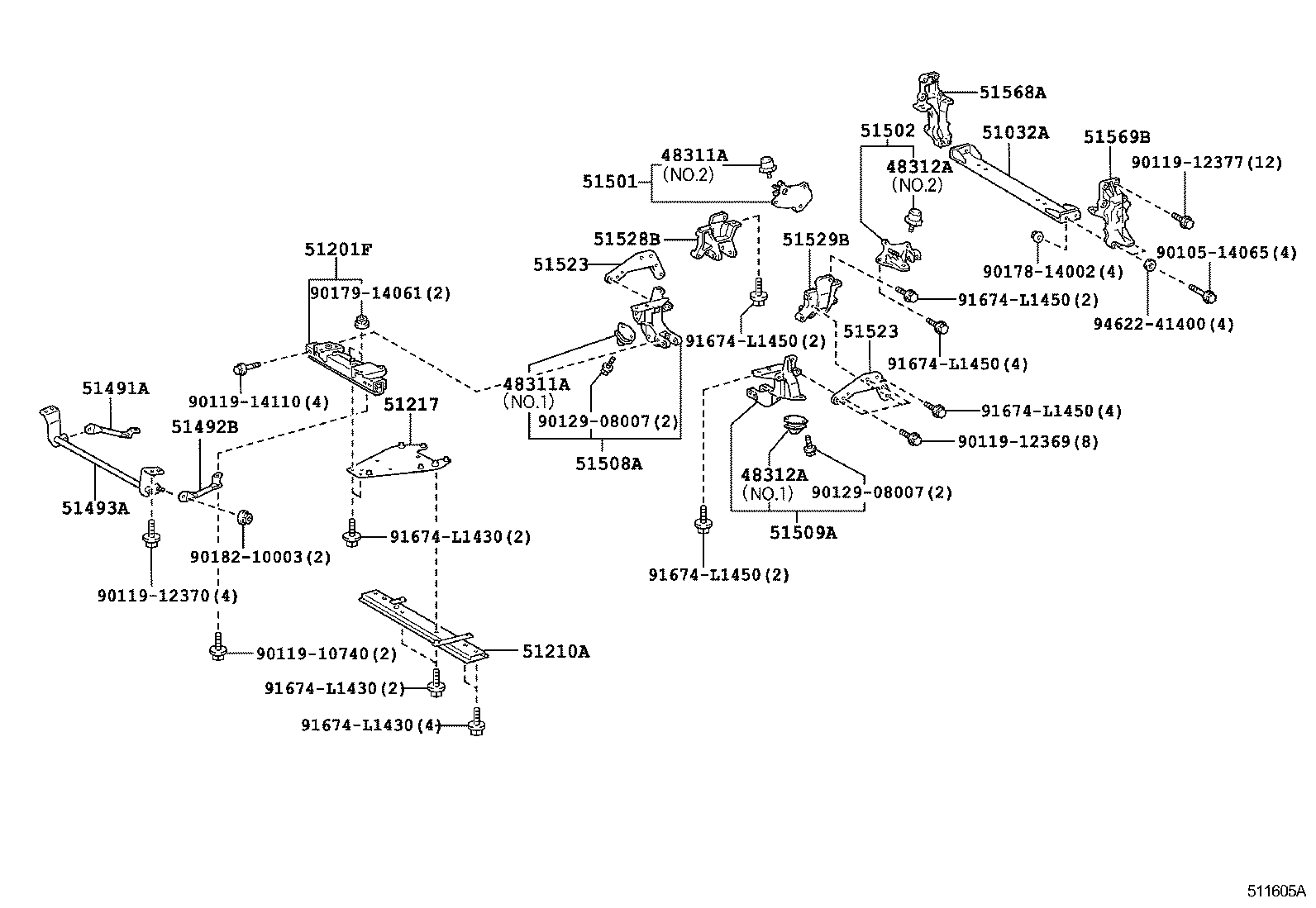

ILLUST NO. 3 OF 4(0610- )XZU368,378,388,568

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝ ﾒﾝﾊﾞ

diagram 48311A 48311A 48312A 48312A 51032A 51201F 51210A 51217 51491A 51492B 51493A 51501 51502 51508A 51509A 51523 51523 51528B 51529B 51568A 51569B 9010514065 9011910740 9011912369 9011912370 9011912377 9011914110 9012908007 9012908007 9017814002 9017914061 9018210003 91674L1430 91674L1430 91674L1430 91674L1450 91674L1450 91674L1450 91674L1450 91674L1450 9462241400
Part # Description Qty Price
48311A - BRACKET, HOLLOW SPRING, RH
48332-37010

XZU368,378,388,568

NO.2

 1
48331-37020

XZU368,378,388,568

NO.1

 1
48311A - BRACKET, HOLLOW SPRING, RH
48332-37010

XZU368,378,388,568

NO.2

 1
48331-37020

XZU368,378,388,568

NO.1

 1
48312A - BRACKET, HOLLOW SPRING, LH
48331-37020

XZU368,378,388,568

NO.1

 1
48332-37010

XZU368,378,388,568

NO.2

 1
48312A - BRACKET, HOLLOW SPRING, LH
48331-37020

XZU368,378,388,568

NO.1

 1
48332-37010

XZU368,378,388,568

NO.2

 1
51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT
51032-37041

XZU368,378,388,568

 1
51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-37121

XZU368,378,388,568

 1
51210A - MEMBER ASSY, FRONT SUSPENSION
51210-37041

XZU368,378,388,568

 1
51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
51217-37021

XZU368,378,388,568

 1
51491A - BAR, UNDER GUARD, FRONT NO.1
51491-37030

XZU368,378,388,568..CBU,IV3

 1
51492B - BAR, UNDER GUARD, FRONT NO.2
51492-37020

XZU368,378,388,568..CBU,IV3

 1
51493A - BRACKET, UNDER GUARD, FRONT NO.1
51493-37070

XZU368,378,388,568..CBU,IV3

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-37030

XZU368,378,388,568

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-37031

XZU368,378,388,568

 1
51502-37030

XZU368,378,388,568

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-37070

XZU368,378,388,568

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-37070

XZU368,378,388,568

 1
51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH
51523-37010

XZU368,378,388,568

 2
51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH
51523-37010

XZU368,378,388,568

 2
51528B - BRACKET, LOWER ARM SUPPORT, REAR RH
51528-37010

XZU368,378,388,568

 1
51529B - BRACKET, LOWER ARM SUPPORT, REAR LH
51529-37010

XZU368,378,388,568

 1
51568A - SUPPORT, ANCHOR ARM, LOWER RH
51568-37580

XZU368,378,388,568

 1
51569B - SUPPORT, ANCHOR ARM, LOWER LH
51569-37340

XZU368,378,388,568

 1
Common parts
90105-14065
90119-10740
90119-12369
90119-12370
90119-12377
90119-14110
90129-08007
90178-14002
90179-14061
90182-10003
91674-L1430
91674-L1450
94622-41400

ILLUST NO. 1 OF 4(0610- )DCB,SCB

Click highlighted areas on diagram

diagram 51100F 51401 51402 51454D 51705A 51705D 51706D 51717C 9011912377 9017912070 9017912087 9046709101 9164281245
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-37J82

XZU368,568..DM5

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37191

XZU368,378,388,568

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37191

XZU368,378,388,568

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37481

XZU368,378,388,568..SCB

 1
51705-37482

XZU368,378,388,568..SCB

 1
Common parts
90119-12377
90179-12070
90179-12087
90467-09101
91642-81245

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51568 51568 51569 51569 51569 51569 9011908908 9011908908 9011908908 9011908908 9011908908 9011908908 9017908233
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51569 - GUARD, PROPELLER SHAFT
51569-37310

XZU368,568;XZU30#,508..03S,06S,DM3,DM6,T5

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90119-08908
90179-08233
