XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace

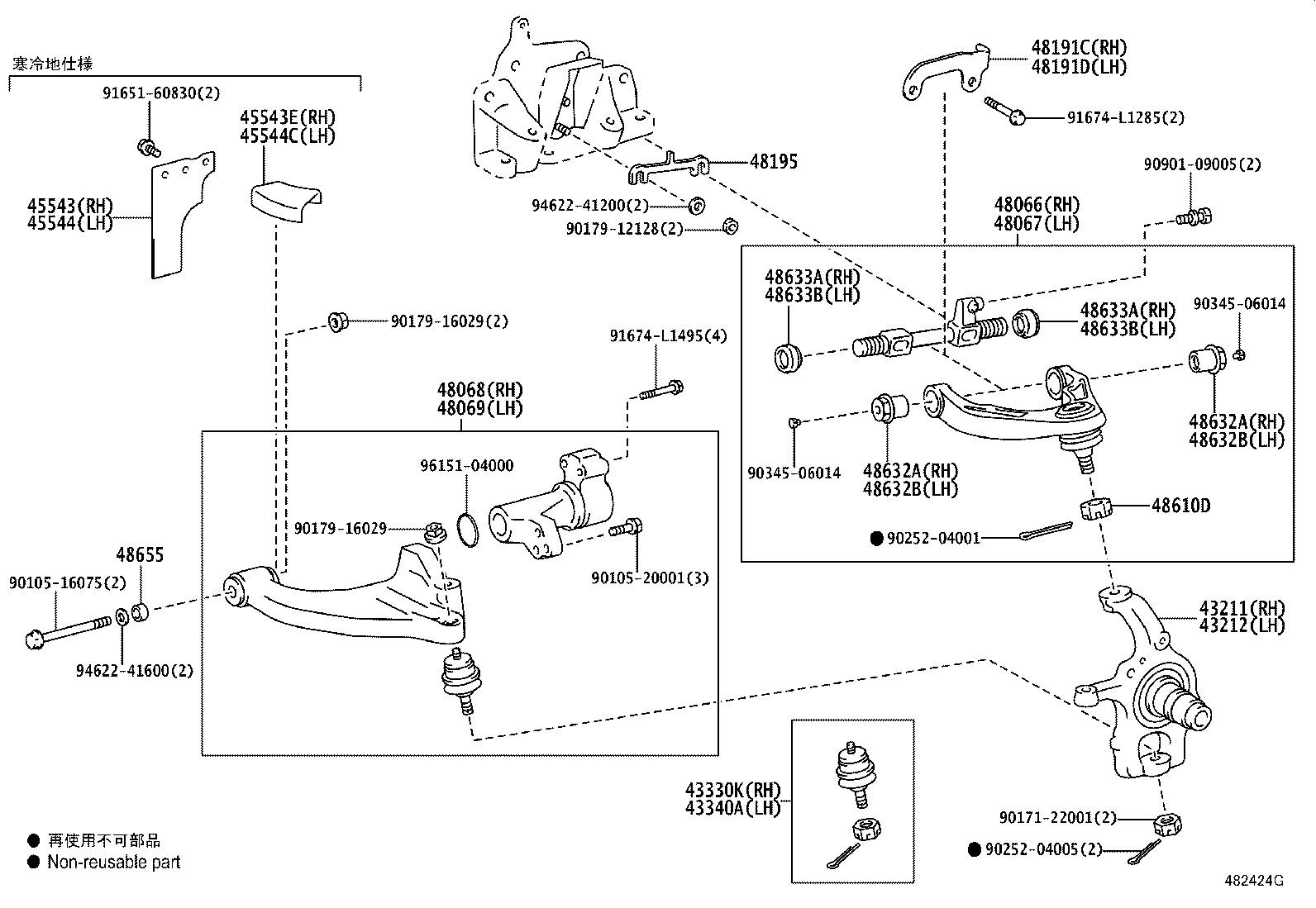

(0610-0711)XZU368,378,388,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-37110 |
XZU368,378,388,568 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-37110 |
XZU368,378,388,568 |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-89015 |
XZU368,378,388,568 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-89015 |
XZU368,378,388,568 |
1 | ||
| 45543 - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-37020 |
XZU368,378,388,568 |
1 | ||
| 45543E - PROTECTOR, STEERING RACK BOOT,RH NO.2 | ||||
| 45544-37010 |
XZU368,378,388,568 |
1 | ||
| 45544 - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45543-37020 |
XZU368,378,388,568 |
1 | ||
| 45544C - PROTECTOR, STEERING RACK BOOT, LH NO.2 | ||||
| 45544-37010 |
XZU368,378,388,568 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-89015 |
XZU368,378,388,568 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-89015 |
XZU368,378,388,568 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-37051 |
XZU368,378,388,568 |
1 | ||
| 48620-37050 |
XZU368,378,388,568 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48640-37051 |
XZU368,378,388,568 |
1 | ||
| 48640-37050 |
XZU368,378,388,568 |
1 | ||
| 48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH | ||||
| 48191-37040 |
XZU368,378,388,568 |
1 | ||
| 48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH | ||||
| 48192-37080 |
XZU368,378,388,568 |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90905-65001 |
XZU368,378,388,568 厚さ=4.0 |
1 | ||
| 90905-65003 |
XZU368,378,388,568 厚さ=1.2 |
1 | ||
| 90905-65004 |
XZU368,378,388,568 厚さ=2.0 |
1 | ||
| 90905-65002 |
XZU368,378,388,568 厚さ=0.8 |
1 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90171-18003 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48655 - BUSH, LOWER ARM, NO.2 | ||||
| 48655-65010 |
XZU368,378,388,568 |
2 | ||
| Common parts | ||||
| 90105-16075 | ||||
| 90105-20001 | ||||
| 90171-22001 | ||||
| 90179-12128 | ||||
| 90179-16029 | ||||
| 90252-04001 | ||||
| 90252-04005 | ||||
| 90345-06014 | ||||
| 90901-09005 | ||||
| 91651-60830 | ||||
| 91674-L1285 | ||||
| 91674-L1495 | ||||
| 94622-41200 | ||||
| 94622-41600 | ||||
| 96151-04000 | ||||

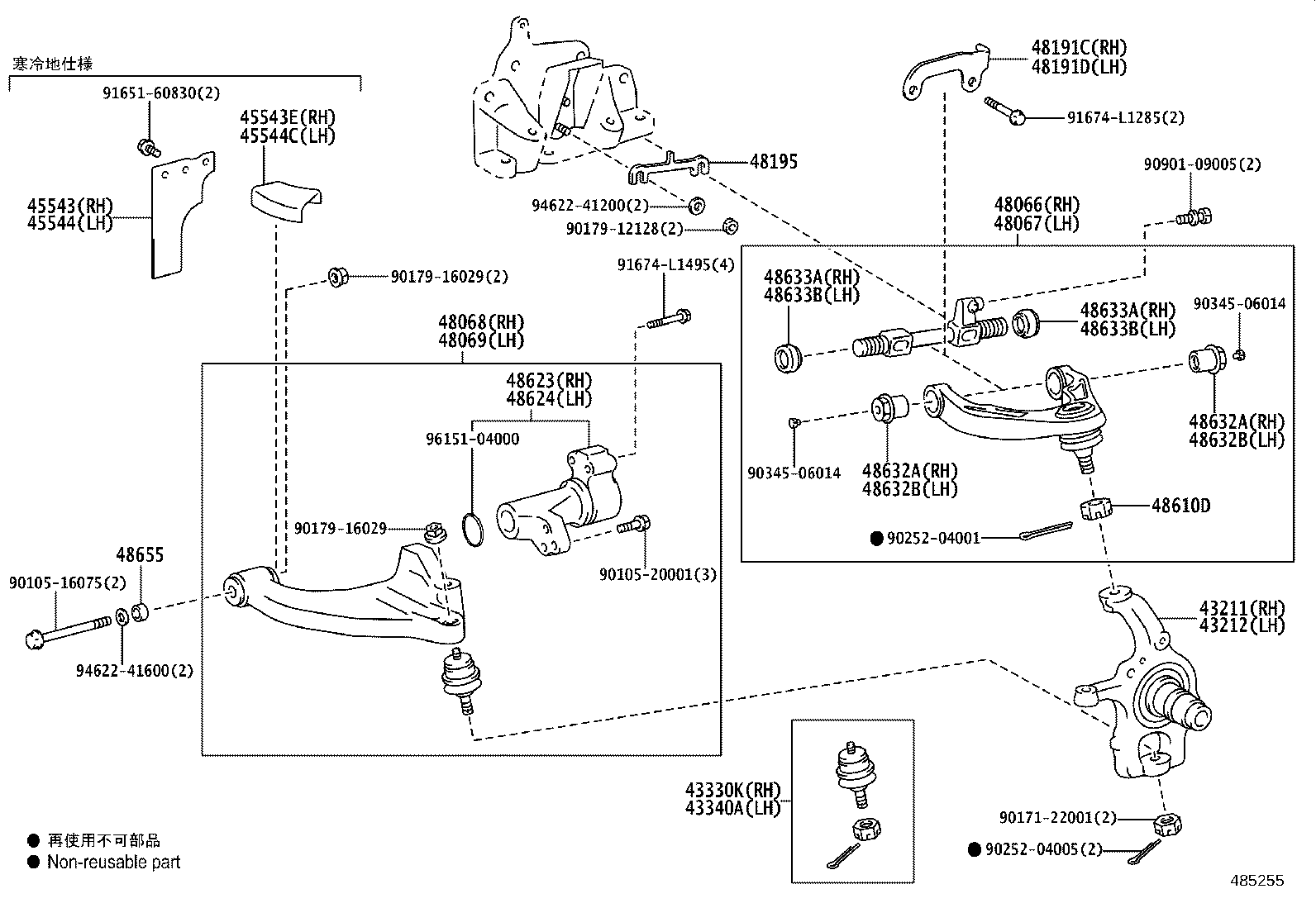

(0711- )XZU368,378,388,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-37110 |
XZU368,378,388,568 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-37110 |
XZU368,378,388,568 |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-89015 |
XZU368,378,388,568 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-89015 |
XZU368,378,388,568 |
1 | ||
| 45543 - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-37020 |
XZU368,378,388,568 |
1 | ||
| 45543E - PROTECTOR, STEERING RACK BOOT,RH NO.2 | ||||
| 45544-37010 |
XZU368,378,388,568 |
1 | ||
| 45544 - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45543-37020 |
XZU368,378,388,568 |
1 | ||
| 45544C - PROTECTOR, STEERING RACK BOOT, LH NO.2 | ||||
| 45544-37010 |
XZU368,378,388,568 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-89015 |
XZU368,378,388,568 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-89015 |
XZU368,378,388,568 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-37051 |
XZU368,378,388,568 |
1 | ||
| 48620-37050 |
XZU368,378,388,568 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48640-37051 |
XZU368,378,388,568 |
1 | ||
| 48640-37050 |
XZU368,378,388,568 |
1 | ||
| 48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH | ||||
| 48191-37040 |
XZU368,378,388,568 |
1 | ||
| 48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH | ||||
| 48192-37080 |
XZU368,378,388,568 |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90905-65001 |
XZU368,378,388,568 厚さ=4.0 |
1 | ||
| 90905-65003 |
XZU368,378,388,568 厚さ=1.2 |
1 | ||
| 90905-65004 |
XZU368,378,388,568 厚さ=2.0 |
1 | ||
| 90905-65002 |
XZU368,378,388,568 厚さ=0.8 |
1 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90171-18003 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48623 - ARM, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48660-37010 |
XZU368,378,388,568 |
1 | ||
| 48624 - ARM, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48670-37010 |
XZU368,378,388,568 |
1 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 48655 - BUSH, LOWER ARM, NO.2 | ||||
| 48655-65010 |
XZU368,378,388,568 |
2 | ||
| Common parts | ||||
| 90105-16075 | ||||
| 90105-20001 | ||||
| 90171-22001 | ||||
| 90179-12128 | ||||
| 90179-16029 | ||||
| 90252-04001 | ||||
| 90252-04005 | ||||
| 90345-06014 | ||||
| 90901-09005 | ||||
| 91651-60830 | ||||
| 91674-L1285 | ||||
| 91674-L1495 | ||||
| 94622-41200 | ||||
| 94622-41600 | ||||
| 96151-04000 | ||||
