XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace

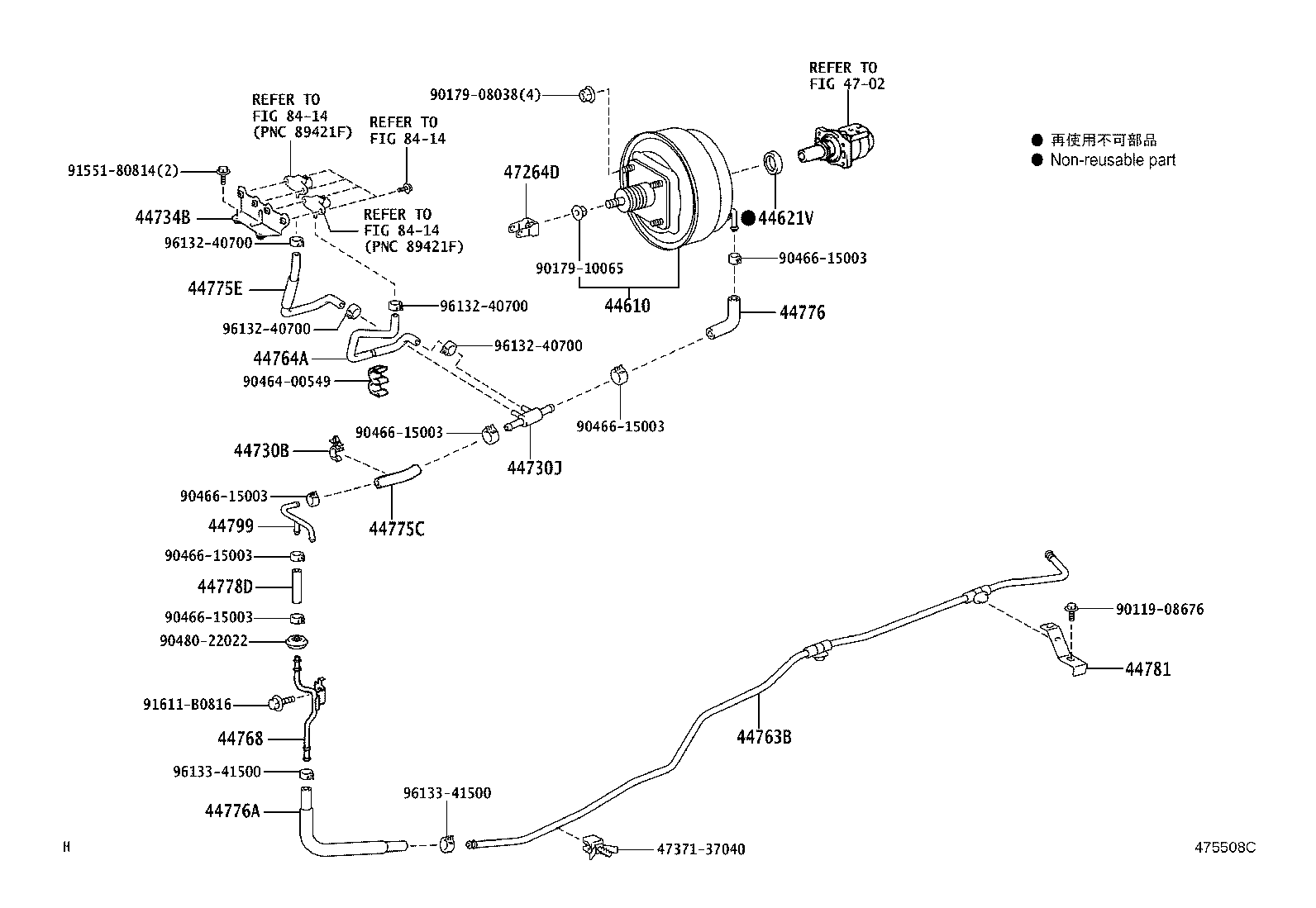

ILLUST NO. 1 OF 2(0610- )XZU368,378,388,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,324,338,34#,354,368,378,388,568..20T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37781 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37240 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37251 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776-37250 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37260 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F |
1 | ||
| 44778-37171 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37150 |
BZU300,340,TRU300,340,500,XZU368,378,388,568 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0610- )XZU304..T4,T5..20T ; (0610- )XZU308,314,324,338,34#,354,50#,524,538,5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )35T ; (0610- )XZU334..SCB ; (0610-)XZU304..30T..4NO ; (0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91641-80835 | ||||
| 91642-81035 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||

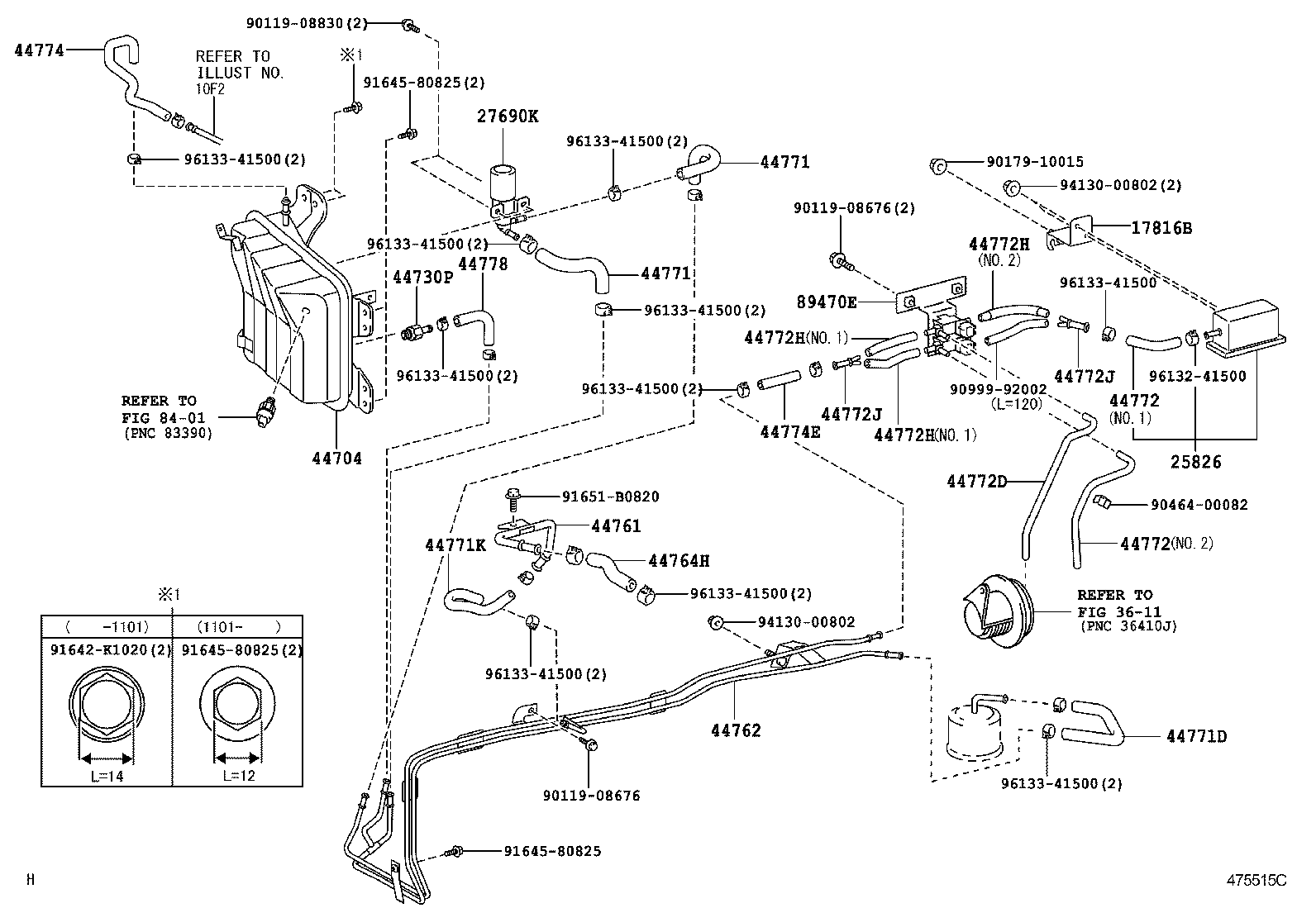

ILLUST NO. 2 OF 2(0610- )XZU368,378,388,568..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17816B - BRACKET, AIR FILTER, NO.1 | ||||
| 17816-78010 |
N04C..XZU368,378,388,568 |
1 | ||
| 25826 - FILTER, NO.1 | ||||
| 25826-78011 |
N04C..XZU368,378,388,568 |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37380 |
XZU368,378,388,568..SCB |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37600 |
XZU368,388,568..SCB |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37080 |
XZU368,378,388,568 NO.1 |
1 | ||
| 44772-37120 |
XZU368,378,388,568 NO.2 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37080 |
XZU368,378,388,568 NO.1 |
1 | ||
| 44772-37120 |
XZU368,378,388,568 NO.2 |
1 | ||
| 44772D - HOSE, CHECK VALVE TO ACTUATOR | ||||
| 44772-37130 |
XZU368,378,388,568 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZU368,378,388,568 NO.1 |
2 | ||
| 44772-37160 |
XZU368,378,388,568 NO.2 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZU368,378,388,568 NO.1 |
2 | ||
| 44772-37160 |
XZU368,378,388,568 NO.2 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZU368,378,388,568 NO.1 |
2 | ||
| 44772-37160 |
XZU368,378,388,568 NO.2 |
1 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZU368,378,388,568 |
2 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZU368,378,388,568 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37730 |
XZU368,378,388,568 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 89470E - VALVE ASSY, VACUUM SWITCHING W/BRACKET, NO.1 | ||||
| 89470-37091 |
XZU368,378,388,568 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90179-10015 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96132-41500 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3611 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )XZU50#..T4..IV3 ; (0610- )XZU348..SCB..T4..DCRTJ,DCRUE..IV3 ; (0610-
ｺｳｼｮ ｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140 |
1 | ||
| 27690-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37380 |
XZU368,378,388,568..SCB |
1 | ||
| 44702-37380 |
XZU368,378,388,568..SCB |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37380 |
XZU368,378,388,568..SCB |
1 | ||
| 44702-37380 |
XZU368,378,388,568..SCB |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771-37540 |
XZU368,378,388,568..SCB |
2 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44771-37A20 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
