XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace

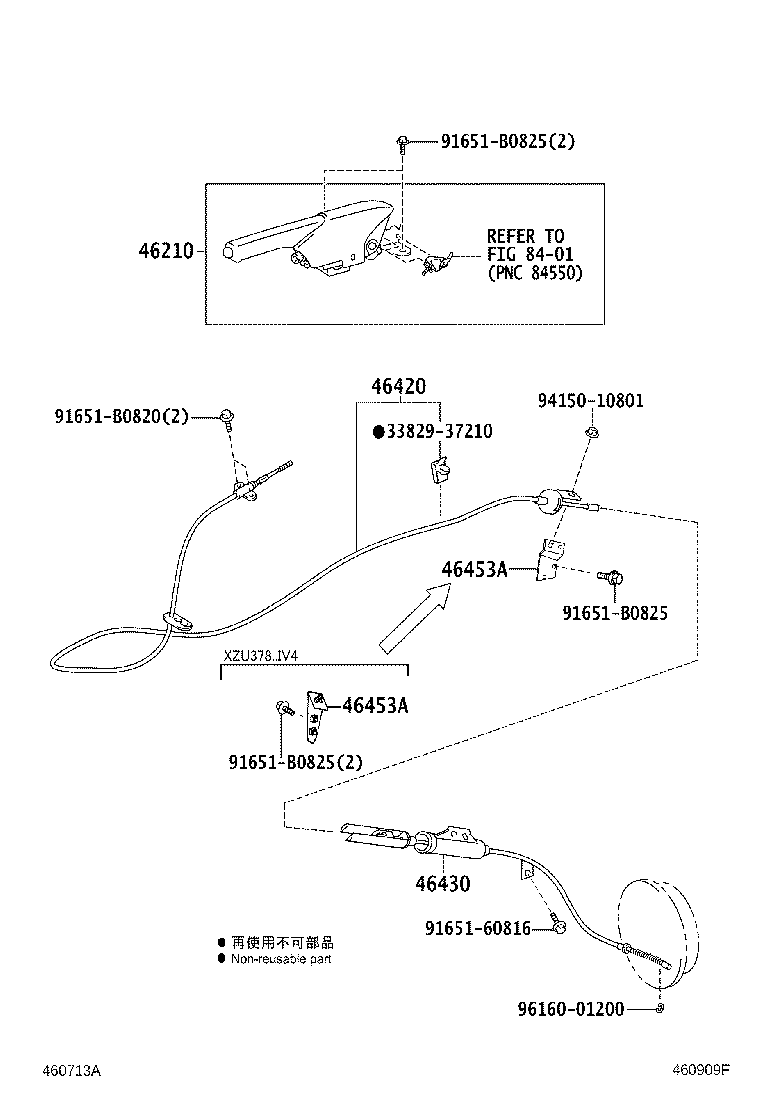

ILLUST NO. 1 OF 2(0610- )XZU368,378,388,568
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37110B0 |
XZU504..DCRTJ,DCRUD;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU508,538,548..DCRUD,DCRUE;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..CBU,IV3,IV4,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37101B0 |
XZU344..6FC;XZU348..DCRTK;XZU324..20T..DCRTJ;XZU334..DCRTK..CBU;XZU304..T4..5F..20T;XZU308..T5..(6F,6FC);XZU348..(T3,T4)..(6F,6FC);XZU344,378..SCB..(DCRTK,DCRUE);XZU308..T4..(DCRTJ,DCRUE)..(CBU,IV3);XZU304,338..(DM3,T4,T5)..(6F,6FC)..(DCRTJ,DCRUE);TRU300,XZU314,324,524..(DM5,DM7)..(DCRTK,DCRUE,EFI);XZU354,368,388,508,548,554,568..(DM5,T3,T4,T5)..(DCRTJ,DCRTK,DCRUE)..(CBU,IV3) ｱﾘ(ｺﾃｲｼｷ ﾊﾟ-ｷﾝｸﾞ ﾌﾞﾚ-ｷ ﾚﾊﾞｰ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37111B0 |
XZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5)..5F..DCRTK;XZU304,324..(DM6,DM7,T4)..20T..DCRTJ;XZU354,368,378,388,50#,538,548,554,568;BZU300,340,TRU300,340,500,XZU304,314,324,34#,524..(DCRTH,DCRTK,DCRTM,DCRUE,EFI,LPG)..(CBU,IV3,IV4,IV6) DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37100B0 |
XZU334..DCRTK..CBU;TRU300,XZU314,324,354..DM5,DM7;XZU30#..(DM3,T4,T5)..DCRTJ..(CBU,IV3);XZU508,548,554..(DM5,T4,T5)..6FC..DCRTJ;XZU378,508,524,548,554..SCB..(DCRTK,DCRUE);XZU338,34#,368,388,568..(DM5,T3,T4)..(DCRTJ,DCRTK) ｱﾘ(ｺﾃｲｼｷ ﾊﾟ-ｷﾝｸﾞ ﾌﾞﾚ-ｷ ﾚﾊﾞｰ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37670 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37740 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 46430-37741 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37220 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37220 |
XZU368,378,388,568..CBU,IV3 |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )XZU314,324,354,368,378,388,524,554,568..5F..20T,30T ; (1003- )6F
MYY5A,MYY6S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00302 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
4 | ||
| SU002-00970 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-37030 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00291 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00925 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| Common parts | ||||
| 90119-06931 | ||||
| 90177-12003 | ||||
