XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0610- )XZU368,378,388,568
ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-37060 |
XZU368,568;XZU378,388..20T |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-51010 |
XZU368,378,388,568 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-35013 |
XZU368,378,388,568 |
2 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-37050 |
XZU368,568;XZU378,388..20T |
1 | ||
| 44275E - RING, O(FOR RACK END GUIDE) | ||||
| 90301-52005 |
XZU368,378,388,568 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-37010 |
XZU368,378,388,568 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-37040 |
XZU368,378,388,568 |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-37042 |
XZU368,378,388,568 |
1 | ||
| 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) | ||||
| 90522-30034 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) | ||||
| 90522-30034 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39785 |
XZU308,338,348,368,378,388,508,538,548,568 ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39785 |
XZU308,338,348,368,378,388,508,538,548,568 ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ |
1 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-37030 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-37030 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39195 |
XZU368,378,388,568 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39195 |
XZU368,378,388,568 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
XZU368,378,388,568 外径=47 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
XZU368,378,388,568 外径=47 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-37020 |
XZU308,338,348,368,378,388,508,538,548,568 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-37010 |
XZU308,338,348,368,378,388,508,538,548,568 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-37010 |
XZU368,378,388,568 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23024 |
XZU368,378,388,568 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-37010 |
XZU368,378,388,568 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-48003 |
XZU368,378,388,568 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-37010 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-37010 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-62006 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-62006 |
XZU504..5F..WT..DCRTH..IV3;XZU308,338,348,368,378,388,508,538,548,568 |
1 | ||
| Common parts | ||||
| 90119-14048 | ||||
| 90119-16007 | ||||
| 90170-19001 | ||||
| 90179-16015 | ||||
| 90252-04003 | ||||
| 90386-35002 | ||||
| 90560-16027 | ||||
| 91511-B0825 | ||||
| 96134-42300 | ||||

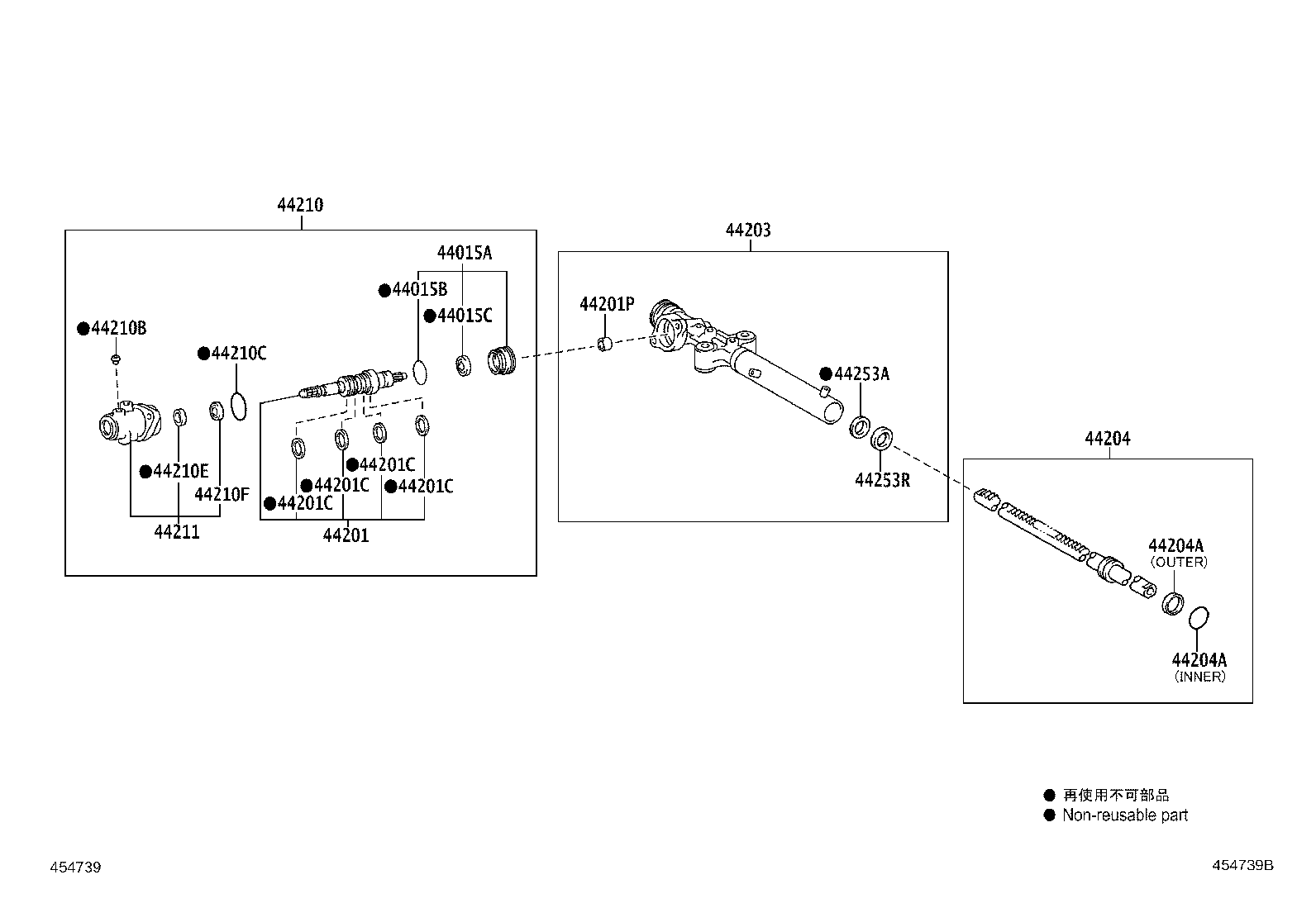

ILLUST NO. 2 OF 2(0610- )XZU368,378,388,568
ﾗｯｸ & ﾋﾟﾆｵﾝﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-43010 |
XZU368,378,388,568 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
XZU368,378,388,568 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25027 |
XZU368,378,388,568 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-37030 |
XZU368,378,388,568 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU368,378,388,568 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU368,378,388,568 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU368,378,388,568 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
XZU368,378,388,568 |
4 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90364-13003 |
XZU368,378,388,568 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-37061 |
XZU368,568;XZU378,388..20T |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-37030 |
XZU368,378,388,568 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-48005 |
XZU368,378,388,568 内側 |
1 | ||
| 90562-52001 |
XZU368,378,388,568 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-48005 |
XZU368,378,388,568 内側 |
1 | ||
| 90562-52001 |
XZU368,378,388,568 外側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-37040 |
XZU368,378,388,568 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
XZU368,378,388,568 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
XZU368,378,388,568 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19013 |
XZU368,378,388,568 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
XZU368,378,388,568 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-37030 |
XZU368,378,388,568 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-35013 |
XZU368,378,388,568 |
2 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-35014 |
XZU368,378,388,568 |
1 | ||
