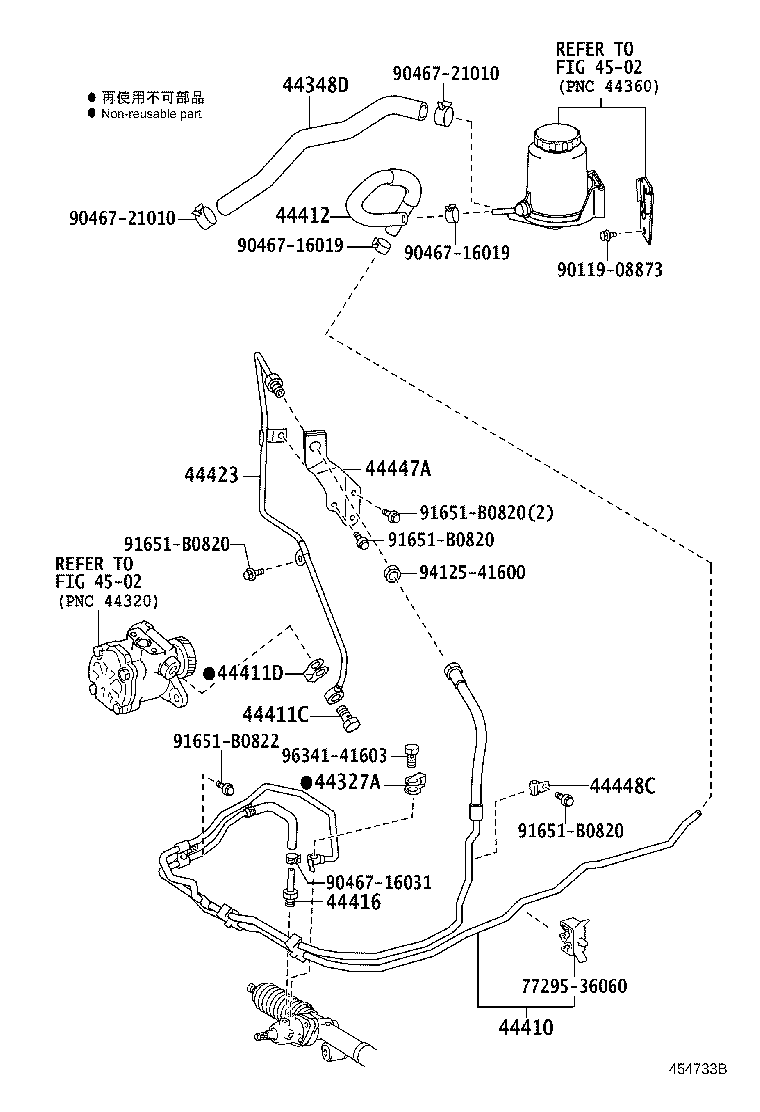

Toyota Dyna/toyoace XZU368 POWER STEERING TUBE

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	BZU300,340,XZU308,338,348,368,378,388,508,538,548,568	10/2006 - 12/2999	1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37430	XZU368,378,388,568	10/2006 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-37170	XZU368,378,388,568	10/2006 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
44412 - HOSE, RETURN
44412-37260	XZU368,378,388,568	10/2006 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220	XZU308,338,348,368,378,388,508,538,548,568	10/2006 - 12/2999	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37150	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	02/2011 - 12/2999	1
44423-37110	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 02/2011	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37220	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060	XZU308,338,348,368,378,388,508,538,548,568	10/2006 - 12/2999	1
Common parts
77295-36060
90119-08873
90467-16019
90467-16031
90467-21010
91651-B0820
91651-B0822
94125-41600
96341-41603
Linked diagrams
4502

XZU368D-TWMMB3 (2006)
