XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU368,378,388,568

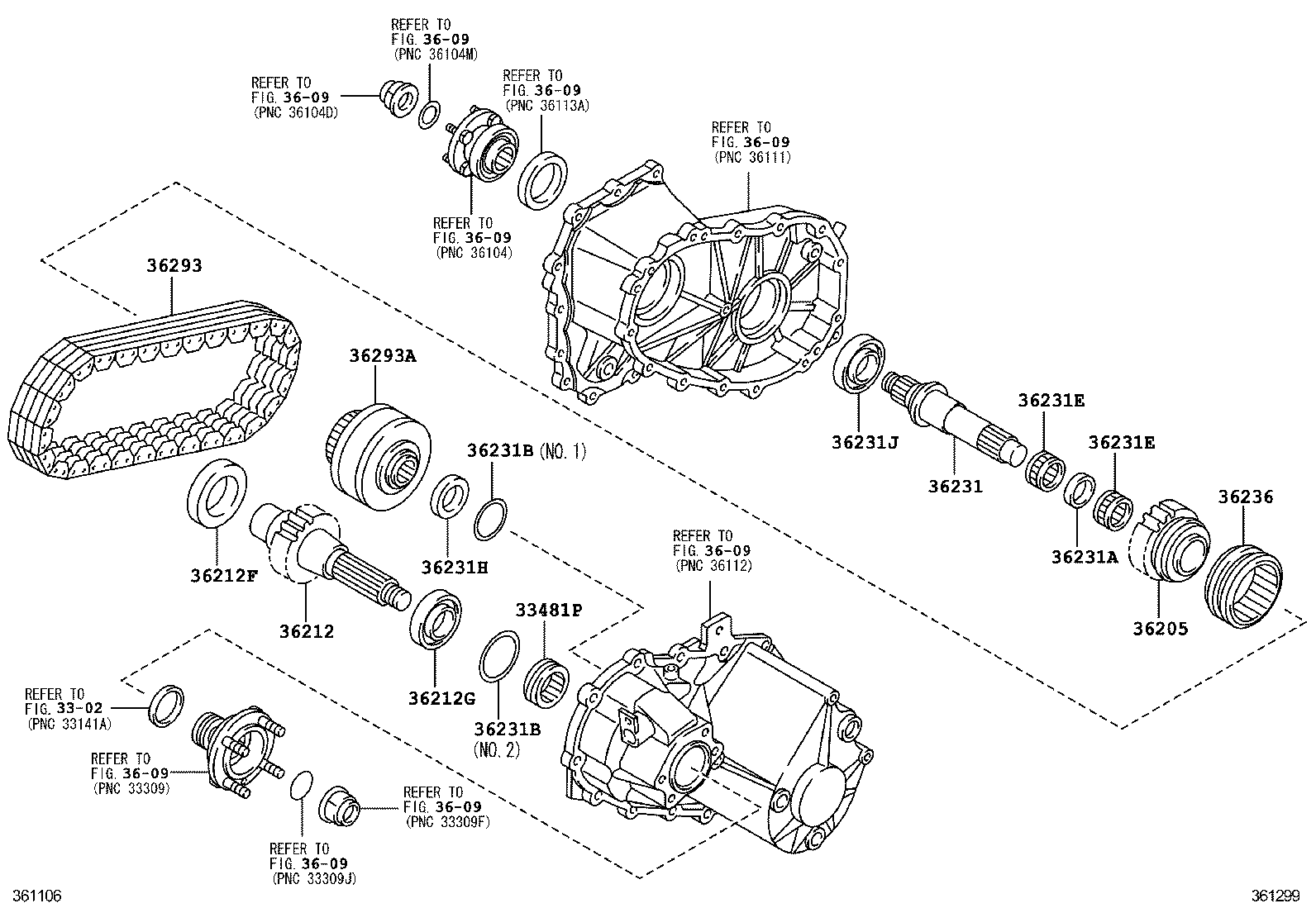

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| SU002-00188 |
XZU368,378,388,568 歯数=4 |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| SU002-00464 |
XZU368,378,388,568 |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| SU002-00462 |
XZU368,378,388,568 |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| SU002-00468 |
XZU368,378,388,568 |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| SU002-00469 |
XZU368,378,388,568 |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| SU002-00463 |
XZU368,378,388,568 |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| SU002-00479 |
XZU368,378,388,568 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| SU002-00480 |
XZU368,378,388,568 厚さ=0.83,NO.1 |
1 | ||
| SU002-00481 |
XZU368,378,388,568 厚さ=0.86,NO.1 |
1 | ||
| SU002-00482 |
XZU368,378,388,568 厚さ=0.89,NO.1 |
1 | ||
| SU002-00487 |
XZU368,378,388,568 厚さ=1.04,NO.1 |
1 | ||
| SU002-00484 |
XZU368,378,388,568 厚さ=0.95,NO.1 |
1 | ||
| SU002-00483 |
XZU368,378,388,568 厚さ=0.92,NO.1 |
1 | ||
| SU002-00488 |
XZU368,378,388,568 厚さ=1.07,NO.1 |
1 | ||
| SU002-00491 |
XZU368,378,388,568 厚さ=1.16,NO.1 |
1 | ||
| SU002-00496 |
XZU368,378,388,568 厚さ=1.31,NO.1 |
1 | ||
| SU002-00485 |
XZU368,378,388,568 厚さ=0.98,NO.1 |
1 | ||
| SU002-00486 |
XZU368,378,388,568 厚さ=1.01,NO.1 |
1 | ||
| SU002-00492 |
XZU368,378,388,568 厚さ=1.19,NO.1 |
1 | ||
| SU002-00489 |
XZU368,378,388,568 厚さ=1.10,NO.1 |
1 | ||
| SU002-00497 |
XZU368,378,388,568 厚さ=1.34,NO.1 |
1 | ||
| SU002-00505 |
XZU368,378,388,568 厚さ=0.52,NO.2 |
1 | ||
| SU002-00502 |
XZU368,378,388,568 厚さ=0.40,NO.2 |
1 | ||
| SU002-00494 |
XZU368,378,388,568 厚さ=1.25,NO.1 |
1 | ||
| SU002-00498 |
XZU368,378,388,568 厚さ=1.37,NO.1 |
1 | ||
| SU002-00503 |
XZU368,378,388,568 厚さ=0.44,NO.2 |
1 | ||
| SU002-00490 |
XZU368,378,388,568 厚さ=1.13,NO.1 |
1 | ||
| SU002-00493 |
XZU368,378,388,568 厚さ=1.22,NO.1 |
1 | ||
| SU002-00495 |
XZU368,378,388,568 厚さ=1.28,NO.1 |
1 | ||
| SU002-00499 |
XZU368,378,388,568 厚さ=1.40,NO.1 |
1 | ||
| SU002-00501 |
XZU368,378,388,568 厚さ=1.46,NO.1 |
1 | ||
| SU002-00508 |
XZU368,378,388,568 厚さ=0.64,NO.2 |
1 | ||
| SU002-00504 |
XZU368,378,388,568 厚さ=0.48,NO.2 |
1 | ||
| SU002-00506 |
XZU368,378,388,568 厚さ=0.56,NO.2 |
1 | ||
| SU002-00511 |
XZU368,378,388,568 厚さ=0.76,NO.2 |
1 | ||
| SU002-00507 |
XZU368,378,388,568 厚さ=0.60,NO.2 |
1 | ||
| SU002-00500 |
XZU368,378,388,568 厚さ=1.43,NO.1 |
1 | ||
| SU002-00509 |
XZU368,378,388,568 厚さ=0.68,NO.2 |
1 | ||
| SU002-00510 |
XZU368,378,388,568 厚さ=0.72,NO.2 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| SU002-00480 |
XZU368,378,388,568 厚さ=0.83,NO.1 |
1 | ||
| SU002-00481 |
XZU368,378,388,568 厚さ=0.86,NO.1 |
1 | ||
| SU002-00482 |
XZU368,378,388,568 厚さ=0.89,NO.1 |
1 | ||
| SU002-00487 |
XZU368,378,388,568 厚さ=1.04,NO.1 |
1 | ||
| SU002-00484 |
XZU368,378,388,568 厚さ=0.95,NO.1 |
1 | ||
| SU002-00483 |
XZU368,378,388,568 厚さ=0.92,NO.1 |
1 | ||
| SU002-00488 |
XZU368,378,388,568 厚さ=1.07,NO.1 |
1 | ||
| SU002-00491 |
XZU368,378,388,568 厚さ=1.16,NO.1 |
1 | ||
| SU002-00496 |
XZU368,378,388,568 厚さ=1.31,NO.1 |
1 | ||
| SU002-00485 |
XZU368,378,388,568 厚さ=0.98,NO.1 |
1 | ||
| SU002-00486 |
XZU368,378,388,568 厚さ=1.01,NO.1 |
1 | ||
| SU002-00492 |
XZU368,378,388,568 厚さ=1.19,NO.1 |
1 | ||
| SU002-00489 |
XZU368,378,388,568 厚さ=1.10,NO.1 |
1 | ||
| SU002-00497 |
XZU368,378,388,568 厚さ=1.34,NO.1 |
1 | ||
| SU002-00505 |
XZU368,378,388,568 厚さ=0.52,NO.2 |
1 | ||
| SU002-00502 |
XZU368,378,388,568 厚さ=0.40,NO.2 |
1 | ||
| SU002-00494 |
XZU368,378,388,568 厚さ=1.25,NO.1 |
1 | ||
| SU002-00498 |
XZU368,378,388,568 厚さ=1.37,NO.1 |
1 | ||
| SU002-00503 |
XZU368,378,388,568 厚さ=0.44,NO.2 |
1 | ||
| SU002-00490 |
XZU368,378,388,568 厚さ=1.13,NO.1 |
1 | ||
| SU002-00493 |
XZU368,378,388,568 厚さ=1.22,NO.1 |
1 | ||
| SU002-00495 |
XZU368,378,388,568 厚さ=1.28,NO.1 |
1 | ||
| SU002-00499 |
XZU368,378,388,568 厚さ=1.40,NO.1 |
1 | ||
| SU002-00501 |
XZU368,378,388,568 厚さ=1.46,NO.1 |
1 | ||
| SU002-00508 |
XZU368,378,388,568 厚さ=0.64,NO.2 |
1 | ||
| SU002-00504 |
XZU368,378,388,568 厚さ=0.48,NO.2 |
1 | ||
| SU002-00506 |
XZU368,378,388,568 厚さ=0.56,NO.2 |
1 | ||
| SU002-00511 |
XZU368,378,388,568 厚さ=0.76,NO.2 |
1 | ||
| SU002-00507 |
XZU368,378,388,568 厚さ=0.60,NO.2 |
1 | ||
| SU002-00500 |
XZU368,378,388,568 厚さ=1.43,NO.1 |
1 | ||
| SU002-00509 |
XZU368,378,388,568 厚さ=0.68,NO.2 |
1 | ||
| SU002-00510 |
XZU368,378,388,568 厚さ=0.72,NO.2 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| SU002-00472 |
XZU368,378,388,568 |
2 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| SU002-00472 |
XZU368,378,388,568 |
2 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| SU002-00471 |
XZU368,378,388,568 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| SU002-00470 |
XZU368,378,388,568 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| SU002-00461 |
XZU368,378,388,568 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| SU002-00466 |
XZU368,378,388,568 |
1 | ||
| 36293A - VISCOUS COUPLING, TRANSFER | ||||
| SU002-00465 |
XZU368,378,388,568 |
1 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 3609 | ||||
