XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
Production
Oct 2006
-
Jun 2011
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )XZU368,378,388,568

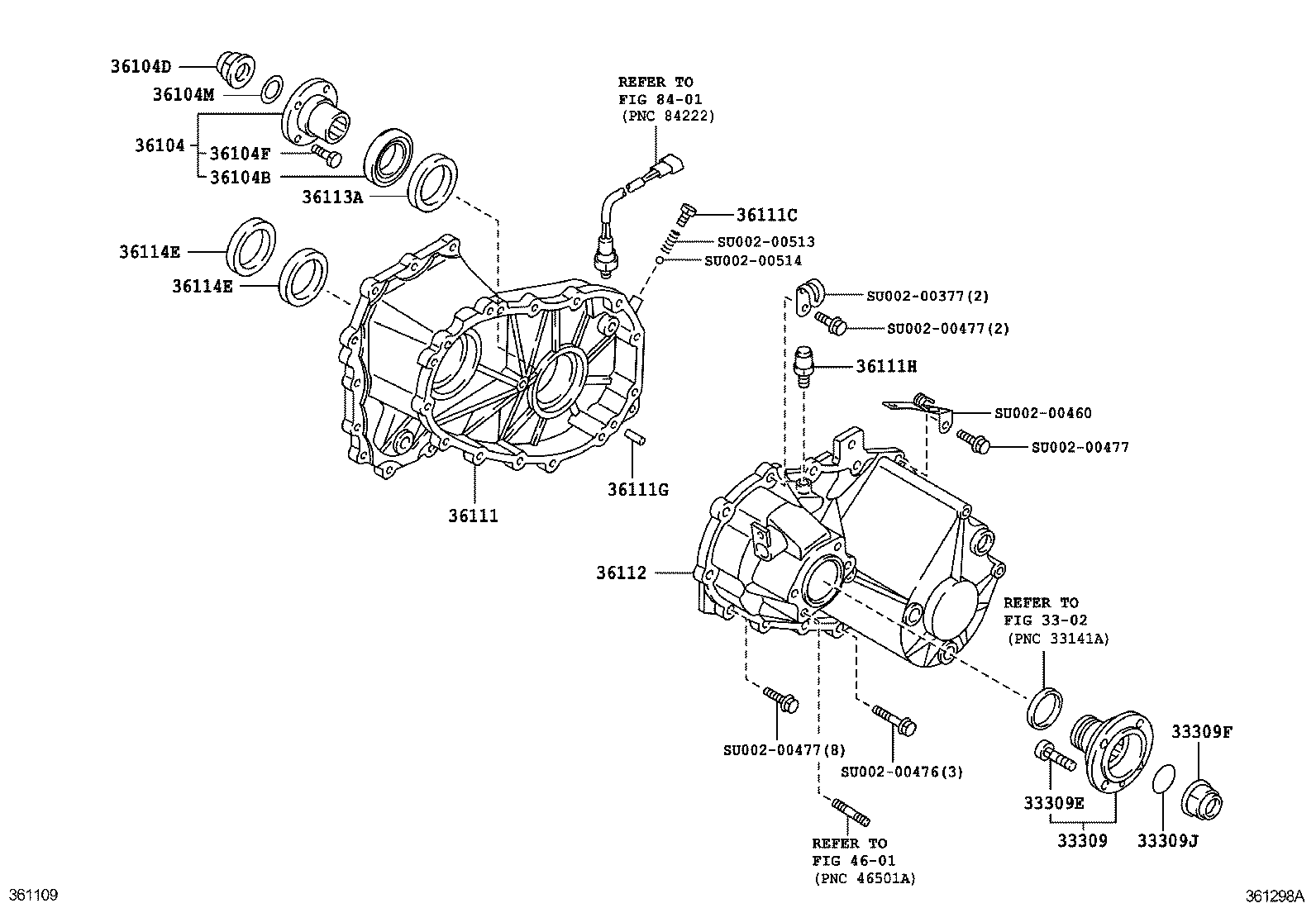

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| SU002-00220 |
XZU368,378,388,568 |
1 | ||
| SU002-00975 |
XZU368,378,388,568 |
1 | ||
| 33309E - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| SU002-00459 |
XZU368,378,388,568 |
4 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| SU002-00938 |
XZU368,378,388,568 |
1 | ||
| SU002-00197 |
XZU368,378,388,568 |
1 | ||
| 33309J - RING, O (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE NO. | ||||
| SU002-00202 |
XZU368,378,388,568 |
1 | ||
| SU002-00873 |
XZU368,378,388,568 |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| SU002-00382 |
XZU368,378,388,568 |
1 | ||
| SU002-00981 |
XZU368,378,388,568 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| SU002-00378 |
XZU368,378,388,568 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| SU002-00379 |
XZU368,378,388,568 |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| SU002-00381 |
XZU368,378,388,568 |
4 | ||
| 36104M - RING, O (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE NO. | ||||
| SU002-00380 |
XZU368,378,388,568 |
1 | ||
| 36111 - CASE, TRANSFER | ||||
| SU002-00522 |
XZU368,378,388,568 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| SU002-00512 |
XZU368,378,388,568 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| SU002-00478 |
XZU368,378,388,568 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| SU002-00384 |
XZU368,378,388,568 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| SU002-00523 |
XZU368,378,388,568 |
1 | ||
| 36113A - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| SU002-00474 |
XZU368,378,388,568 |
1 | ||
| 36114E - SEAL, OIL (FOR TRANSFER CASE LH) | ||||
| SU002-00473 |
XZU368,378,388,568 |
2 | ||
| 36114E - SEAL, OIL (FOR TRANSFER CASE LH) | ||||
| SU002-00473 |
XZU368,378,388,568 |
2 | ||
| Common parts | ||||
| SU002-00377 | ||||
| SU002-00460 | ||||
| SU002-00476 | ||||
| SU002-00477 | ||||
| SU002-00513 | ||||
| SU002-00514 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 4601 | ||||
| 8401 | ||||
