XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )35T..IV3 ; (0610- )T5..30T..DCRTJ; (0610- )T3,T4..5F..IV6 ; (0610
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

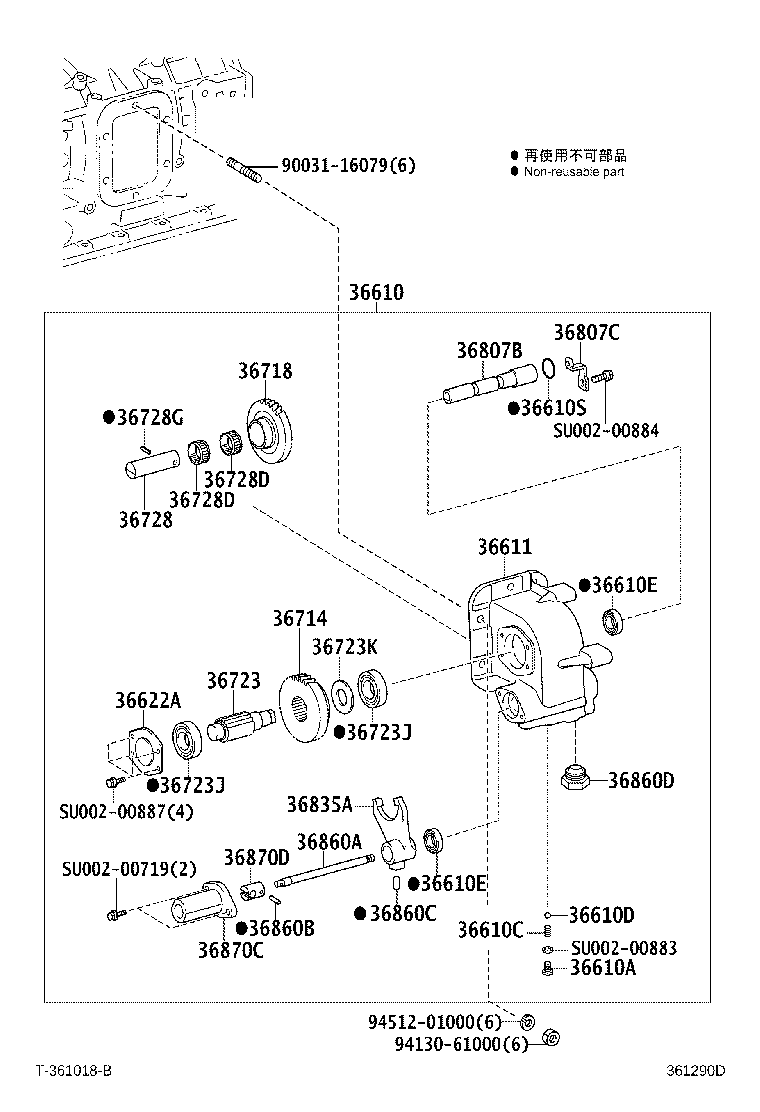

| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37241 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36610-37241 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| SU002-00746 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| SU002-00746 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| SU002-00729 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| SU002-00729 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-00775 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| SU002-00775 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-00764 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| SU002-00764 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00765 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| SU002-00765 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00832 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| SU002-00832 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00741 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| SU002-00741 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00741 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| SU002-00741 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| SU002-00850 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00728 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| SU002-00728 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00728 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| SU002-00728 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| SU002-00725 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90031-01180 | ||||
| 90031-19132 | ||||
| 90033-87011 | ||||
| 90119-10372 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
(0610- )DM3..DCRUE ; (0610- )XZU554..6FC..CBU ; (0610- )XZU314,324,354,368
ﾎﾟﾝﾌﾟﾁｮｸﾂﾞｹﾀｲﾌﾟ 10KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37241 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| SU002-00877 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| SU002-00746 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| SU002-00729 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-00775 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-00775 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36610S - RING, O (FOR POWER TAKE-OFF) | ||||
| SU002-00860 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| SU002-00763 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| SU002-00880 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-00764 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00765 |
XZU314,324,354,368,524,554,568..(DM5,DM7)..5F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00832 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00741 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00741 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00834 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00728 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00728 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(CBU,IV3) |
1 | ||
| 36807B - ROD SUB-ASSY, POWER TAKE-OFF SHIFT | ||||
| SU002-00836 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36807C - BRACKET, POWER TAKE-OFF SHIFT ROD | ||||
| SU002-00879 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36835A - ARM, POWER TAKE-OFF SHIFT | ||||
| SU002-00778 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36860A - ROD, POWER TAKE-OFF INNER | ||||
| SU002-00881 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36860B - PIN, SPRING (FOR POWER TAKE-OFF INNER ROD) | ||||
| SU002-00726 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36860C - PIN, INTER LOCK (FOR POWER TAKE-OFF INNER ROD) | ||||
| SU002-00738 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36860D - PLUG, INTER LOCK (FOR POWER TAKE-OFF INNER ROD) | ||||
| SU002-00878 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36870C - COVER, POWER TAKE-OFF CONTROL CABLE | ||||
| SU002-00844 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| 36870D - CONNECTOR, POWER TAKE-OFF CONTROL CABLE | ||||
| SU002-00882 |
XZU304..DM3..DCRUE;XZU314,324,354,368,524,554,568..(DM5,DM7)..MTM |
1 | ||
| Common parts | ||||
| 90031-16079 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| SU002-00719 | ||||
| SU002-00883 | ||||
| SU002-00884 | ||||
| SU002-00887 | ||||
