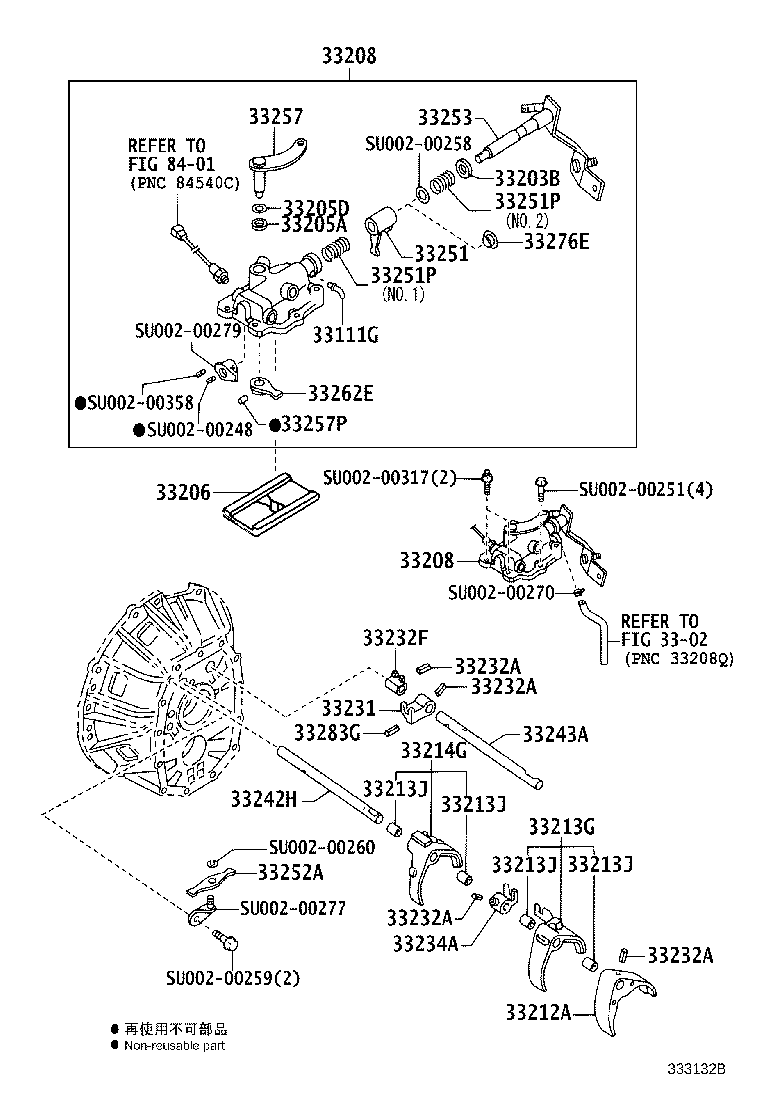

XZU368D-TWMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU368,378,388,568
MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| SU002-00274 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| SU002-00355 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| SU002-00264 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| SU002-00357 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33206 - PLATE SUB-ASSY, SHIFT INTER LOCK | ||||
| SU002-00275 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| SU002-00516 |
XZU368,378,388,568 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| SU002-00516 |
XZU368,378,388,568 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| SU002-00240 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| SU002-00517 |
XZU368,378,388,568 |
1 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
4 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
4 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
4 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
4 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| SU002-00245 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| SU002-00243 |
XZU368,378,388;XZU324,354,568..5F..20T;XZU314,524,554..5F..(DCRTK,DCRUE) |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| SU002-00244 |
XZU368,378,388;XZU324,354,568..5F..20T;XZU314,524,554..5F..(DCRTK,DCRUE) |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| SU002-00281 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33242H - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| SU002-00518 |
XZU368,378,388,568;XZU30#,314,324,33#,34#..6F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| SU002-00519 |
XZU368,378,388,568 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| SU002-00249 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00268 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) NO.1 |
1 | ||
| SU002-00269 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) NO.2 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00268 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) NO.1 |
1 | ||
| SU002-00269 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) NO.2 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| SU002-00241 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| SU002-00528 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| SU002-00673 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| SU002-00271 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33262E - SHAFT, SELECT LEVER | ||||
| SU002-00252 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| SU002-00250 |
XZU314,324,354,368,378,388,524,554,568..5F..(20T,30T) |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| SU002-00272 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| Common parts | ||||
| SU002-00248 | ||||
| SU002-00251 | ||||
| SU002-00258 | ||||
| SU002-00259 | ||||
| SU002-00260 | ||||
| SU002-00270 | ||||
| SU002-00277 | ||||
| SU002-00279 | ||||
| SU002-00317 | ||||
| SU002-00358 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 8401 | ||||
